Specifications
10mm (0.39″) super low-profile design.
New generation Xtreme optic for wide angle visual aesthetics.
Weatherproof and vibration resistant design for internal or external use.
Non-volatile memory recalls last flash pattern used at power up.
Multi-units synchronization in simultaneous or alternating flash.
Long life LED’s rated to 100,000 hours of operation.
Aluminium base for efficient heat dissipation.
Reverse polarity protection.Product Specifications

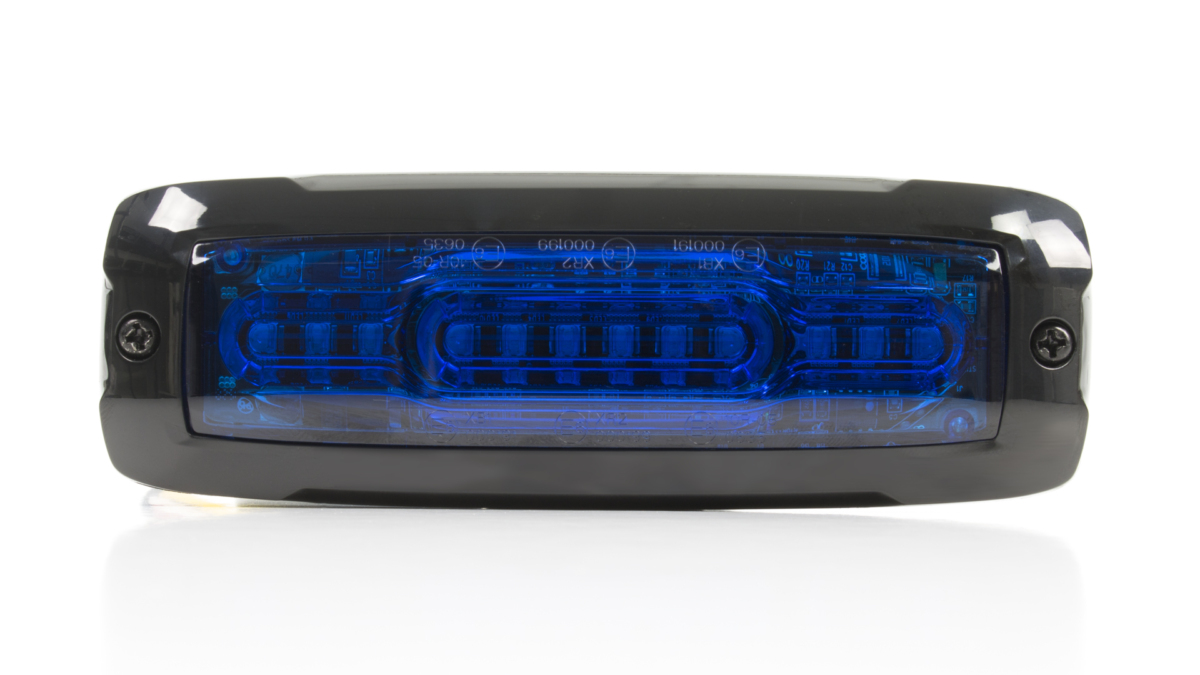

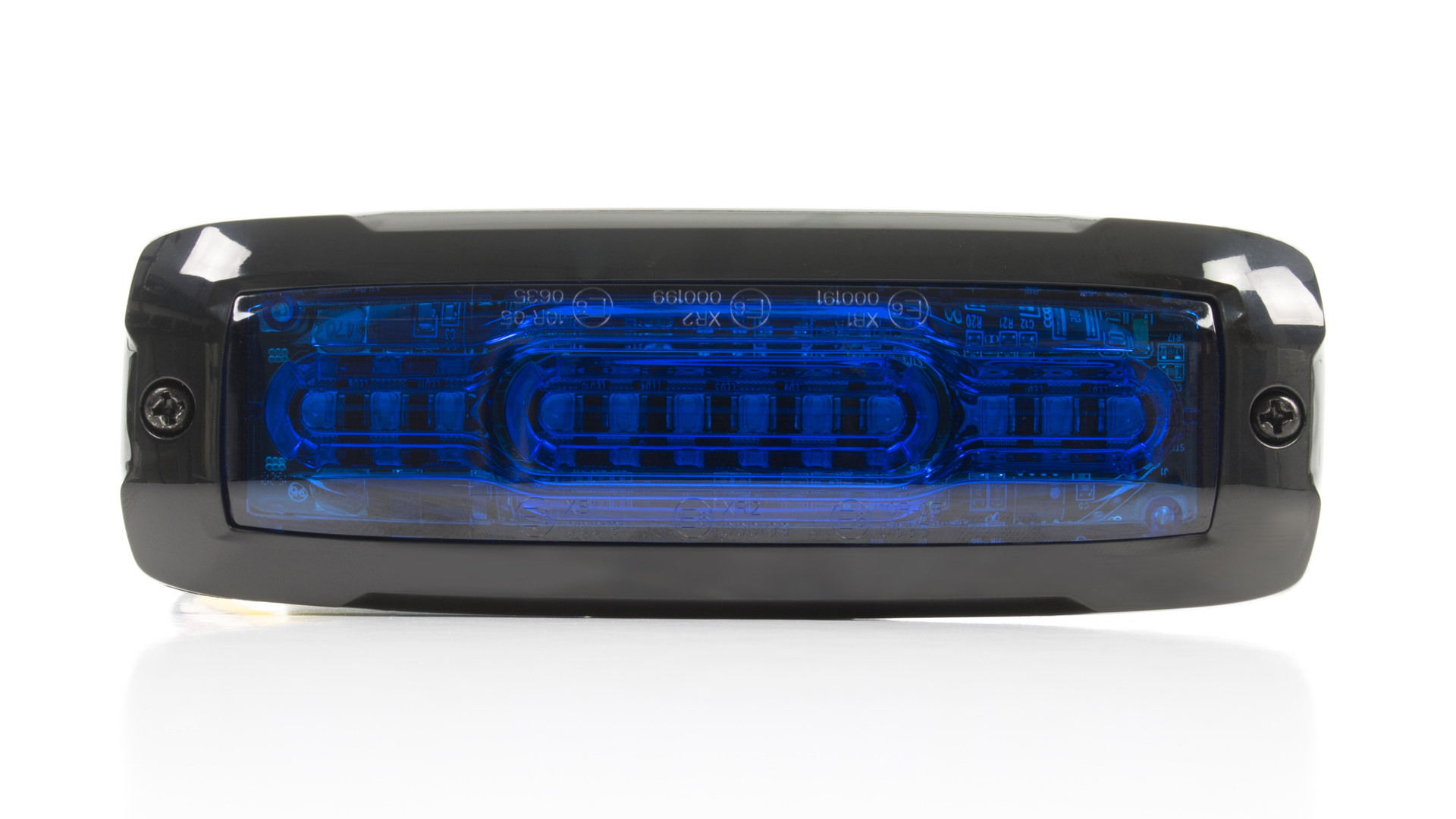

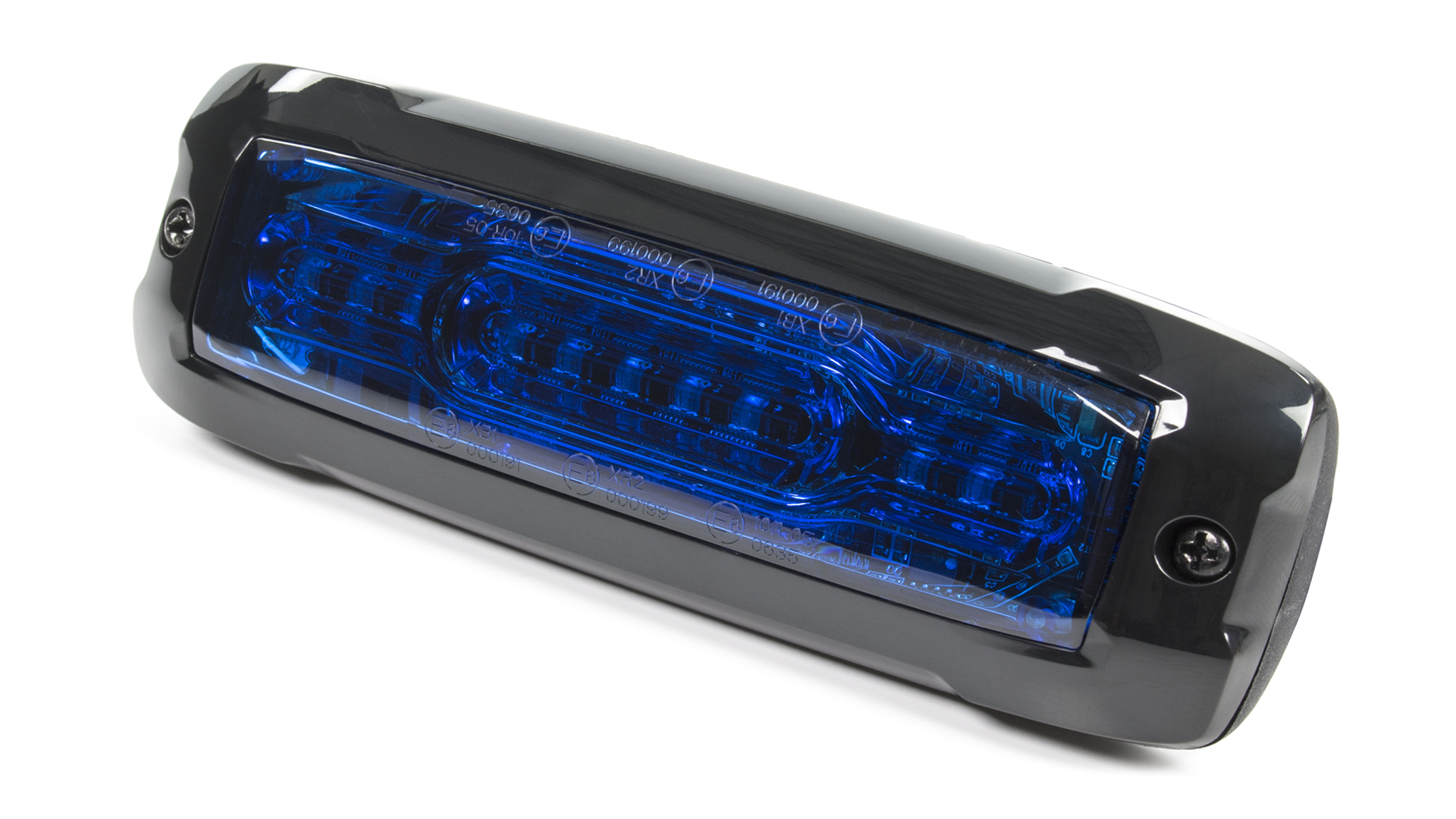

Product code 02120393 Product Name XT12 Warning Lighthead (Pedestal) - BB (Black Bezel) Categories Lighting, Directionals, XT12, Modules, Xtreme Thin Product Type Products Dimensions Length 133mm Dimensions Height 45mm Dimensions Width 39mm Bezel Colour Black Colour Type Single Colour Maximum Current 1.6A@12VDC / 0.8A@24VDC Maximum Power 19.2W Synchronisation 15 Unit Sync LED Colour Blue LEDs Fuse Rating 2A Lens Colour Blue Lens Compliance ECE-R10, ECE-R65 (XB1), SAE J595 Class 1, California Title 13 Input Voltage 12VDC~24VDC Optic Type Xtreme Optics Mounting Option Pedestal Mount Cable Type Cable (Pigtail) LED Quantity 12x LEDs IP Rating IPX8 Flash Patterns 16 Flash Patterns Wire Length 265mm Mounting Orientation Horizontal Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
