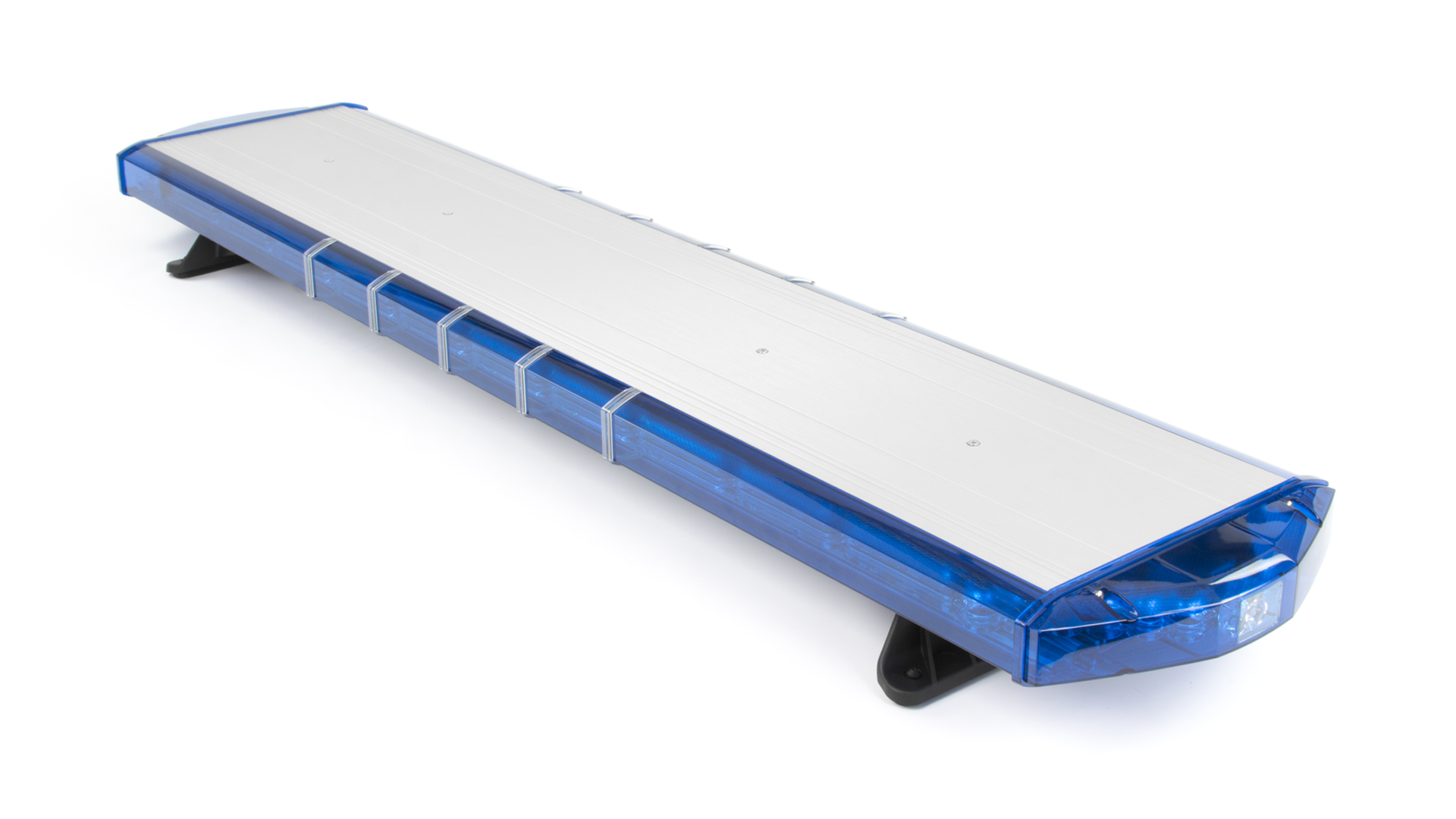

Torrent Lightbar, 1492mm (58.5″), 48LED, BLUE LEDs, BLUE LENSES (LONG), ECE R10, ECE R65 (TB2), IPX4K, D-Fuser Optics, 12 Flash Patterns, Double Harness (16 Function/4 Power), Standard Feet, 24VDC.
-
Specifications
Integrated take-down light and alley light options.
Solid aluminium body for best durability and heat dissipation.
Programmable flash patterns with optional traffic arrow and stop/tail/turn function.
Reverse polarity protection.
ECE R10 EMC Compliance.Product Specifications
Product code 06150716 Product Name Torrent 1492mm (58.5") - BB (Long Lens/24VDC) Categories Lighting, Lightbars, Torrent Single Colour, Torrent Product Type Products Configurations (available) Cruise Light, Alley Lights, Take-Downs, Traffic Director, Stop / Tail / Turn, Illuminated Centre, Steady On Default Functions Traffic Director - Rear Left Arrow., Take-Down Lights (2 heads, Traffic Director - Rear Right Arrow., Hi/Low Power (50%), Right-Side Alley Light, Left-Side Alley Light, Illuminated Centre Section, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Program Mode, Control Box Transmission Line, Stop / Tail / Turn, Cruise Light Mode, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 67mm Dimensions Width 317mm Colour Type Single Colour Maximum Current 12.7A@25.6VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Lightbar Length 1492mm (58.5") LED Colour Blue LEDs Fuse Rating 20A Lens Colour Blue Lens Compliance ECE R10, ECE R65 - TB2, SAE J845 Class 1, California Title 13 Optic Type D-Fuser Optics Nominal Voltage 24VDC Mounting Option Standard Bolt Mount Brackets Cable Type Double Harness (16 Function/4 Power) LED Quantity 48x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 14 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Dummy Bracket Qty 20x Dummy Plates Warranty 5 Year Warranty -
Spare Parts
-
-
Mounting
-
- Downloads
