EAN: 06150983

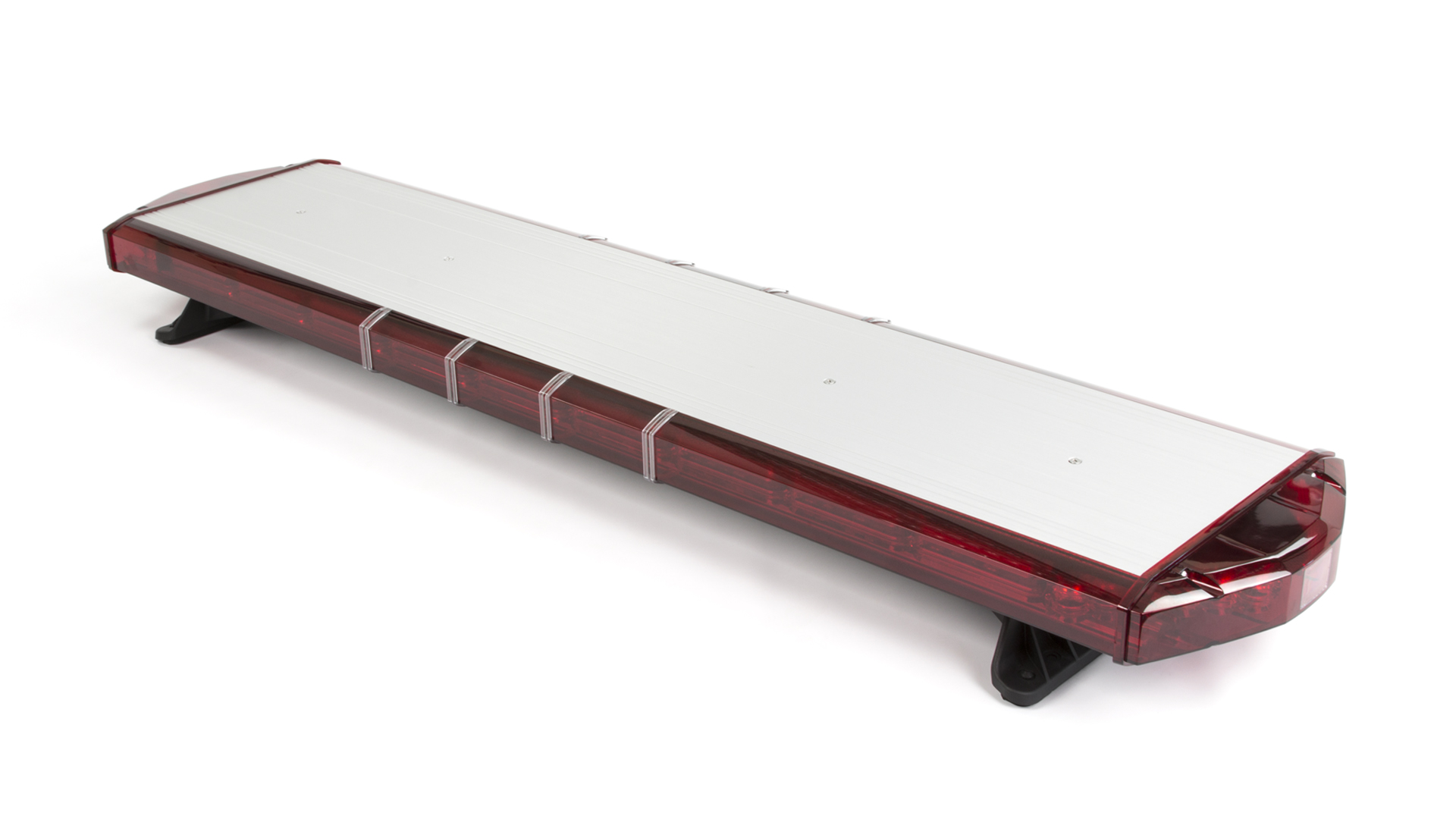

Torrent Lightbar, 1372mm (54″), 48x RED LEDs, RED LENSES (LONG), ECE R10, IPX4K, D-Fuser Optics, 12 Flash Patterns, 2 Cable Harness (16 Function/4 Power), Standard Feet, 12VDC.
-
Specifications
Integrated take-down light and alley light options.
Solid aluminium body for best durability and heat dissipation.
Programmable flash patterns with optional traffic arrow and stop/tail/turn function.
Reverse polarity protection.
ECE R10 EMC Compliance.Product Specifications
Product code 06150983 Product Name Torrent 1372mm (54") - RR (Long Lens/12VDC) Categories Warning Lamps, Torrent Single Colour, Lightbars, Torrent Product Type Products Configurations (available Stop / Tail / Turn, Illuminated Centre, Steady On, Cruise Light, Alley Lights, Take-Downs, Traffic Director Default Functions Traffic Director - Rear Right Arrow., Right-Side Alley Light, Left-Side Alley Light, Illuminated Centre Section, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Program Mode, Take-Down Lights (2 heads, Hi/Low Power (50%, Traffic Director - Rear Left Arrow., Stop / Tail / Turn, Control Box Transmission Line, Cruise Light Mode, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 67mm (2.6") Dimensions Width 317mm (12.4") Colour Type Single Colour Maximum Current 25.6A@12.8VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Lightbar Length 1372mm (54") LED Colour Red LEDs Fuse Rating 40A Lens Colour Red Lens Compliance ECE-R10, SAE J845 Class 1, CA13 Input Voltage 12VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type 2 Cable Harness (16 Function/4 Power) LED Quantity 48x LEDs Lighthead Quantity 4x Lightheads Flash Patterns 14 Flash Patterns IP Rating IPX4K Traffic Arrow Patterns 11 Traffic Arrow Gross Weight 16.4kg Dummy Bracket Qty 18x Dummy Plates Warranty 5 Year Warranty -
Spare Parts
-
- Alley
- Single Colour
- 2 Pin Connector
- White LEDs
- Spot Optics
-
- Warning
- Single Colour
- 3 Pin Connector
- Red LEDs
- Clear Lens
-
-
-
-
-
-
-
- Warning
- Single Colour
- 3 Pin Connector
- Red LEDs
- Clear Lens
-
-
Mounting
-
- Powder-Coated Aluminium
- Low Profile Flat Wide Feet
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
- Black
-
- Powder-Coated Aluminium
- MS3 - Extrusion Bracket
- Black
-
- Powder-Coated Aluminium
- MS3 - A006 Mounting Bracket
- Black
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable A006)
- Black
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable Bolt)
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Wide Feet
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
- Black
-
- Powder-Coated Aluminium
- Standard Bolt Mount Brackets
- Black
-
