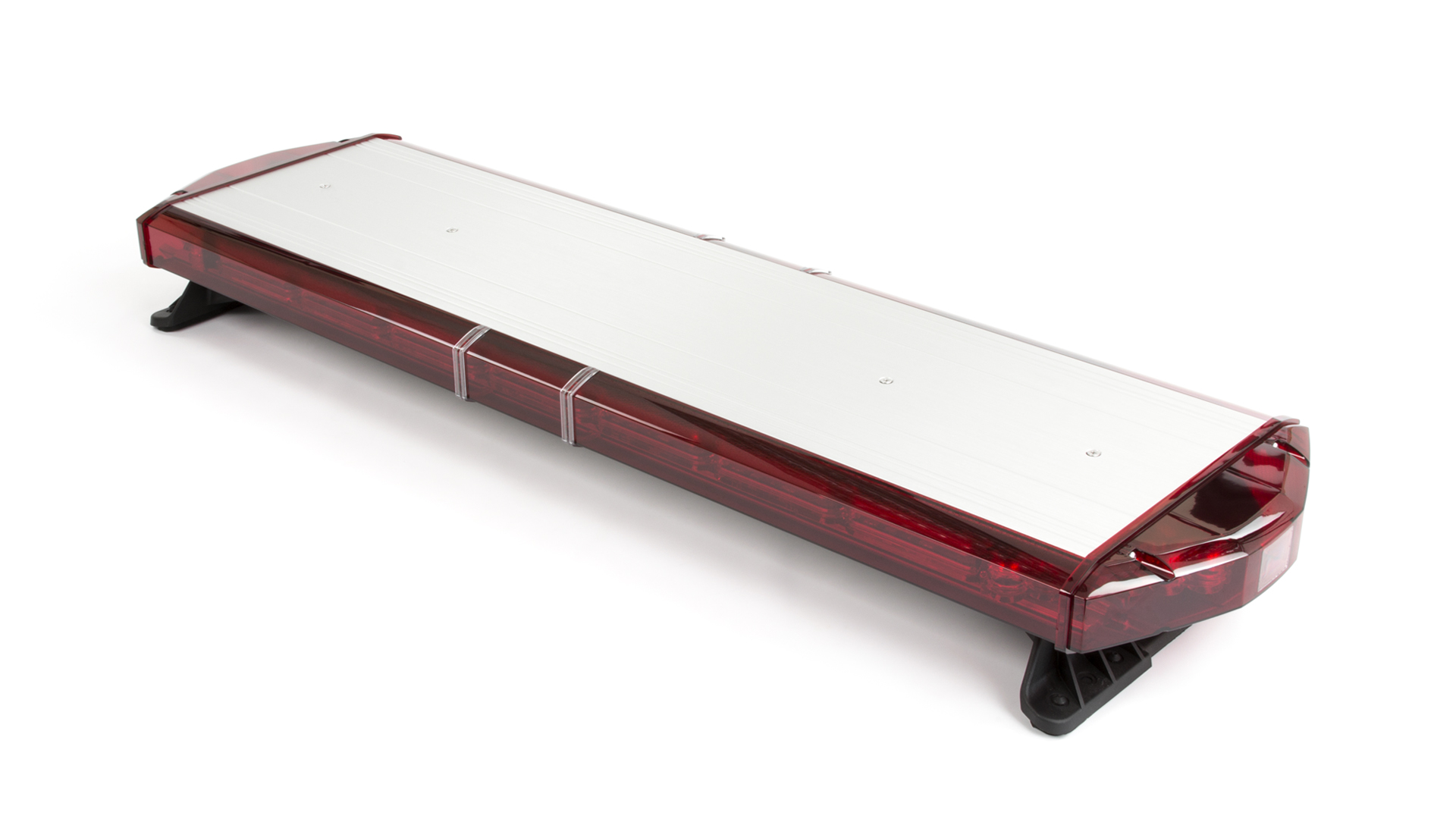

Torrent Lightbar, 1132mm (44.6″), 48x RED LEDs, RED LENSES (LONG), ECE R10, IPX4K, D-Fuser Optics, 12 Flash Patterns, Double Harness (16 Function/4 Power), Standard Feet, 24VDC.
-
Specifications
Integrated take-down light and alley light options.
Solid aluminium body for best durability and heat dissipation.
Programmable flash patterns with optional traffic arrow and stop/tail/turn function.
Reverse polarity protection.
ECE R10 EMC Compliance.Product Specifications
Product code 06151140 Product Name Torrent 1132mm (44.6") - RR (Long Lens/24VDC) Categories Warning Lamps, Torrent Single Colour, Lightbars, Torrent Product Type Products Configurations (available Take-Downs, Traffic Director, Stop / Tail / Turn, Illuminated Centre, Steady On, Cruise Light, Alley Lights Default Functions Hi/Low Power (50%, Traffic Director - Rear Right Arrow., Right-Side Alley Light, Left-Side Alley Light, Illuminated Centre Section, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Program Mode, Take-Down Lights (2 heads, Traffic Director - Rear Left Arrow., Stop / Tail / Turn, Control Box Transmission Line, Cruise Light Mode, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 67mm Dimensions Width 317mm Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 10.8A@25.6VDC Operating Temperature -30°C~+65°C Lightbar Length 1132mm (44.6") LED Colour Red LEDs Fuse Rating 20A Lens Colour Red Lens Compliance ECE-R10, SAE J845 Class 1, California Title 13 Input Voltage 24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type Double Harness (16 Function/4 Power) LED Quantity 48x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 14 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Dummy Bracket Qty 14x Dummy Plates Warranty 5 Year Warranty -
