Specifications

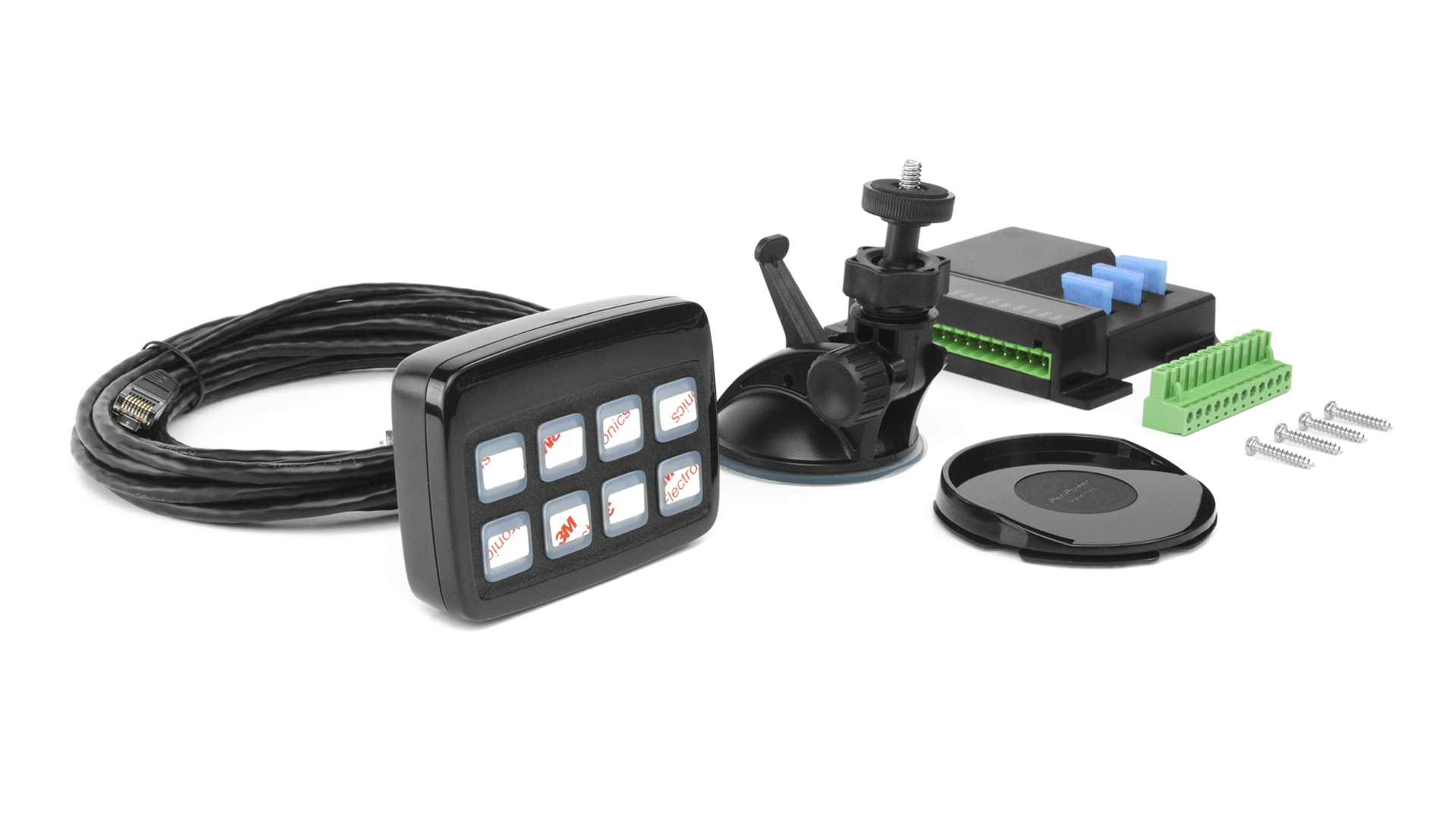

8 switch control panel with 3 x 10Amp and 5 x 0.2Amp outputs for auxiliary device power or function activation.
3 button / 4 button mutually exclusive control grouping for traffic arrow application.
Fully programable buttons in ON/OFF or momentary switch mode.
10 LED signal indicator for your lightbar or traffic director.
35 selectable icon stickers to clearly label your panel.
European Siren Interlock compatible.
Backlit rubber touch buttons.Product Specifications

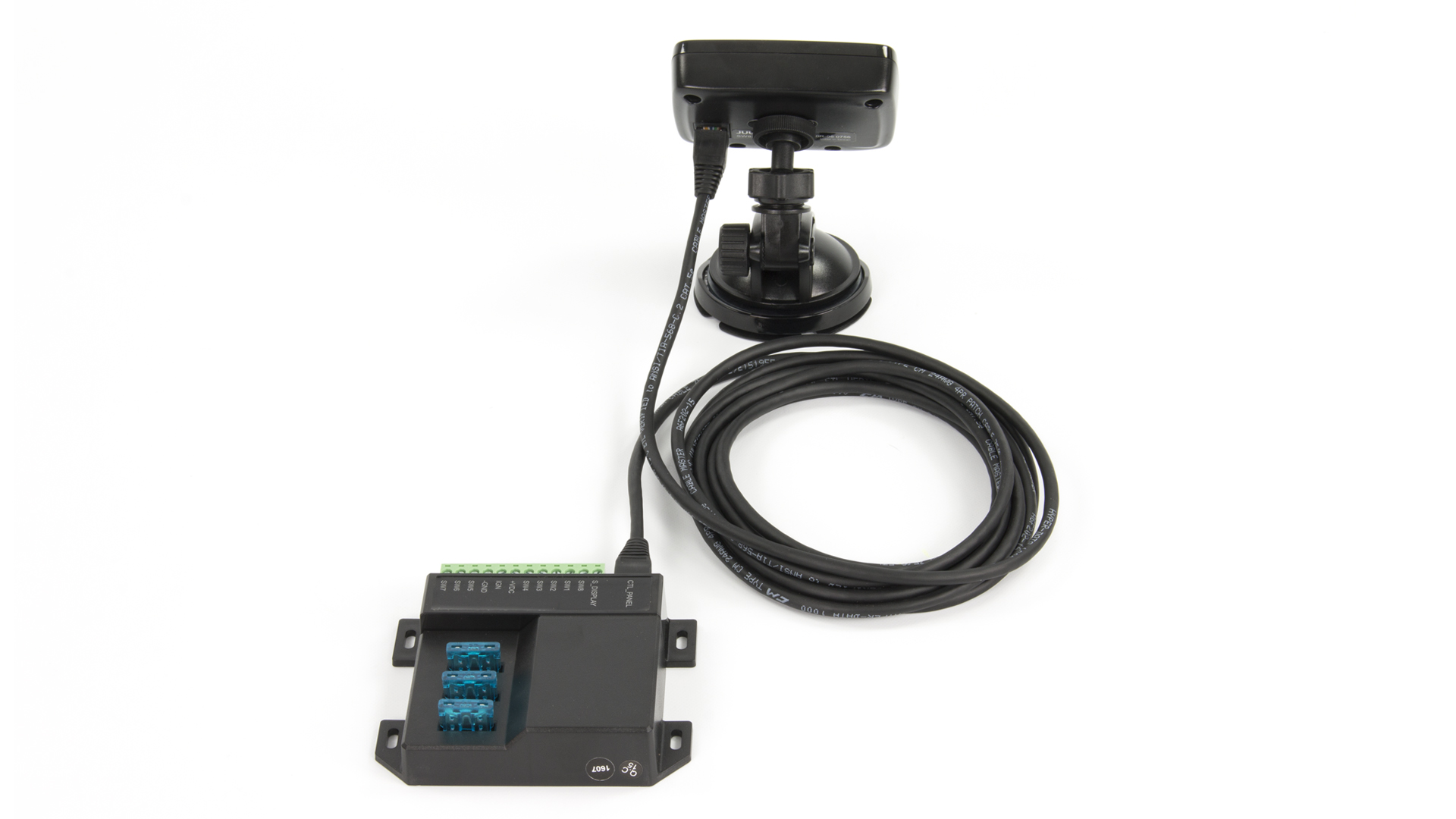

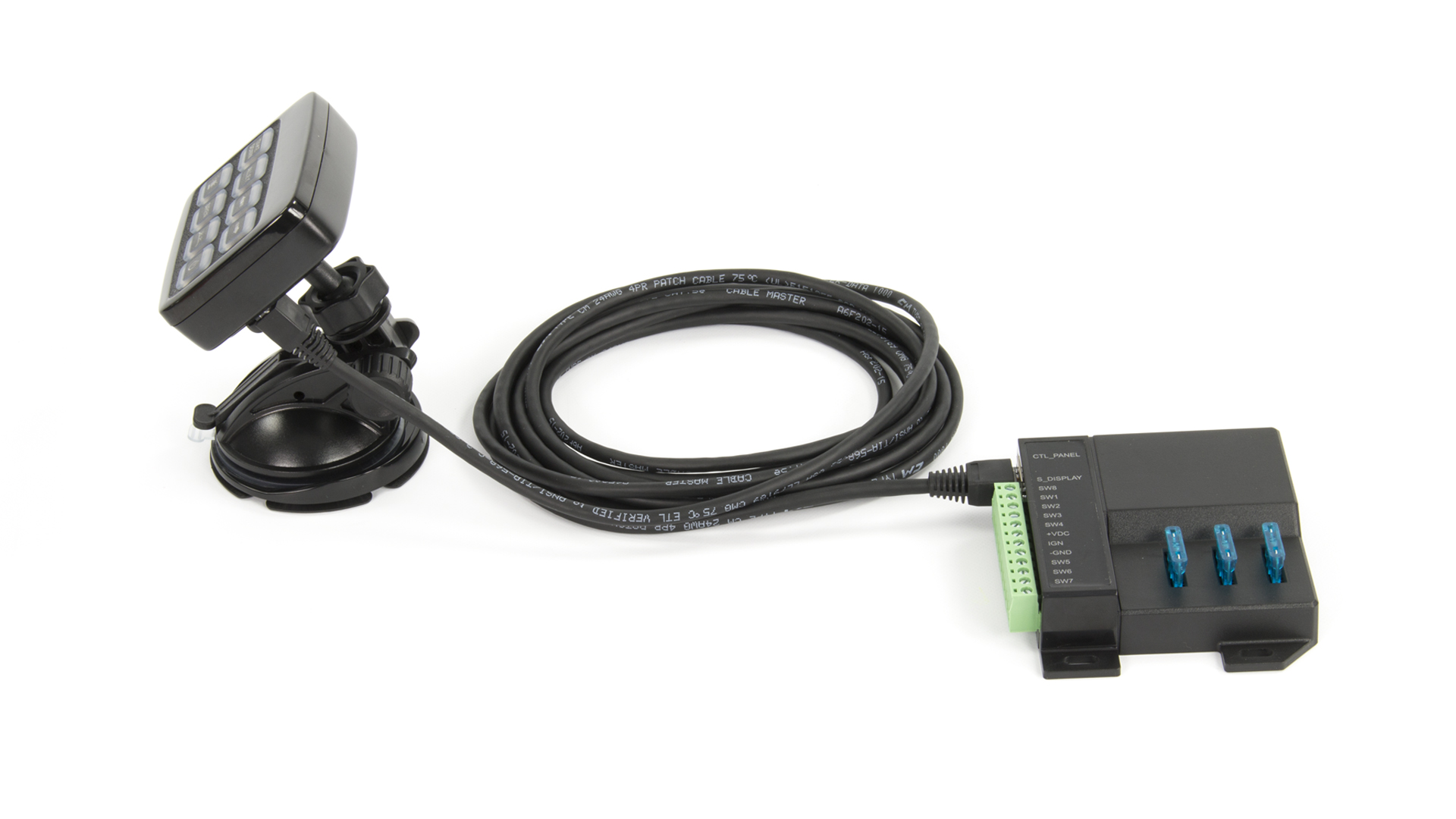

Product code 12060016 Product Name SW830 Control Panel & Power Module (Suction Mount) Categories Electronic Equipment, SW830 Control Panel & Power Module, Control Systems Product Type Products Dimensions Length Control Panel: 95mm (3.74") / Power Module: 112mm (4.4") Dimensions Width Control Panel: 25.5mm (1.0") / Power Module: 90mm (3.5") Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Switch Current max 0.2A x 5 ports / max 10A x 3 ports, max 32A / min 0.01A Fuse Rating 35A Compliance ECE-R10 Input Voltage 12VDC~24VDC Mounting Option Suction Mount Cable Type Cable (Straight) Wire Length 4000mm Warranty 2 Year Warranty Indicator LEDs LED Indicators x10 - Downloads
