Specifications
Self-contained; no external flasher required.
Multi-units synchronization in simultaneous or alternating flash.

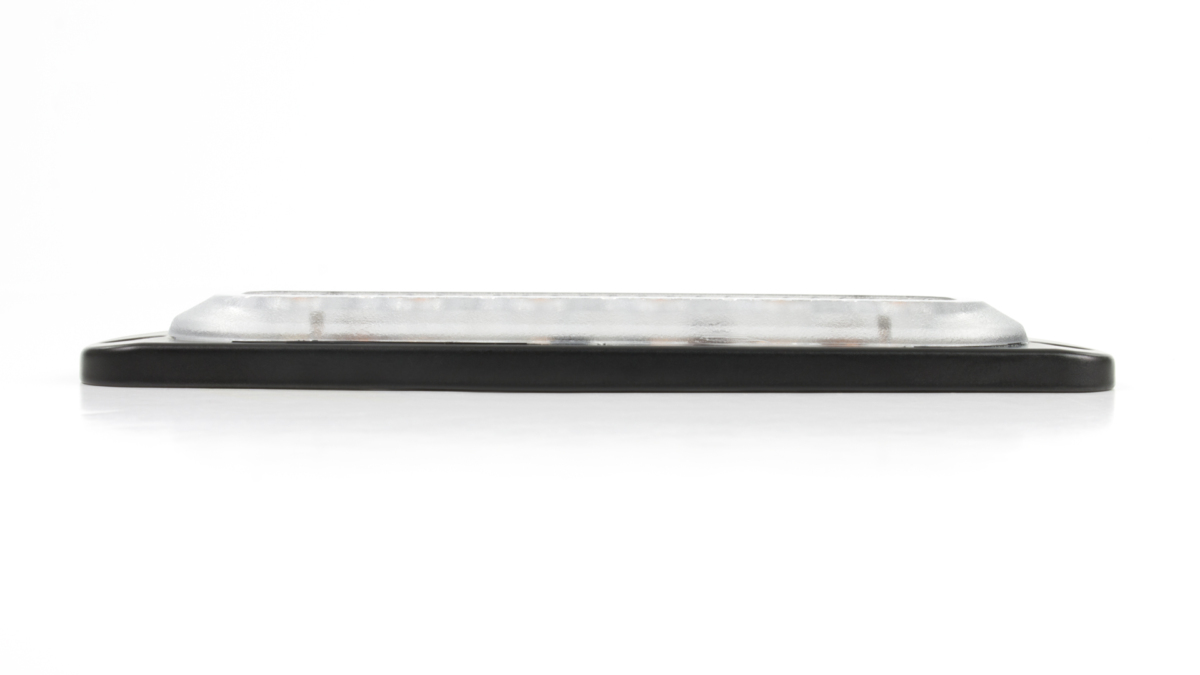

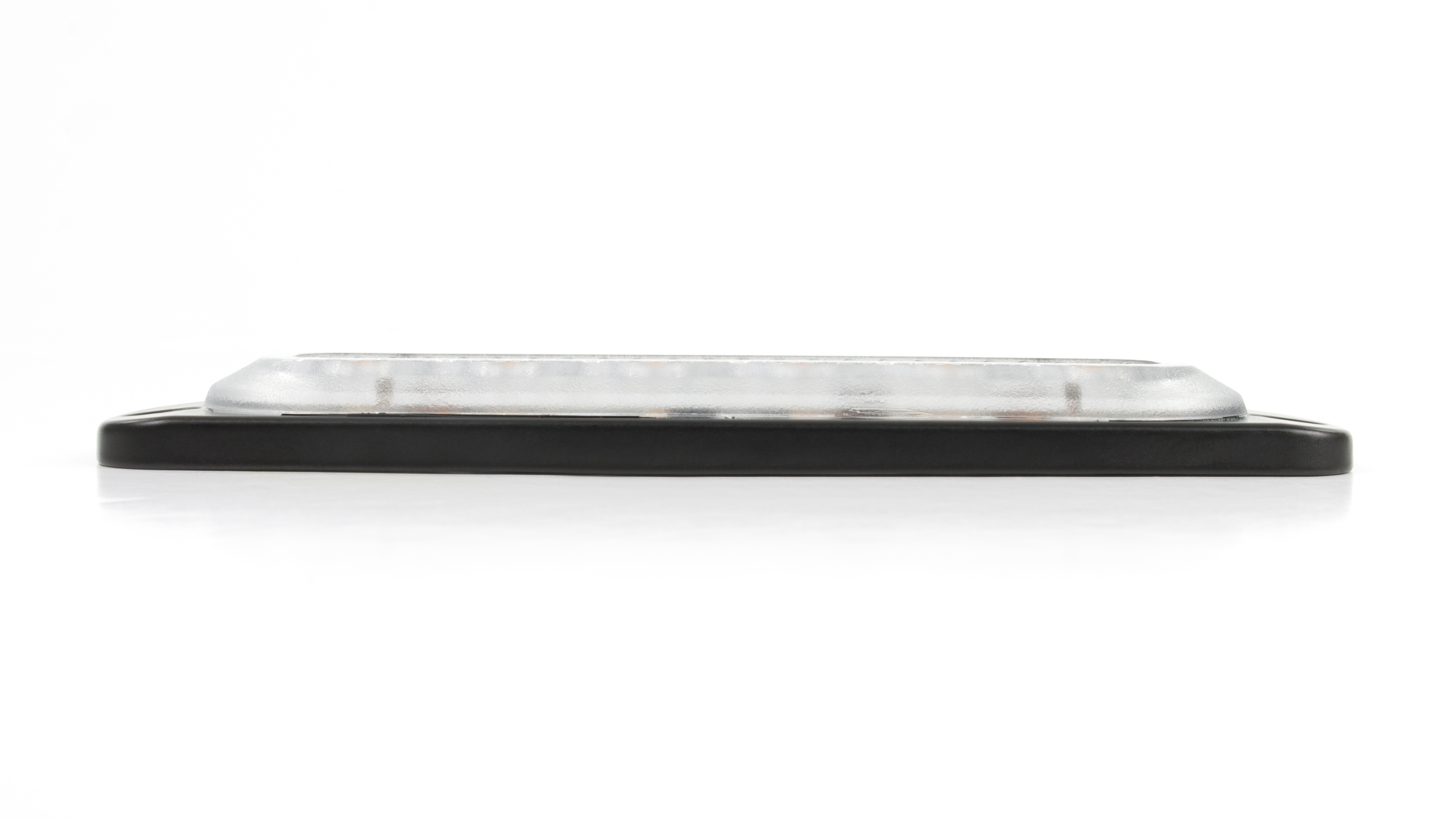

0.35″ (9mm) Super low-profile optic with ECE R65 and SAE Class 1 certified output.
Fully weatherproof and vibration resistant design for external or internal use.
Multi-memories design for instant switch between selected flash pattern and/or colours.
Solid aluminium housing for efficient heat dissipation and maximum durability.
Non-volatile memory recalls last flash pattern used at power up.
Reverse polarity protection.Product Specifications

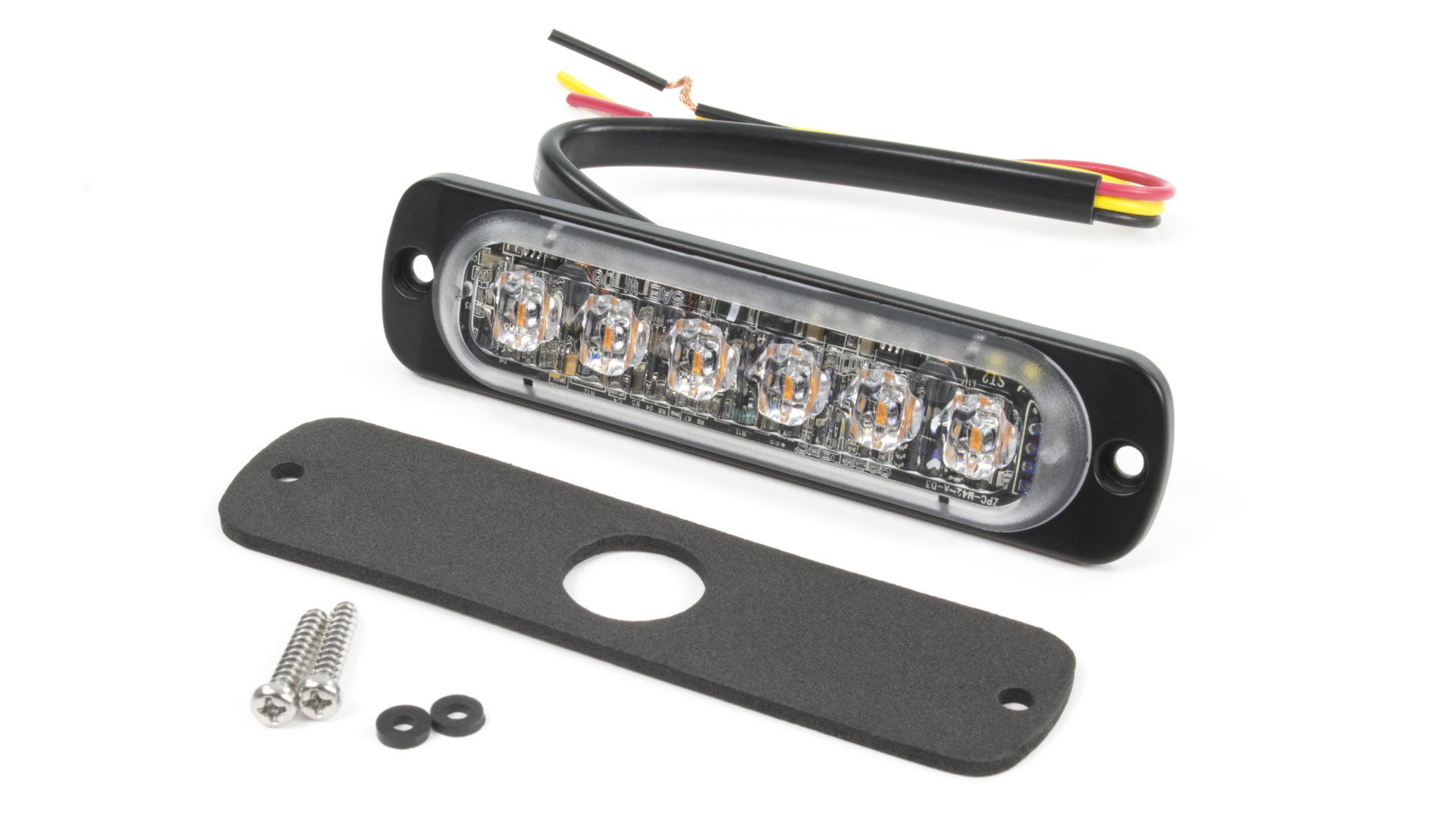

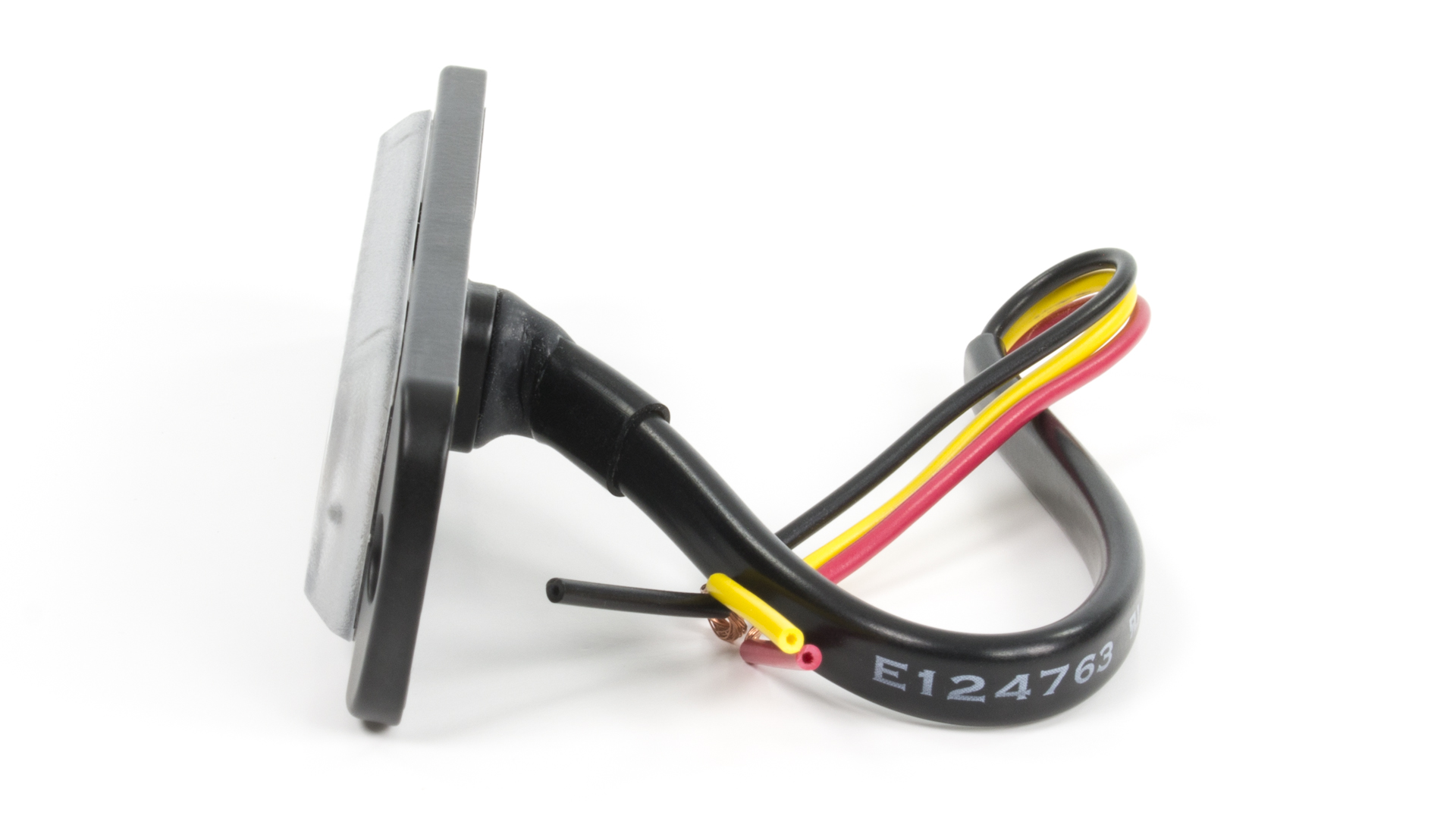

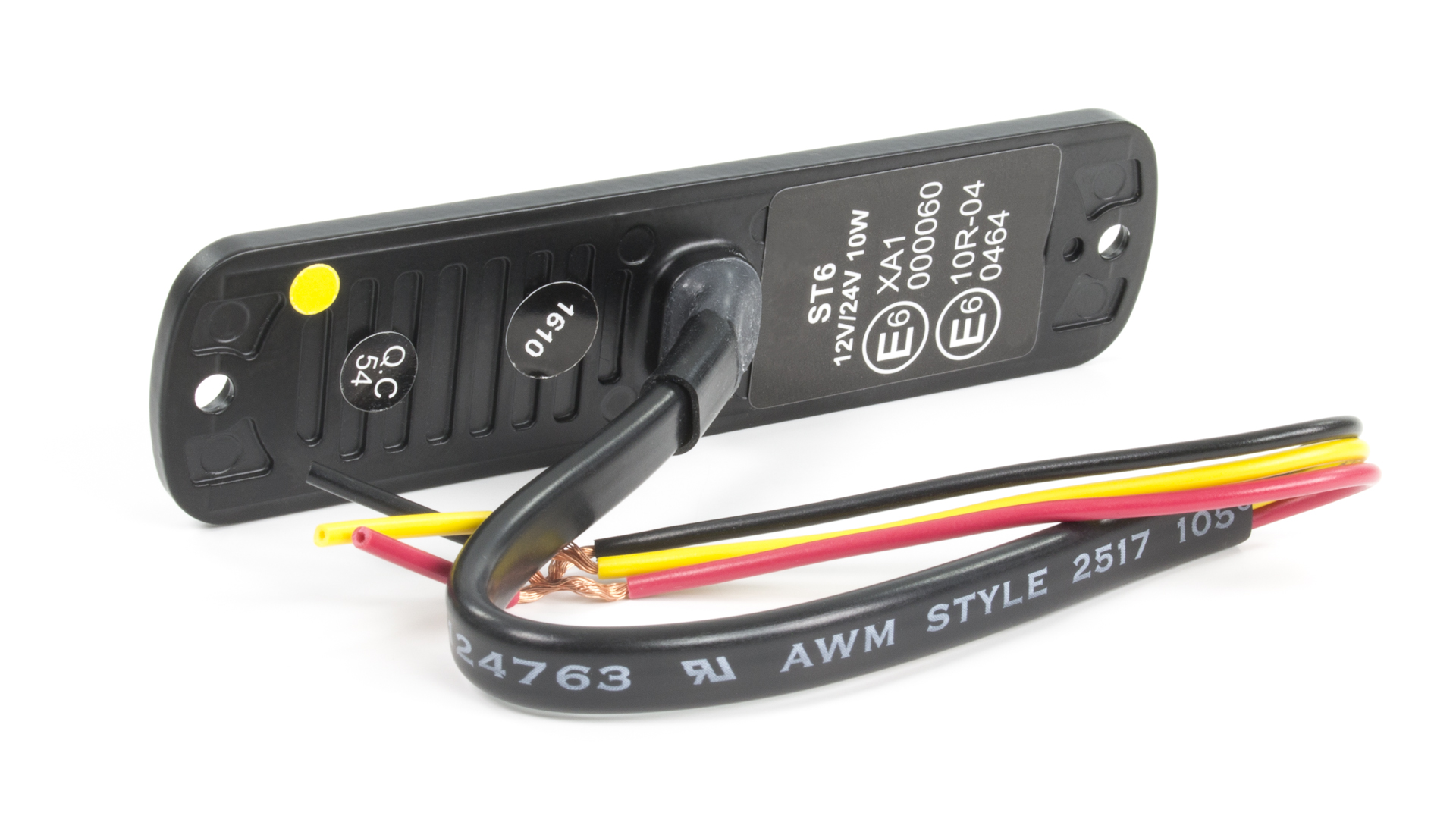

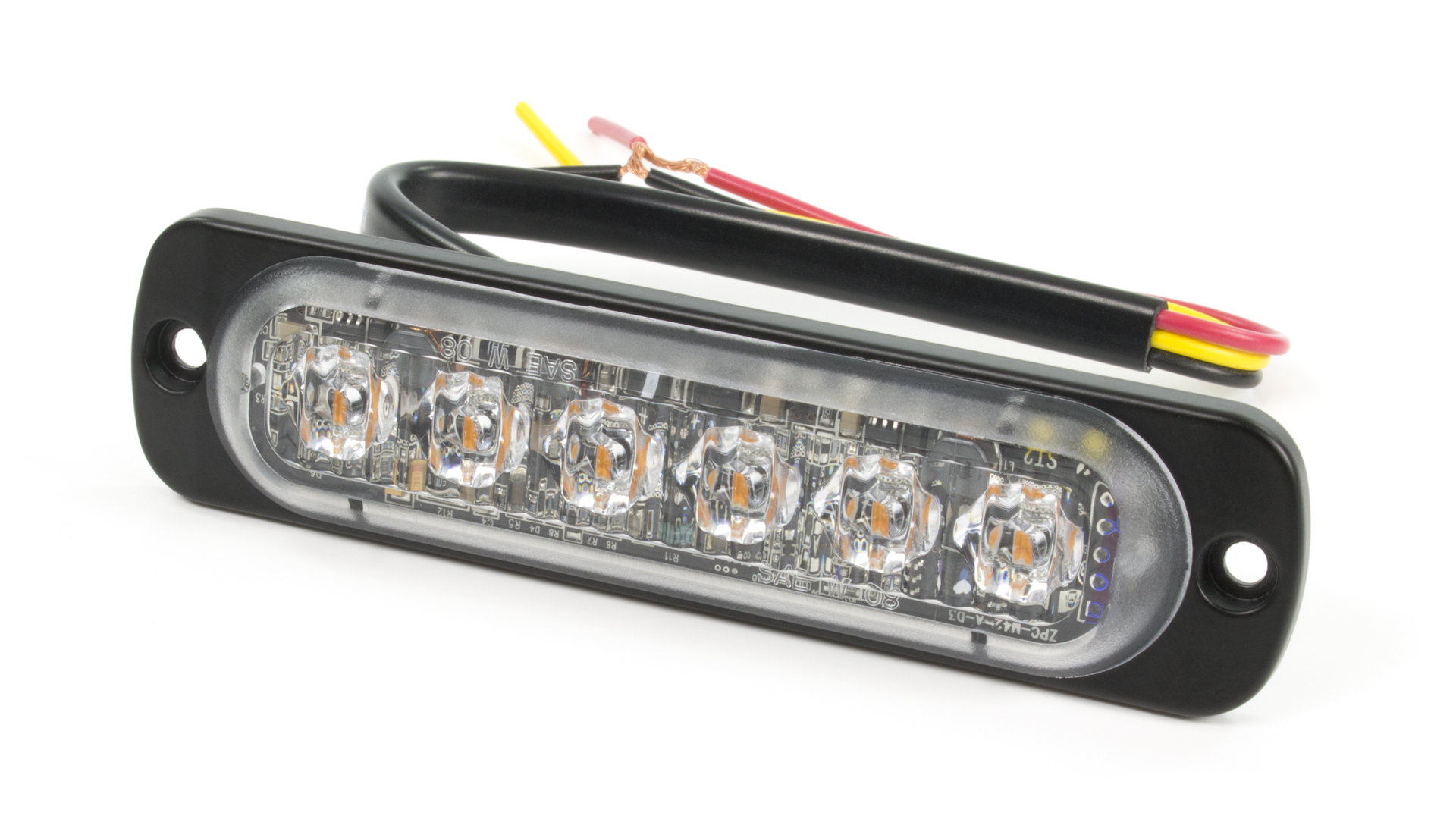

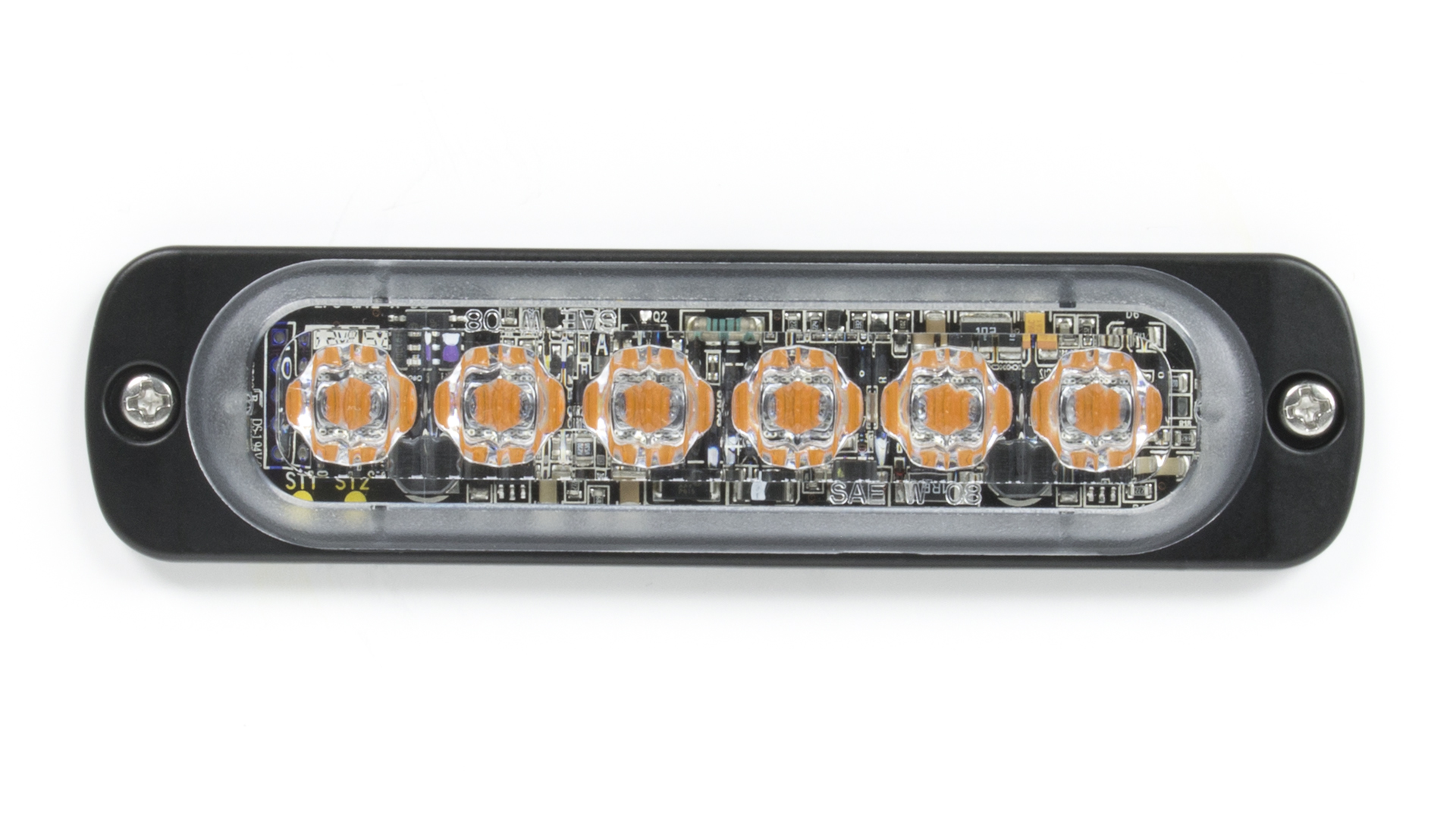

Product code 02160054 Product Name ST6 R65 Class 1 (Horizontal) - Amber Categories Lighting, Super Thin, Directionals, ST6, Modules Product Type Products Dimensions Length 113mm Dimensions Height 28mm Dimensions Width 9mm Bezel Colour Black Colour Type Single Colour Maximum Current 1A@12VDC / 0.5A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 10W Synchronisation 15 Unit Sync LED Colour Amber LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - XA1, SAE J595 Class 1 Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 6x LEDs IP Rating IPX7 Flash Patterns 23 Flash Patterns Wire Length 250mm Mounting Orientation Horizontal Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -

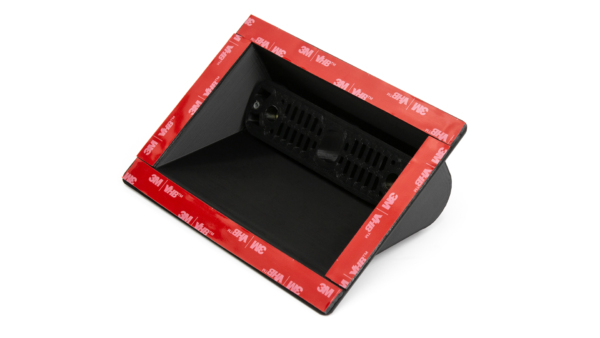

Spare Parts
-
-

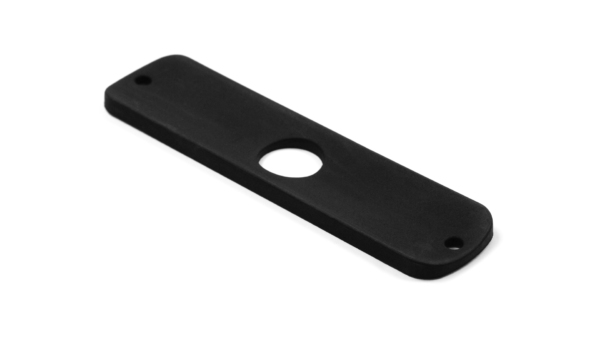

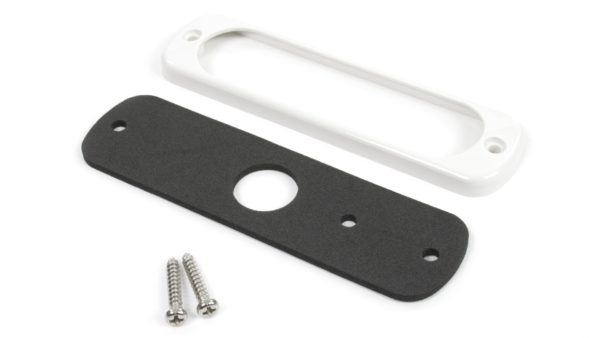

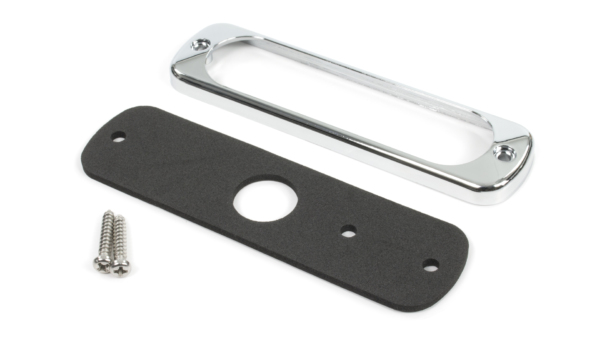

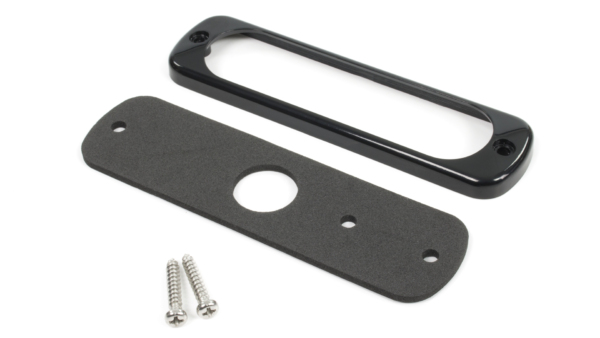

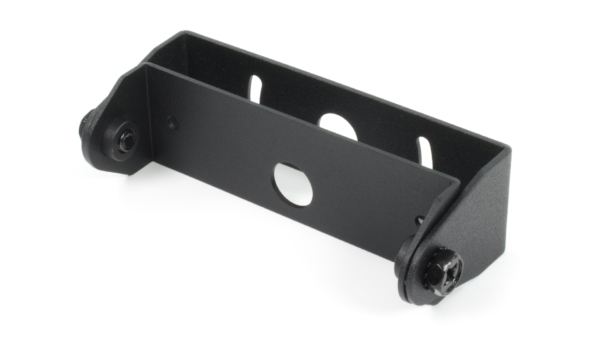

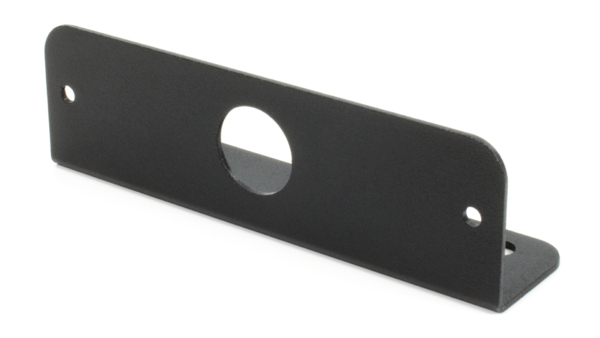

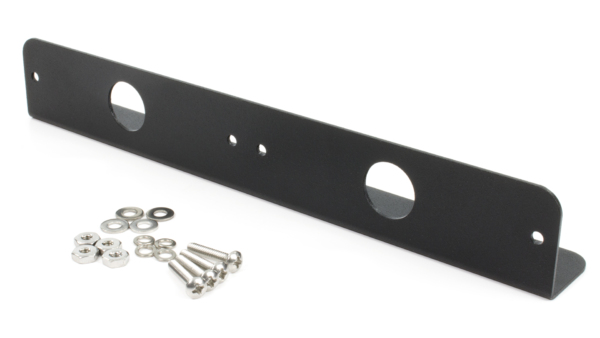

Mounting
-
- Downloads
