Specifications
Self-contained; no external flasher required.
Multi-units synchronization in simultaneous or alternating flash.
Non-volatile memory recalls last flash pattern used at power up.
Fully weatherproof and vibration resistant design for external or internal use.

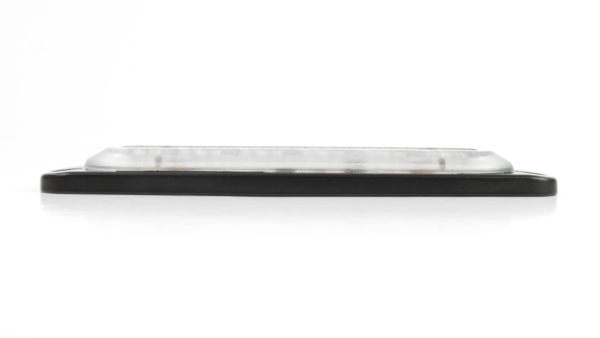

0.35″ (9mm) Super low-profile optic with ECE R65 and SAE Class 1 certified output.
Multi-memories design for instant switch between selected flash pattern and/or colours.
Solid aluminium housing for efficient heat dissipation and maximum durability.
Reverse polarity and load dump protection.Product Specifications
Product code 02160412 Product Name ST6 DC (Horizontal) - Blue/Amber Categories Lighting, Super Thin, Directionals, ST6, Modules Product Type Products Dimensions Length 113mm Dimensions Height 28mm Dimensions Width 9mm Colour Type Dual Colour Maximum Current 0.87A@12VDC / 0.44A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 10.4W Synchronisation 15 Unit Sync LED Colour Blue/Amber Fuse Rating 1A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - XA1, ECE R65 - XB1, CISPR25, SAE J595 Class 1 Optic Type T.I.R Optics Nominal Voltage 12-24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 12x LEDs IP Rating IPX7 Flash Patterns 28 Flash Patterns Wire Length 250mm Mounting Orientation Horizontal Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
