Specifications
Product Specifications

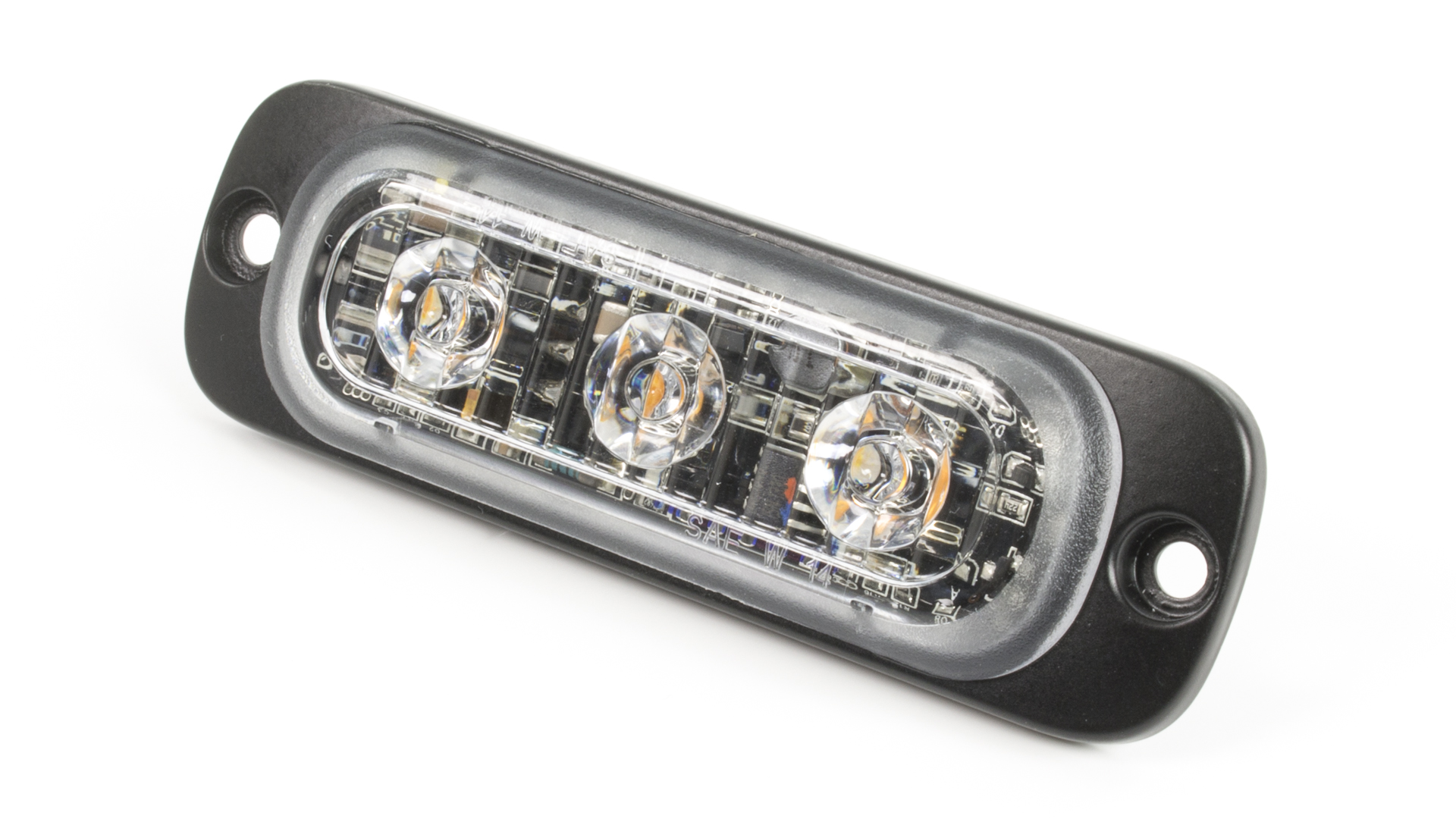

Product code 02160641 Product Name ST3 Warning Lighthead - Blue (Non-R65) Categories Lighting, Super Thin, Directionals, ST3, Modules Product Type Products Dimensions Length 86mm Dimensions Height 27mm Dimensions Width 11mm Colour Type Single Colour Maximum Current 0.48A@2VDC / 0.24A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Synchronisation 15 Unit Sync LED Colour Blue LEDs Fuse Rating 1A Lens Colour Clear Lens Compliance SAE J595 Class 1, California Title 13 Optic Type T.I.R Optics Nominal Voltage 12-24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 3x LEDs IP Rating IPX8 Flash Patterns 12 Flash Patterns Wire Length 265mm Mounting Orientation Horizontal Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
