Specifications
Non-volatile memory recalls last flash pattern used at power up.
Multiple units are synchronizable and can flash simultaneously or alternately.
Weatherproof and vibration resistant design for external or internal use.
LEDs rated to 100,000 hours of operation.
Aluminium base for heat dissipation.
Reverse polarity protection.Product Specifications
Product code 02150017 Product Name SQ4 Warning Lighthead - Amber (U-Bracket) Categories Lighting, Directionals, Modules, SQ4 Product Type Products Dimensions Length 85mm Dimensions Height 72mm Dimensions Width 28mm Colour Type Single Colour Maximum Current 0.64A@12VDC / 0.32A@24VDC Maximum Power 7.7W LED Colour Amber LEDs Fuse Rating 1A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - XA1 Input Voltage 12VDC~24VDC Mounting Option U-Bracket Cable Type Cable (Pigtail) LED Quantity 4x LEDs Flash Patterns 5 Flash Patterns IP Rating IP67 Wire Length 1200mm Warranty 5 Year Warranty -

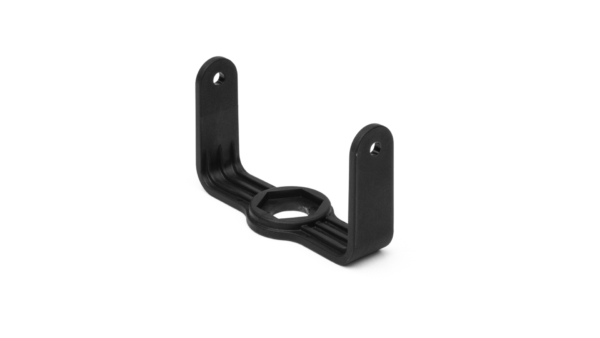

Mounting
-
