Specifications
Compact and simple design wherever you need illumination.
Over 1400 Lumen output; Luminous intensity ≧ 660 Lux at 1 meter.
Die-cast aluminium base for efficient heat dissipation and high LED durability.
Weatherproof and vibration resistant design for internal or external use.
Available in black, white, chrome, red or yellow bezel.
Certified ECE R10 and CISPR 25.
Reverse polarity protection.Product Specifications

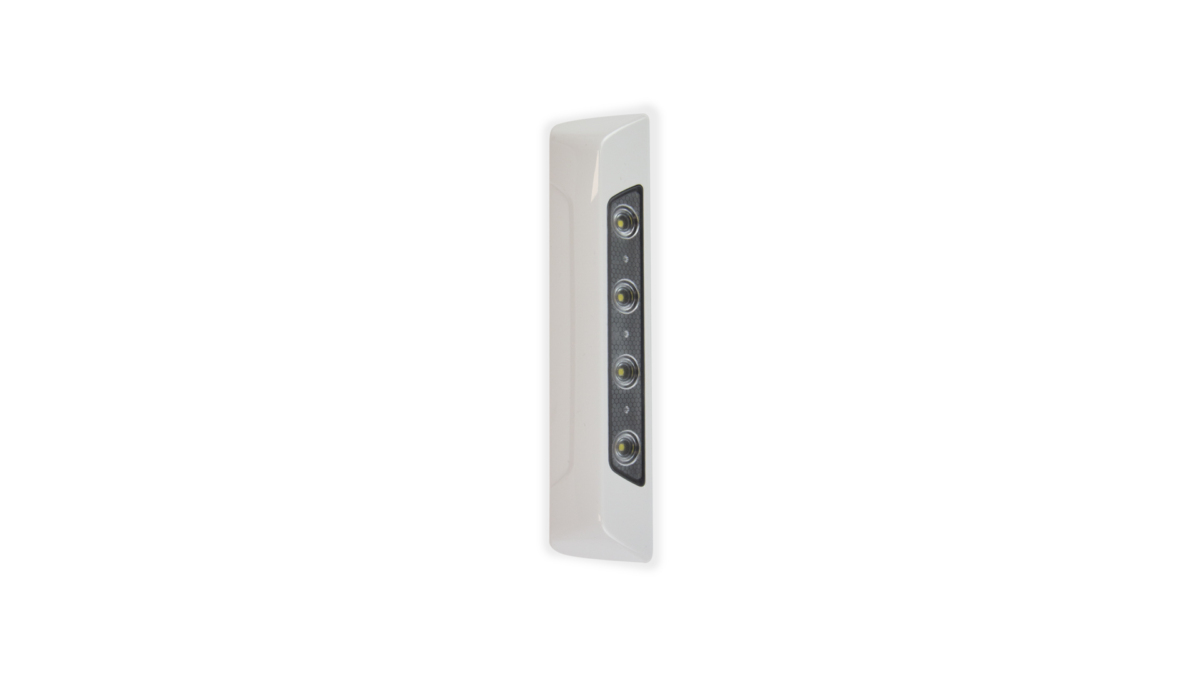

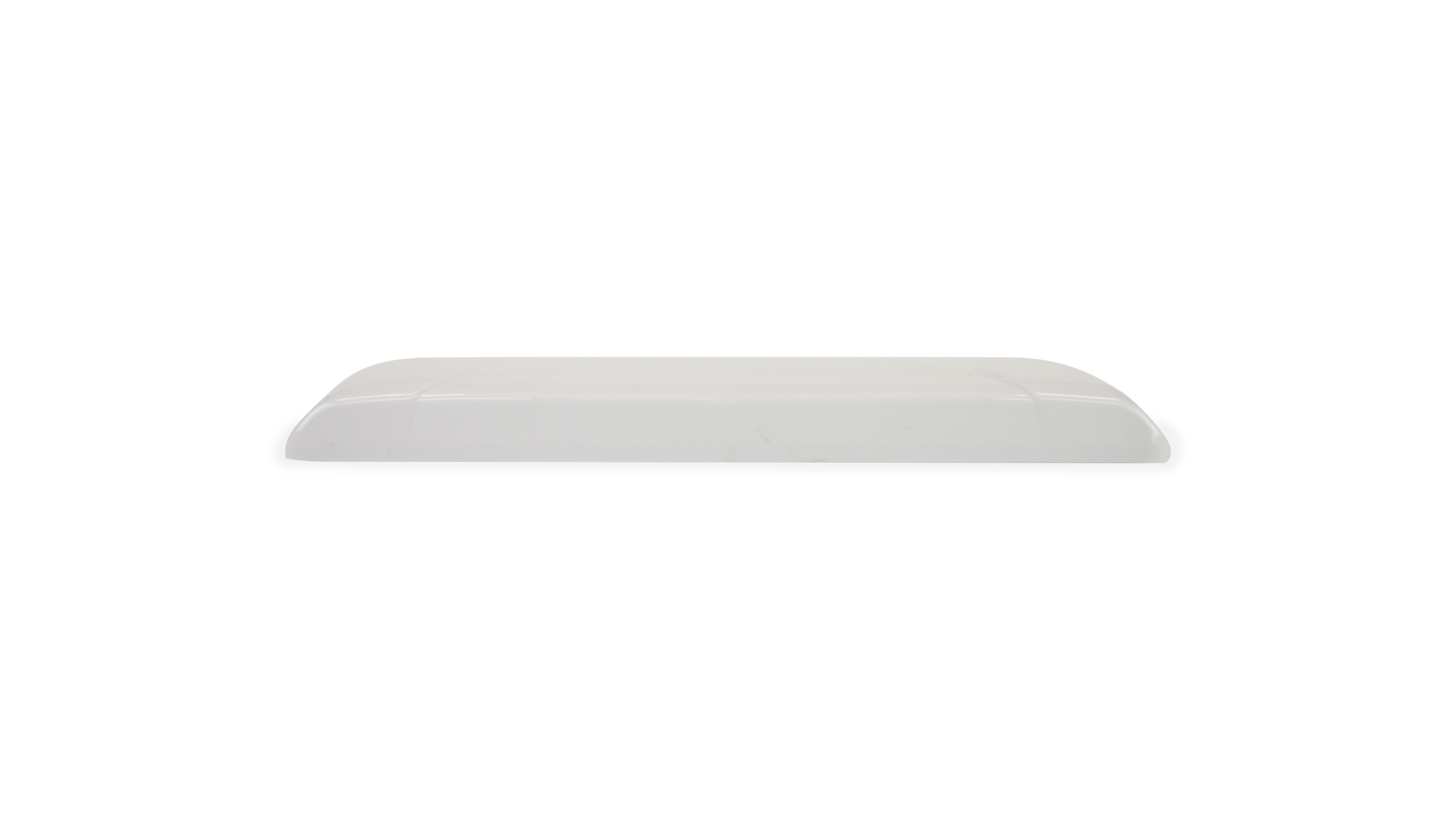

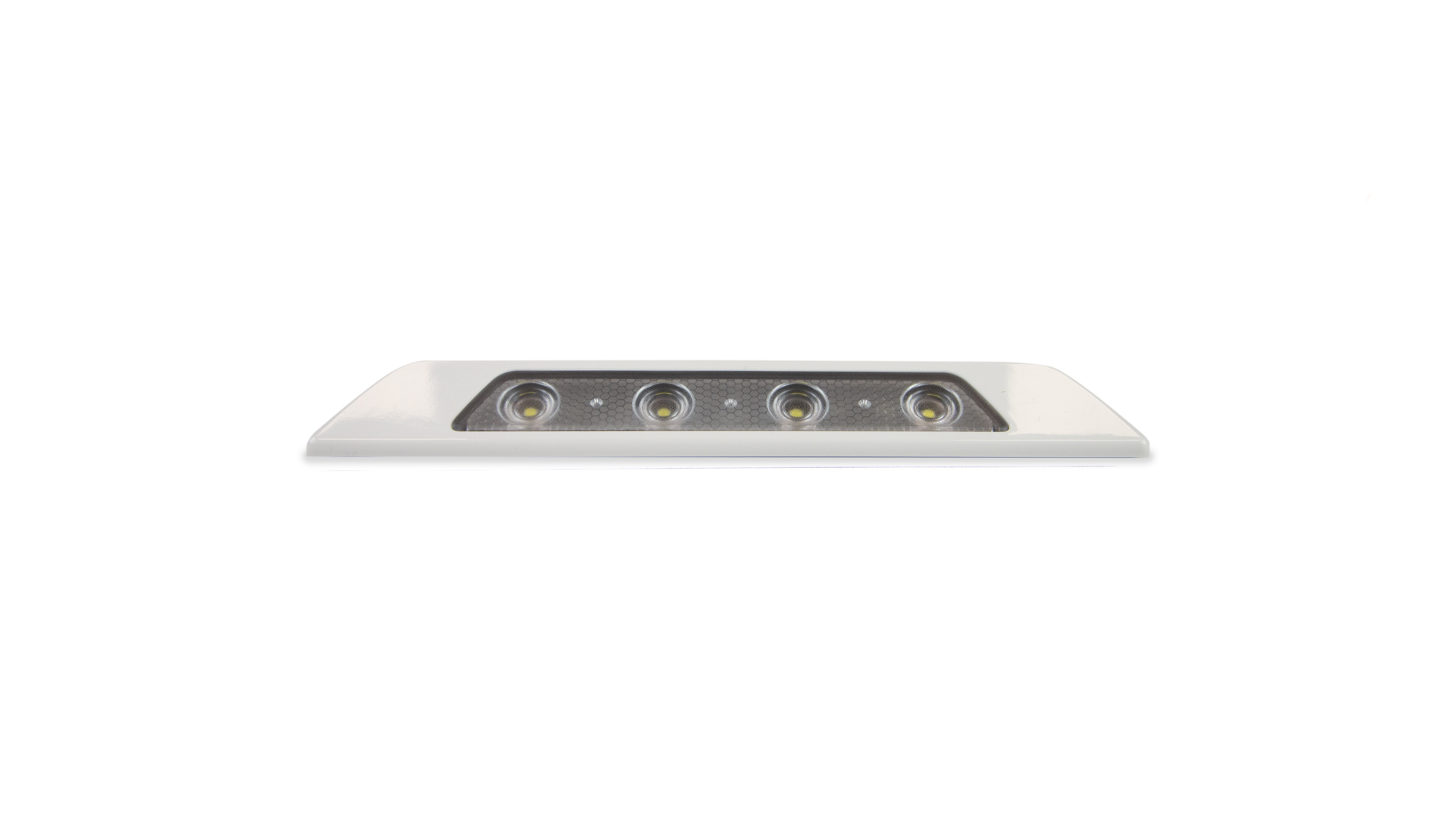

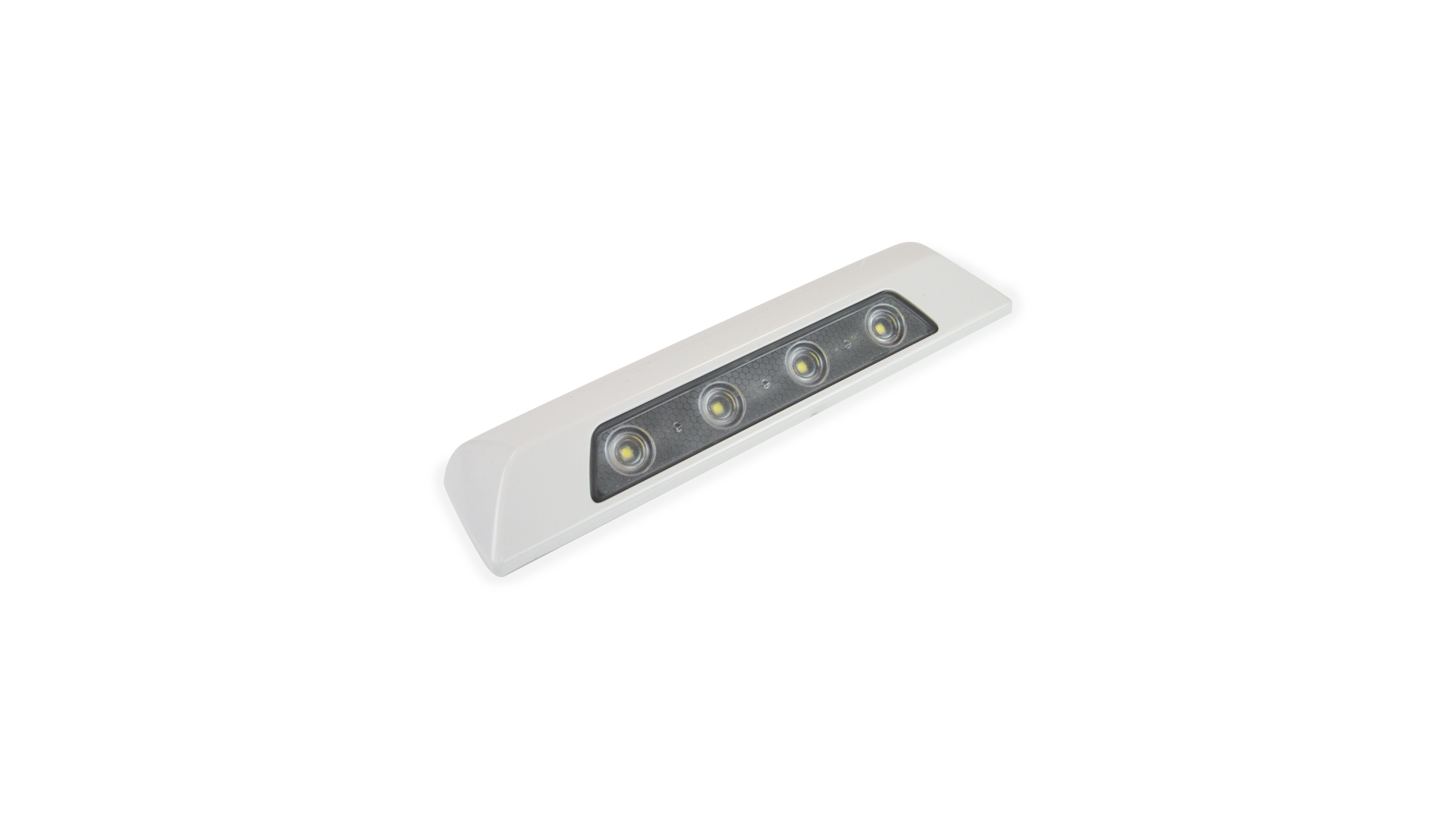

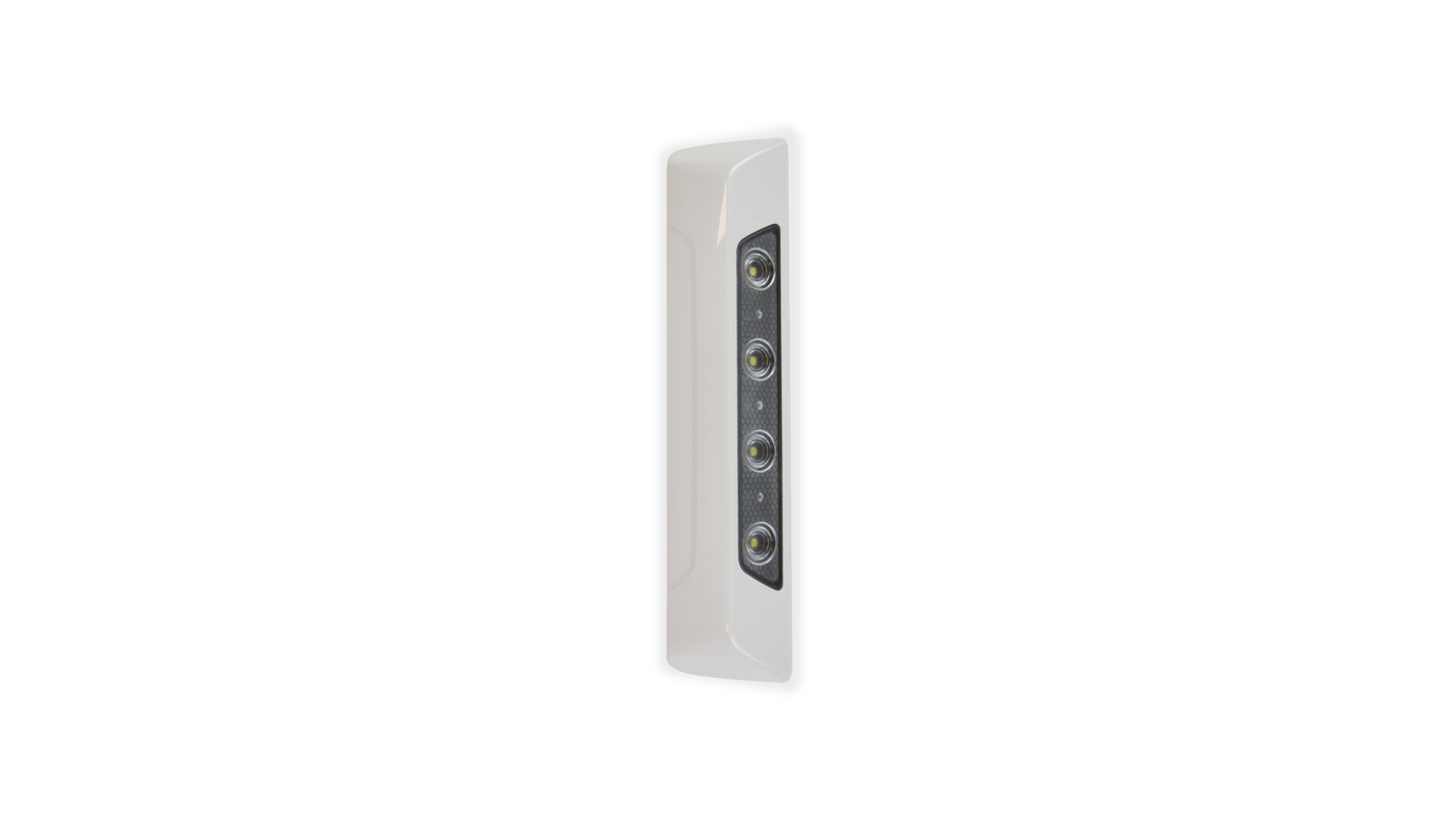

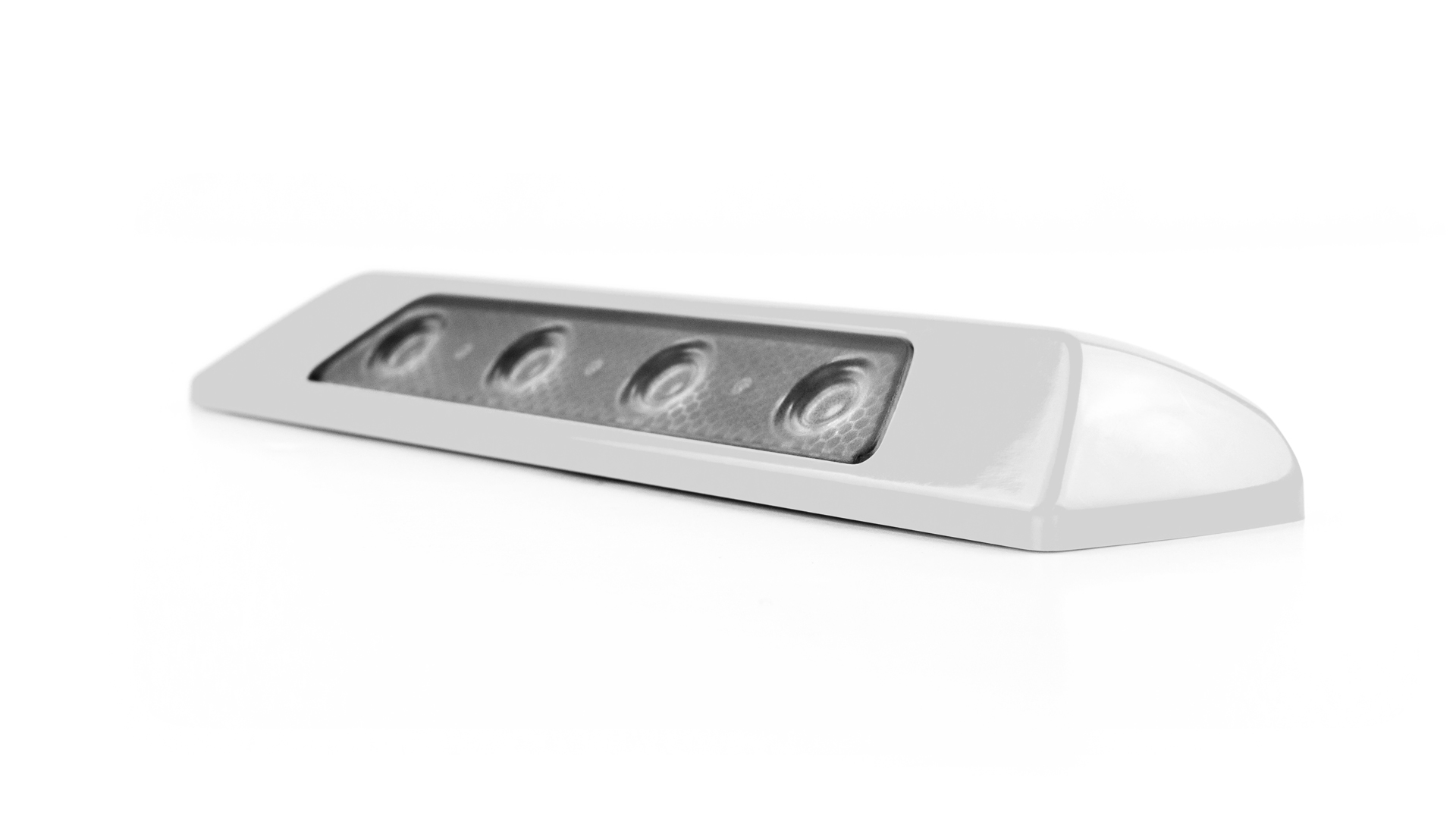

Product code 07040030 Product Name SL157 Scene Lamp - White (White Bezel) Categories Scene Lamps, SL157 Exterior Scene Light, Illumination Product Type Products Dimensions Length 183mm Dimensions Height 43mm Dimensions Width 22mm Bezel Colour White Colour Type Single Colour Maximum Current 1.2A@12VDC / 0.6A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 14.4W LED Colour White LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE R10 Optic Type T.I.R Optics Nominal Voltage 12-24VDC Mounting Option 45° Surface Mount (Horizontal) Cable Type Cable (Pigtail) LED Quantity 4x LEDs IP Rating IPX7 Wire Length 210mm Mounting Orientation Horizontal Raw Lumens 1400lm Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
Spare Parts
-
-
Mounting
-
-
Downloads
Cell2_SL157_SpecSheet_EN
pdf
525.83 KB
Download
Cell2_SL157_UserManual_EN
pdf
179.09 KB
Download
Cell2_SL157_SpecSheet_DE
pdf
8.40 MB
Download
Cell2_SL157_UserManual_DE
pdf
307.26 KB
Download
Cell2_SL157_SpecSheet_IT
pdf
527.37 KB
Download
Cell2_SL157_UserManual_IT
pdf
153.38 KB
Download
Cell2_SL157_UserManual_ES
pdf
203.21 KB
Download
Cell2_SL157_SpecSheet_ES
pdf
4.69 MB
Download
