Specifications
2-in-1 unit provides both powerful warning light and wide angle scene light for versatile application.
“Scene to Cruise” function turns warning to cruise automatically when scene light is turned ON.
Weatherproof to IPX7 and vibration resistant design for external use.
Over 1700 lumen output; Luminous intensity ≧ 890 lux at 1 meter.
Multi-unit synchronization in simultaneous or alternating flash.
ECE R10 EMC Compliance and meets CISPR 25 Class 3.
Meet ECE R65 Class 2 and SAE Class 1.
Reverse polarity protection.Product Specifications

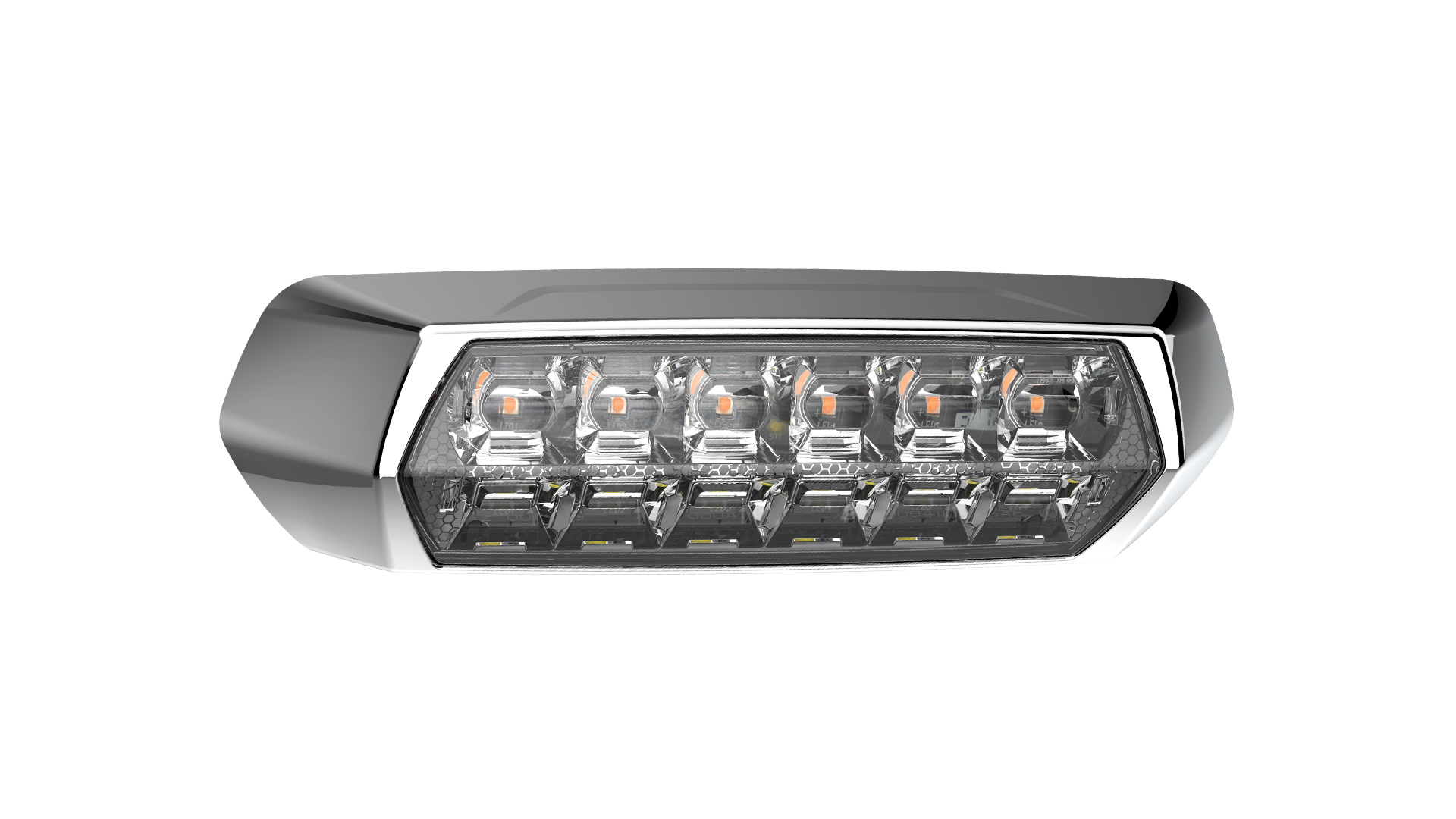

Product code 02230238 Product Name Scenemax Combo Lighthead - BW (Chrome Bezel) Categories Lighting, SceneMax, Directionals, Scene Lamps, Modules, SceneMax, Illumination Product Type Products Dimensions Length 197mm Dimensions Height 56mm Dimensions Width 30mm Bezel Colour Chrome Colour Type Single Colour Maximum Current 1.25A@12VDC / 0.62A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -40°C~+65°C Maximum Power 15W Synchronisation 20 Unit Sync LED Colour Blue LEDs, White LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - XB2, CISPR25, SAE J595 Class 1, SAE J845 Class 1, California Title 13 Input Voltage 12VDC~24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 12x LEDs IP Rating IPX7 Flash Patterns 29 Flash Patterns Wire Length 200mm Mounting Orientation Horizontal Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
