Specifications
Product Specifications

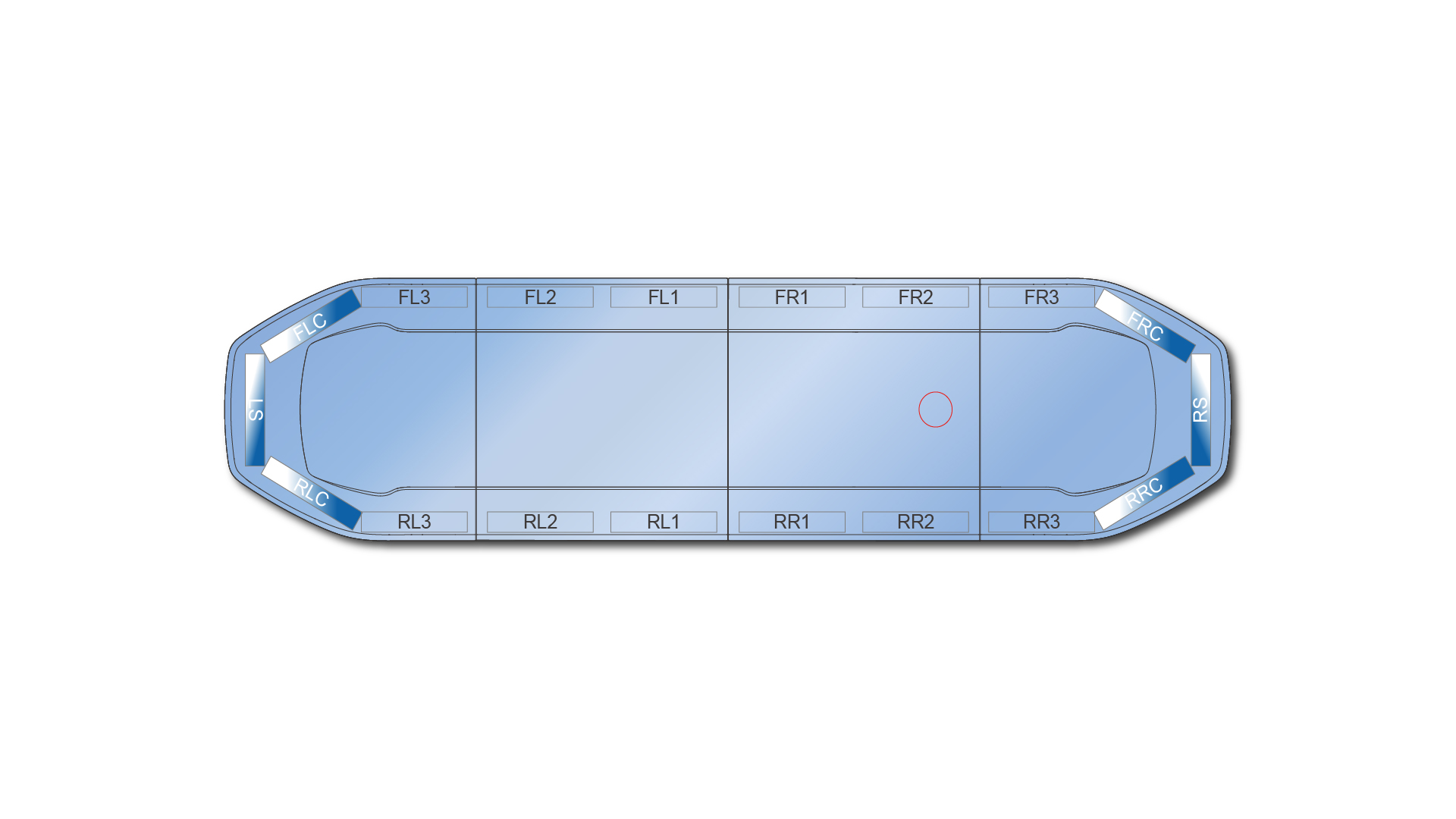

Product code 06600204 Product Name Raiden HE Dual Colour 1219mm (48") - BWB Categories Lighting, Raiden, Raiden HE, Lightbars Product Type Products Dimensions Height 40mm Dimensions Width 309mm Colour Type Dual Colour Lightbar Length 1219mm (48") LED Colour Blue/White Cover Colour Blue Covers Lens Colour Clear Lens Compliance ECE R10, ECE R65 - TB2, CISPR25, SAE J845 Class 1, California Title 13 Optic Type Linear Optics Nominal Voltage 12-24VDC Mounting Option Standard Low Profile Feet Cable Type Single Harness (2 Power/2 CAN/1 Shield) LED Quantity 72x LEDs Lighthead Quantity 6x Lightheads IP Rating IPX4K Flash Patterns 26 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Wire Length 5000mm CAN Control Unit CAN Control Unit (16 function) Warranty 5 Year Warranty -
Downloads
Cell2_RAIDEN-HE_SpecSheet_EN
pdf
1.20 MB
Download
Cell2_RAIDEN_InstallationManual_EN
pdf
1,014.28 KB
Download
Cell2_RAIDEN_OperationManual_EN
pdf
247.20 KB
Download
Cell2_RAIDEN_CAN Conversion_Operation-InstallationManual_EN
pdf
415.47 KB
Download
Cell2_RAIDEN_SpecSheet_ES
pdf
5.28 MB
Download
Cell2_RAIDEN_InstallationManual_ES
pdf
1,023.58 KB
Download
Cell2_RAIDEN_OperationManual_ES
pdf
242.84 KB
Download
Cell2_RAIDEN_CAN Conversion_Operation-InstallationManual_ES
pdf
491.15 KB
Download
