Specifications
Warning models certified with SAE J595, SAE J845 Class 1, CA Title 13 and meet NFPA1901 and KKK1822 compliance when configured correctly.
Choose from 16 built-in flash patterns in solid, left-right split, top-bottom split, or criss-cross split flash mode.
Multi-units synchronization in simultaneous or alternating flash.
Reverse polarity protection.
Weatherproof and vibration resistant design for internal or external use.
Solid aluminium base for efficient heat dissipation.
Product Specifications

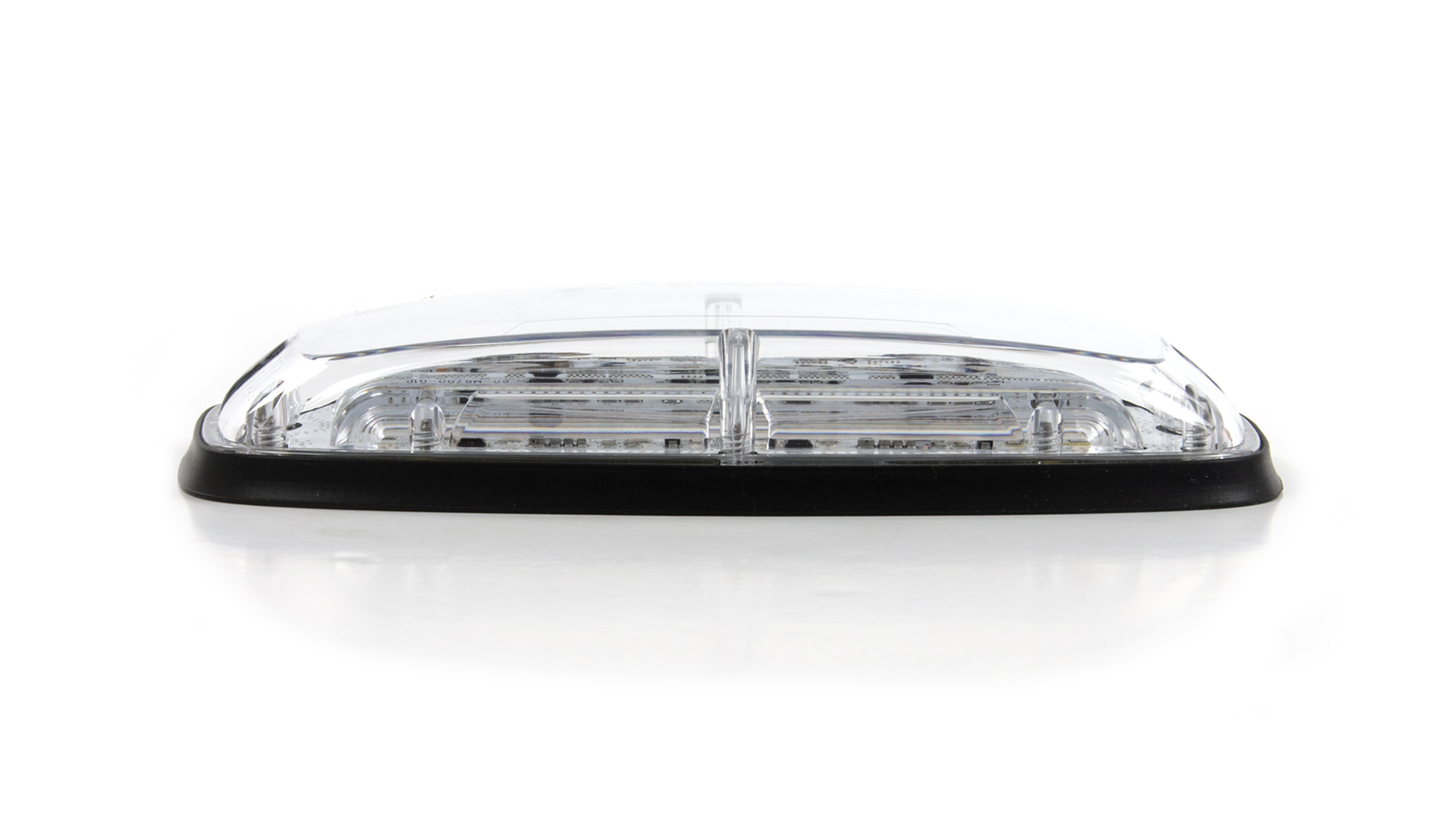

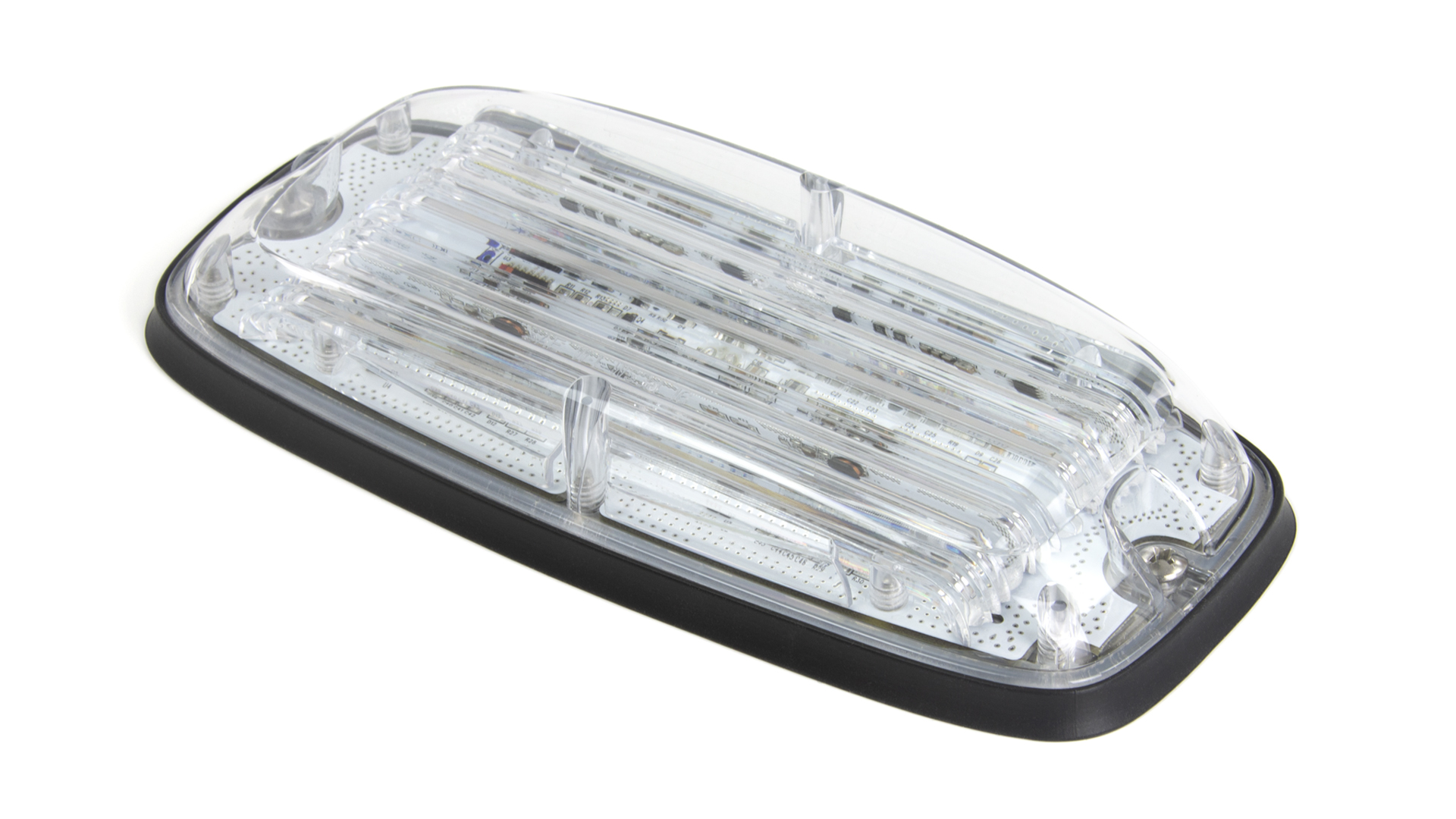

Product code 02200255 Product Name R7 Warning Lighthead - RC Categories R7 Responder, Modules, Responder Product Type Products Dimensions Length 194mm Dimensions Height 85mm Dimensions Width 28mm Colour Type Single Colour Maximum Current 2.06A@12VDC Maximum Power 24.7W LED Colour Red LEDs Fuse Rating 3A Lens Colour Clear Lens Compliance SAE J595 Class 1, SAE J845 Class 1 Input Voltage 12VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 24x LEDs Flash Patterns 16 Flash Patterns IP Rating IPX7 Wire Length 210mm Mounting Orientation Horizontal Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
