Specifications
Product Specifications
Product code 02260051 Product Name MSP Combo TC - White (Front Position) & Blue/Red/White (Warning) Categories Lighting, Directionals, Modules, MSP Combo Light Product Type Products Dimensions Length 290mm Dimensions Height 30mm Dimensions Width 23mm Colour Type Tri Colour Storage Temperature -40°C - +75°C Maximum Current 1.87A@12VDC / 0.94A@24VDC Operating Temperature -40°C~+65°C Maximum Power 22.5W Synchronisation 20 Unit Sync LED Quantity (Halo-Ring/Stripe) 30x (Halo-Ring/Stripe) LEDs LED Colour Blue LEDs, Red LEDs, White LEDs Lens Colour Clear Lens Compliance ECE R10, ECE R65 - XB2, ECE R65 - XR2, ECE R148, CISPR25, SAE J595 Class 1, SAE J845 Class 1, California Title 13 Input Voltage 12VDC~24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 45 LEDs Flash Patterns 39 Flash Patterns IP Rating IPX7 Wire Length 1200mm Mounting Orientation Horizontal Warranty 5 Year Warranty -

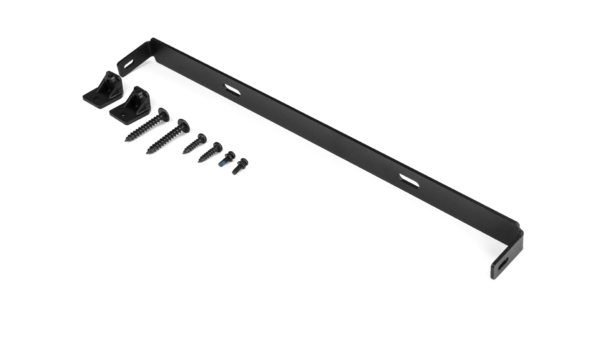

Mounting
-
New Product
-
- Downloads
