Specifications
Super low profile for discreet mounting.
Weatherproof and vibration resistant design for internal or external use.
Non-volatile memory recalls last flash pattern used at power up.
LEDs rated to 100,000 hours of operation.
Meet’s ECE R10, SAE class 1 compliance.
Built-in 5 selectable flash patterns.
Multiple units are synchronizable.
Multi-Voltage Input 12~24VDC.
Reverse polarity protection.
Aluminium heat dissipation.Product Specifications

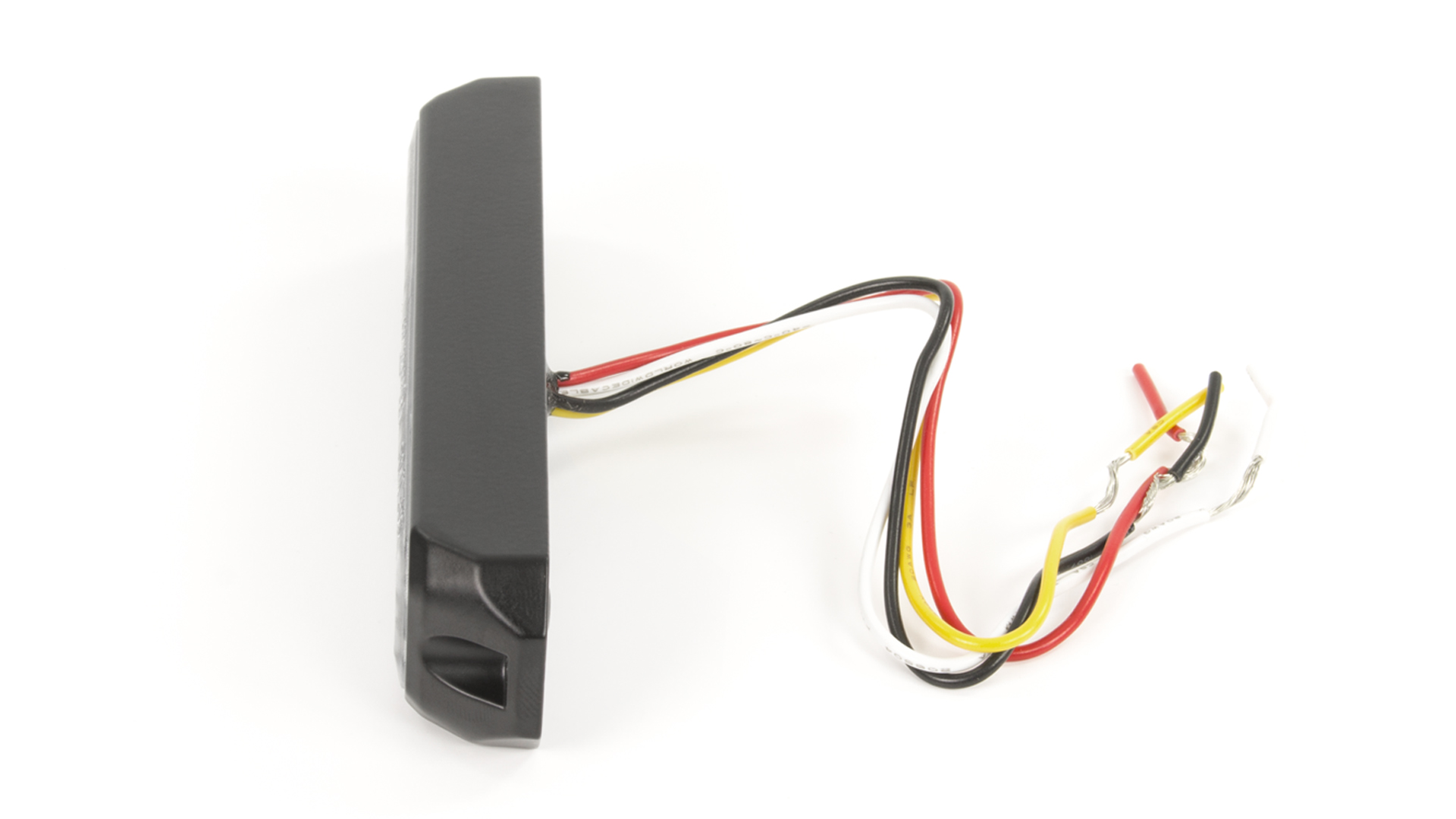

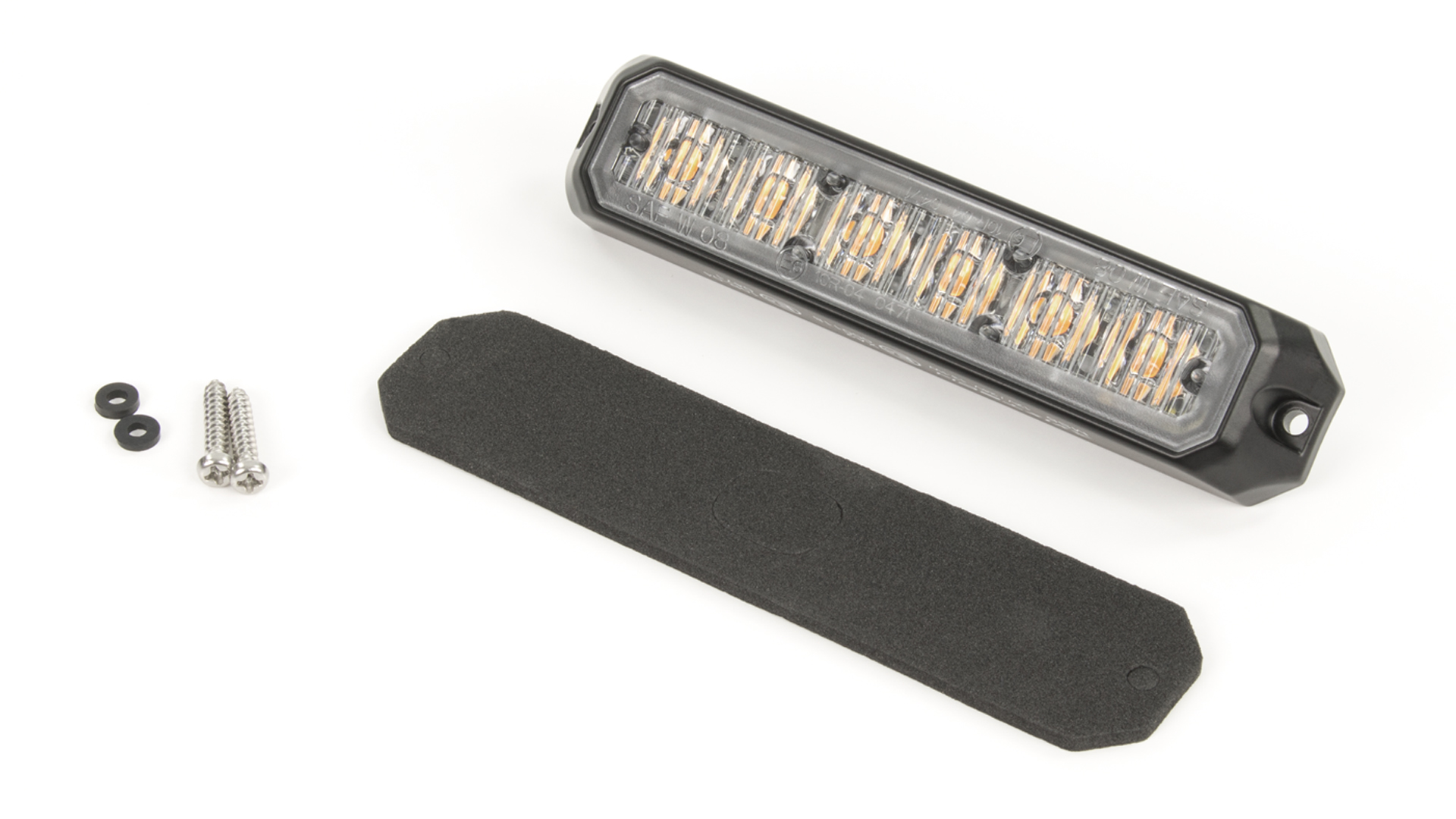

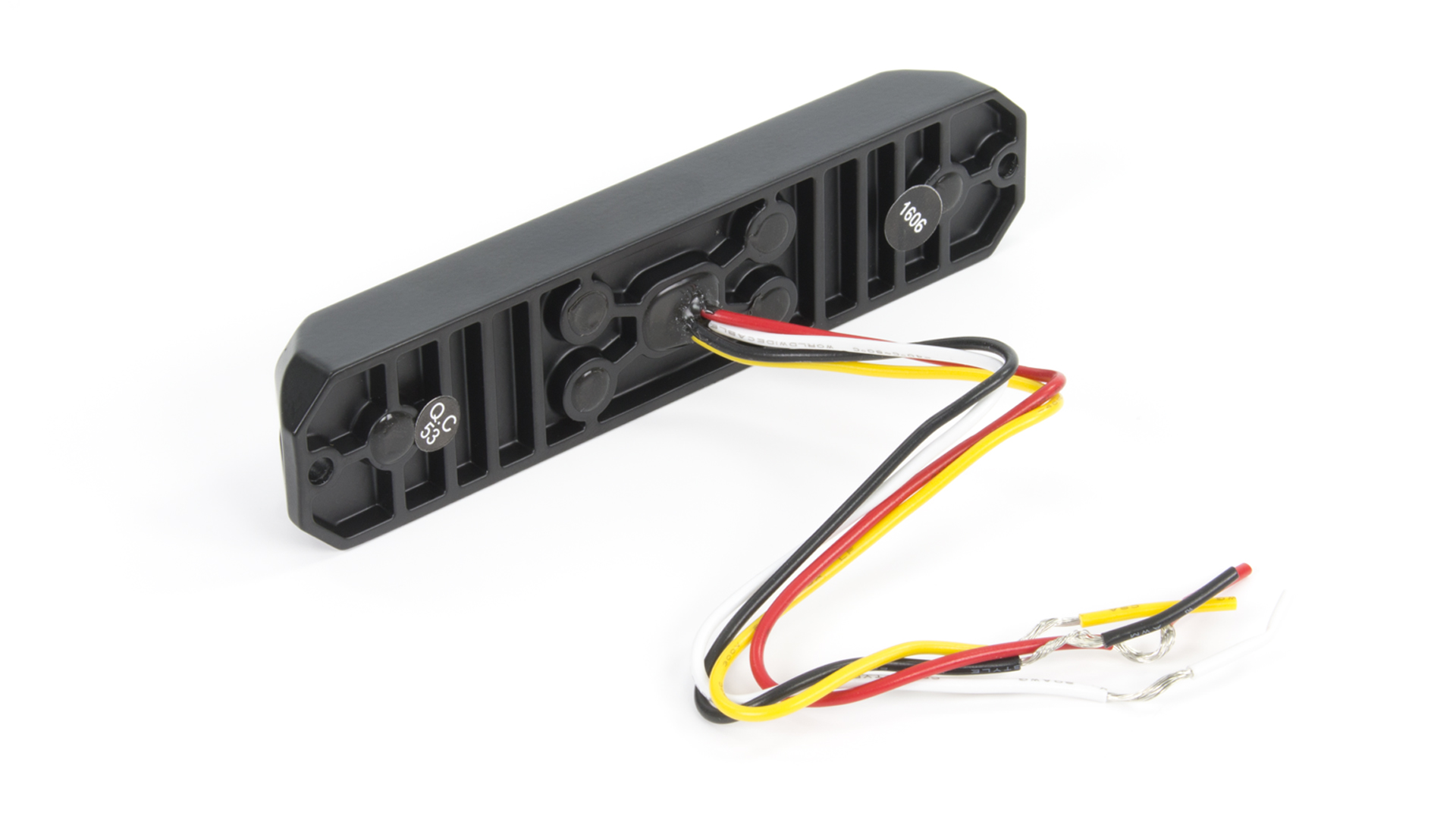

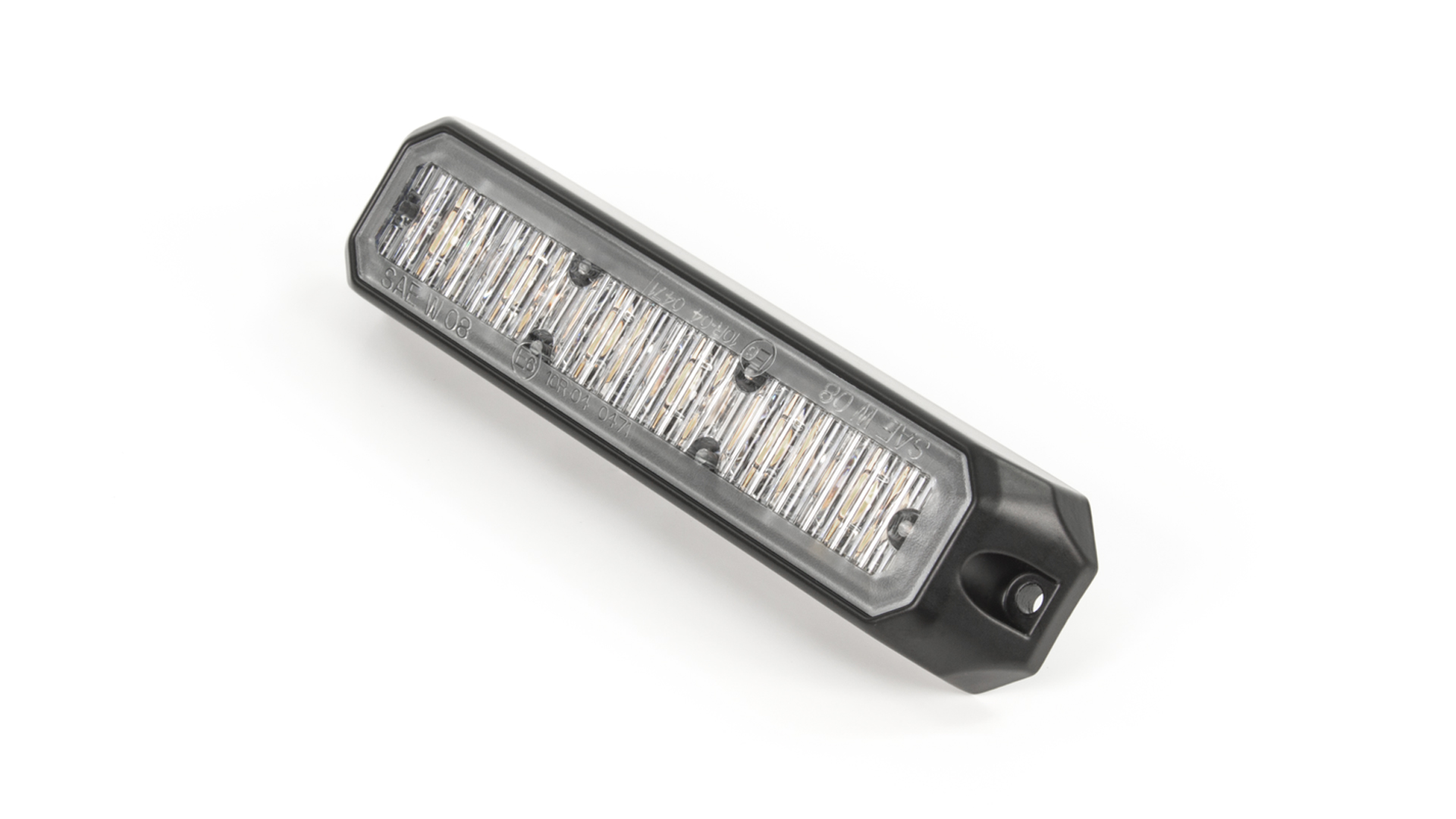

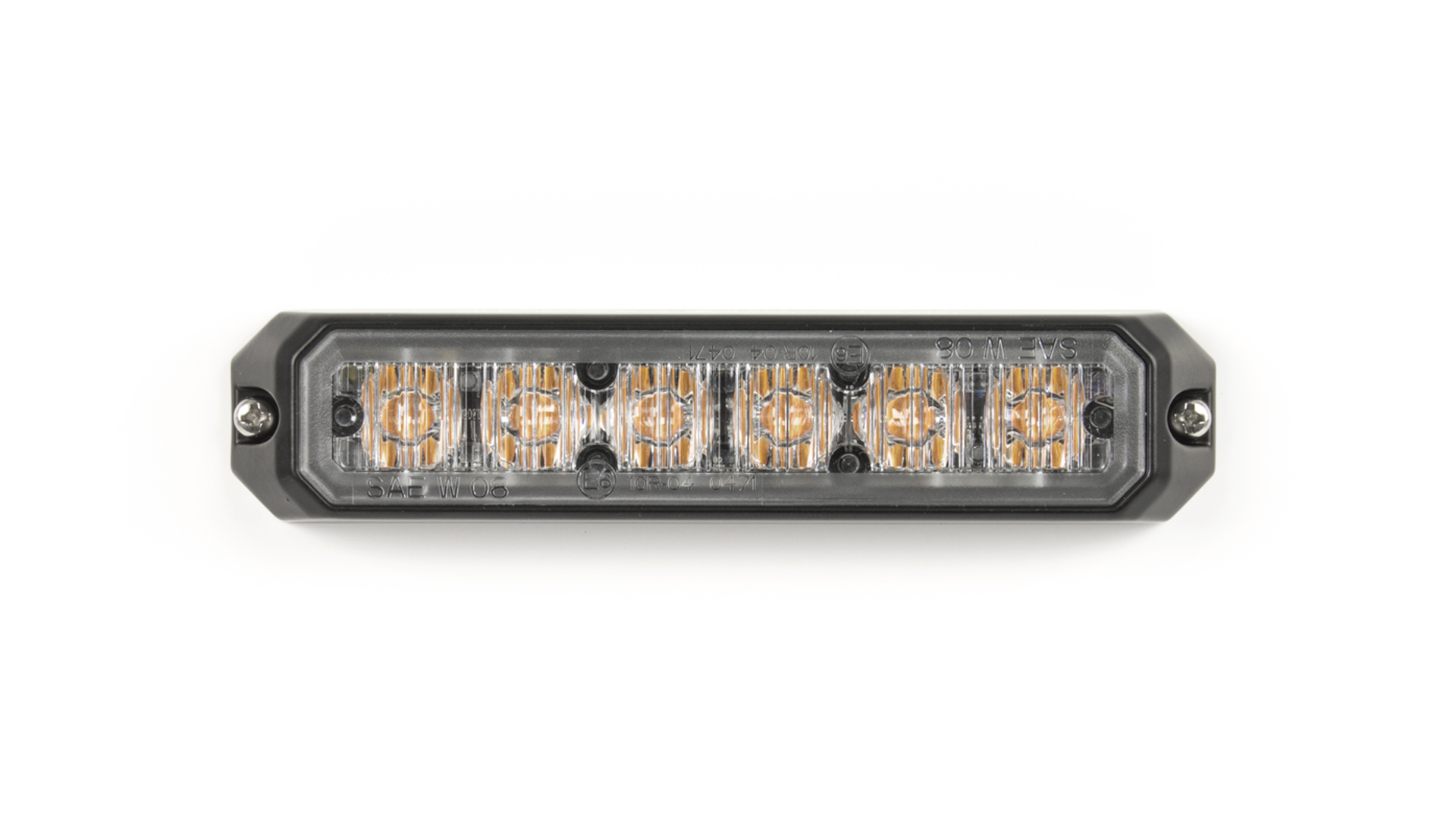

Product code 02040035 Product Name MS6 Warning Lighthead (Surface/Horizontal) - Amber (XA2) Categories Directionals, MS6, Mini Stealth, Modules Product Type Products Dimensions Length 128mm Dimensions Height 28mm Dimensions Width 17mm Colour Type Single Colour Maximum Current 1.18A@12VDC / 0.59A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 14.2W Synchronisation 15 Unit Sync LED Colour Amber LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - XA2 Optic Type T.I.R Optics Nominal Voltage 12-24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 6x LEDs IP Rating IP67 Flash Patterns 5 Flash Patterns Wire Length 200mm Mounting Orientation Horizontal Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -

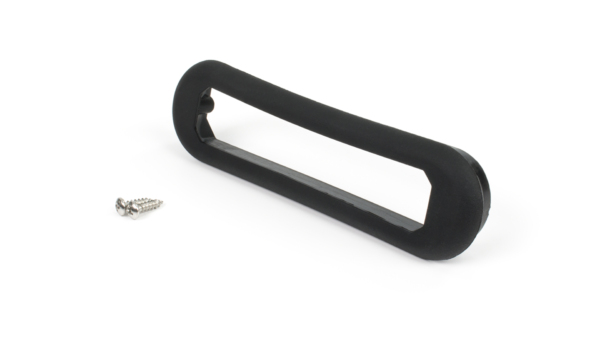

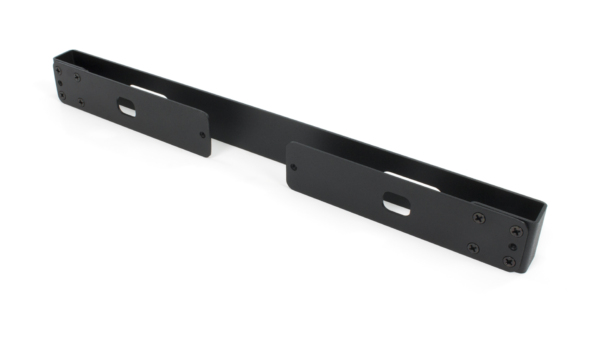

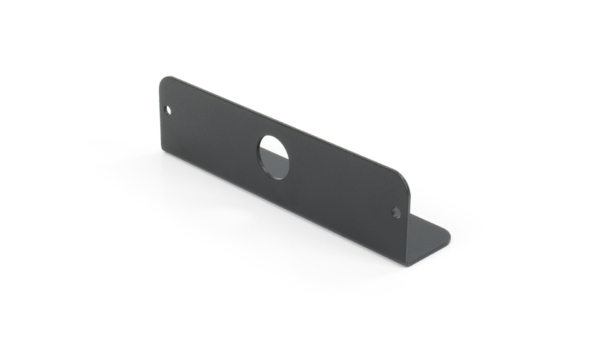

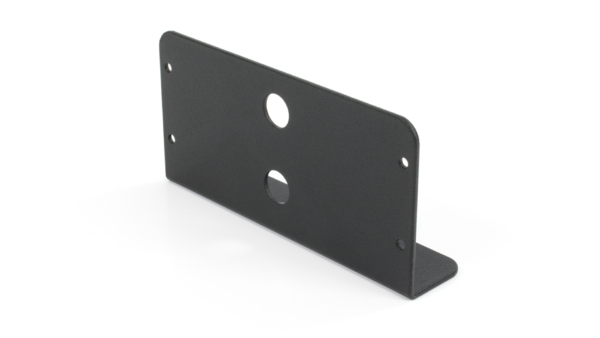

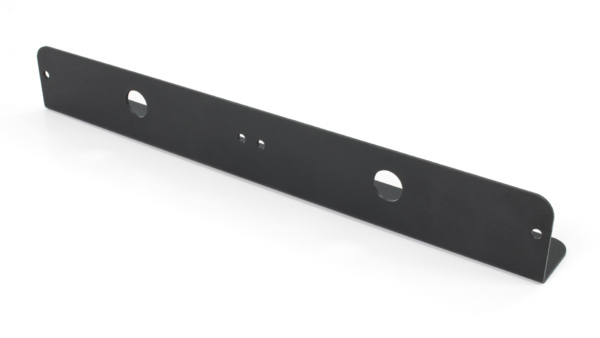

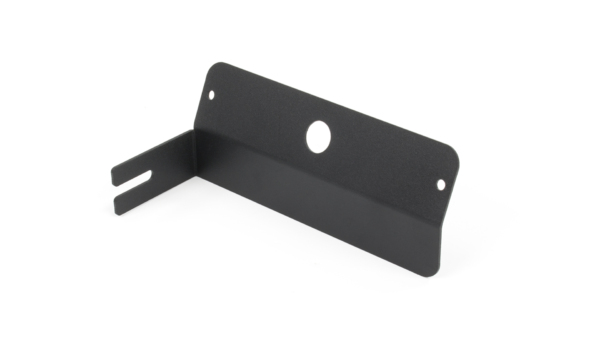

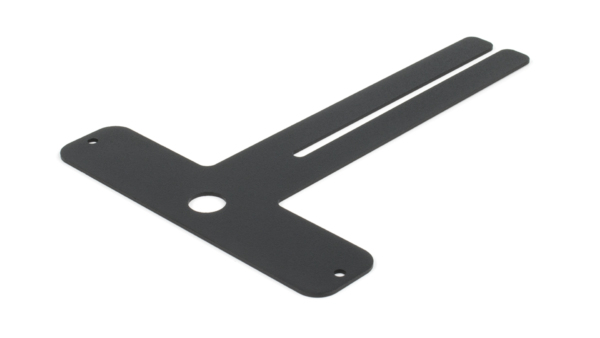

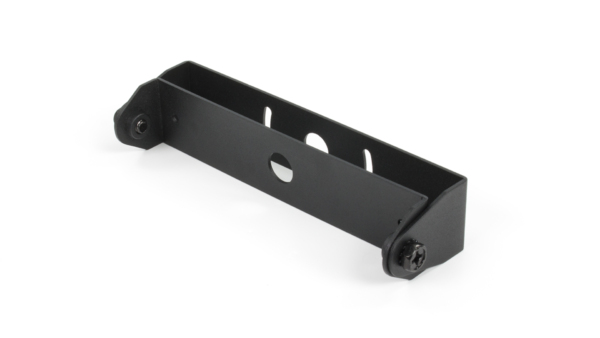

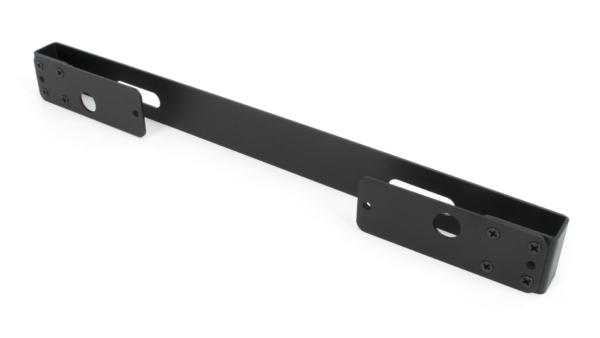

Mounting
-
