Specifications
Product Specifications

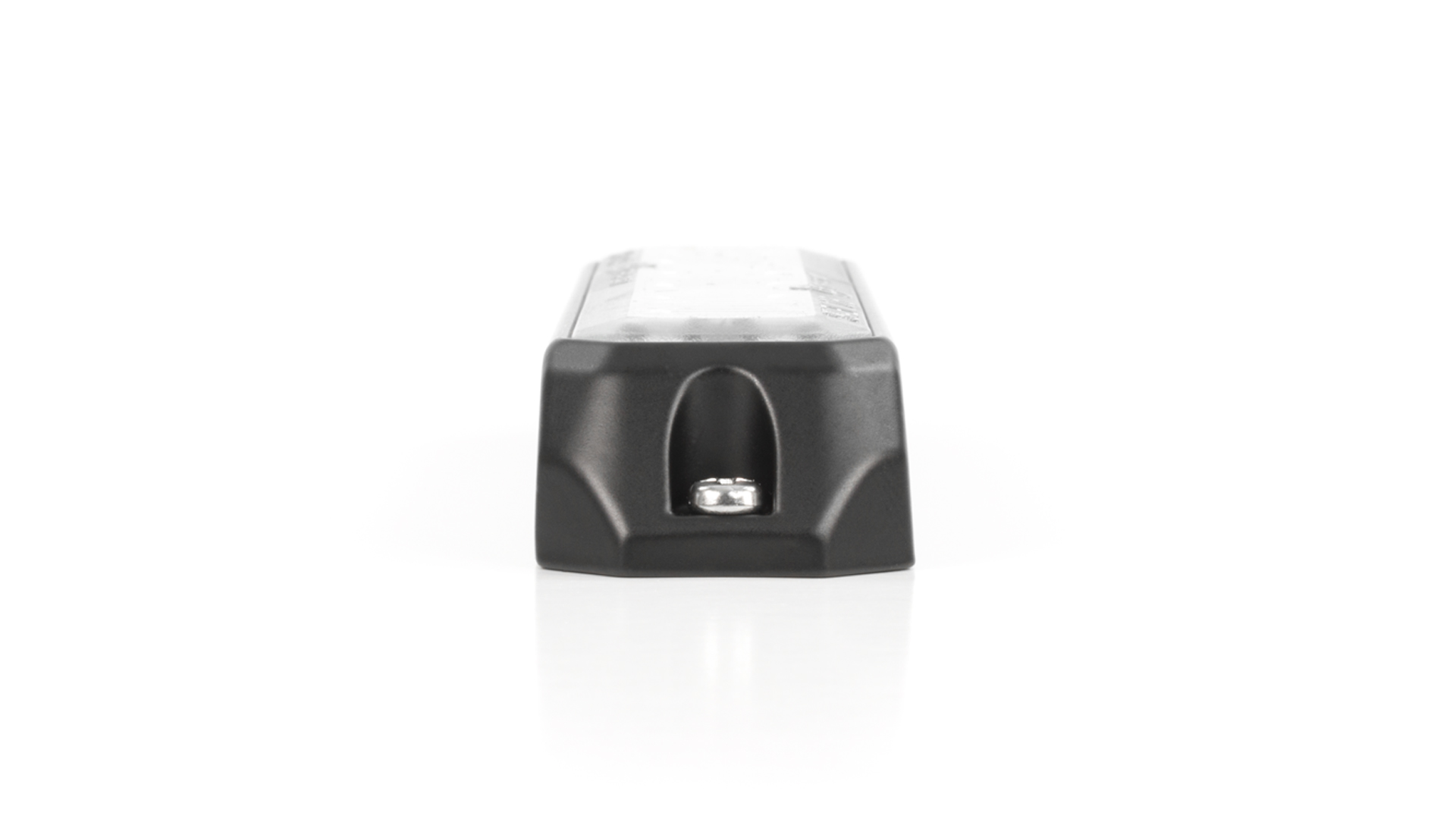

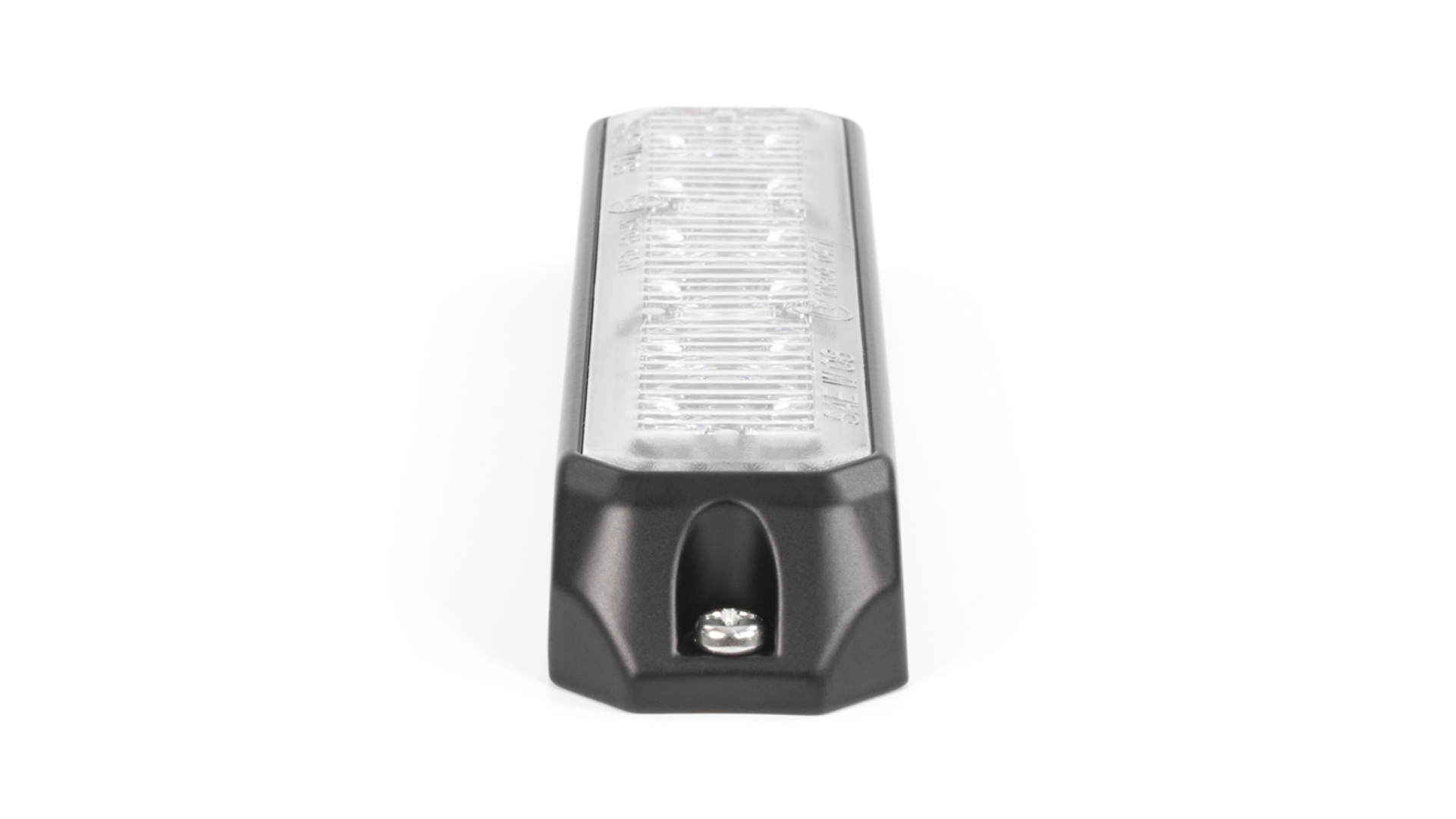

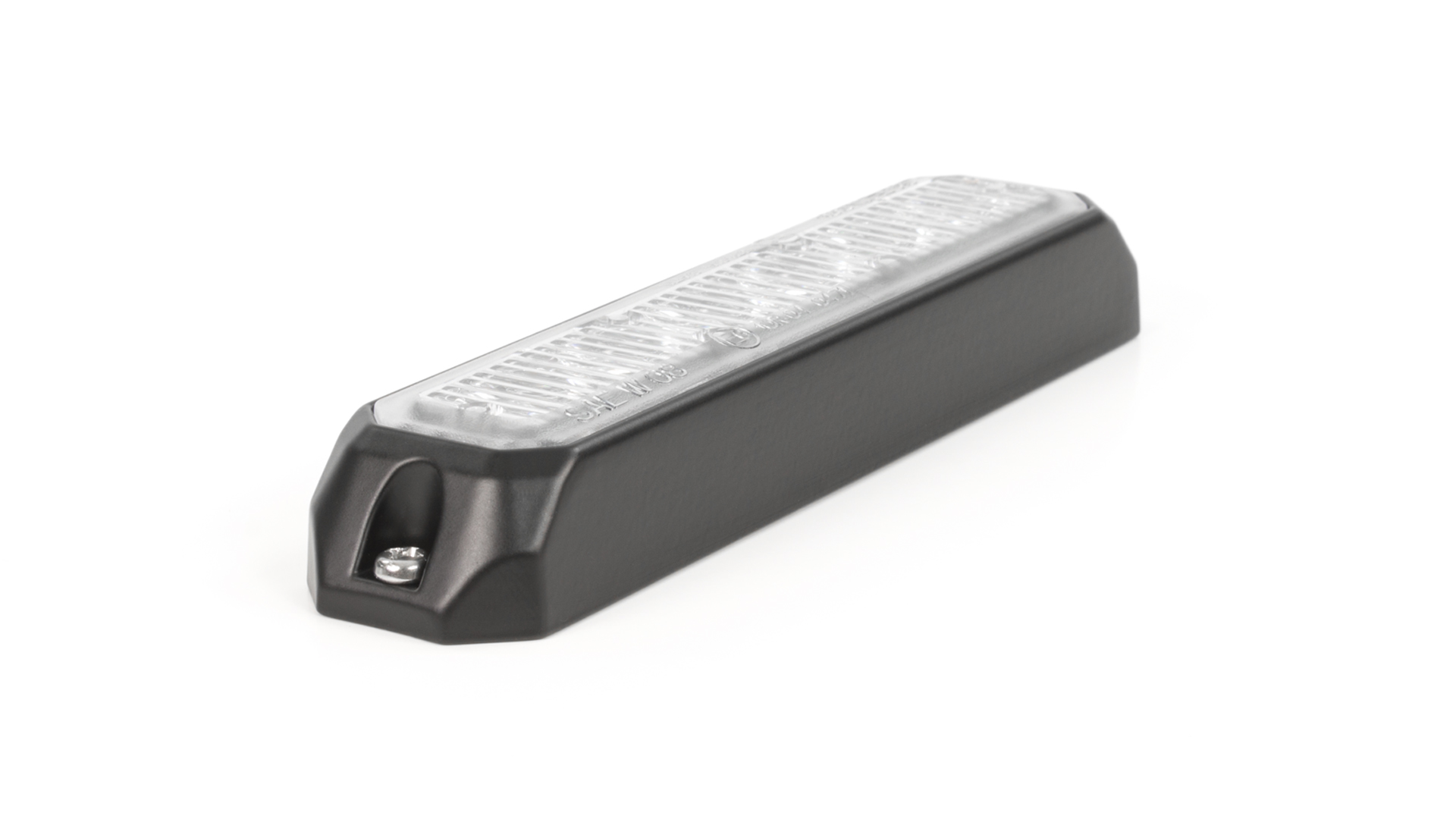

Product code 02040950 Product Name MS6 Warning Lighthead (Surface/Horizontal) - Amber (XA1) Categories Warning Lamps, Directionals, Mini Stealth, MS6, Modules Product Type Products Dimensions Height 27.8mm (1.1") Colour Type Single Colour Maximum Current 0.80A@12VDC / 0.40A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 9.6W Synchronisation 15 Unit Sync LED Colour Amber LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (XA1) Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 6x LEDs Flash Patterns 5 Flash Patterns IP Rating IPX7 Wire Length 200mm Mounting Orientation Horizontal Gross Weight 0.10kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
Mounting
-
-
- Powder-Coated Aluminium
- Registration Plate Bracket
- Black
-
-
- Powder-Coated Aluminium
- Dual L-Bracket (Side by Side)
- Black
-
-
-
-
- Powder-Coated Aluminium
- Dual L-Bracket (Top/Bottom)
- Black
-
- Powder-Coated Aluminium
- Registration Plate Bracket
- Black
-
- Downloads
