Specifications
Quad memory capability (4-wire cable models only).
Dual Colour lightbar with ECE R65 (TA1/TB2) approval.
Built-in selectable 26 flash patterns and 5 colour modes.
Non-volatile memory recalls last flash pattern used at power up.
Weatherproof and vibration resistant design for all environment usage.
Multi-units synchronization in simultaneous or alternating flash.
Each unit comes with 6 lightheads (12 LEDs/head).
Reverse polarity protection.Product Specifications

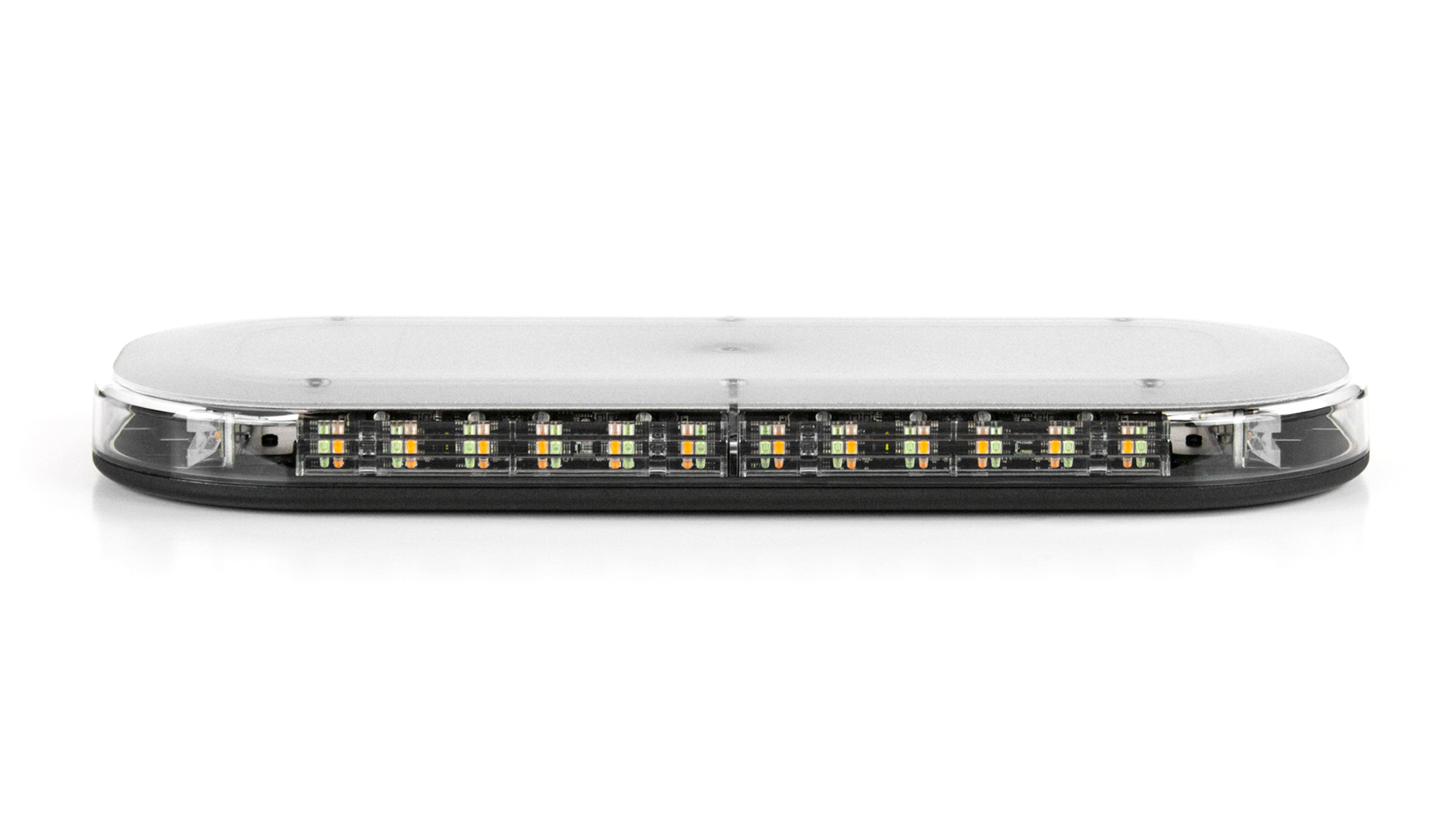

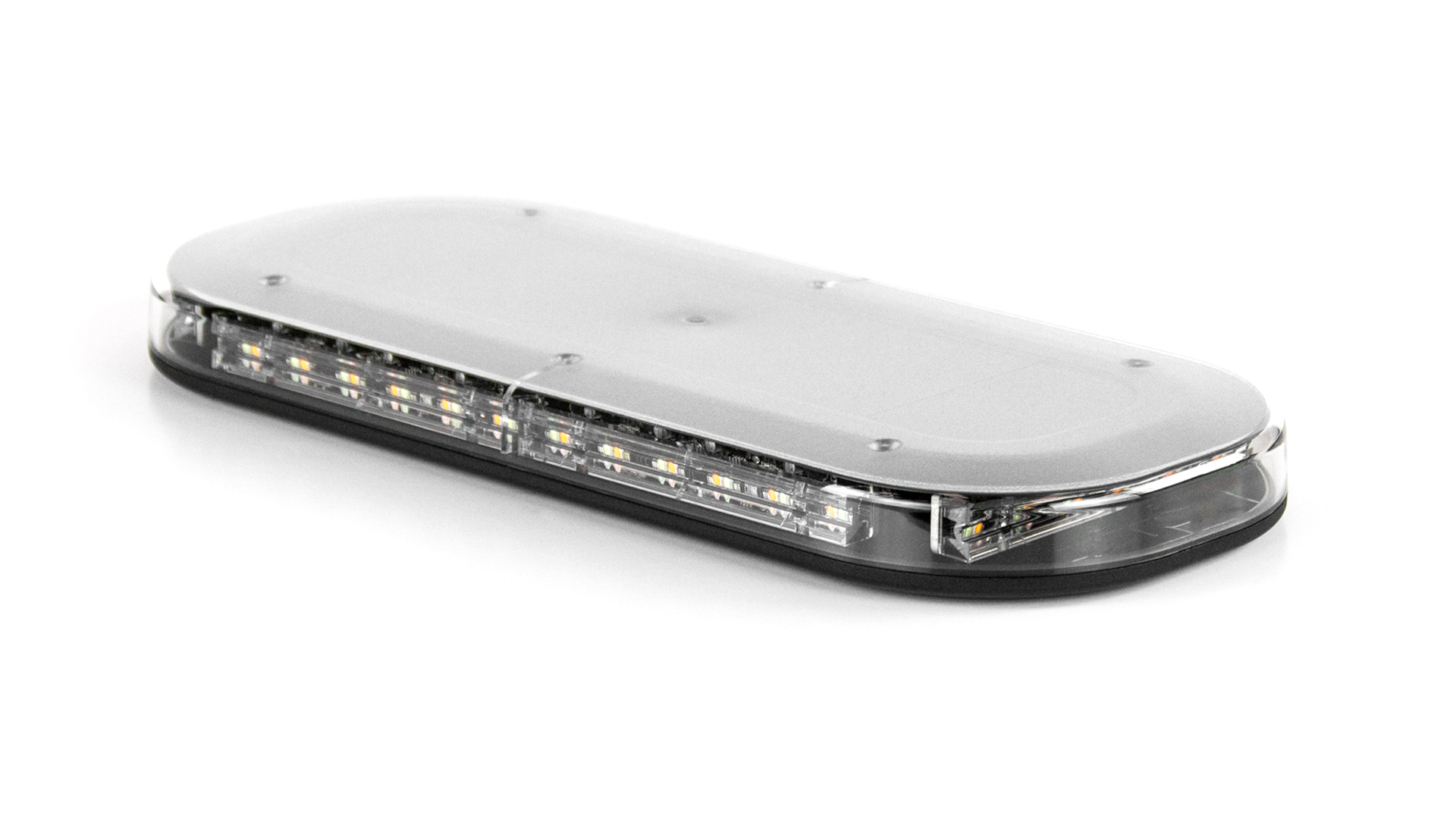

Product code 06250072 Product Name Microbar EXD - ABC (1-Bolt Mount) Categories Warning Lamps, Microbar EX Minibar, Lightbars, Minibars Product Type Products Dimensions Height 37mm Dimensions Width 172mm Colour Type Dual Colour Maximum Current 6A@12VDC / 3A@24VDC Operating Temperature -30°C~+65°C Maximum Power 72W Synchronisation 15 Unit Sync Lightbar Length 0400mm (16") LED Colour Amber LEDs, Blue LEDs Fuse Rating 9A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TA1), ECE-R65 (TB2), SAE J845 Class 1 Input Voltage 12VDC~24VDC Mounting Option 1-Bolt Mount Cable Type Cable (Pigtail) LED Quantity 72x LEDs Lighthead Quantity 6x Lightheads IP Rating IPX5 Flash Patterns 26 Flash Patterns Wire Length 300mm Gross Weight 2.5kg Warranty 5 Year Warranty -
Spare Parts
-
-

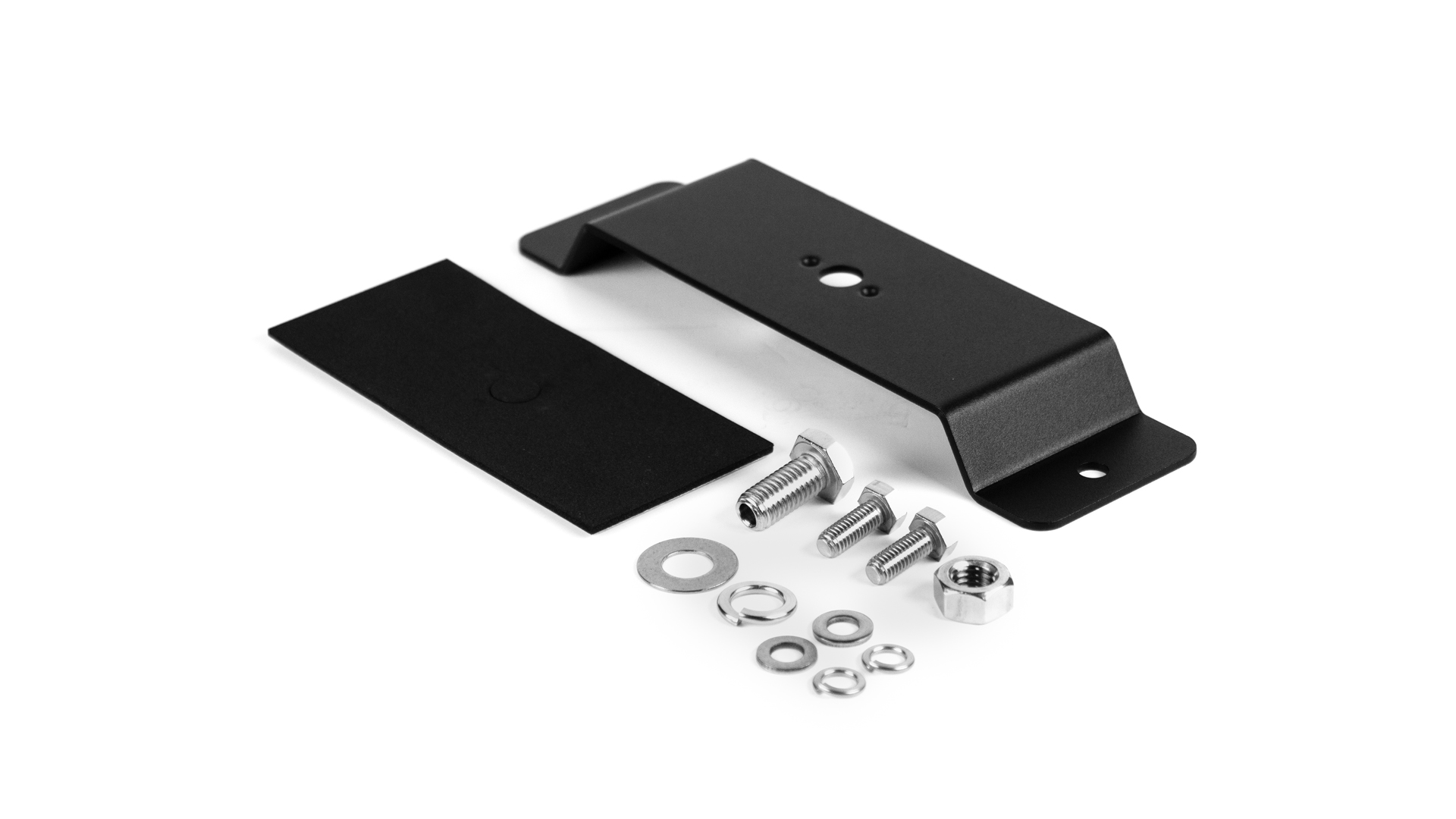

Mounting
-
- Downloads
