Specifications
Octangle array of 14 lightheads which provide 360° seamless brightness.
Non-volatile memory recalls last flash pattern used at power up.
Split flash and colour option for various applications.
24 selectable flash patterns with rotating patterns.
Multiple unit synchronisation.
Reverse polarity protection.Product Specifications

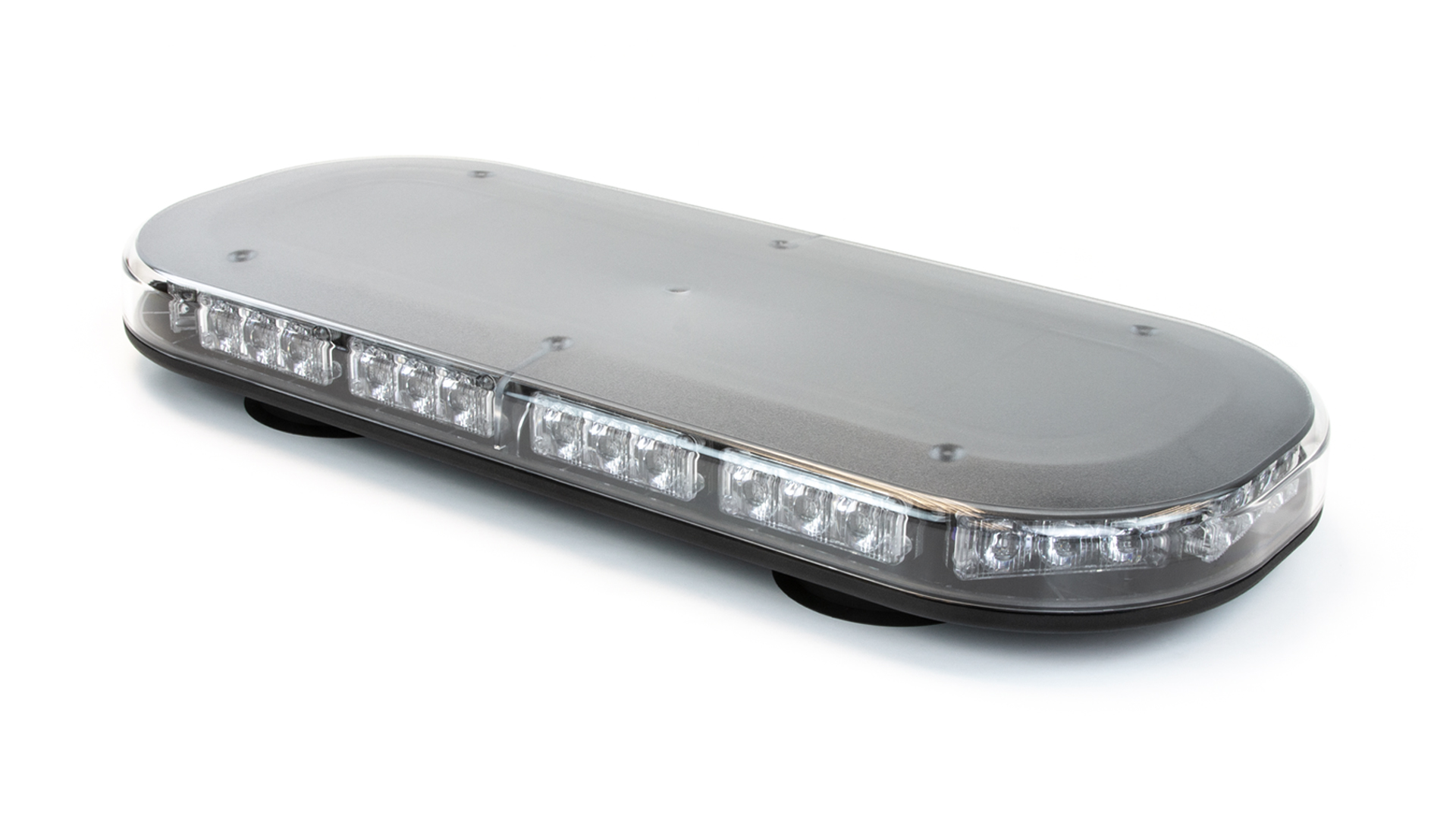

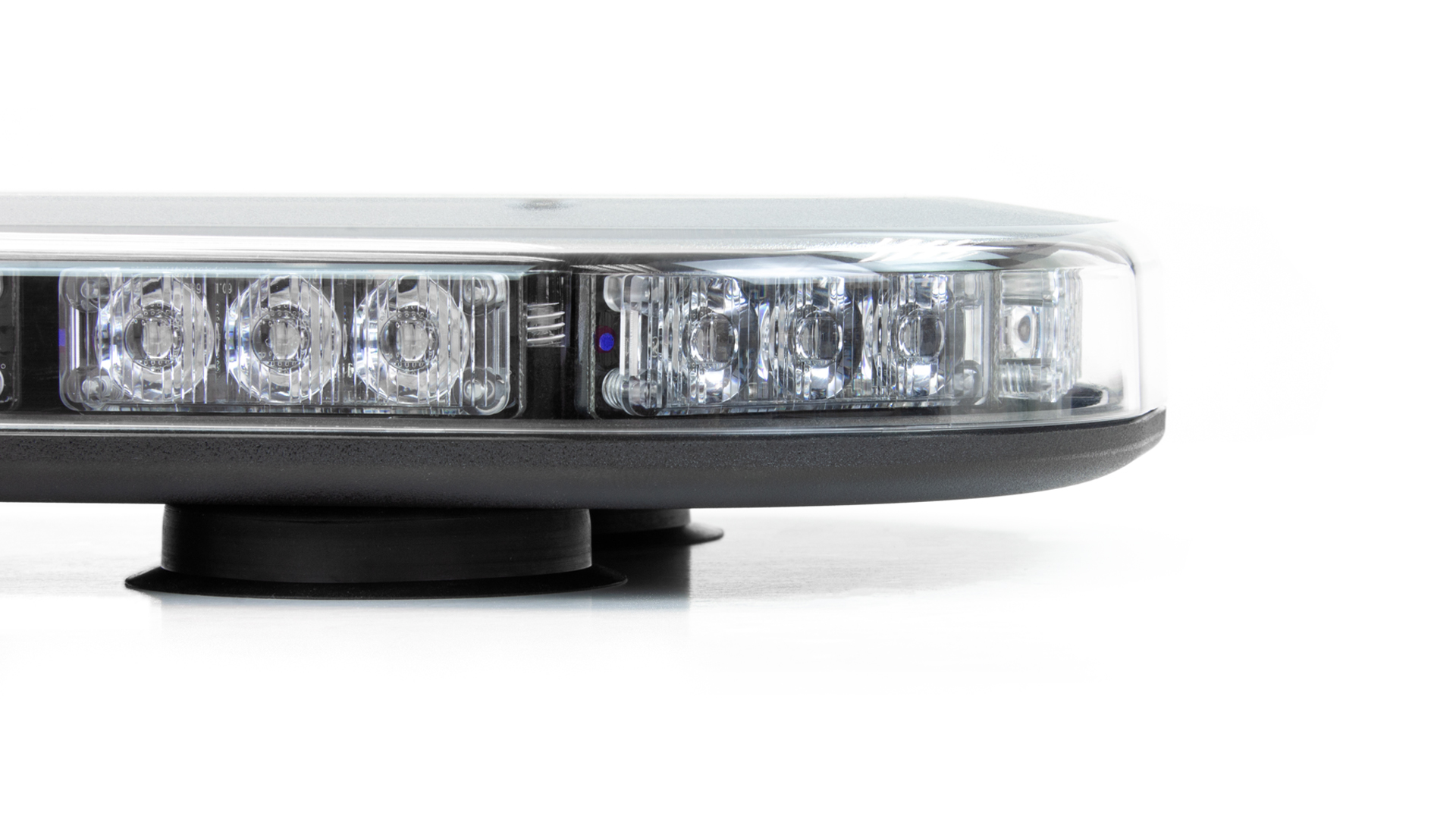

Product code 06390099 Product Name Microbar EX - BC (Magnetic Mount) Categories Warning Lamps, Microbar EX Minibar, Lightbars, Minibars Product Type Products Dimensions Height 37mm Dimensions Width 172mm Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 6.2A@12VDC / 3.1A@24VDC Operating Temperature -30°C~+65°C Maximum Power 74W Synchronisation 15 Unit Sync Lightbar Length 0400mm (16") Connection Type Cigar Plug (Latching & Momentary Switch) LED Colour Blue LEDs Fuse Rating 9A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TB1), SAE J845 Class 1, California Title 13 Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Magnetic Mount Cable Type Cable (Straight) LED Quantity 42x LEDs Lighthead Quantity 14x Lightheads IP Rating IPX5 Flash Patterns 24 Flash Patterns Wire Length 3000mm Gross Weight 2.5kg Warranty 5 Year Warranty -
Spare Parts
-
-

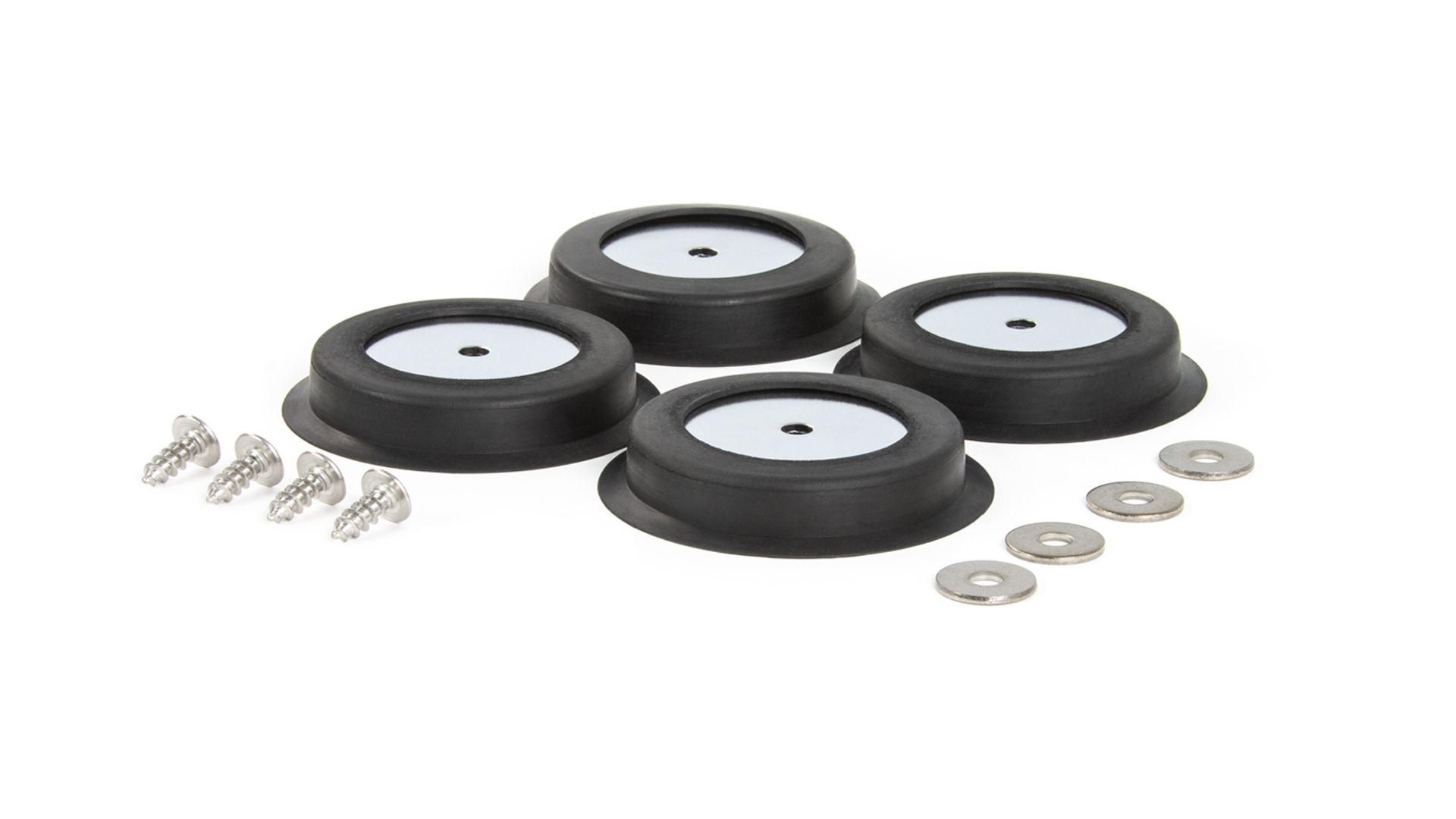

Mounting
-
- Downloads
