Specifications
Octangle array of 14 lightheads which provide 360° seamless brightness.
Non-volatile memory recalls last flash pattern used at power up.
Split flash and colour option for various applications.
24 selectable flash patterns with rotating patterns.
Multiple unit synchronisation.
Reverse polarity protection.Product Specifications

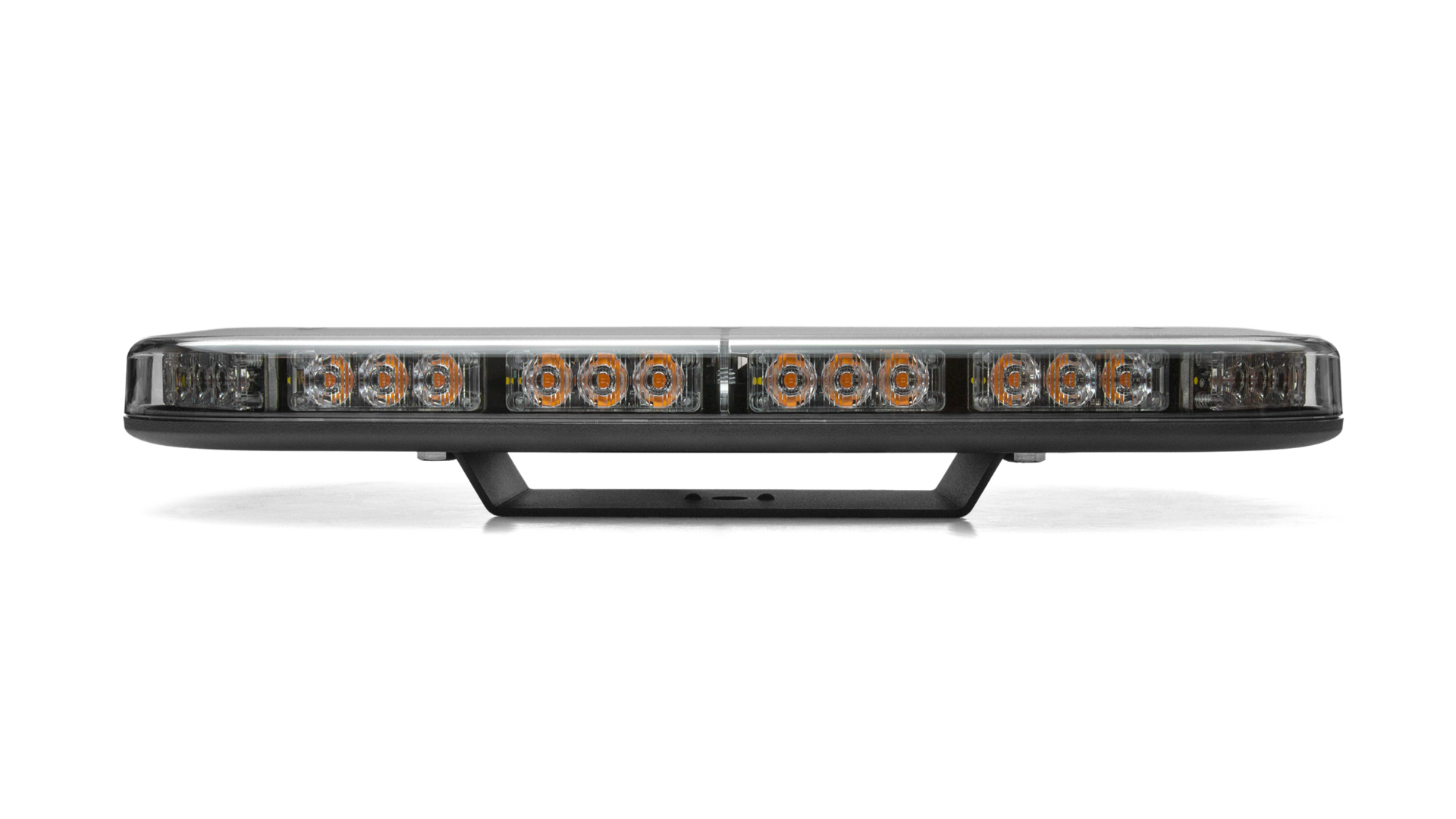

Product code 06390020 Product Name Microbar EX - AC (1-Bolt Mount) Categories Lighting, Microbar EX, Lightbars, Minibars Product Type Products Dimensions Length 400mm Dimensions Height 37mm Dimensions Width 172mm Colour Type Single Colour Maximum Current 6.2A@12VDC / 3.1A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 74W Synchronisation 15 Unit Sync Lightbar Length 0400mm (16") LED Colour Amber LEDs Fuse Rating 9A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - TA1, SAE J845 Class 1, California Title 13 Optic Type T.I.R Optics Nominal Voltage 12-24VDC Mounting Option 1-Bolt Mount Cable Type Cable (Pigtail) LED Quantity 42x LEDs Lighthead Quantity 14x Lightheads IP Rating IPX5 Flash Patterns 24 Flash Patterns Wire Length 300mm Conductor Cross-Section 0.75mm² (18AWG) Warranty 5 Year Warranty -
Spare Parts
-
-
Mounting
-
- Downloads
