Specifications
Octangle array of 14 lightheads which provide 360° seamless brightness.
Non-volatile memory recalls last flash pattern used at power up.
Split flash and colour option for various applications.
24 selectable flash patterns with rotating patterns.
Multiple unit synchronisation.
Reverse polarity protection.Product Specifications

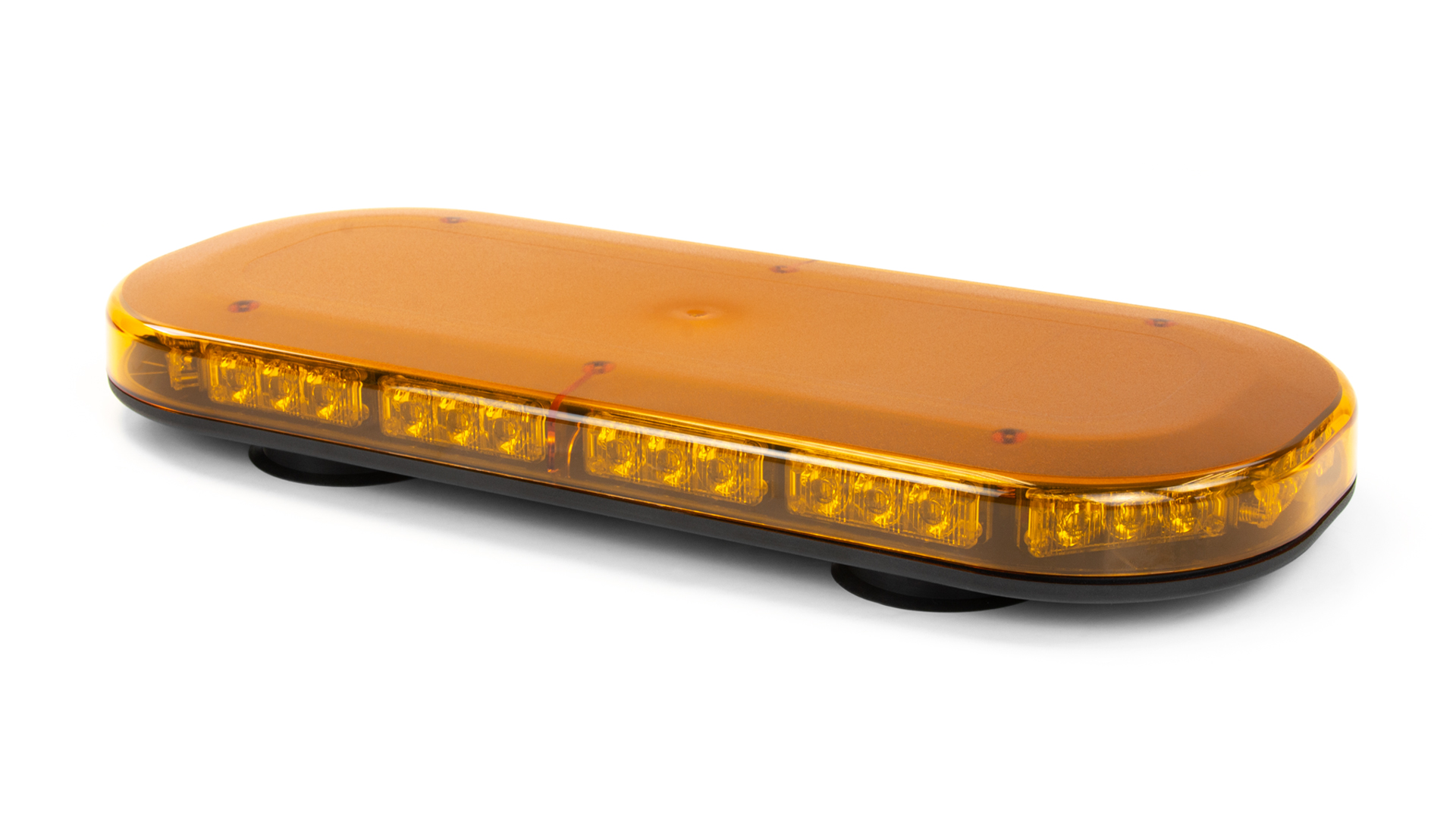

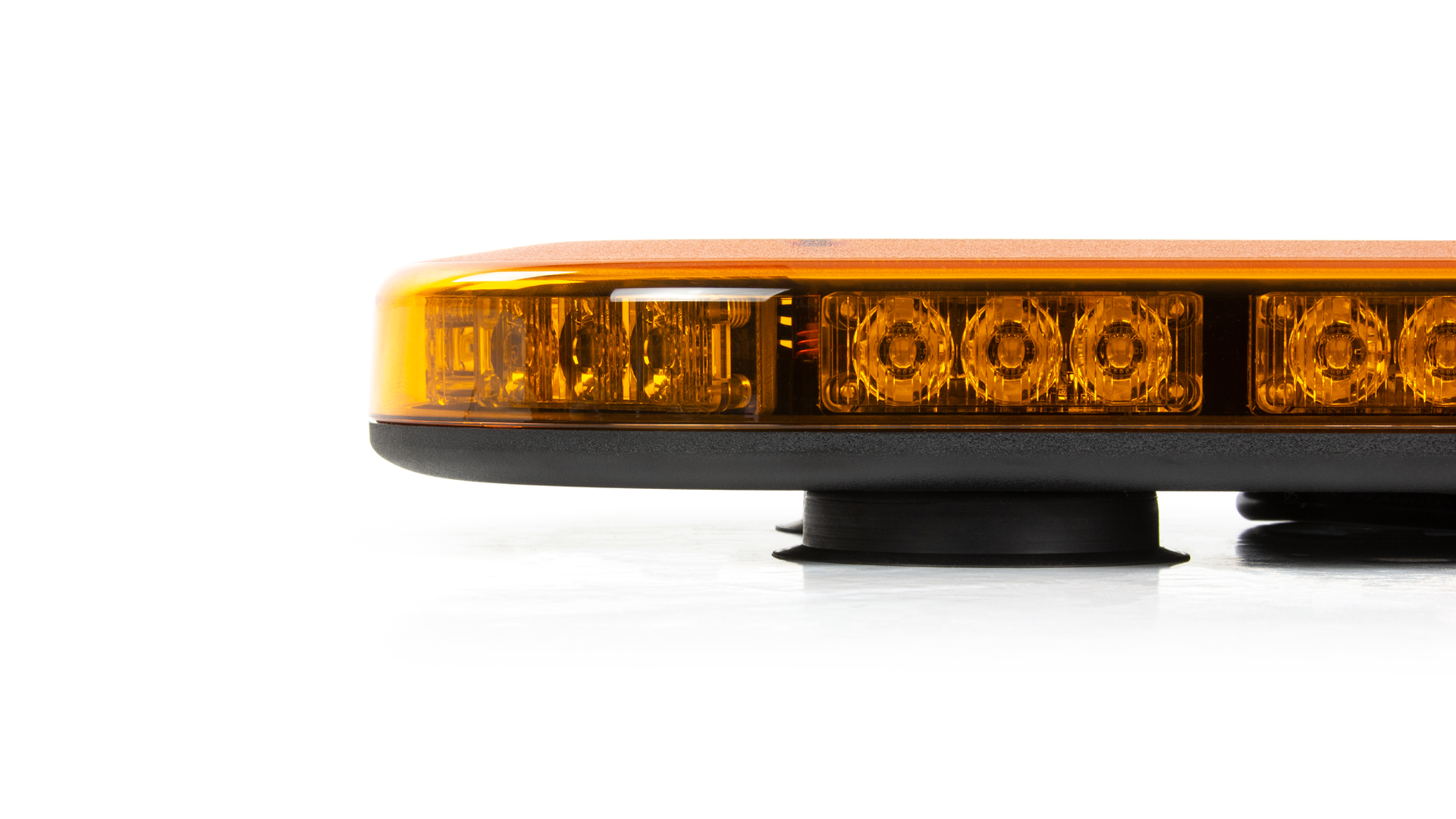

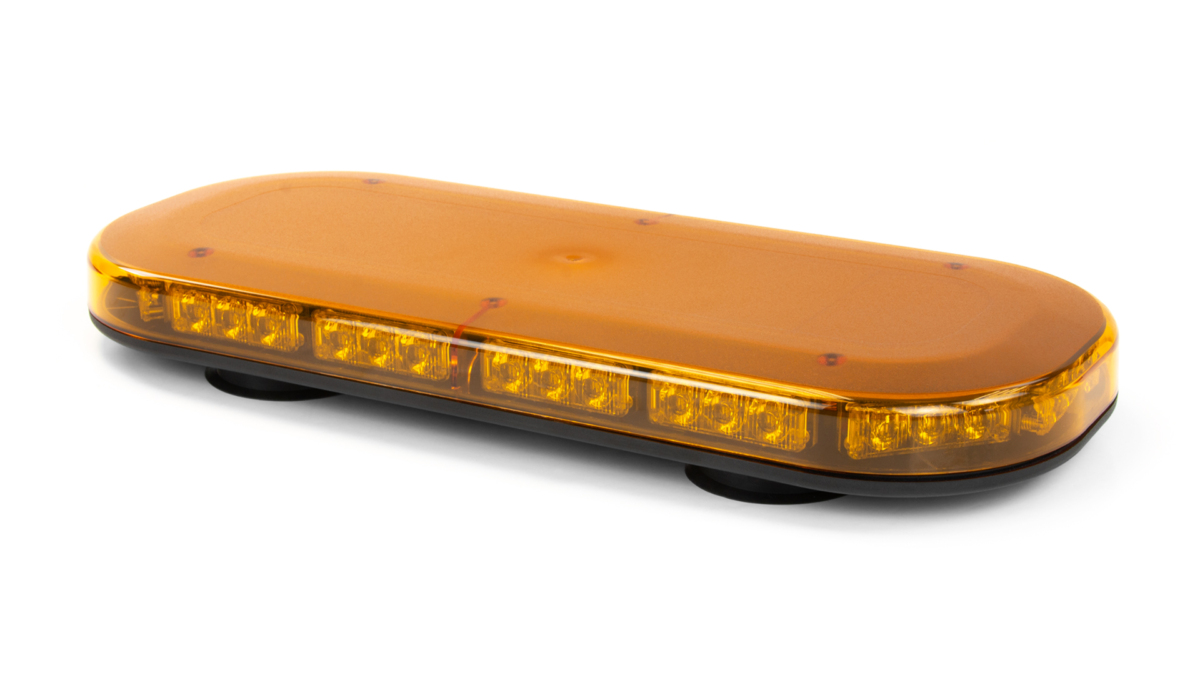

Product code 06390075 Product Name Microbar EX - AA (Magnetic Mount) Categories Lighting, Lightbars, Microbar EX, Minibars Product Type Products Dimensions Length 400mm Dimensions Height 37mm Dimensions Width 172mm Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 6.2A@12VDC / 3.1A@24VDC Operating Temperature -30°C~+65°C Maximum Power 74W Synchronisation 15 Unit Sync Lightbar Length 0400mm (16") Connection Type Cigar Plug (Latching & Momentary Switch) LED Colour Amber LEDs Fuse Rating 9A Lens Colour Amber Lens Compliance ECE R10, ECE R65 - TA1, SAE J845 Class 1, California Title 13 Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Magnetic Mount Cable Type Cable (Straight) LED Quantity 42x LEDs Lighthead Quantity 14x Lightheads Flash Patterns 24 Flash Patterns IP Rating IPX5 Wire Length 3000mm Warranty 5 Year Warranty -
Spare Parts
-
-
- Lighthead
- 3x LEDs
- 2 Pin Connector
- T.I.R Optics
- 12VDC~24VDC
-
-
Mounting
-
