Specifications

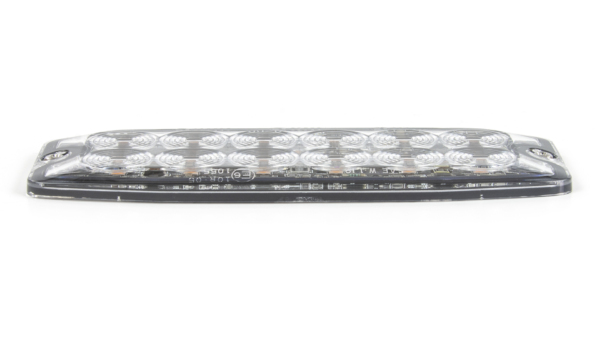

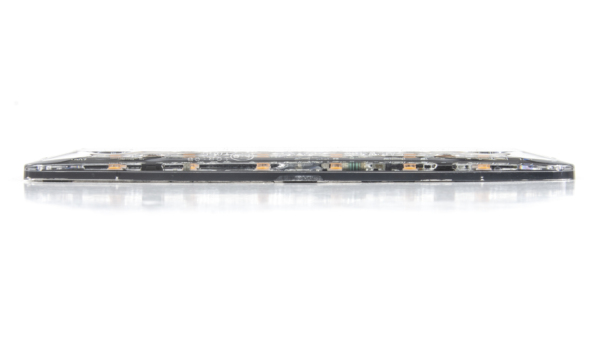

Ultra low profile 6.6mm lighthead for discreet mounting.
Weatherproof and vibration resistant design for external or internal use.
Solid aluminium backing for efficient heat dissipation and maximum durability.

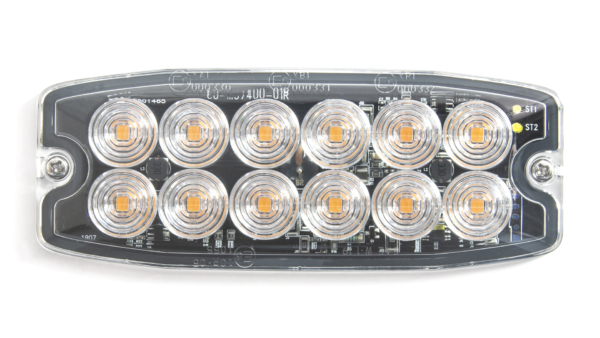

Double stack design with built-in selectable flash patterns in simultaneous or split flash.
Multi-units synchronization in simultaneous or alternating flash.
Versatile installation in horizontal or vertical mount.

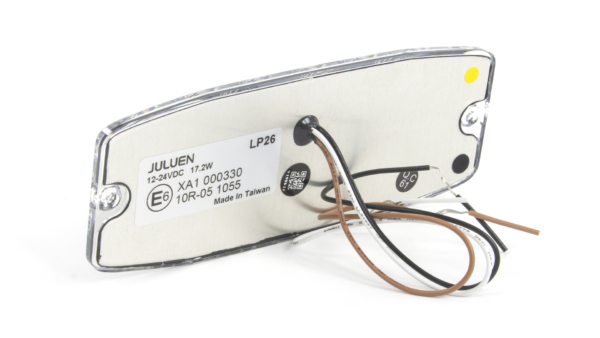

Self-adhesive backing for quick & easy installation.
Self-contained; no external flasher required.
Reverse polarity protection.Product Specifications
Product code 02130248 Product Name LP26 Warning Lighthead - Red Categories Lighting, Directionals, Modules, LED Pad, LP26 Product Type Products Dimensions Length 131mm Dimensions Height 51mm Dimensions Width 7mm Colour Type Single Colour Maximum Current 1.43A@12VDC / 0 715A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 17.2W Synchronisation 20 Unit Sync LED Colour Red LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - XR1, SAE J595 Class 1, SAE J845 Class 1, California Title 13 Input Voltage 12VDC~24VDC Optic Type Fresnel Optics Mounting Option Self Adhesive Mount, Surface Mount Cable Type Cable (Pigtail) LED Quantity 12x LEDs IP Rating IPX7 Flash Patterns 30 Flash Patterns Wire Length 200mm Mounting Orientation Horizontal Conductor Cross-Section 0.25mm² (24AWG) Warranty 2 Year Warranty - Downloads
