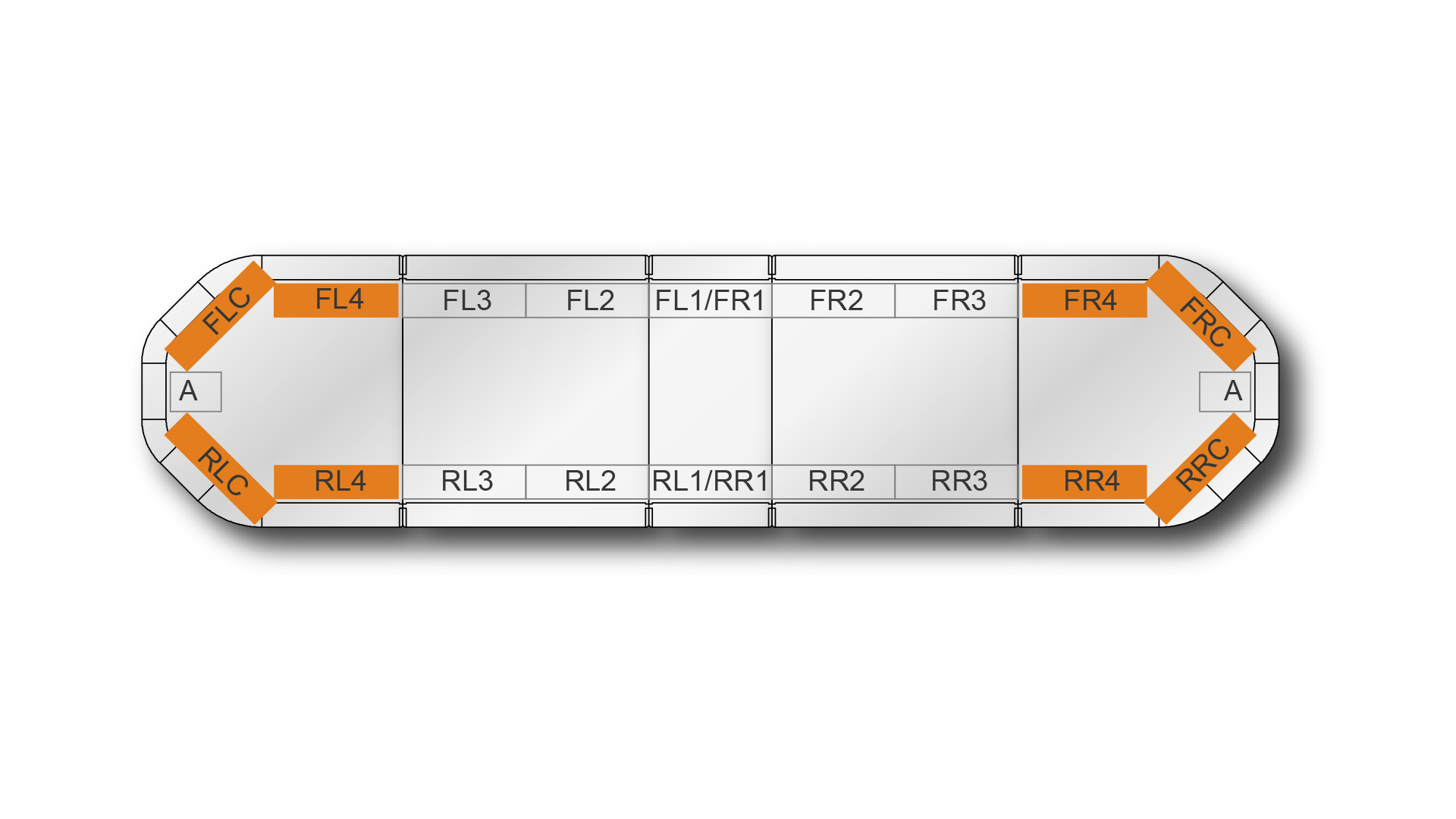

Legion HE Lightbar, 1387mm (54.6″), 72x AMBER LEDs, CLEAR LENSES, ECE R10, ECE R65 (TA2), IPX4K, D-Fuser Optics, 12 Flash Patterns, Double Harness (16 Function/4 Power), Standard Feet, 12VDC.
-
Specifications
LEDs rated to 100,000 hours of operation.
Easy maintenance and lighthead replacement.
D-Fuser optics for superior 360 degree light spread.
Non-volatile memory recalls last flash pattern used at power up.
Aluminium extrusion for best heat dissipation.
Built-in and programmable flashing patterns.
Reverse polarity protection.Product Specifications
Product code 06320454 Product Name Legion HE 1387mm (54.6") - AC (12VDC) Categories Warning Lamps, Lightbars, Legion High End, Legion HE Standard, Legion Product Type Products Configurations (available Cruise Light, Alley Lights, Take-Downs, Steady On Default Functions Traffic Director - Rear Left Arrow., Traffic Director - Rear Right Arrow., Take-Down Lights (2 heads, Right-Side Alley Light, Hi/Low Power (50%, Left-Side Alley Light, Illuminated Centre Section, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Program Mode, Control Box Transmission Line, Stop / Tail / Turn, Cruise Light Mode, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Length 1387mm (54 Dimensions Height 59mm Dimensions Width 331mm Colour Type Single Colour Lightbar Length 1387mm (54.6") LED Colour Amber LEDs Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TA2), SAE J595 Class 1, SAE J845 Class 1, California Title 13 Input Voltage 12VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type Double Harness (16 Function/4 Power/2 Speaker) LED Quantity 72x LEDs Lighthead Quantity 8x Lightheads IP Rating IPX4K Flash Patterns 12 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Dummy Bracket Qty 10x Dummy Plates Warranty 5 Year Warranty -
