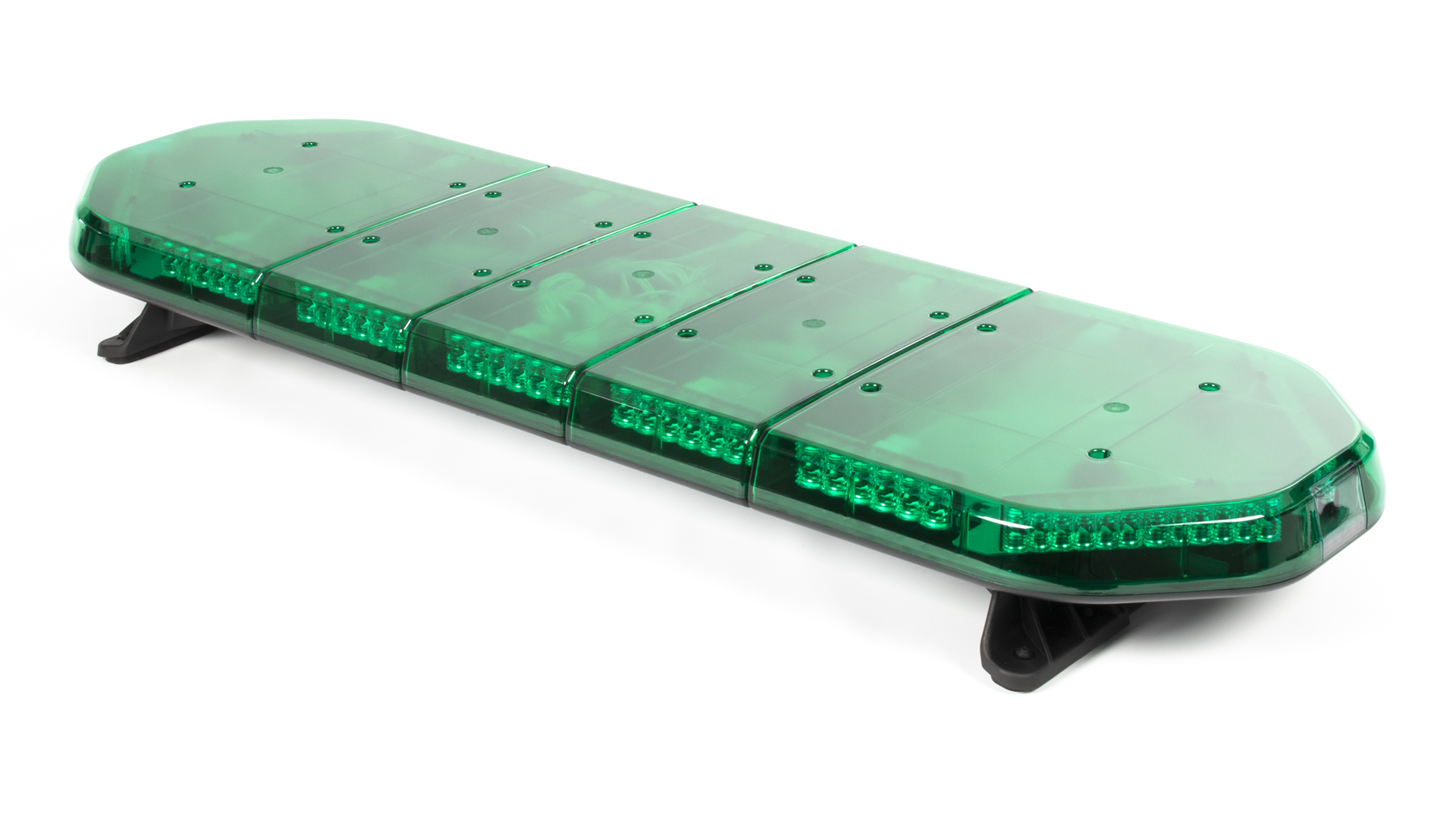

Legion HE Lightbar, 1087mm (42.8″), 72x GREEN LEDs, GREEN LENSES, ECE R10, IPX4K, D-Fuser Optics, 12 Flash Patterns, Double Harness (16 Function/4 Power), Standard Feet, 24VDC.
-
Specifications
LEDs rated to 100,000 hours of operation.
Easy maintenance and lighthead replacement.
D-Fuser optics for superior 360 degree light spread.
Non-volatile memory recalls last flash pattern used at power up.
Aluminium extrusion for best heat dissipation.
Built-in and programmable flashing patterns.
Reverse polarity protection.Product Specifications

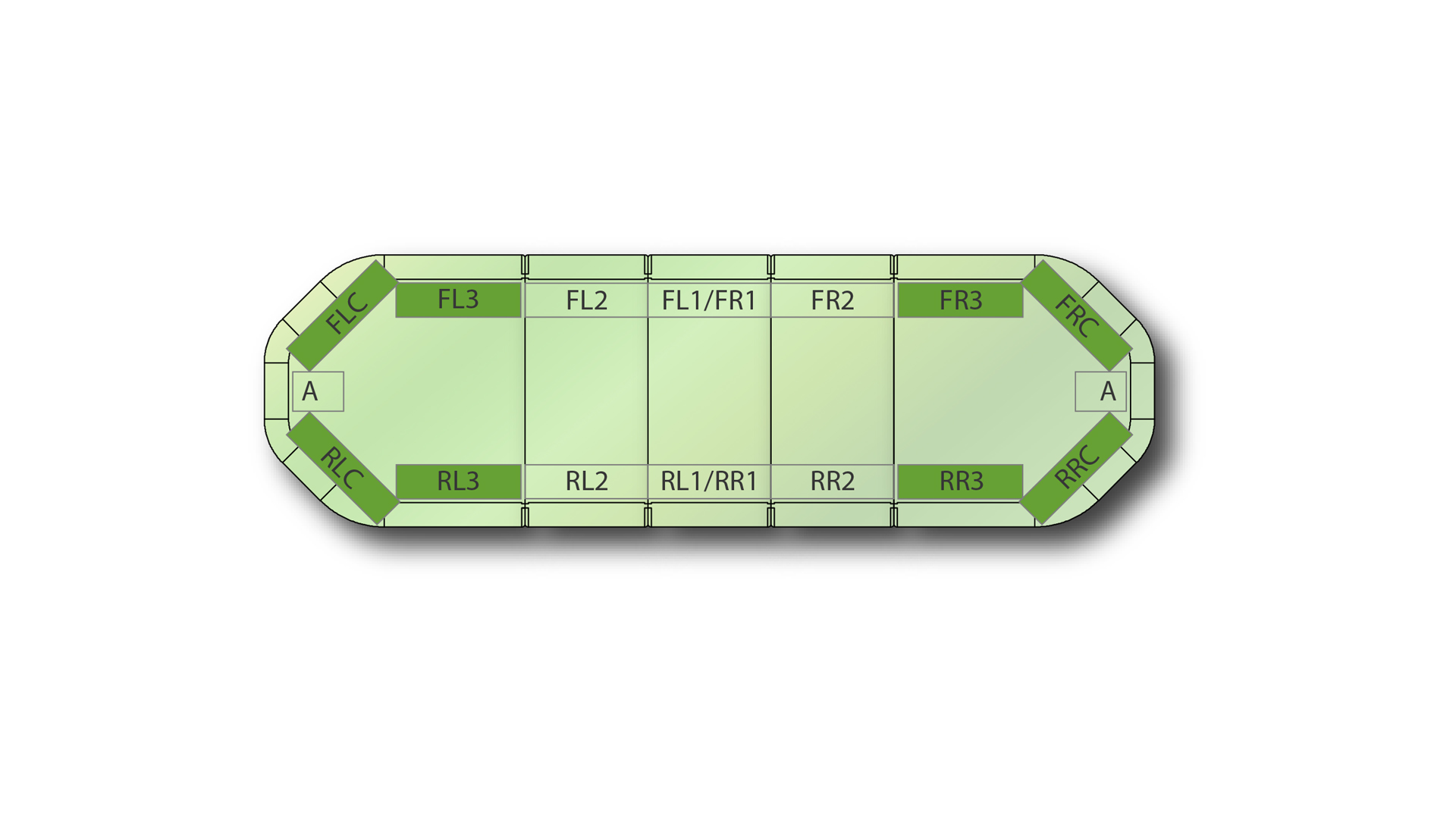

Product code 06321109 Product Name Legion HE 1087mm (42.8") - GG (24VDC) Categories Warning Lamps, Lightbars, Legion High End, Legion HE Standard, Legion Product Type Products Configurations (available Cruise Light, Alley Lights, Take-Downs, Traffic Director, Stop / Tail / Turn, Illuminated Centre, Steady On Default Functions Program Mode, Hi/Low Power (50%, Traffic Director - Rear Left Arrow., Traffic Director - Rear Right Arrow., Right-Side Alley Light, Left-Side Alley Light, Illuminated Centre Section, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Take-Down Lights (2 heads, Control Box Transmission Line, Stop / Tail / Turn, Cruise Light Mode, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Length 1087mm (42.8") Dimensions Height 59mm Dimensions Width 331mm Colour Type Single Colour Lightbar Length 1087mm (42.8") LED Colour Green LEDs Lens Colour Green Lens Compliance ECE-R10, California Title 13 Input Voltage 24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type Double Harness (16 Function/4 Power/2 Speaker) LED Quantity 72x LEDs Lighthead Quantity 8x Lightheads IP Rating IPX4K Flash Patterns 12 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Dummy Bracket Qty 6x Dummy Plates Warranty 5 Year Warranty -
