Legion HE Lightbar, 0935mm (36.8″), 72x AMBER LEDs, CLEAR LENSES, ECE R10, ECE R65 (TA2), IPX4K, D-Fuser Optics, 7 Flash Patterns, Single Harness (8 Function/2 Power), Standard Feet, 12VDC.
-
Specifications
LEDs rated to 100,000 hours of operation.
Easy maintenance and lighthead replacement.
D-Fuser optics for superior 360 degree light spread.
Non-volatile memory recalls last flash pattern used at power up.
Aluminium extrusion for best heat dissipation.
Built-in and programmable flashing patterns.
Reverse polarity protection.Product Specifications

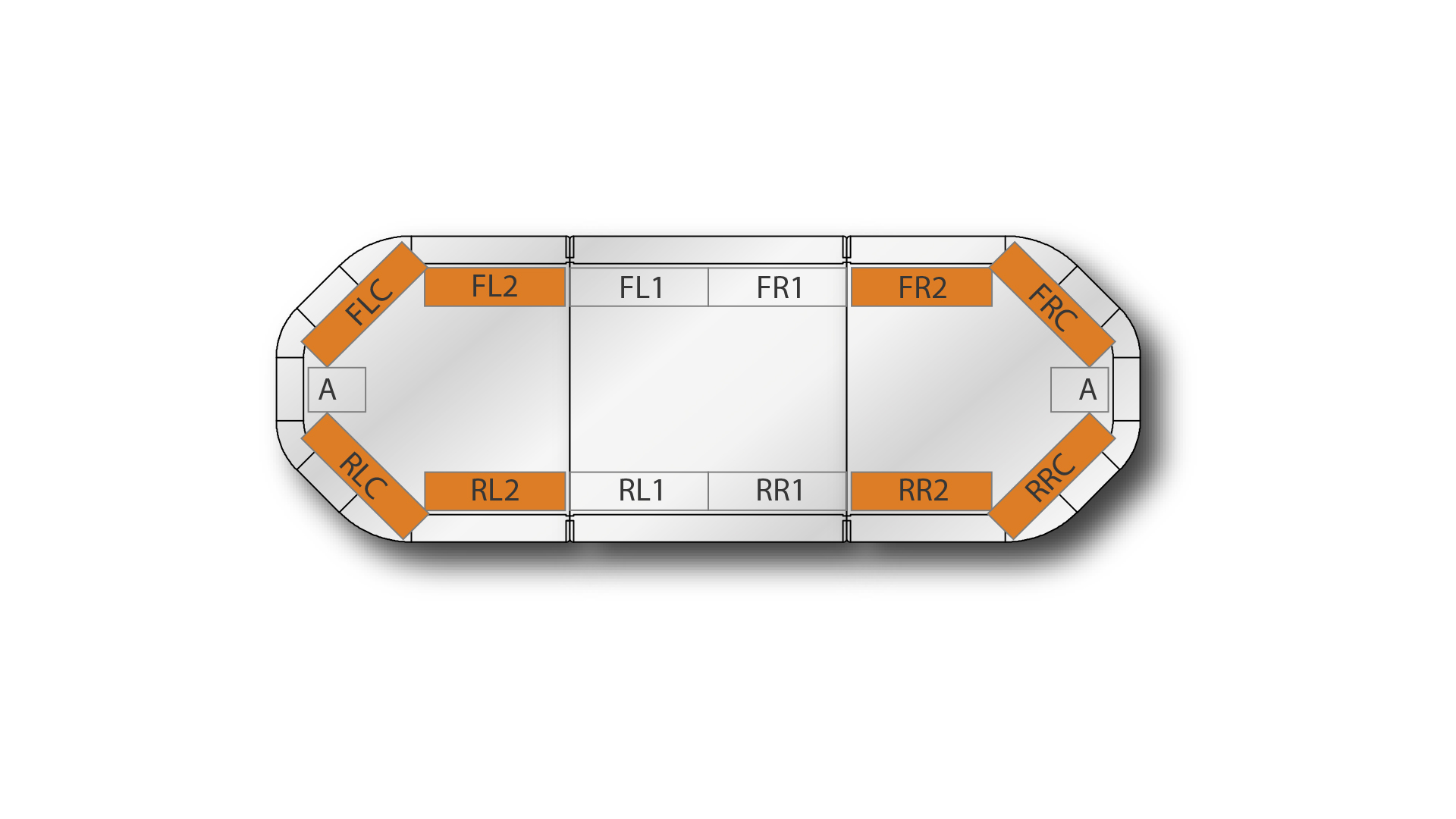

Product code 06320218 Product Name Legion HE 0935mm (36.8") - AC (12VDC) Categories Warning Lamps, Legion High End, Legion HE Standard, Lightbars, Legion Product Type Products Configurations (available Cruise Light, Alley Lights, Take-Downs, Steady On Dimensions Length 935mm (36") Default Functions Right-Side Alley Light, Left-Side Alley Light, Take-Down Lights (2 heads Dimensions Height 59mm (2.3") Dimensions Width 331mm (13") Colour Type Single Colour Lightbar Length 0935mm (37") LED Colour Amber LEDs Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TA2), SAE J595 Class 1, SAE J845 Class 1, CA13 Input Voltage 12VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type Single Harness (8 Function/2 Power/2 Speaker) LED Quantity 72x LEDs Lighthead Quantity 8x Lightheads IP Rating IPX4K Flash Patterns 7 Flash Patterns Net Weight 10.8kg Gross Weight 11.8kg Dummy Bracket Qty 4x Dummy Plates Warranty 5 Year Warranty -
