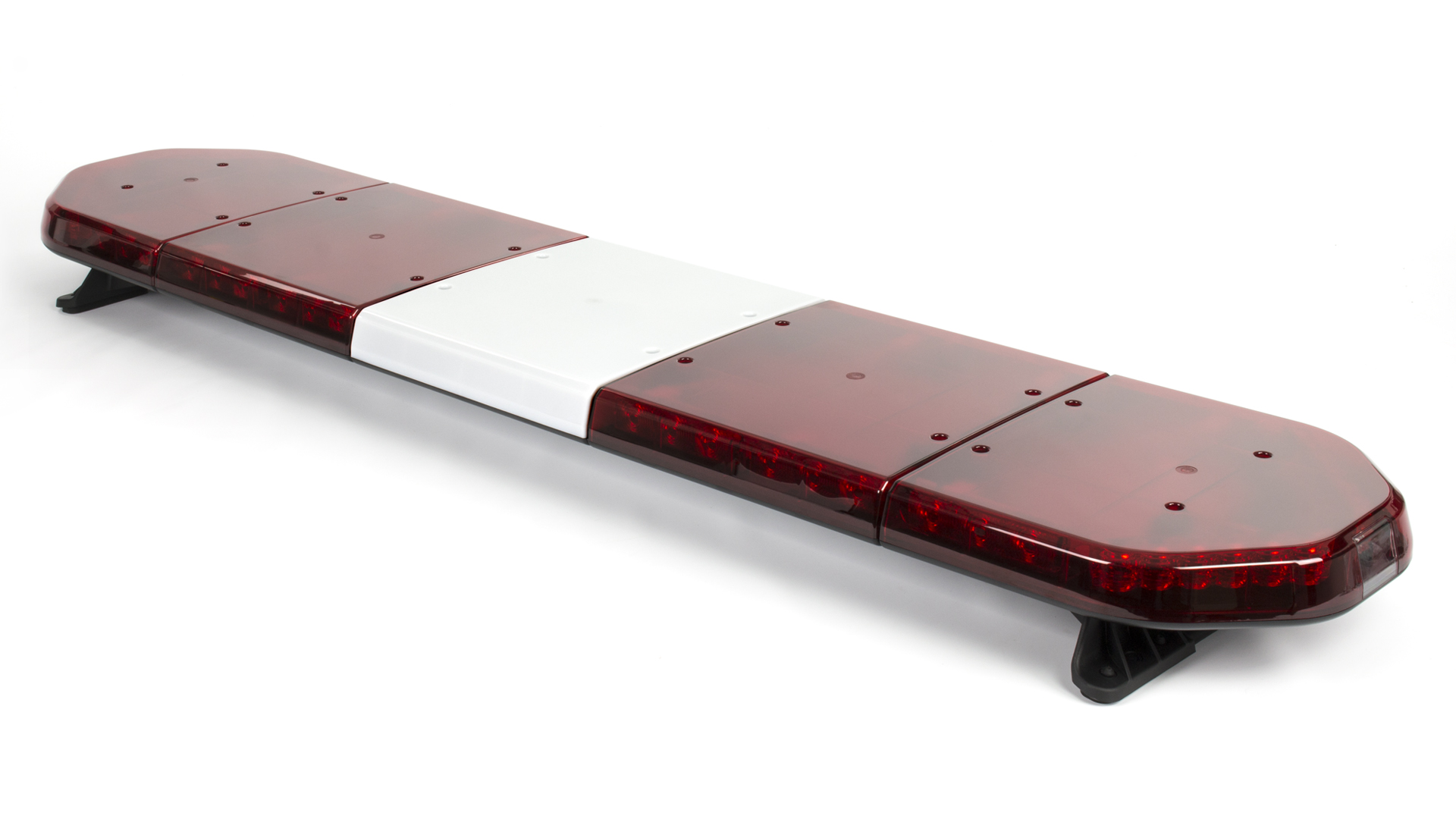

Legion FIT+ Lightbar, 1537mm (60.5″), 24x RED LEDs, RED/OPAL LENSES, ECE R10, ECE R65 (TR1), IPX4K, D-Fuser Optics, 12 Flash Patterns, Double Harness (16 Function/4 Power), Standard Feet, 12~24VDC.
-
Specifications
LEDs rated to 100,000 hours of operation.
Easy maintenance and lighthead replacement.
Optional takedowns and alley lights are available.
D-Fuser optics for superior 360 degree light spread.
Non-volatile memory recalls last flash pattern used at power up.
Aluminium extrusion for best heat dissipation.
Built-in and programmable flashing patterns.
Reverse polarity protection.Product Specifications
Product code 06270568 Product Name Legion FIT+ 1537mm (60.5") - RRO (12~24VDC) Categories Lighting, Lightbars, Legion FIT+ Standard, Legion, Legion FIT+ Product Type Products Configurations (available Take-Downs, Traffic Director, Stop / Tail / Turn, Steady On, Cruise Light, Alley Lights Default Functions Traffic Director - Rear Right Arrow., Right-Side Alley Light, Left-Side Alley Light, Flashing Alleys & Take-Downs, Front Cut-Off, Take-Down Lights (2 heads, Rear Cut-Off, Hi/Low Power (50%, Program Mode, Traffic Director - Rear Left Arrow., ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Length 1537mm (60") Dimensions Height 59mm Dimensions Width 331mm Colour Type Single Colour Maximum Current 9.7A@12.8VDC / 5.4A@25.6VDC Operating Temperature -30°C~+65°C Lightbar Length 1537mm (60.5") LED Colour Red LEDs Lens Colour Red Lens, Opal Lens Compliance ECE-R10, ECE-R65 (TR1) Input Voltage 12VDC~24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type Double Harness (16 Function/4 Power) LED Quantity 24x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 21 Flash Patterns Warranty 5 Year Warranty -
