EAN: 06270452

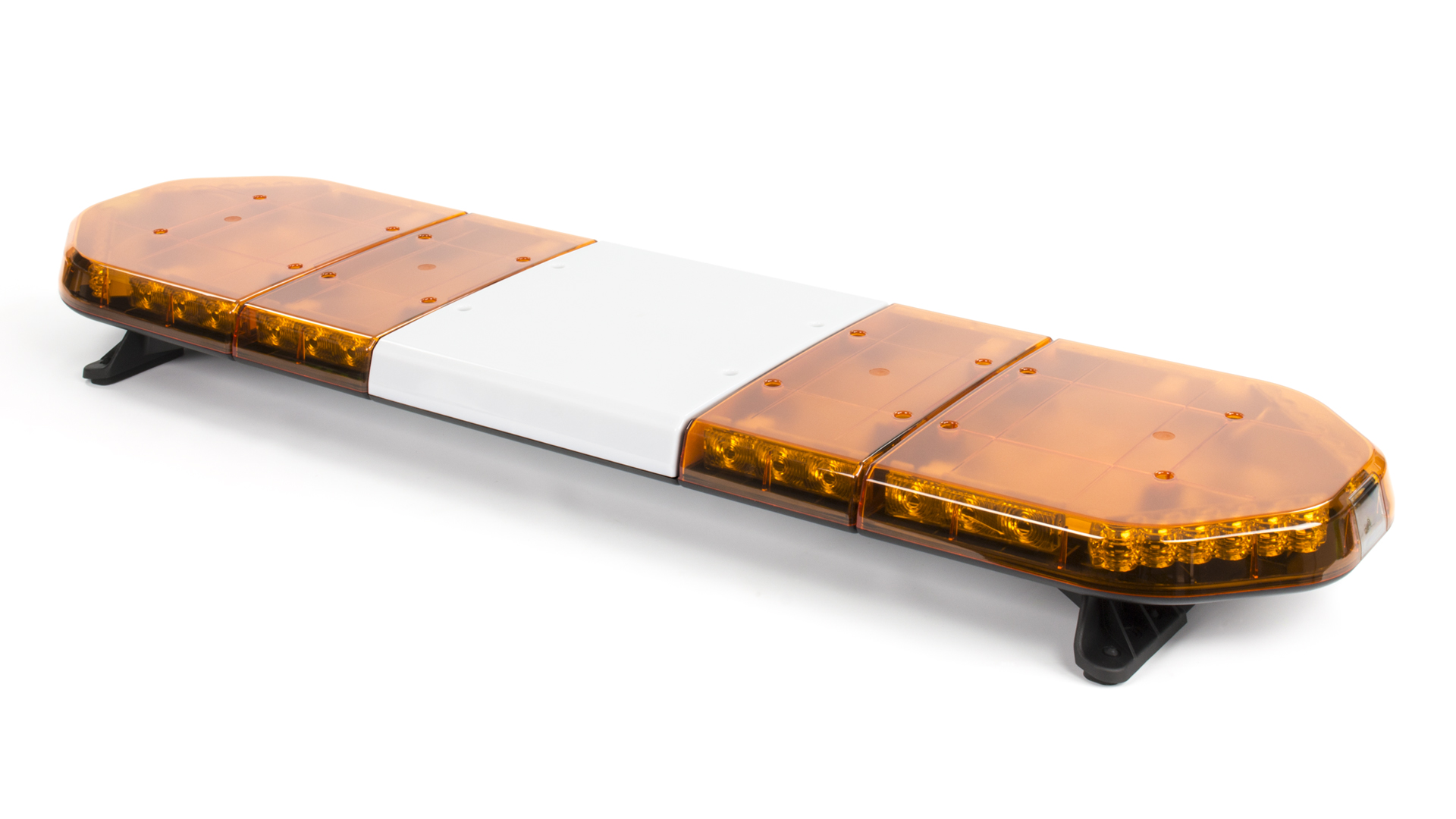

Legion FIT+ Lightbar, 1252mm (49.3″), 24x AMBER LEDs, AMBER/OPAL (AAOAA) LENSES, ECE R10, ECE R65 (TA1), IPX4K, D-Fuser Optics, 12 Flash Patterns, 2 Cable Harness (16 Function/4 Power), Standard Feet, 12~24VDC.
-
Specifications
LEDs rated to 100,000 hours of operation.
Easy maintenance and lighthead replacement.
Optional Takedowns and Alley Lights are available.
D-Fuser optics for superior 360 degree light spread.
Non-volatile memory recalls last flash pattern used at power up.
Aluminium extrusion for best heat dissipation.
Built-in and programmable flashing patterns.
Reverse polarity protection.Product Specifications
Product code 06270452 Product Name Legion FIT+ 1252mm (49.3") - AAO (12~24VDC) Categories Lightbars, Legion FIT+ Standard, Legion, Legion FIT+ Product Type Products Configurations (available Cruise Light, Alley Lights, Take-Downs, Traffic Director, Stop / Tail / Turn, Steady On Dimensions Length 1252mm (49") Default Functions Front Cut-Off, Rear Cut-Off, Take-Down Lights (2 heads, Program Mode, Hi/Low Power (50%, Traffic Director - Rear Left Arrow., Traffic Director - Rear Right Arrow., Right-Side Alley Light, Left-Side Alley Light, Flashing Alleys & Take-Downs, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 59mm (2.3") Dimensions Width 331mm (13") Colour Type Single Colour Maximum Current 8.1A@12.8VDC / 4.4A@25.6VDC Operating Temperature -30°C~+65°C Lightbar Length 1252mm (49.3") LED Colour Amber LEDs Lens Colour Amber Lens, Opal Lens Compliance ECE-R10, ECE-R65 (TA1) Input Voltage 12VDC~24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type 2 Cable Harness (16 Function/4 Power) LED Quantity 24x LEDs Lighthead Quantity 4x Lightheads Flash Patterns 21 Flash Patterns IP Rating IPX4K Net Weight 13kg Gross Weight 14kg Warranty 5 Year Warranty -
Spare Parts
-
-
-
-
- Warning
- Single Colour
- 3 Pin Connector
- Amber LEDs
- Fresnel Optics
-
-
-
-
-
-
-
-
- Warning
- Single Colour
- 3 Pin Connector
- Amber LEDs
- D-Fuser Optics
-
-
-
Accessories
-
- Polycarbonate (PC)
- 9 Pin Connector
- 1 Cable Harness (8 Function/2 Power)
-
-
Mounting
-
- Powder-Coated Aluminium
- Low Profile Flat Wide Feet
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
- Black
-
-
- Powder-Coated Aluminium
- MS3 - Extrusion Bracket
- Black
-
- Powder-Coated Aluminium
- MS3 - A006 Mounting Bracket
- Black
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable A006)
- Black
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable Bolt)
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Wide Feet
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
- Black
-
- Powder-Coated Aluminium
- Standard Bolt Mount Brackets
- Black
-
