Legion FIT Illuminated Centre Lightbar, 1387mm (54.6″), 24x AMBER LEDs, 18 WHITE ICS, AMBER/OPAL LENSES, ECE R10, ECE R65 (TA1), IPX4K, Firmware (AK), D-Fuser Optics, Double Flash Warning, Single Harness (2 Function/2 Power), Standard Feet, 24VDC.
-
Specifications
Easy maintenance and lighthead replacement.

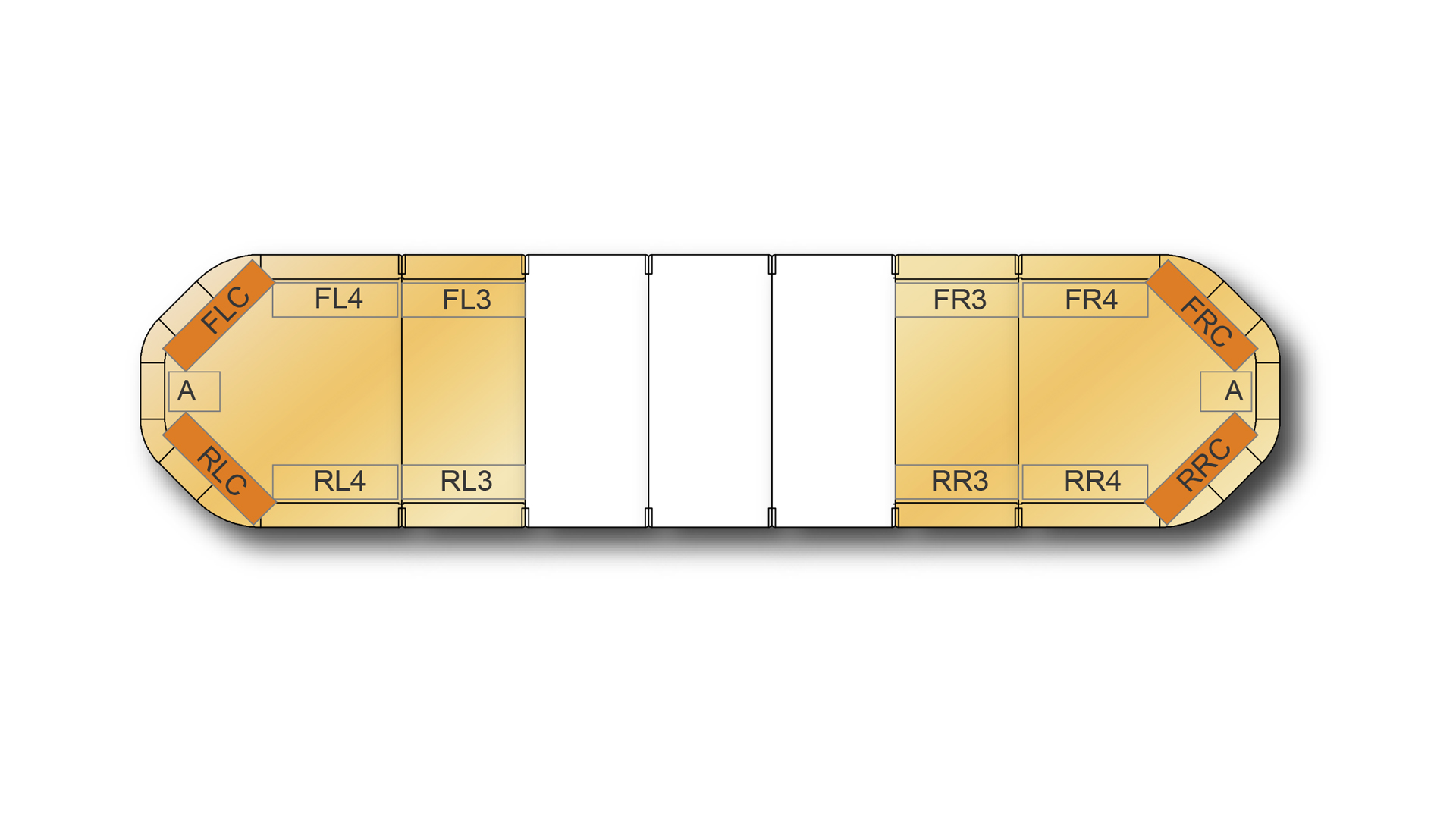

6 LED large d-fuser optics for corner lightheads.
Illuminated centre section with 3 LED backlight modules.
Non-volatile memory recalls last flash pattern used at power up.
Solid aluminium base for best rigidity and heat dissipation.
Reverse polarity protection.Product Specifications
Product code 06380175 Product Name Legion FIT Illuminated Centre 1387mm (54.6") - AA (24VDC) Categories Warning Lamps, Lightbars, Legion FIT Illuminated Centre, Legion FIT, Legion Product Type Products Configurations (available Illuminated Centre Dimensions Length 1387mm (54 Default Functions ECE-R65 Warning Mode Dimensions Height 59mm Dimensions Width 331mm Colour Type Single Colour Maximum Current 4.9A@25.6VDC Operating Temperature -30°C~+65°C Lightbar Length 1387mm (54.6") LED Colour Amber LEDs, White LEDs Lens Colour Amber Lens, Opal Lens Compliance ECE-R10, ECE-R65 (TA1), SAE J845 Class 1, California Title 13 Input Voltage 24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type Single Harness (2 Function/2 Power) LED Quantity 48x LEDs Lighthead Quantity 8x Lightheads IP Rating IPX4K Flash Patterns 1 Flash Pattern Warranty 5 Year Warranty -
