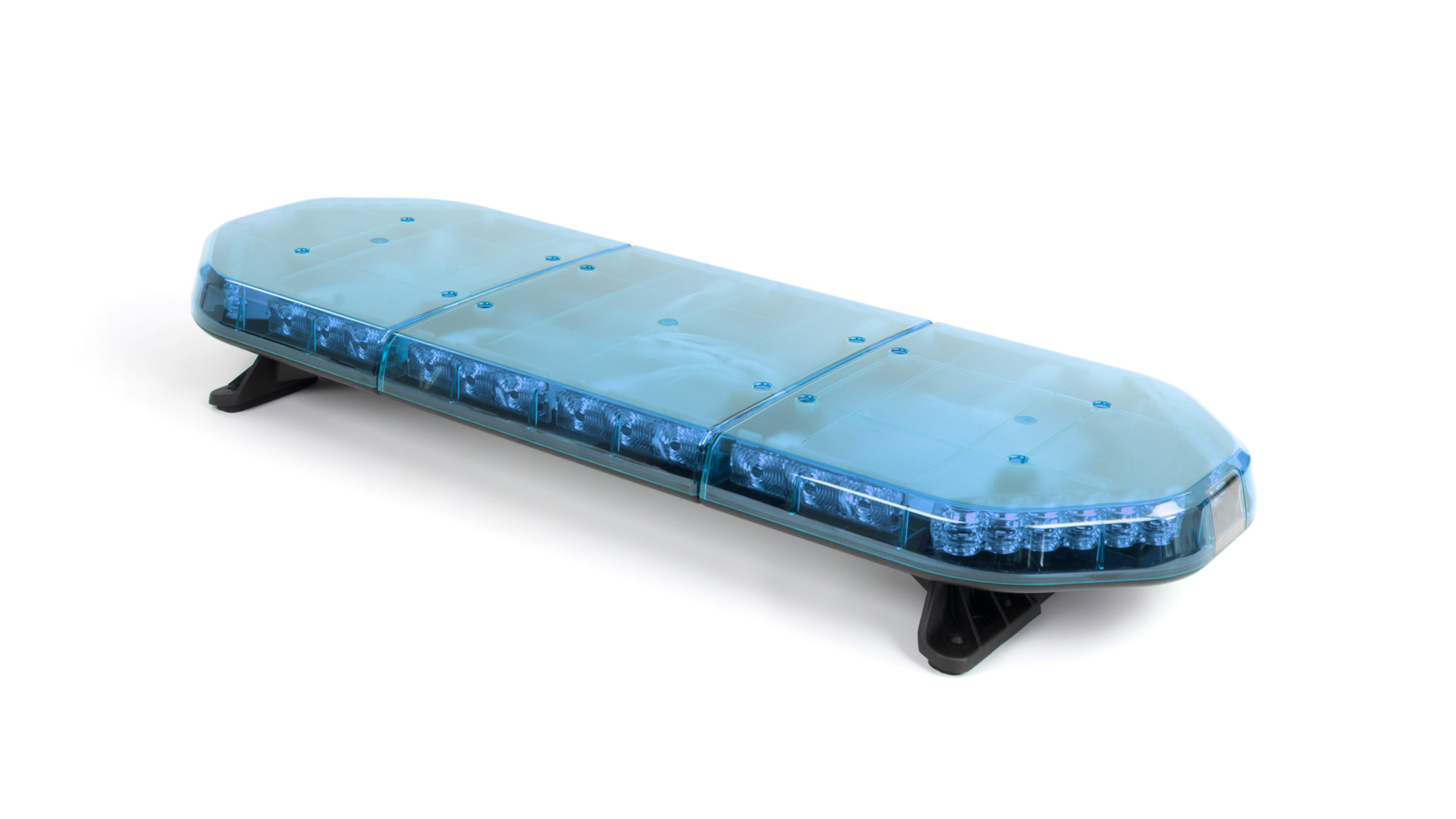

Legion FIT Lightbar, 0935mm (36.8″), 24x BLUE LEDs, BLUE LENSES, ECE R10, ECE R65 (TB1), IPX4K, D-Fuser Optics, 7 Flash Patterns, Single Harness (2 Function/2 Power), Standard Feet, 12~24VDC.
-
Specifications
Built-in selectable flash patterns.
Easy maintenance and lighthead replacement.
Multi-voltage input 12-24VDC with EMC compliance.
Non-volatile memory recalls last flash pattern used at power up.
Solid aluminium base for best rigidity and heat dissipation.
Reverse polarity protection.Product Specifications
Product code 06330224 Product Name Legion FIT 0935mm (36.8") - BB (12~24VDC) Categories Lighting, Lightbars, Legion FIT Standard, Legion, Legion FIT Product Type Products Default Functions Hi/Low Power (50%), ECE-R65 Warning Mode Dimensions Height 59mm Dimensions Width 331mm Colour Type Single Colour Maximum Current 6.5A@12.8VDC / 3.4A@25.6VDC Lightbar Length 0935mm (37") LED Colour Blue LEDs Lens Colour Blue Lens Compliance ECE R10, ECE R65 - TB1, SAE J845 Class 1, California Title 13 Input Voltage 12VDC~24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type Single Harness (2 Function/2 Power/2 Speaker) LED Quantity 24x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 7 Flash Patterns Wire Length 3000mm Warranty 5 Year Warranty -
