Specifications

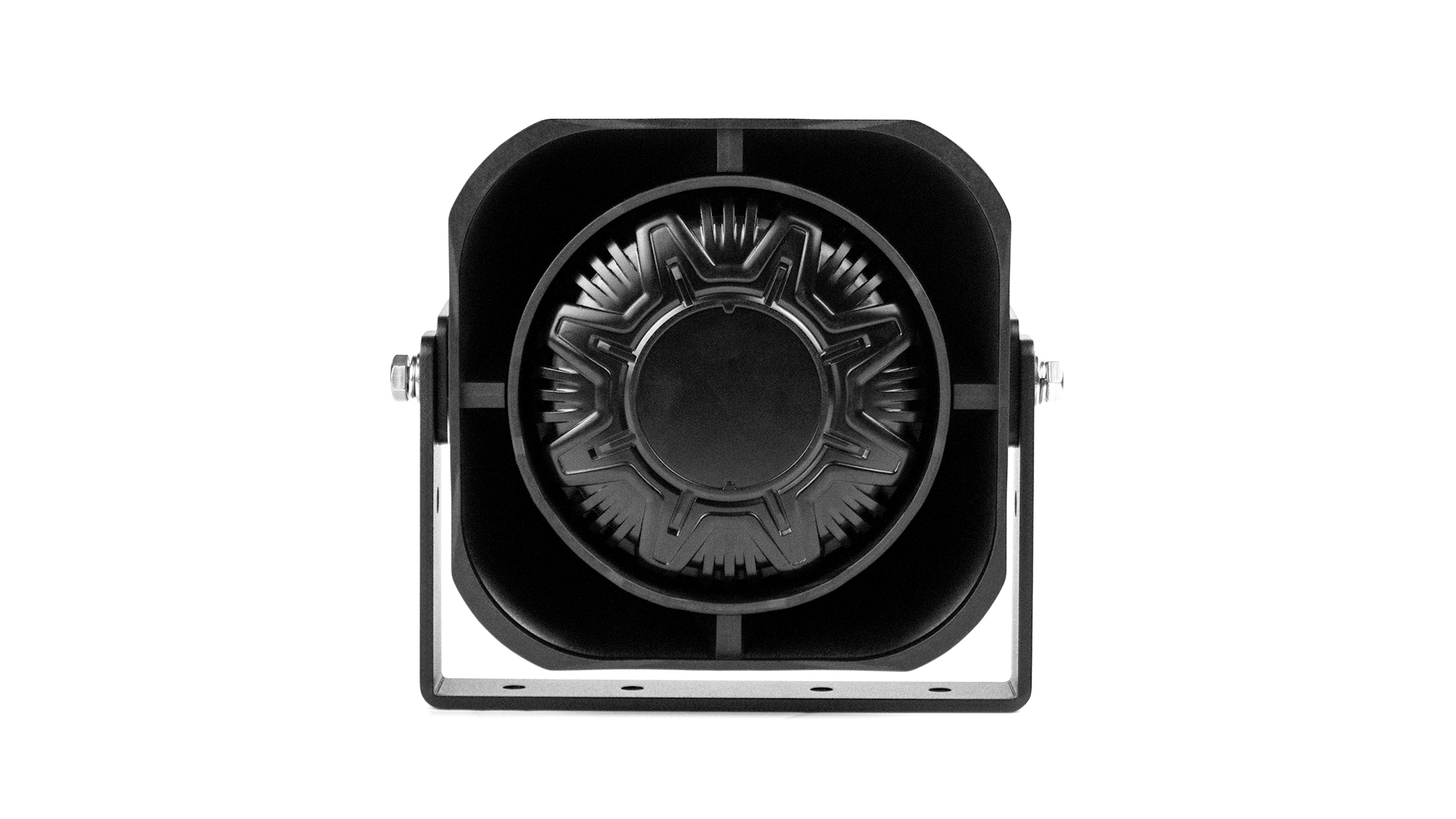

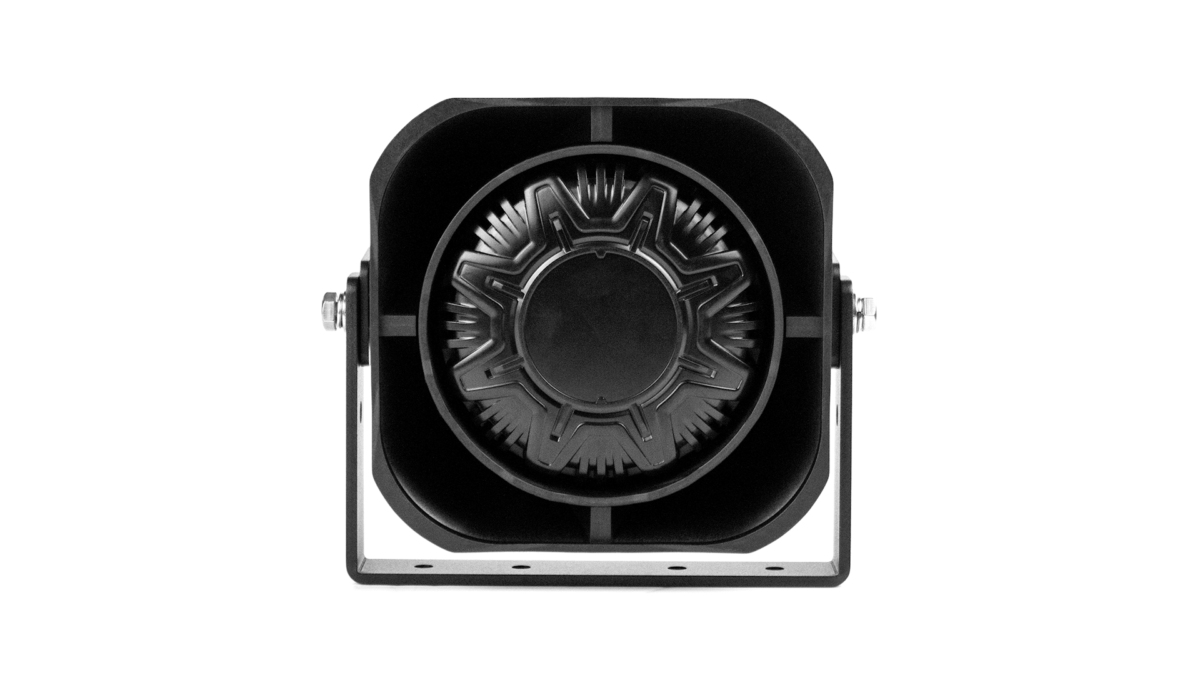

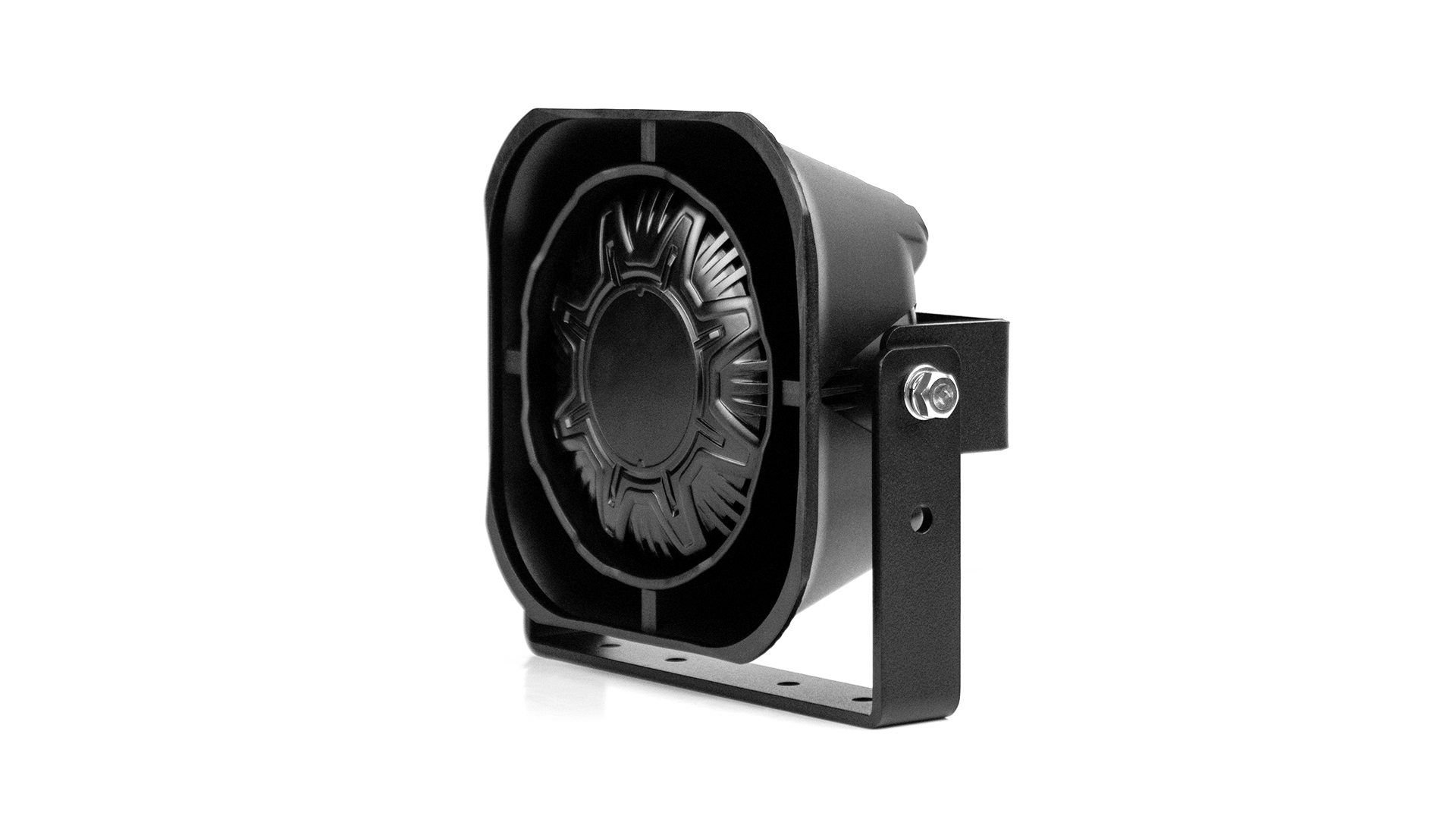

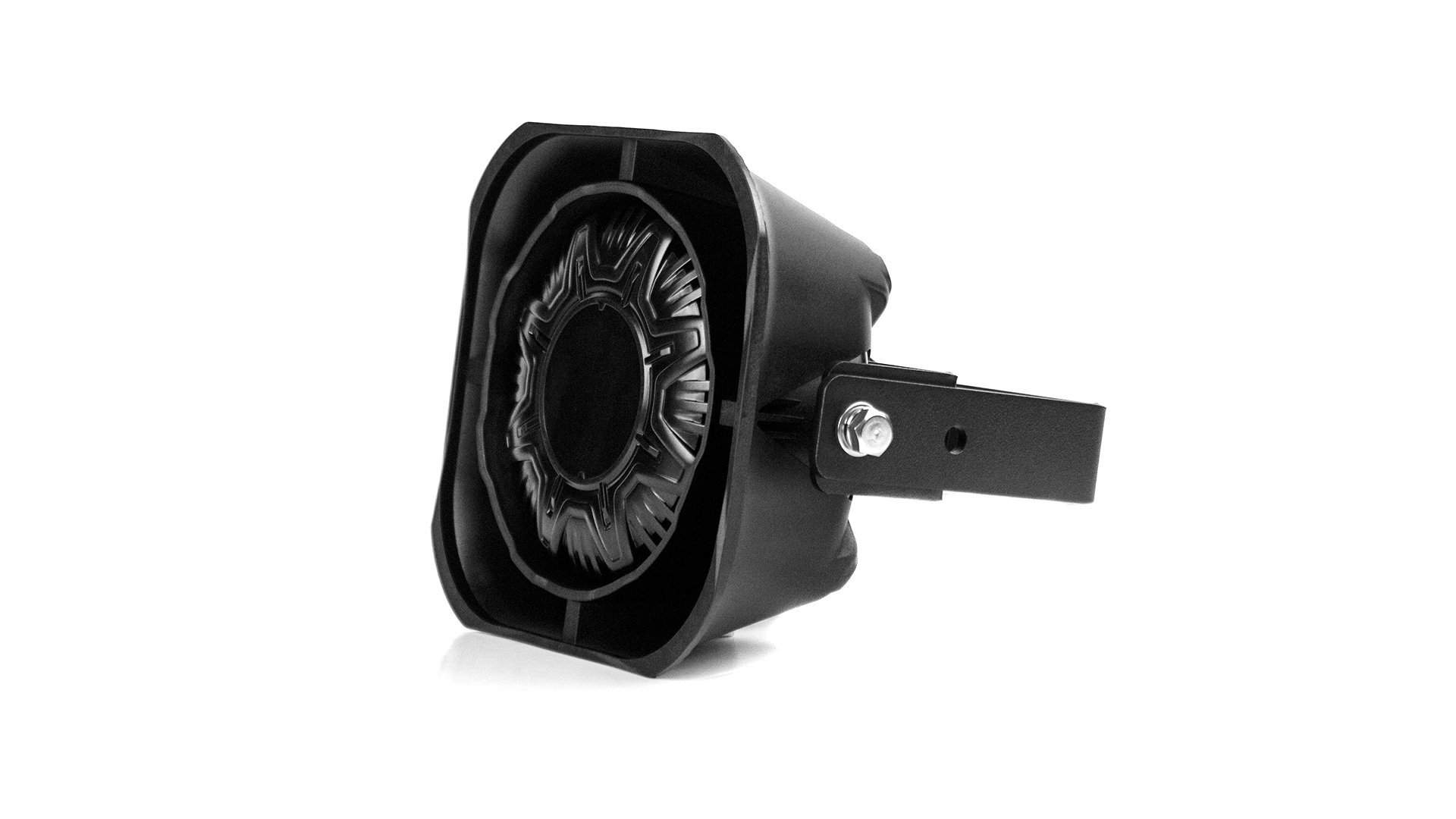

High performance siren speaker that exceeds SAE requirements.
Powerful Neodymium magnet that produces more than 124.5dB over 3M (9.8ft) distance.
Compact and durable design with Fibre Reinforced Nylon housing & cast aluminium driver unit.
Industrial standard U-Bracket for versatile installation.
Tested for efficiency and reliability with SAE J1849.Product Specifications
Product code 17030069 Product Name JS100-C1 Speaker (U-Bracket) Categories Electronic Equipment, JS100-C1, Speakers, Audible Warning Product Type Products Dimensions Length 161mm (6.3") Dimensions Height 160.9 (6.33 Speaker Power Rating 100W Dimensions Width 75.2mm (2.96 Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Compliance SAE J1849 EVS2, CA13 Mounting Option U-Bracket Cable Type Cable (Pigtail) IP Rating IP54K Wire Length 350mm Material Fibre Reinforced Nylon Impedance 11 Ω Gross Weight 2.5kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 2 Year Warranty -

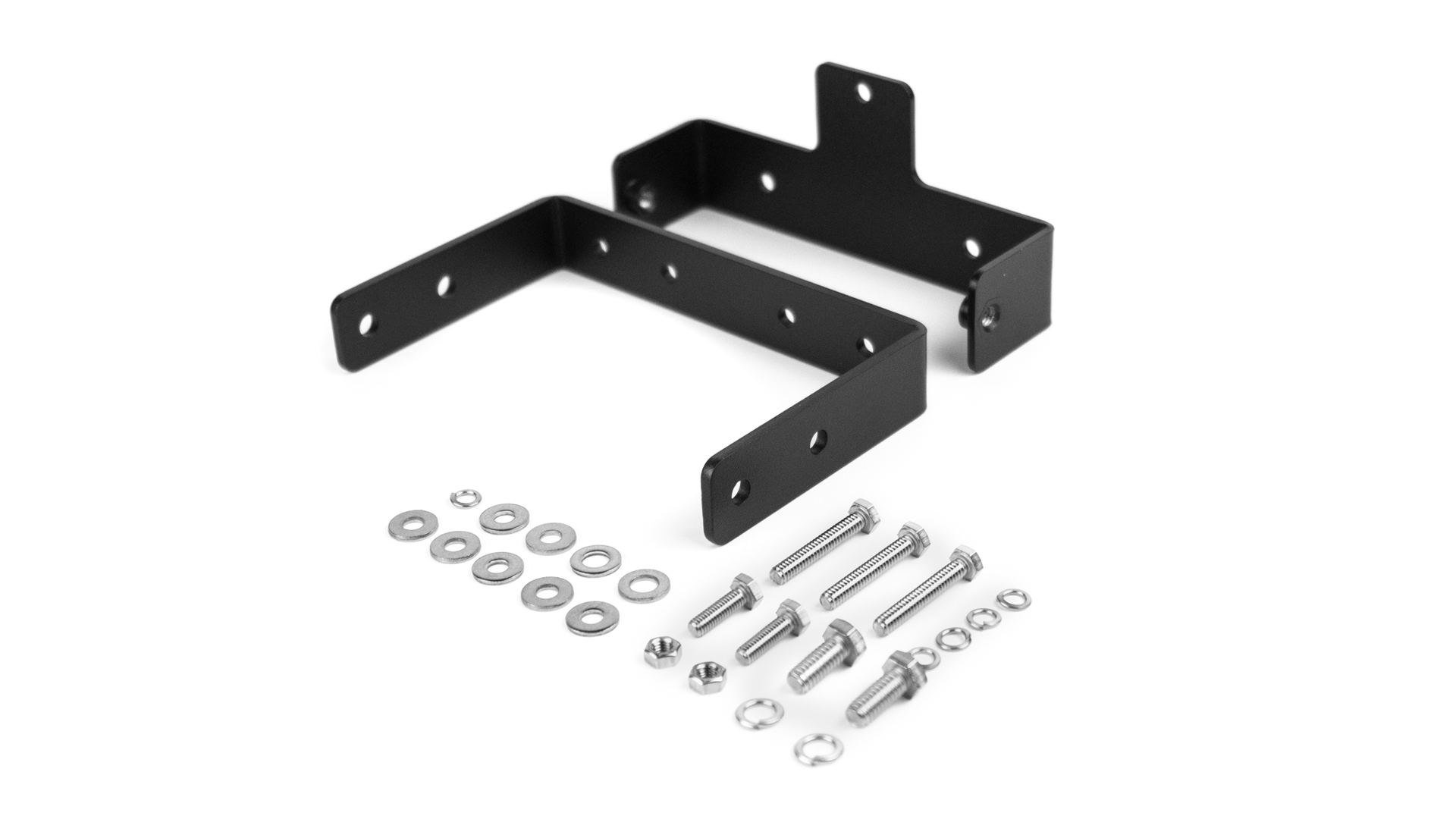

Mounting
-
-
Downloads
Cell2_JS100-C1_SpecSheet_EN
pdf
548.38 KB
Download
Cell2_JS100-C1_UserManual_EN
pdf
1.65 MB
Download
Cell2_JS100-C1_SpecSheet_DE
pdf
552.54 KB
Download
Cell2_JS100-C1_SpecSheet_ES
pdf
550.89 KB
Download
Cell2_JS100-C1_SpecSheet_FR
pdf
551.23 KB
Download
Cell2_JS100-C1_SpecSheet_IT
pdf
549.37 KB
Download
