Specifications
Individual lightheads meet ECE R65 certification.

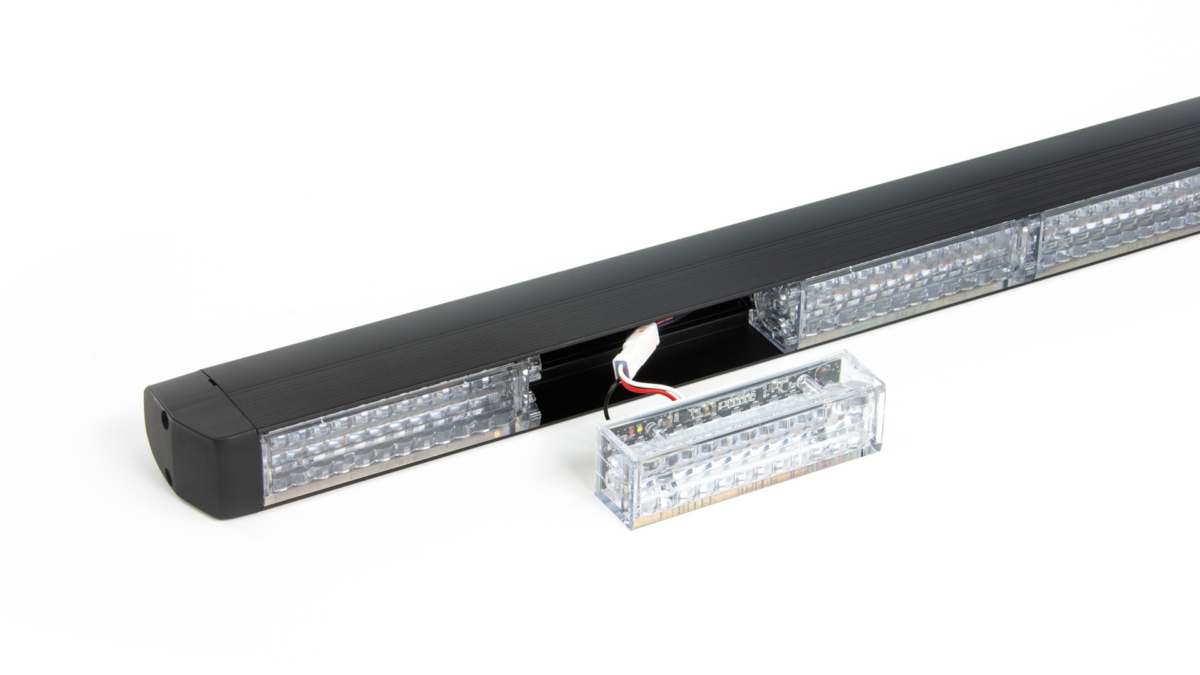

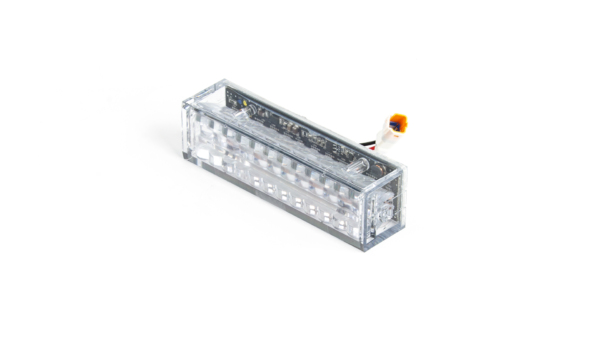

New Q-lock mechanism provides a tool-free, quick releasing of lightheads for easy replacement.
New Horizon 6LED optics, super low profile with seamless output.
Dual warning memory for instant switch between flash patterns.
Non-volatile memory recalls last flash pattern used at power up.
End flasher mode for concurrent traffic advising and warning.
Solid aluminium extrusion for heat dissipation.
Steady burn mode as full flood or scene light.
Reverse polarity protection.Product Specifications
Product code 01100464 Product Name Horizon Traffic Director (10 Lighthead) - R10 Categories Warning Lamps, Horizon (Single Colour), Horizon, Traffic Advisors Product Type Products Dimensions Height 32mm Dimensions Width 53mm Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 8.60A@12VDC / 4.30A@24VDC Operating Temperature -30°C~+65°C Maximum Power 103W Traffic Advisor Length 1059mm LED Colour Red LEDs Fuse Rating 10A@12VDC / 5A@24VDC Lens Colour Clear Lens Traffic Director Functions Traffic Arrow, Warning Mode, End Flashers Compliance ECE-R10, ECE-R65 (XR1), CISPR25, SAE J595 Class 1, California Title 13 Input Voltage 12VDC~24VDC Optic Type Horizon Optics Mounting Option 2-Bolt Mount Cable Type Single Harness (6 Function/2 Power) LED Quantity 60x LEDs Lighthead Quantity 10x Lightheads IP Rating IPX7 Flash Patterns 50 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Wire Length 3000mm Mounting Orientation Horizontal Warranty 5 Year Warranty -
