Specifications
Non-volatile memory recalls last flash pattern used at power up.
LEDs rated to 100,000 hours of operation.
Water and vibration resistant design.
23 built-in selectable flash patterns.
Multiple units can be synchronized.
Reverse polarity protection.Product Specifications

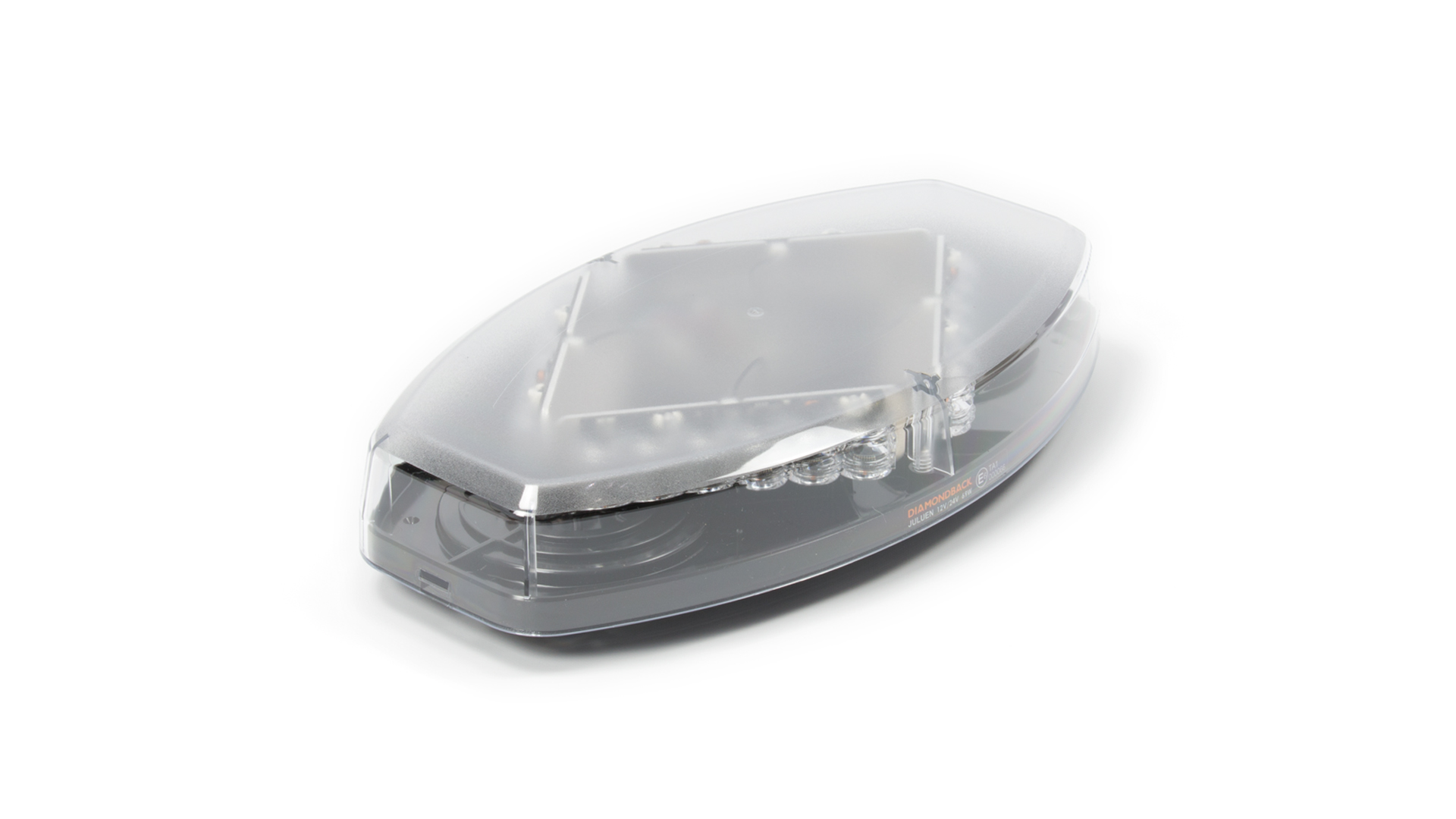

Product code 06350161 Product Name Diamondback - BC (1-Bolt Mount) Categories Lighting, Lightbars, Diamondback, Minibars Product Type Products Dimensions Height 53mm Dimensions Width 205mm Colour Type Single Colour Maximum Current 5.75A@12VDC / 2.88A@24VDC Maximum Power 69W Lightbar Length 0355mm (14") LED Colour Blue LEDs Fuse Rating 8A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - TB1, SAE J845 Class 1 Optic Type D-Fuser Optics Nominal Voltage 12-24VDC Mounting Option 1-Bolt Mount Cable Type Cable (Pigtail) LED Quantity 24x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 23 Flash Patterns Wire Length 300mm Conductor Cross-Section 0.75mm² (18AWG) Warranty 5 Year Warranty -
