Specifications
ECE R65 Class 1 homologated output for ultimate safety.
3+3 LED Dual Colour capability offers colour alternatives in emergency alerts.
All-in-one self-contained for easy and versatile installation without external flasher.
Pop-n-Lock: Quick One-step Installation with unique Snap-On grommet design.
Aluminium housing for efficient heat dissipation with compact-size design.
Non-volatile memory recalling last flash pattern used at power-up.
Multi-units synchronization in simultaneous or alternating flash.Product Specifications

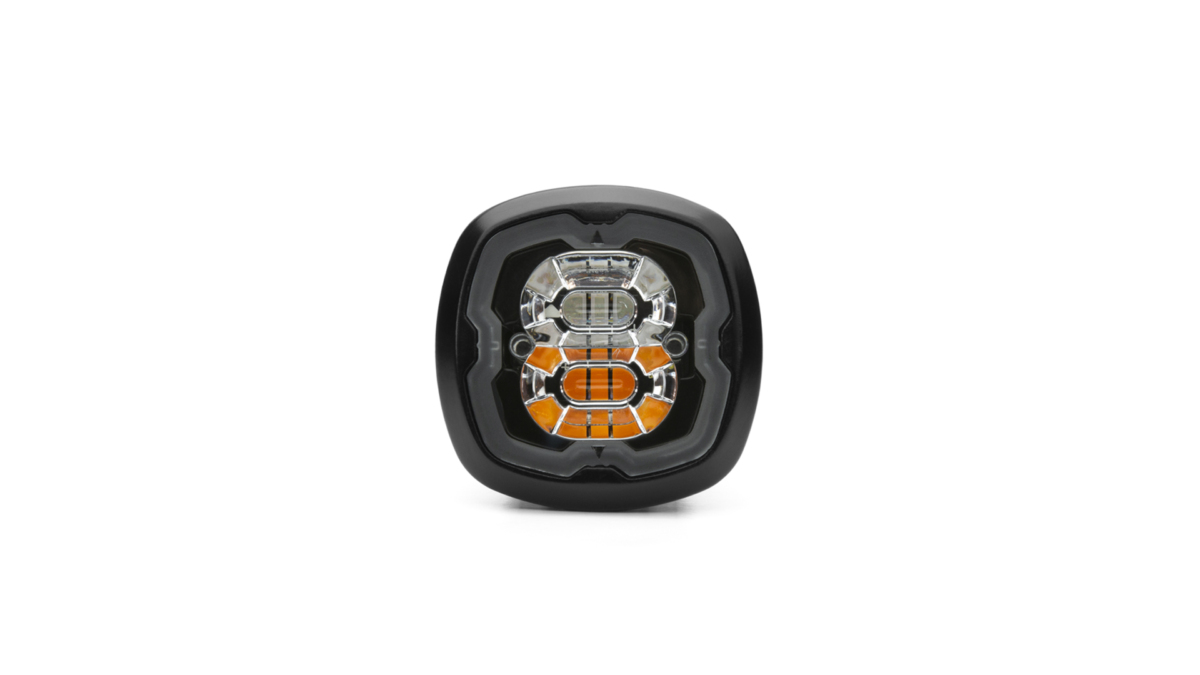

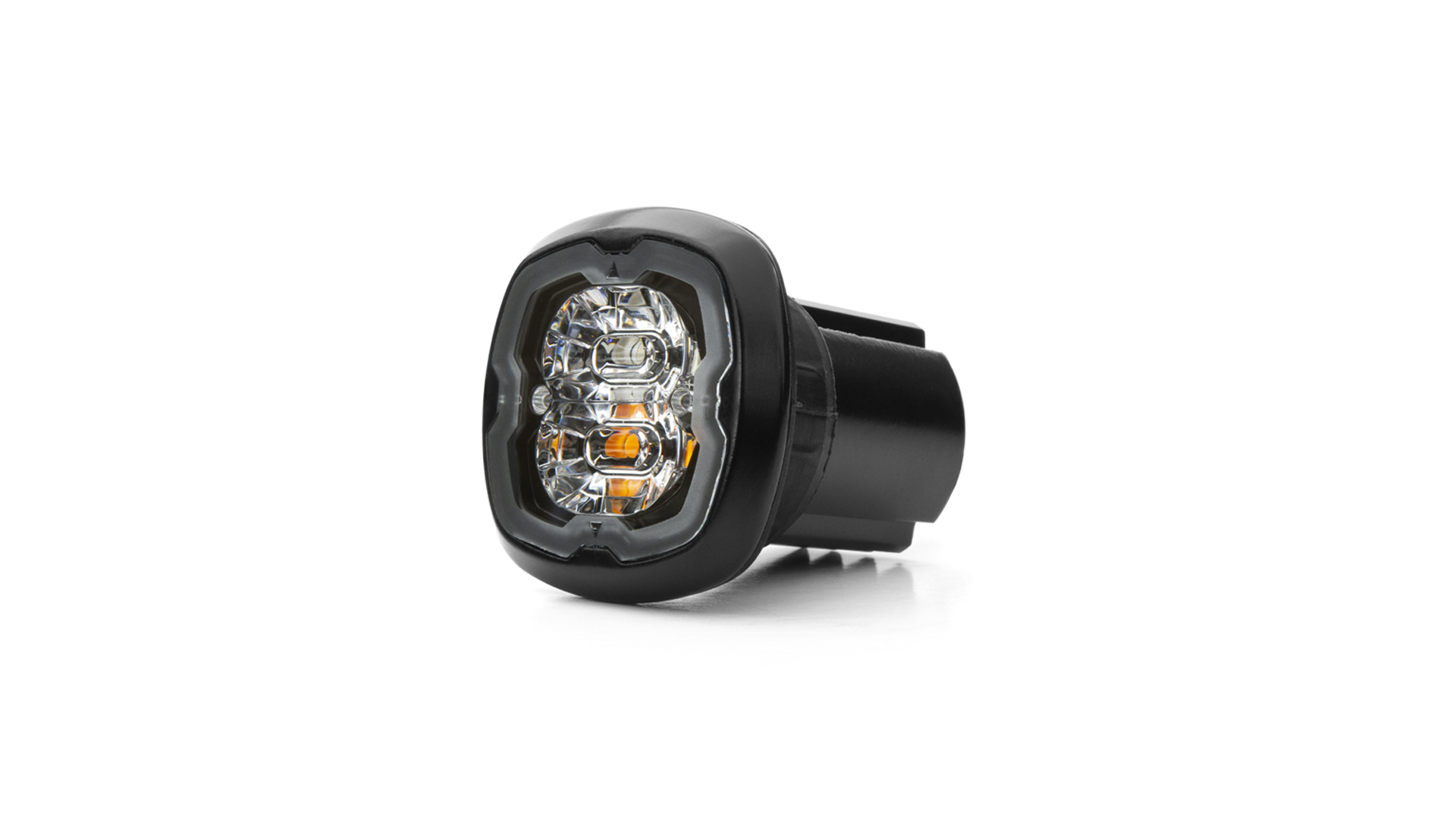

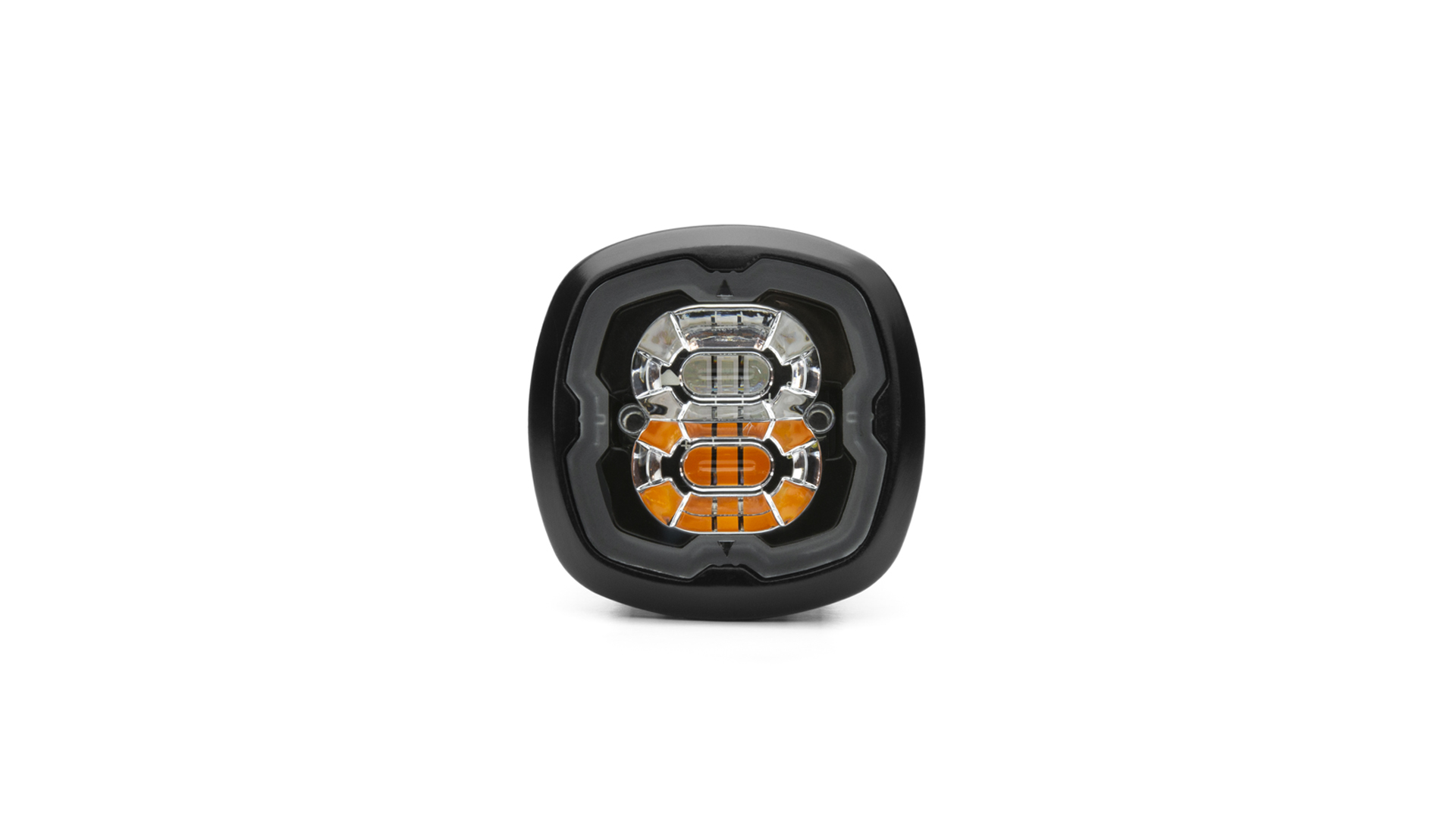

Product code 02060651 Product Name CR06 Warning Lighthead (Dual Colour) - Blue/Amber Categories Lighting, CR06, Modules, Covert Hideaways Product Type Products Dimensions Height 37mm Dimensions Width 39mm Colour Type Dual Colour Maximum Current 1.62A@12VDC / 0.81A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 19.4W Synchronisation 20 Unit Sync LED Colour Blue/Amber Fuse Rating 3A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - XA1, ECE R65 - XB1, CISPR25, SAE J595 Class 1 Nominal Voltage 12-24VDC Mounting Option Surface Recessed Mount Cable Type Cable (Pigtail) LED Quantity 6x LEDs IP Rating IPX7 Flash Patterns 28 Flash Patterns Wire Length 265mm Conductor Cross-Section 0.25mm² (24AWG) Warranty 5 Year Warranty -

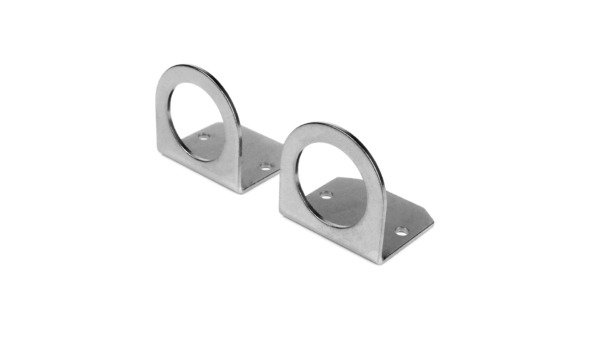

Mounting
-
