Specifications
Certified powerful ECE R65 TA1 performance provides optimum 360 degree coverage.
Ultra-compact and low-profile design for discreet placement or limited installation space.
Multiple units can be grouped to flash simultaneously or alternately.
Durable polycarbonate lens is available in Amber and Clear.

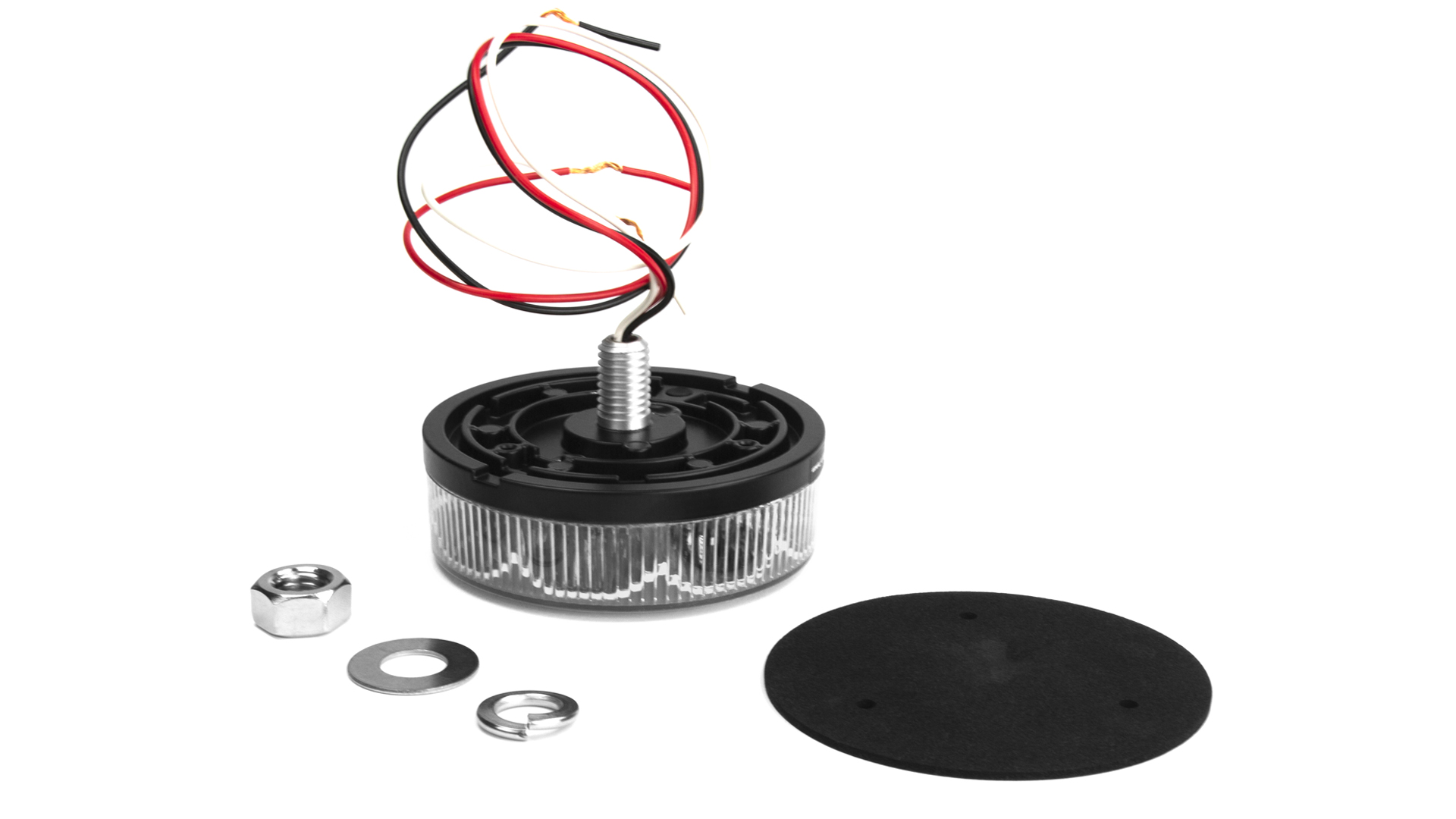

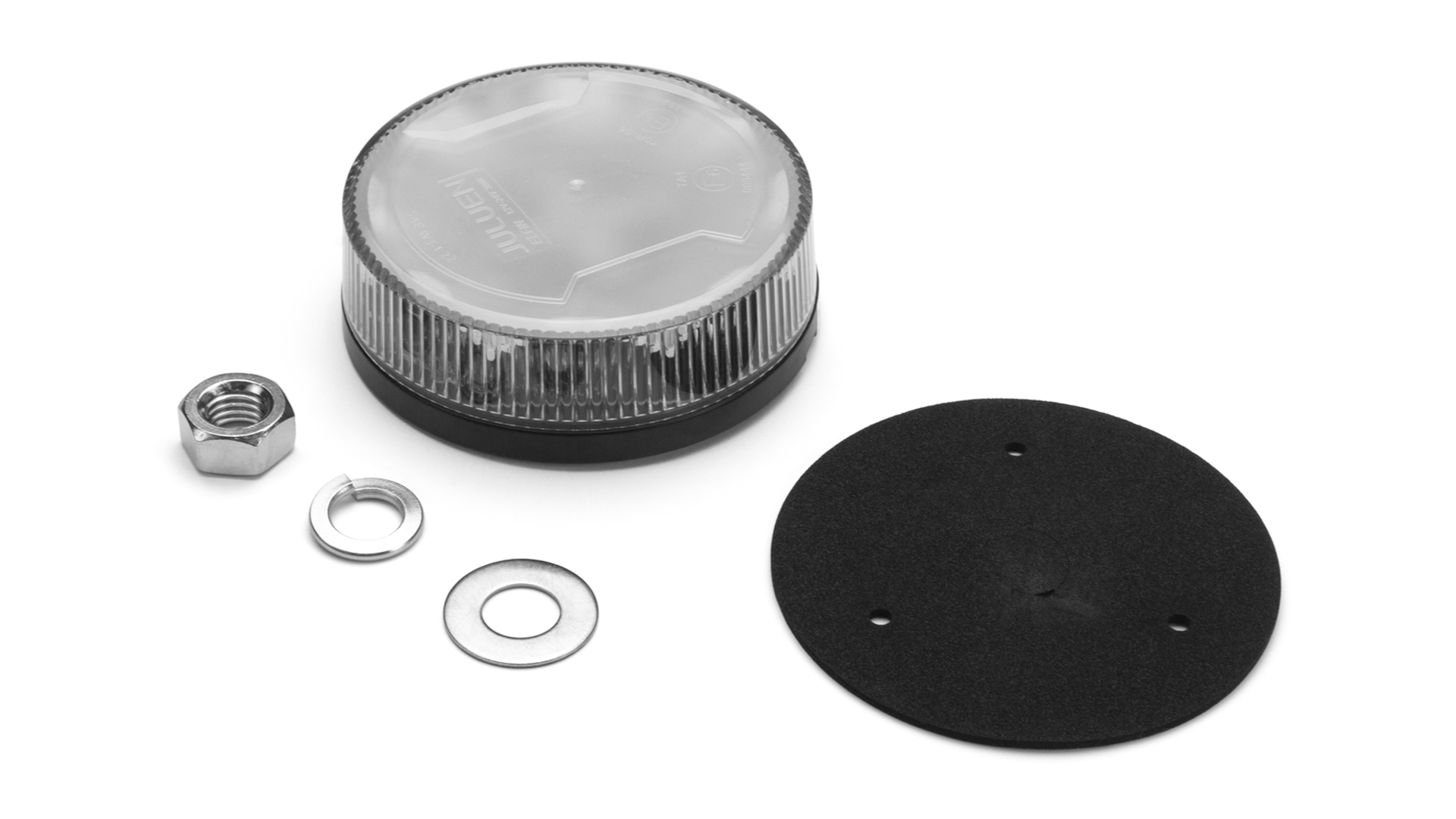

Multiple mounting options for all vehicle applications.
Weatherproof design: 100% sealed rated at IPX7.
Vibration resistant design with aluminum base.
50,000 hours rated Long-Life LED.Product Specifications

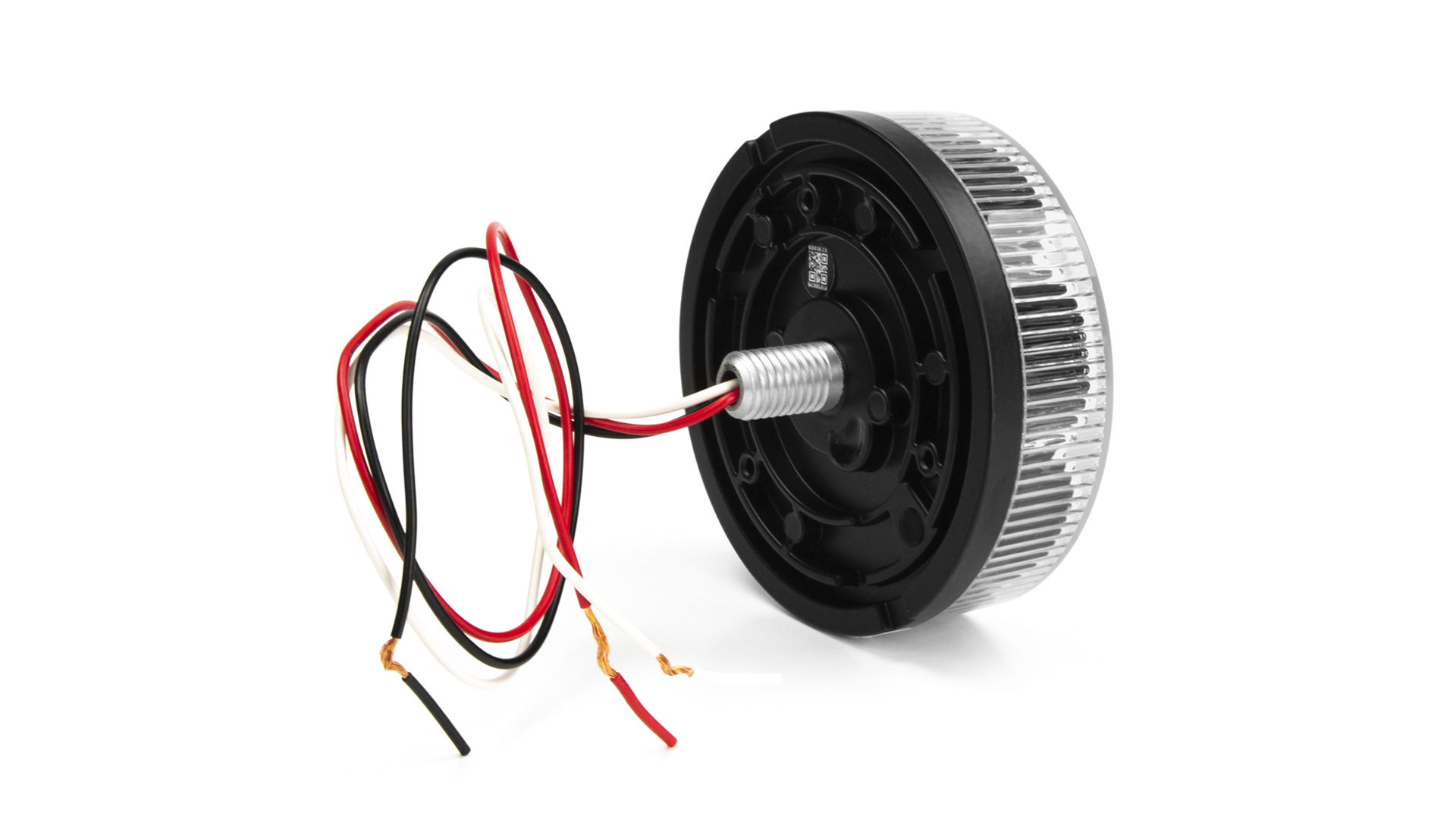

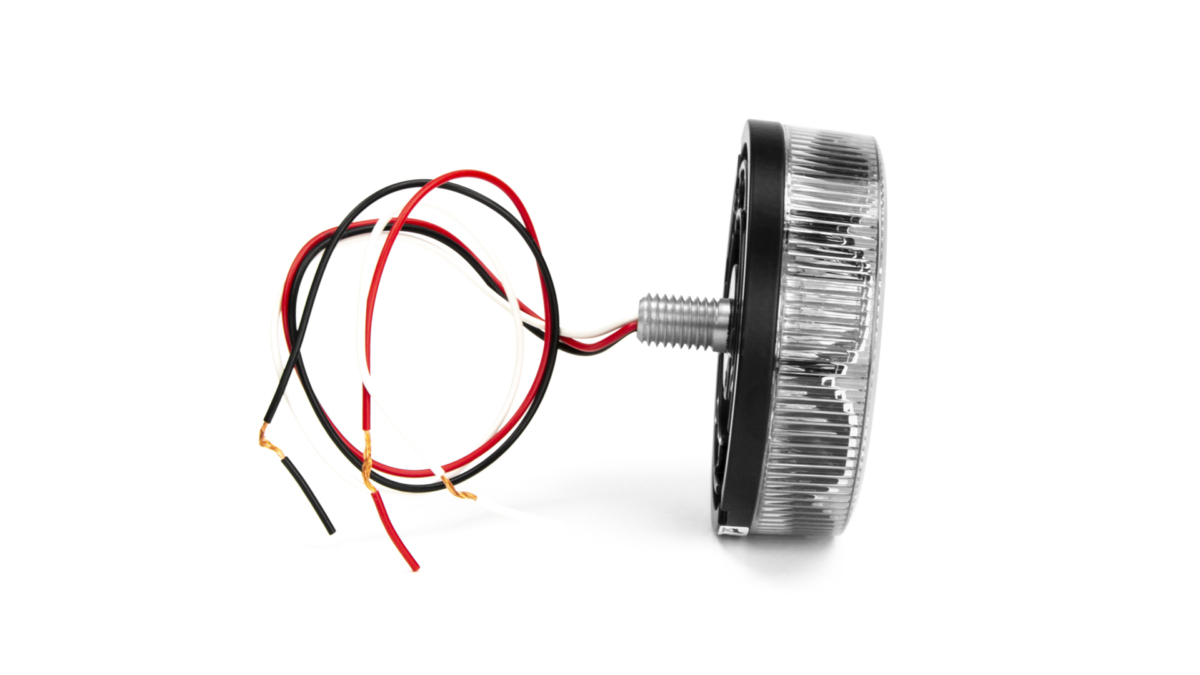

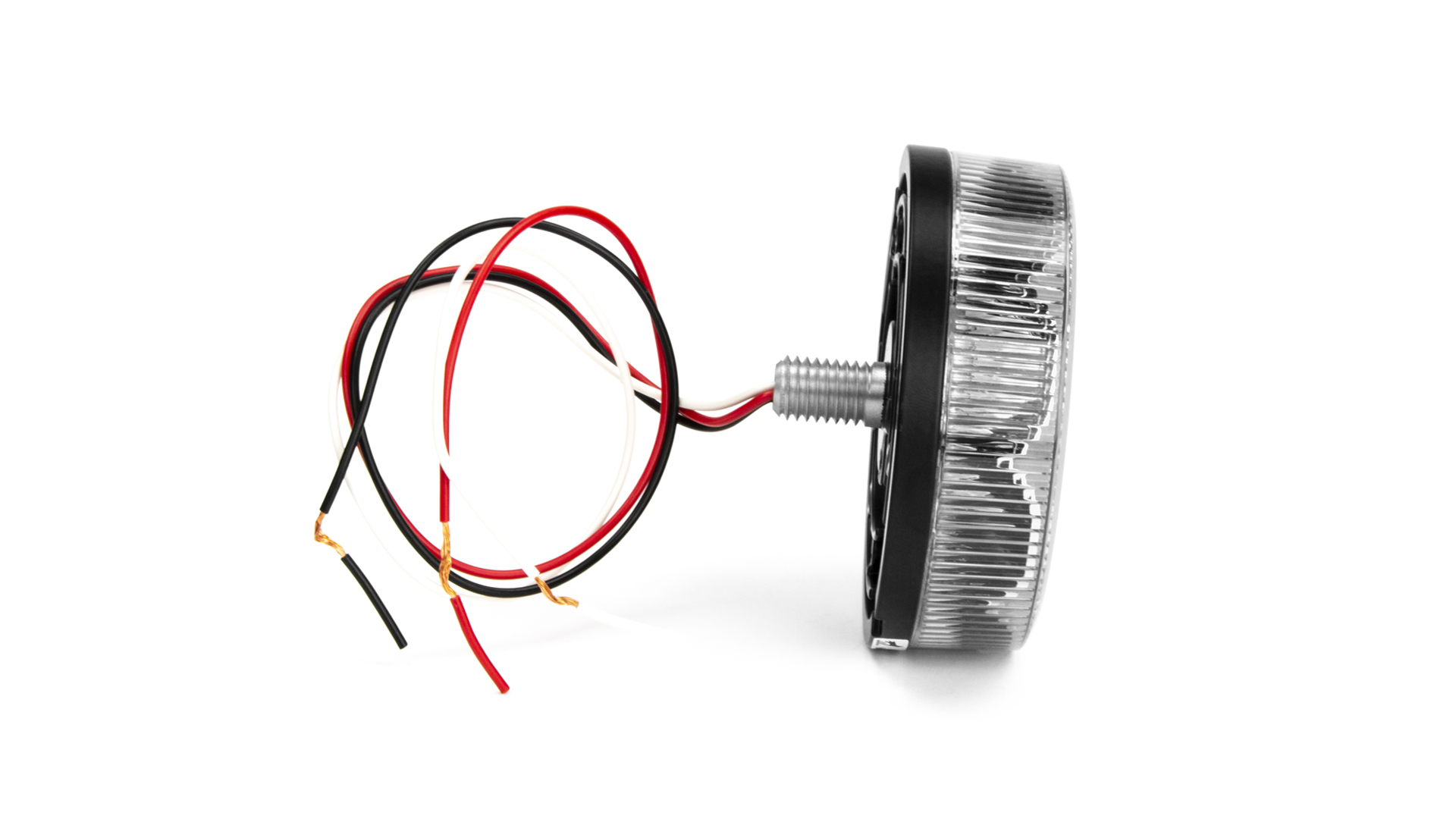

Product code 05150083 Product Name B23 Beacon - AC (1-Bolt Mount) Categories Lighting, B23 Beacons, Beacons Product Type Products Dimensions Height 30mm Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 2.5A@12VDC / 1.25@24VDC Operating Temperature -30°C~+65°C Maximum Power 30W Synchronisation 10 Unit Sync Diameter ⌀90mm LED Colour Amber LEDs Fuse Rating 3A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - TA1, SAE J845 Class 1 Input Voltage 12VDC~24VDC Mounting Option 1-Bolt Mount Cable Type Cable (Pigtail) LED Quantity 16x LEDs Flash Patterns 12 Flash Patterns IP Rating IPX7 Wire Length 400mm Conductor Cross-Section 0.75mm² (18AWG) - Downloads
