Specifications
Certified powerful ECE R65 TA1 performance provides optimum 360 degree coverage.
Ultra-compact and low-profile design for discreet placement or limited installation space.
Multiple units can be grouped to flash simultaneously or alternately.
Durable polycarbonate lens is available in Amber and Clear.
Multiple mounting options for all vehicle applications.
Weatherproof design: 100% sealed rated at IPX7.
Vibration resistant design with aluminum base.
50,000 hours rated Long-Life LED.Product Specifications

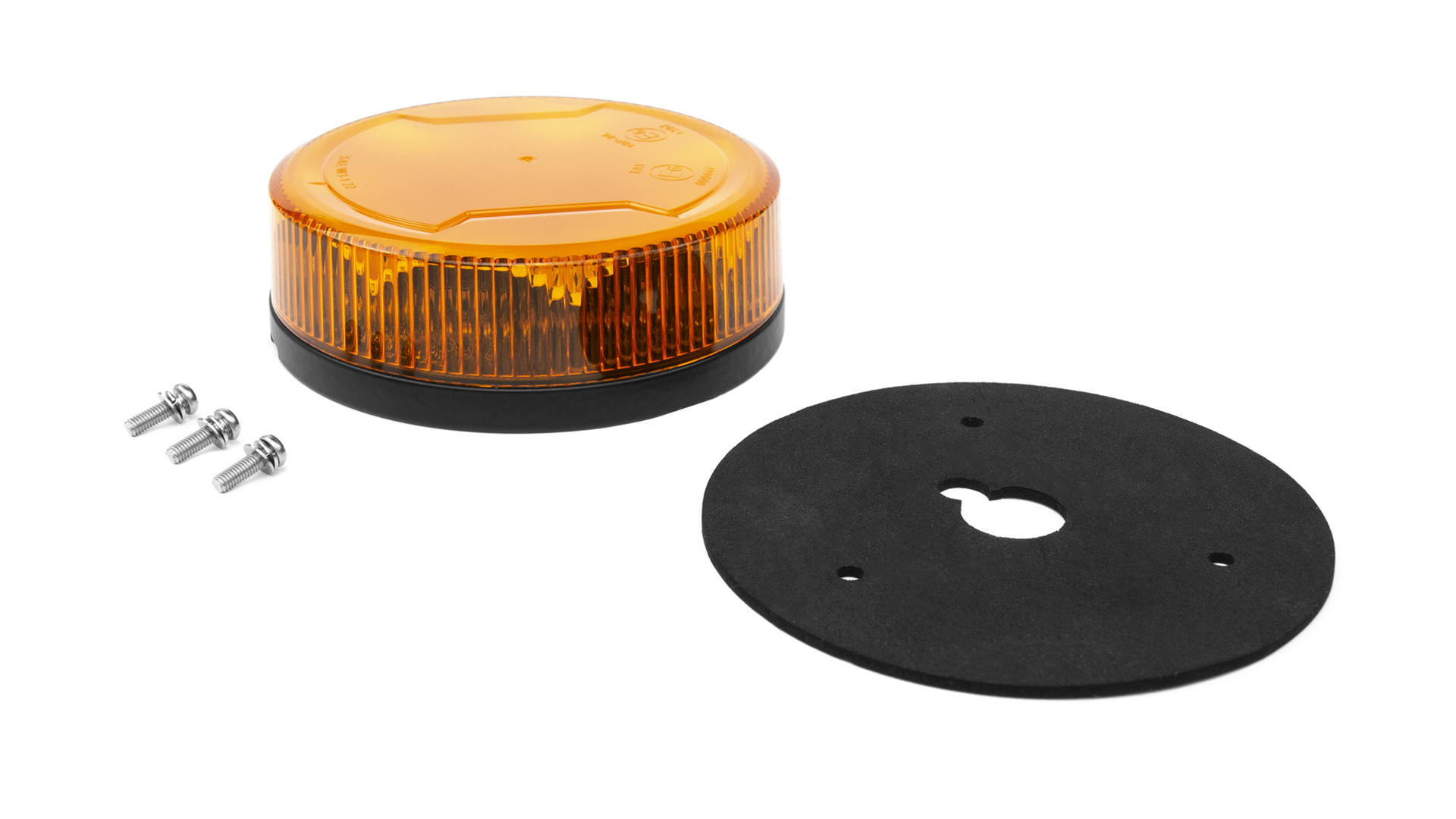

Product code 05150052 Product Name B23 Beacon - AA (3-Bolt Mount) Categories Warning Lamps, B23 Beacons, Beacons Product Type Products Dimensions Height 30mm Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 2.5A@12VDC / 1.25@24VDC Operating Temperature -30°C~+65°C Maximum Power 30W Synchronisation 10 Unit Sync Diameter ⌀90mm LED Colour Amber LEDs Fuse Rating 3A Lens Colour Amber Lens Compliance ECE-R10, ECE-R65 (TA1), SAE J845 Class 1 Input Voltage 12VDC~24VDC Mounting Option 3-Bolt Mount Cable Type Cable (Pigtail) LED Quantity 16x LEDs IP Rating IPX7 Flash Patterns 12 Flash Patterns Wire Length 400mm Conductor Cross-Section 0.75mm² (18AWG) - Downloads
