Specifications
Unobtrusive design with ultra low-profile lens for lower wind resistance.
Certified powerful ECE R65 performance provides optimum 360 degree coverage.
2 independent warning modes can be defined for specific situations or events.
Durable polycarbonate lens is available in amber and clear.
Multiple mounting options for all vehicle applications.
Weatherproof and vibration resistance design.Product Specifications

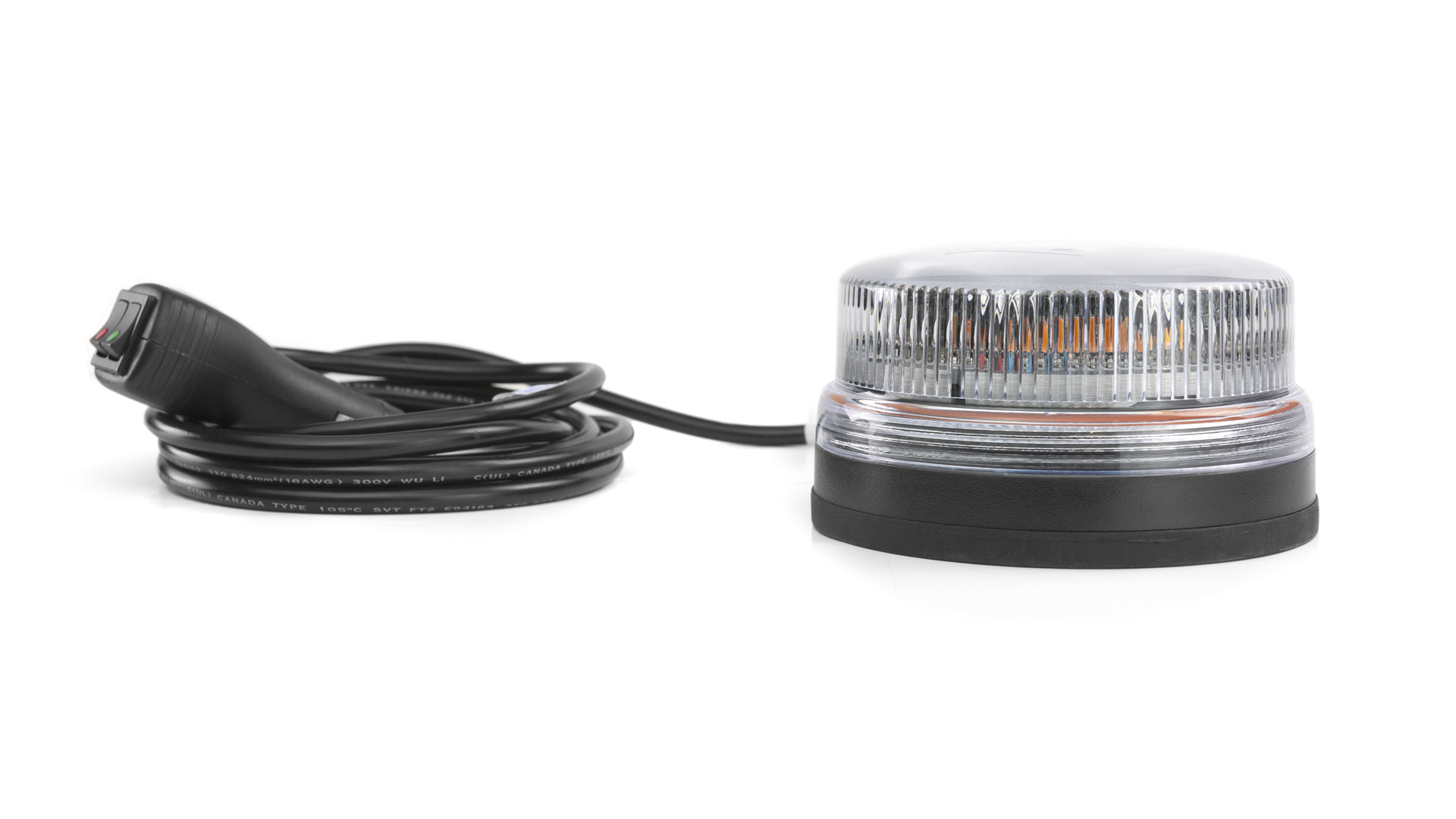

Product code 05160112 Product Name B22 Beacon - AC (Magnetic/Power - External) Categories Warning Lamps, B22 Standard, B22 Beacon, Beacons Product Type Products Dimensions Height 66mm Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 2.45A@12VDC / 1.37A@24VDC Operating Temperature -30°C~+65°C Maximum Power 33W Connection Type Cigar Plug (Latching & Momentary Switch) Diameter ⌀142mm LED Colour Amber LEDs Fuse Rating 4A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TA1), SAE J845 Class 1 Input Voltage 12VDC~24VDC Mounting Option Magnetic Mount Cable Type Cable (Straight) LED Quantity 16x LEDs IP Rating IPX5 Flash Patterns 12 Flash Patterns Wire Length 2500mm Conductor Cross-Section 0.75mm² (18AWG) Warranty 5 Year Warranty - Downloads
