Specifications

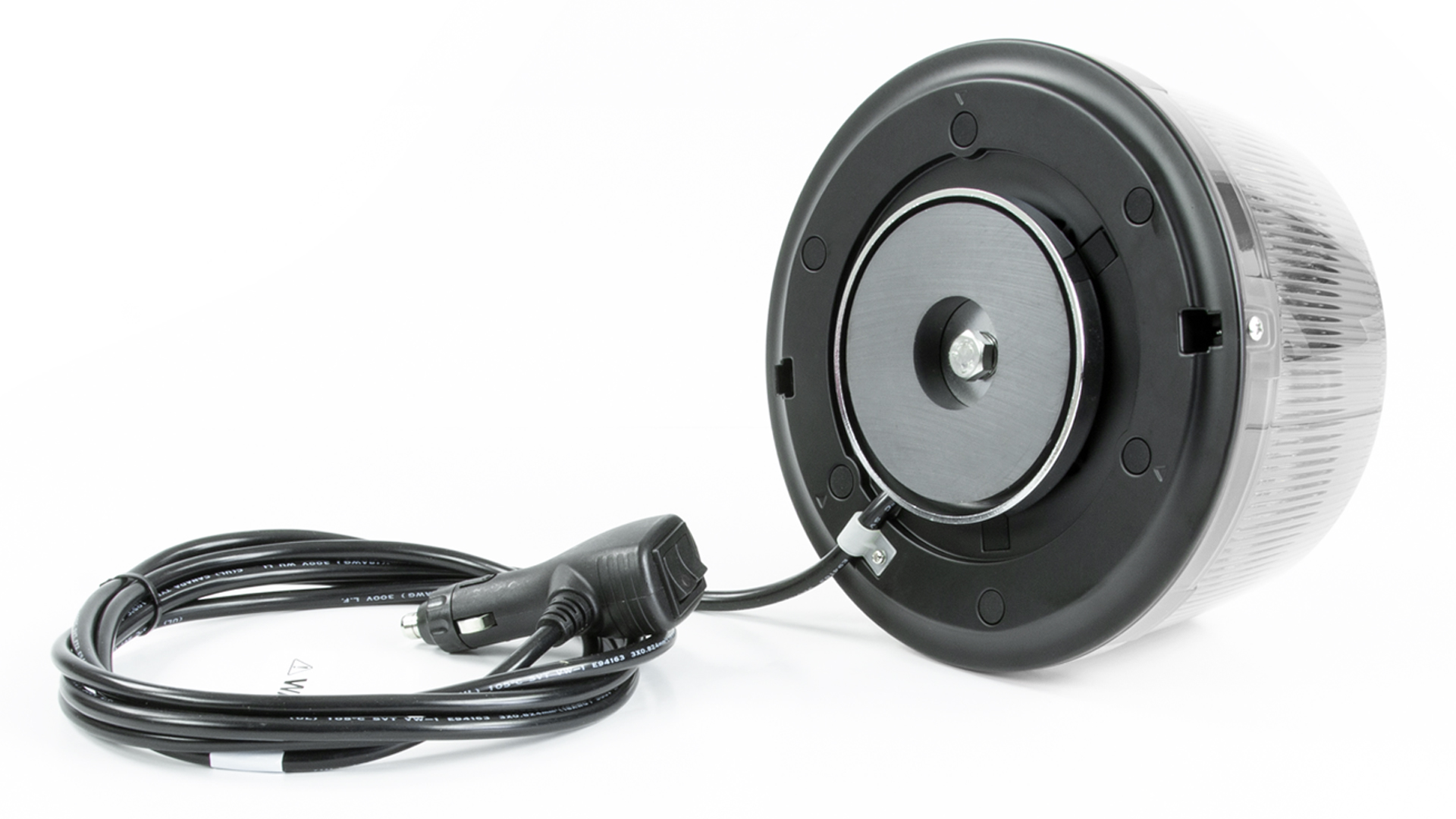

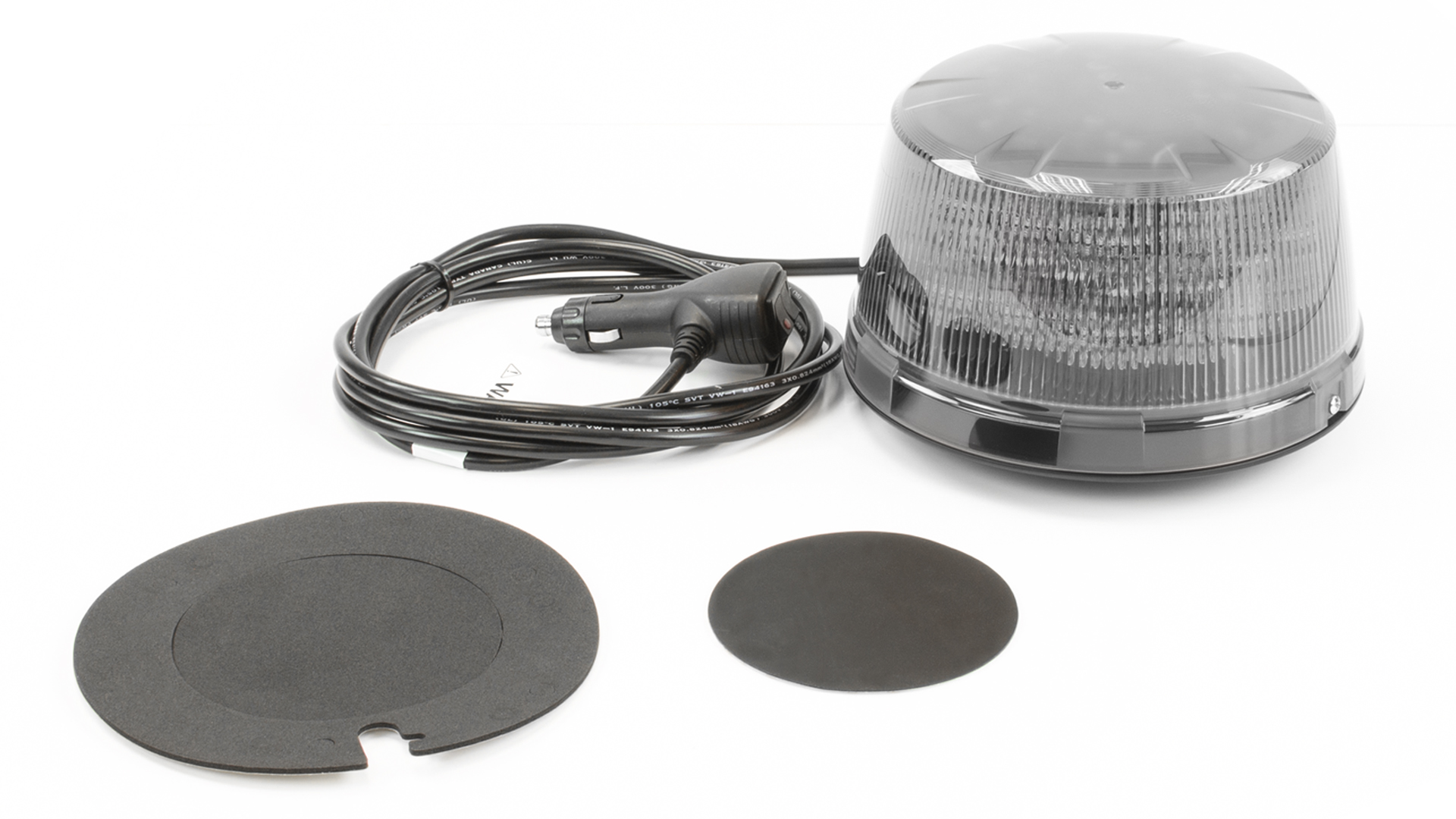

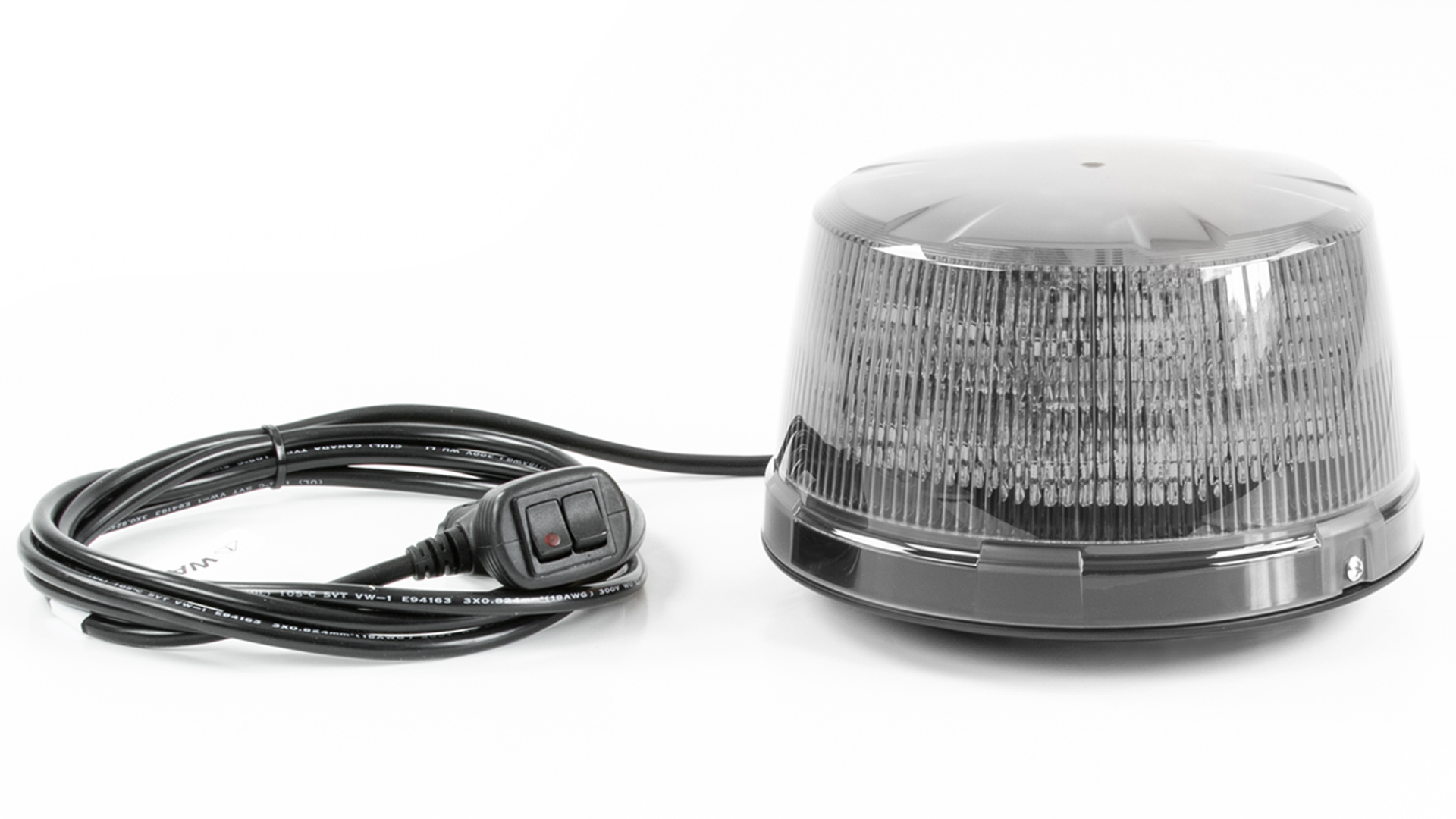

Heavy duty, aluminium base, wide-diameter LED Beacon.
High powered LEDs surrounded with upward LEDS for superior performance and all-round irection warning effect.
Weatherproof and shockproof capability for all enironments.
Premium polycarbonate lens and d-fuser matrix optics.Product Specifications
Product code 05170388 Product Name B19 Beacon - BC (Magnetic/Standard - Internal) Categories Warning Lamps, Beacons, B19 Beacons Product Type Products Dimensions Length 184.5mm (7.26") Dimensions Height 117.09mm (4.61") Dimensions Width 184.5mm (7.26") Colour Type Single Colour Maximum Current 5.56A@12DVC / 2.78A@24DVC Storage Temperature -40°C - +75°C Operating Temperature -20°C~+65°C Maximum Power 66.8W Synchronisation 15 Unit Sync Connection Type Cigar Plug (Latching & Momentary Switch) Diameter ⌀182mm (7.17") LED Colour Blue LEDs Fuse Rating 5A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TB2), SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Mounting Option Magnetic Mount Cable Type Cable (Straight) LED Quantity 24x LEDs (12x Upwards) Flash Patterns 14 Flash Patterns IP Rating IPX5 Wire Length 2500mm Gross Weight 1.5kg Conductor Cross-Section 0.75mm² (18AWG) Warranty 5 Year Warranty -
Spare Parts
-
-
Mounting
-
- Downloads
