Specifications

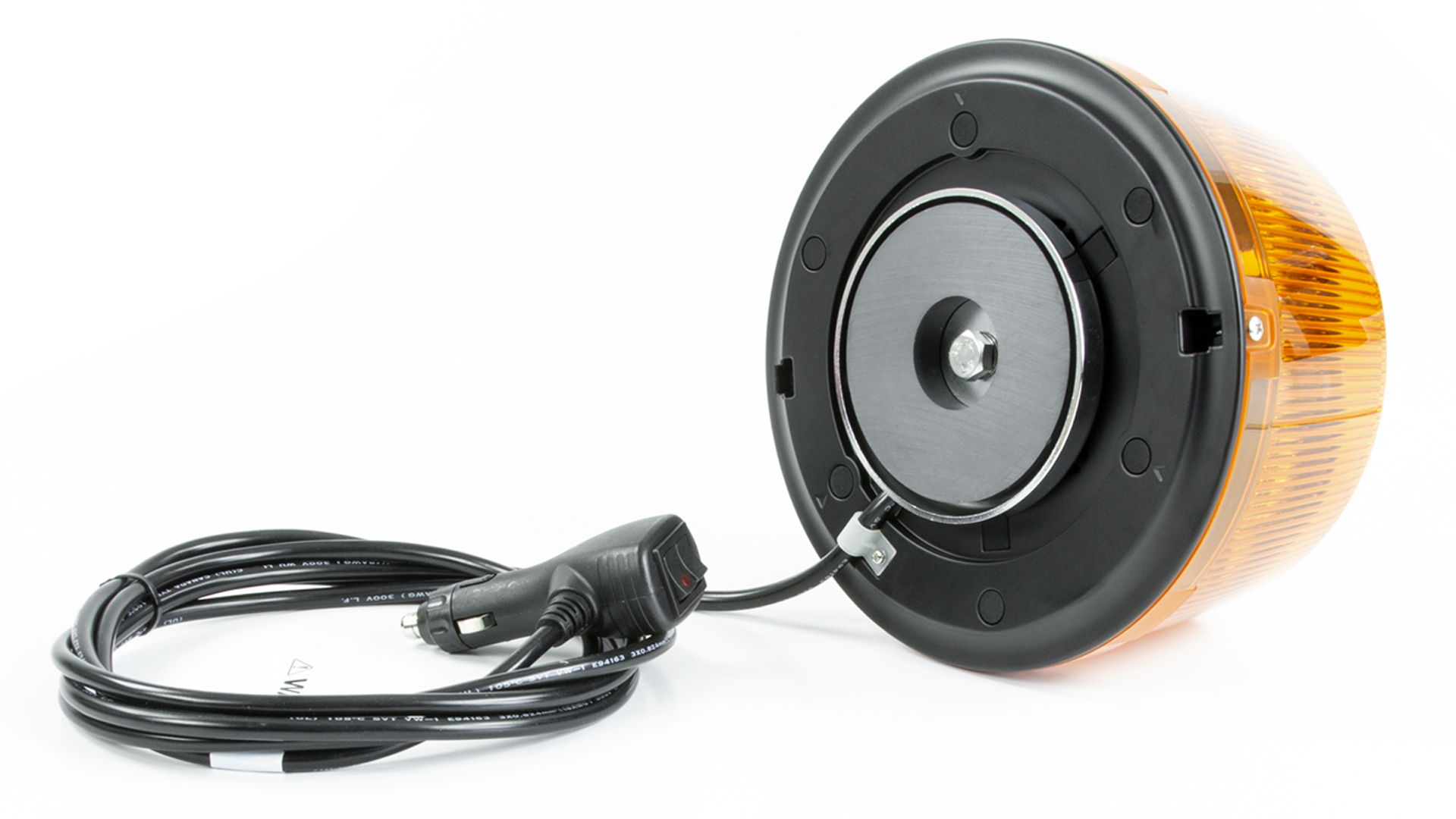

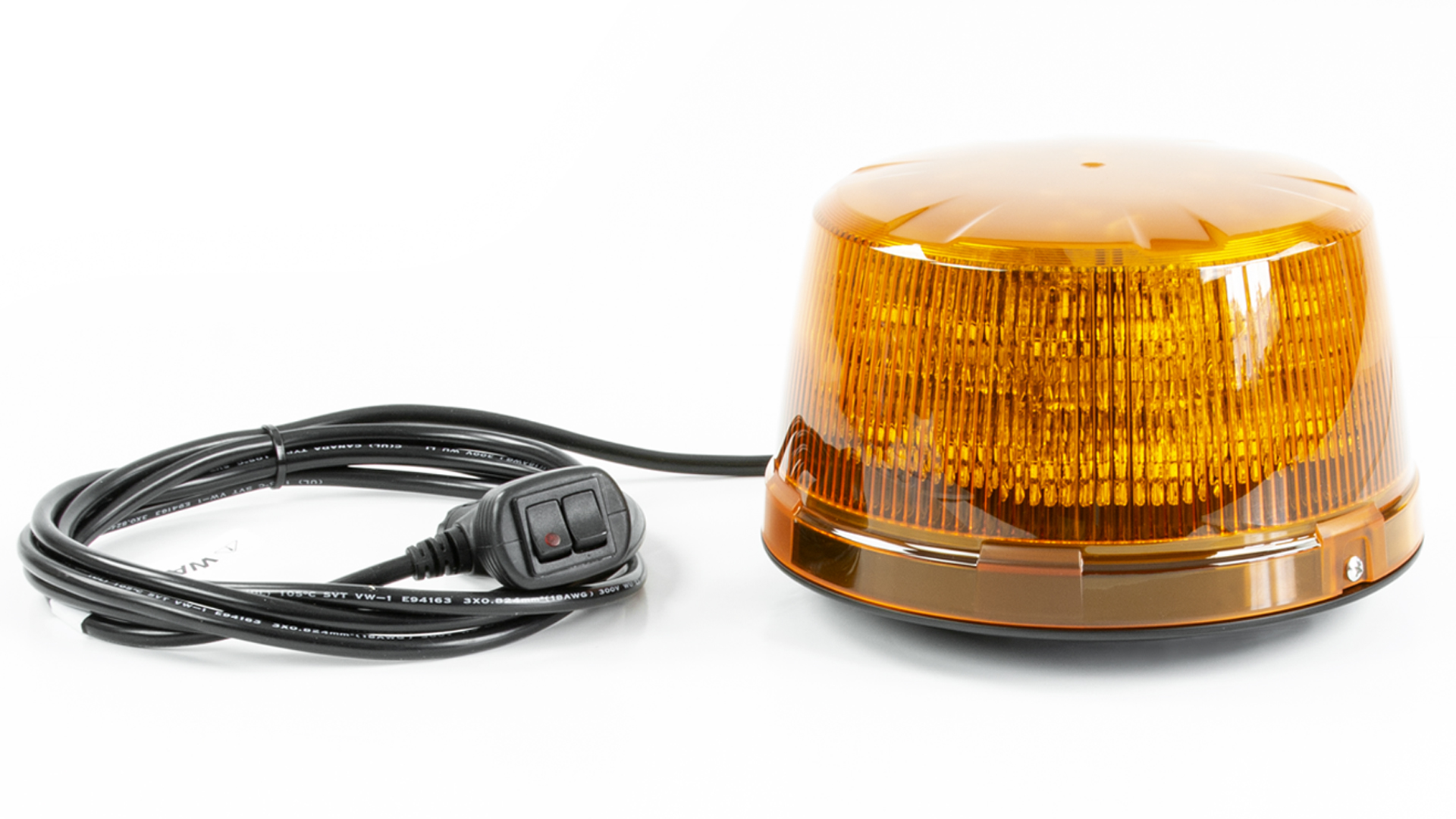

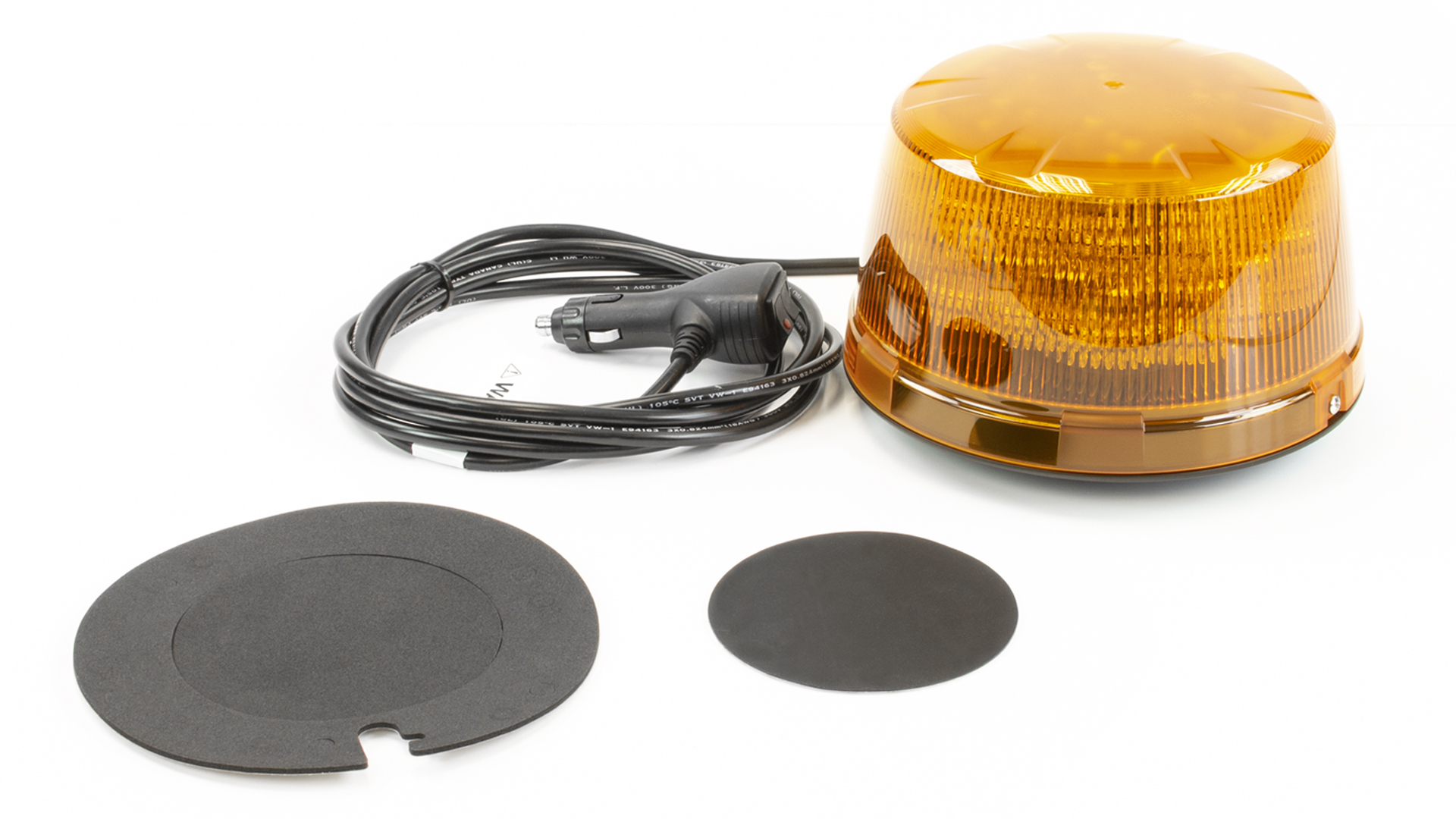

Heavy duty, aluminium base, wide-diameter LED Beacon.
High powered LEDs surrounded with upward LEDS for superior performance and all-round irection warning effect.
Weatherproof and shockproof capability for all enironments.
Premium polycarbonate lens and d-fuser matrix optics.Product Specifications
Product code 05170043 Product Name B19 Beacon - AA (Magnetic/Standard - Internal) Categories Lighting, Beacons, B19 Beacons Product Type Products Dimensions Height 117mm Colour Type Single Colour Maximum Current 5.56A@12DVC / 2.78A@24DVC Storage Temperature -40°C to +75°C Operating Temperature -20°C to +65°C Maximum Power 66.8W Synchronisation 15 Unit Sync Connection Type Cigar Plug (Latching & Momentary Switch) Diameter ⌀182mm LED Colour Amber LEDs Fuse Rating 5A Lens Colour Amber Lens Compliance ECE R10, ECE R65 - TA1, SAE J845 Class 1, California Title 13 Nominal Voltage 12-24VDC Mounting Option Magnetic Mount Cable Type Cable (Straight) LED Quantity 24x LEDs (12x Upwards) IP Rating IPX5 Flash Patterns 14 Flash Patterns Wire Length 2500mm Conductor Cross-Section 0.75mm² (18AWG) Warranty 5 Year Warranty -
