Specifications

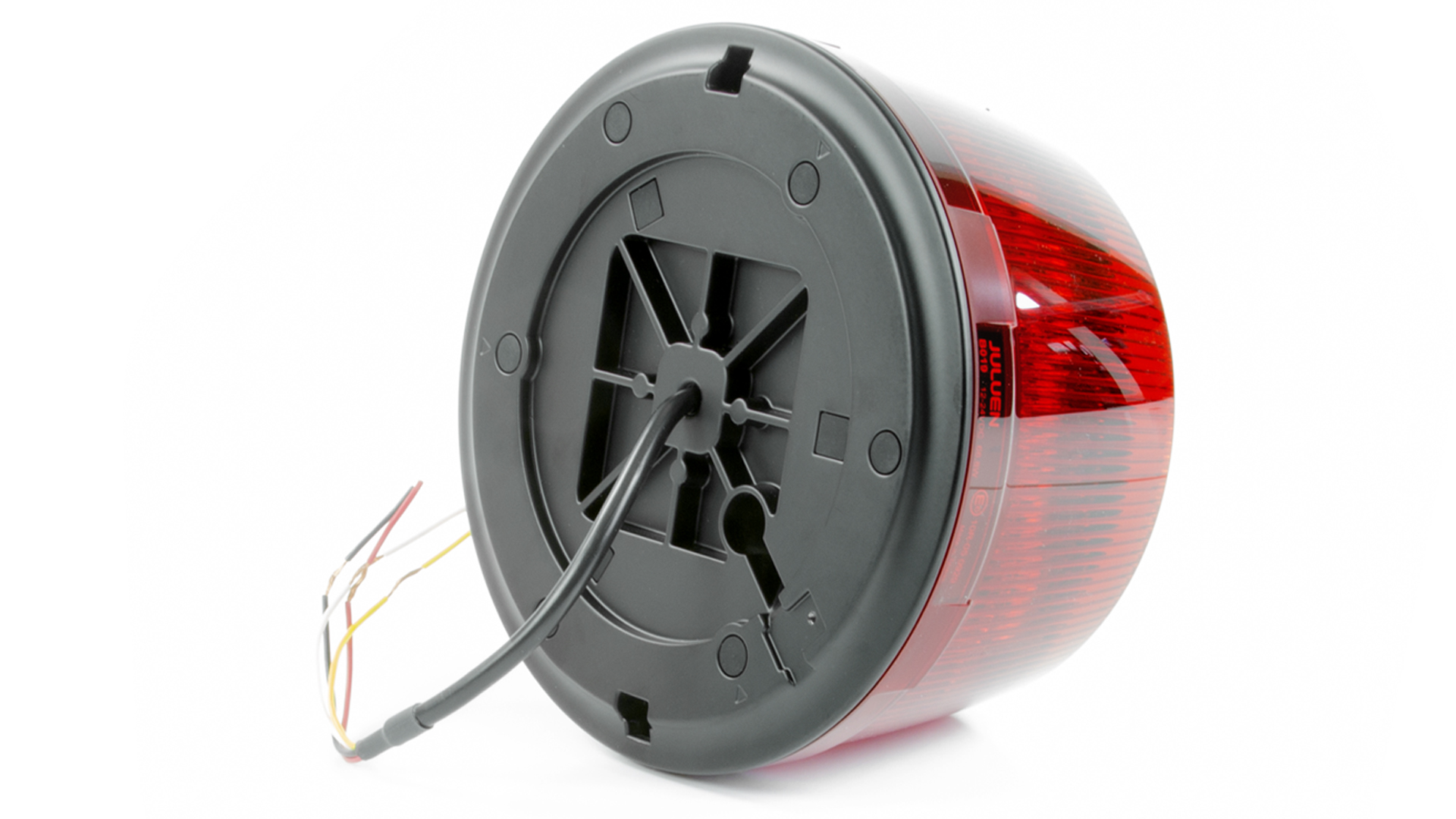

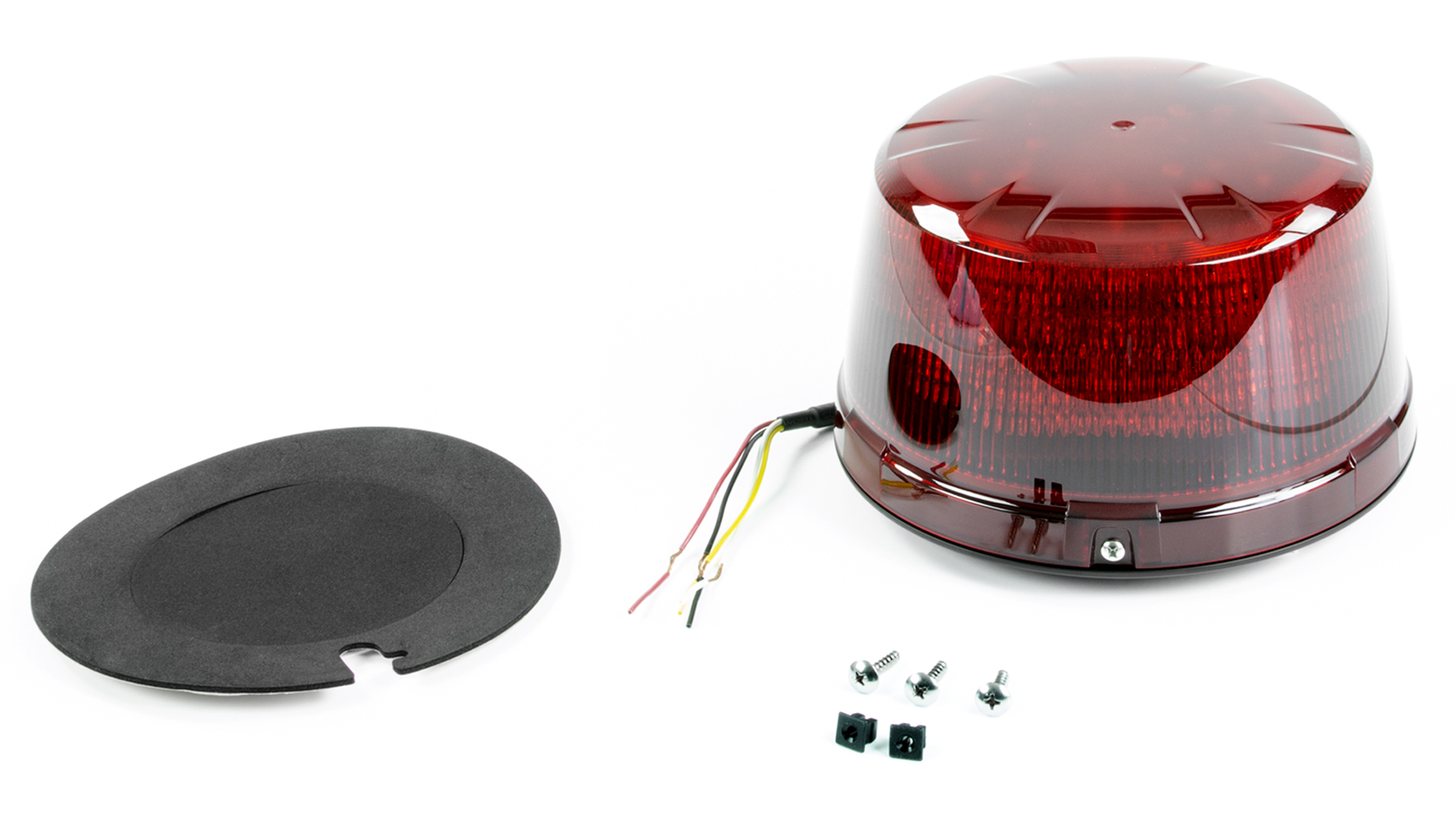

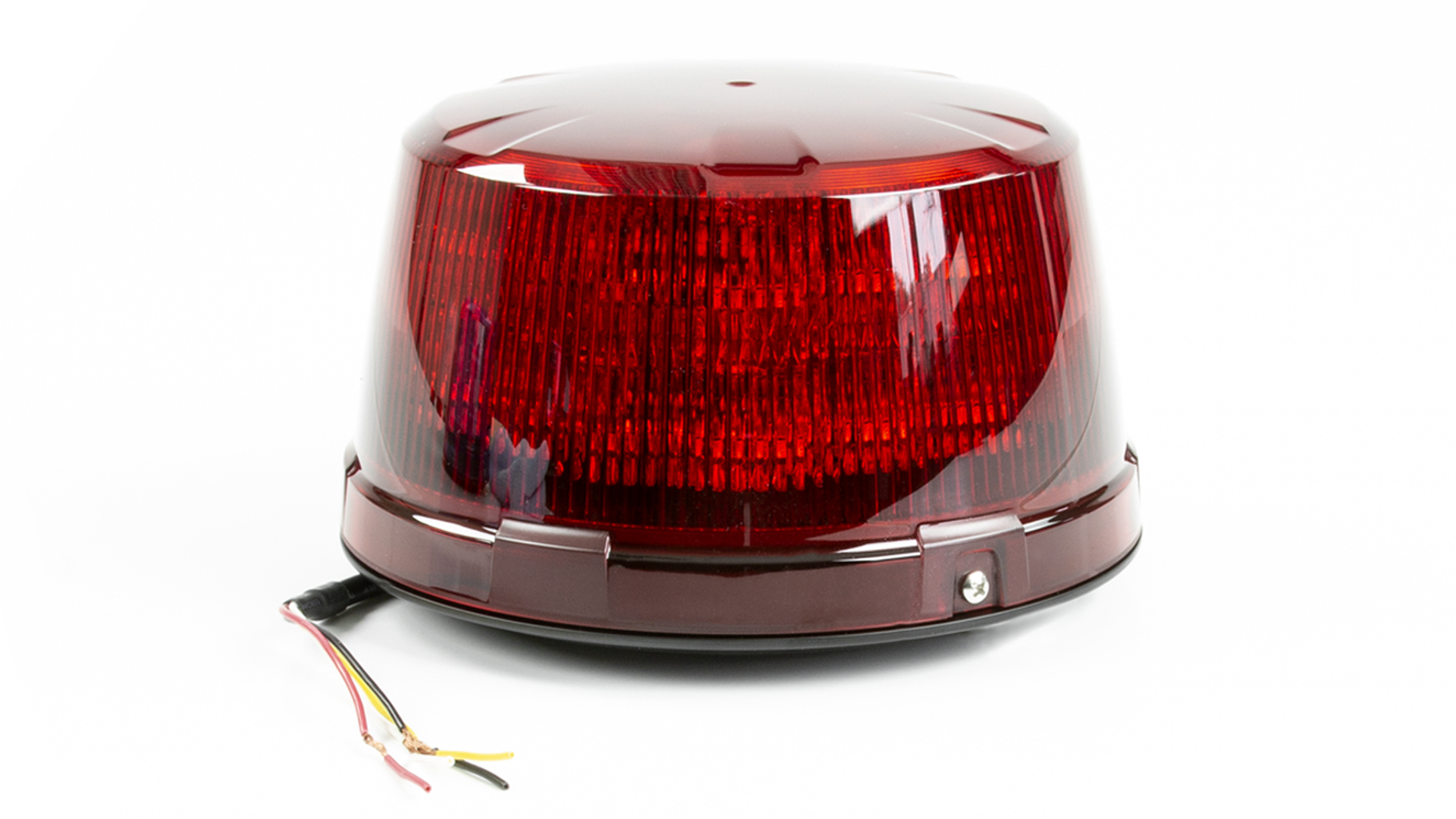

Heavy duty, aluminium base, wide-diameter LED Beacon.
High powered LEDs surrounded with upward LEDS for superior performance and all-round irection warning effect.
Weatherproof and shockproof capability for all enironments.
Premium polycarbonate lens and d-fuser matrix optics.Product Specifications
Product code 05170159 Product Name B19 Beacon - RR (3-Bolt Mount) Categories Warning Lamps, Beacons, B19 Beacons Product Type Products Dimensions Length 184.5mm (7.26") Dimensions Height 107.49mm (4.23") Dimensions Width 184.5mm (7.26") Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 5.56A@12DVC / 2.78A@24DVC Operating Temperature -20°C~+65°C Maximum Power 66.8W Synchronisation 15 Unit Sync Diameter ⌀182mm (7.17") LED Colour Red LEDs Fuse Rating 5A Lens Colour Red Lens Compliance ECE-R10, SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Mounting Option 3-Bolt Mount Cable Type Cable (Pigtail) LED Quantity 24x LEDs (12x Upwards) IP Rating IPX5 Flash Patterns 14 Flash Patterns Wire Length 200mm Gross Weight 1.5kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
