Specifications
EMC safety compliance.
Multi-voltage input 12-24VDC.
Newly designed optic with powerful and even light output.
Non-volatile memory recalls last flash pattern used at power up.
Weatherproof and vibration resistant design for external or internal use.
Long life LEDs rated to 100,000 hours of operation.
Reverse polarity protection.Product Specifications

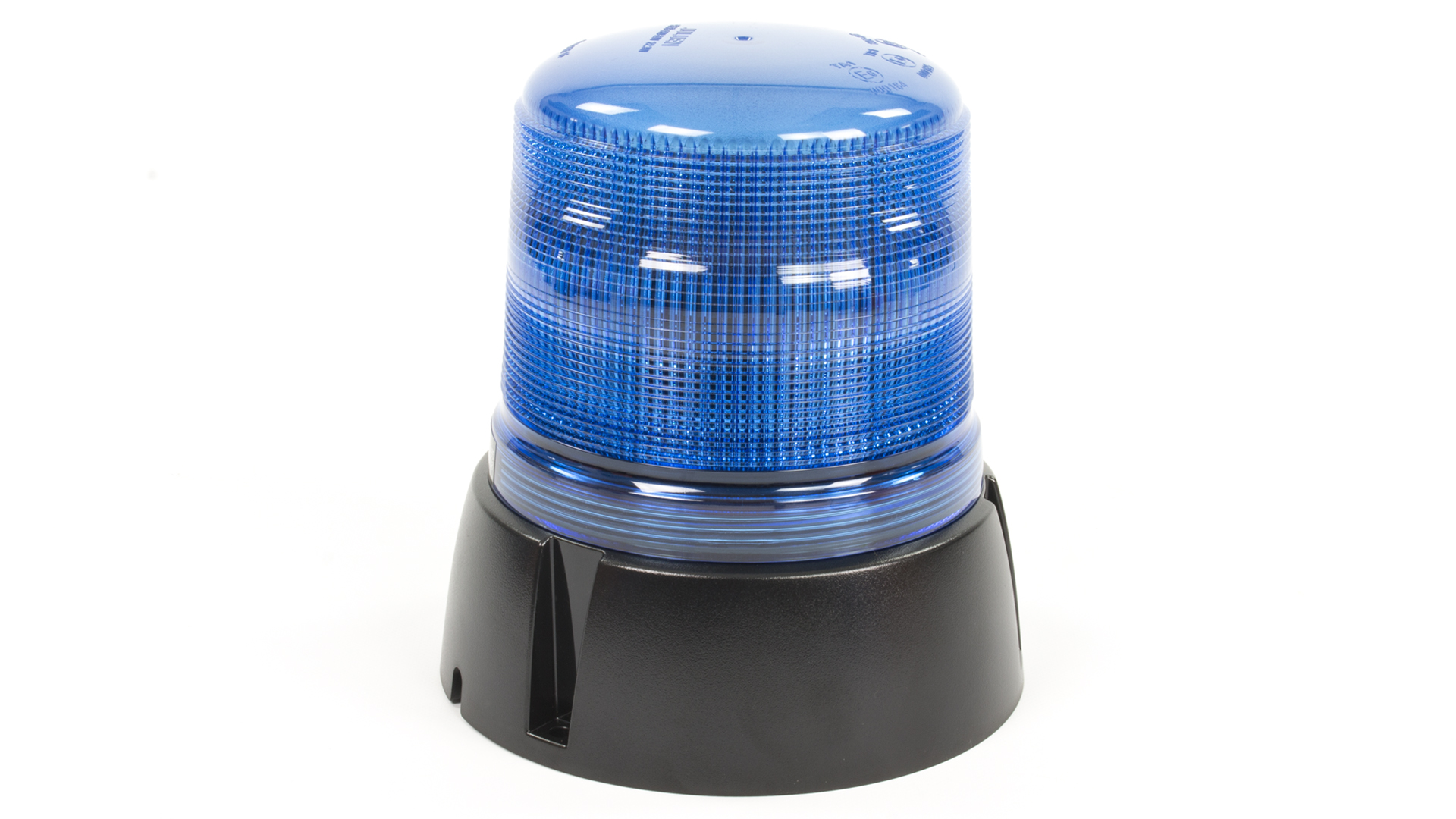

Product code 05180103 Product Name B18 Beacon - BB (Tall Base 3-Bolt Mount) Categories Lighting, Beacons, B18 Beacons Product Type Products Dimensions Height 154mm Colour Type Single Colour Maximum Current 1.86A@12VDC / 0.93A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 22.3W Diameter ⌀142mm LED Colour Blue LEDs Fuse Rating 3A Lens Colour Blue Lens Compliance ECE R10, ECE R65 - TB1, SAE J845 Class 1 Nominal Voltage 12-24VDC Mounting Option Tall Base 3-Bolt Mount Cable Type Cable (Pigtail) LED Quantity 15x LEDs IP Rating IPX6 Flash Patterns 11 Flash Patterns Wire Length 400mm Conductor Cross-Section 0.75mm² (18AWG) Warranty 3 Year Warranty -
Spare Parts
-
-
Mounting
-
- Downloads
