Specifications
EMC safety compliance.
Multi-voltage input 12-24VDC.
Newly designed optic with powerful and even light output.
Non-volatile memory recalls last flash pattern used at power up.
Weatherproof and vibration resistant design for external or internal use.
Long life LEDs rated to 100,000 hours of operation.
Reverse polarity protection.Product Specifications

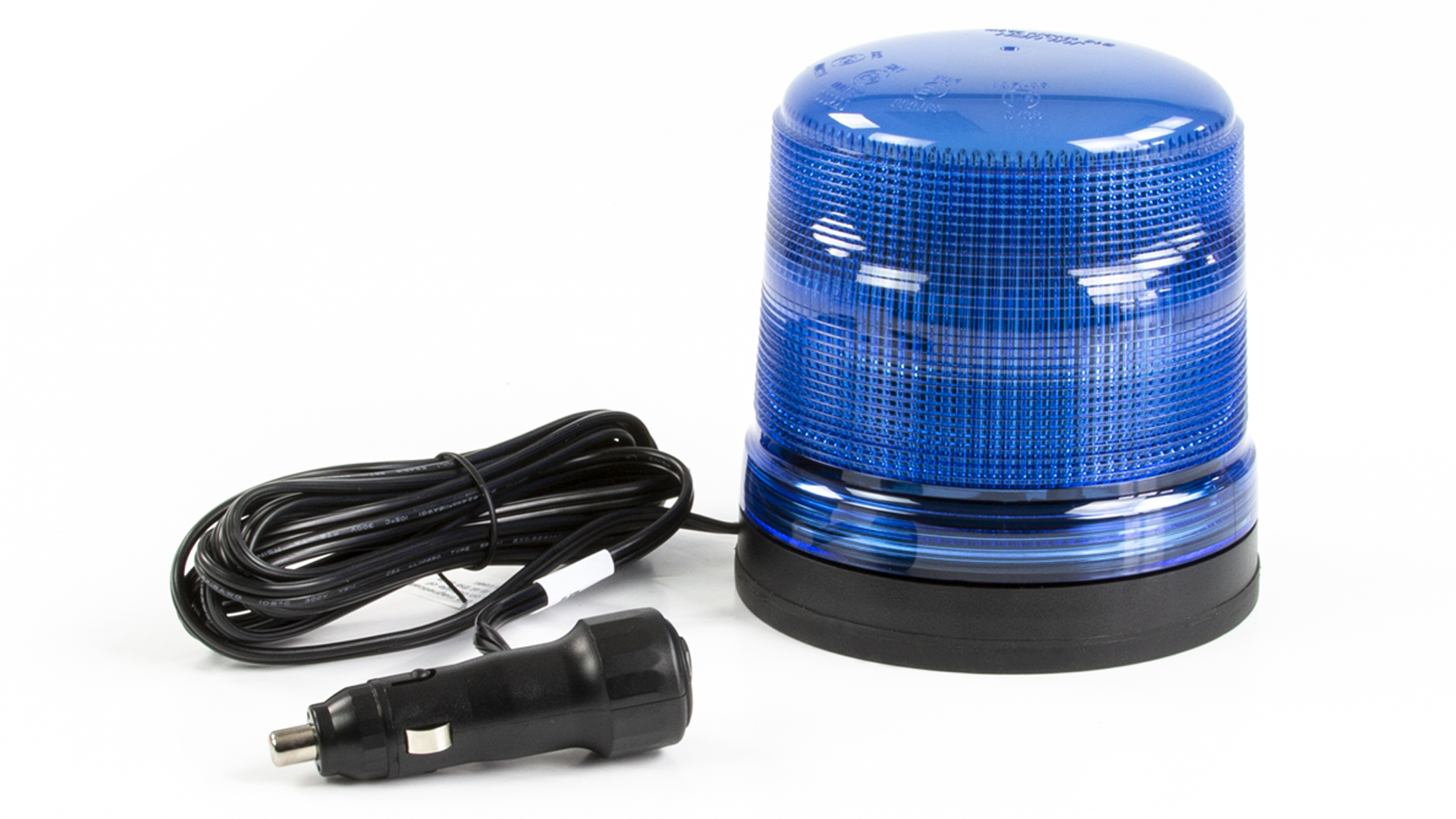

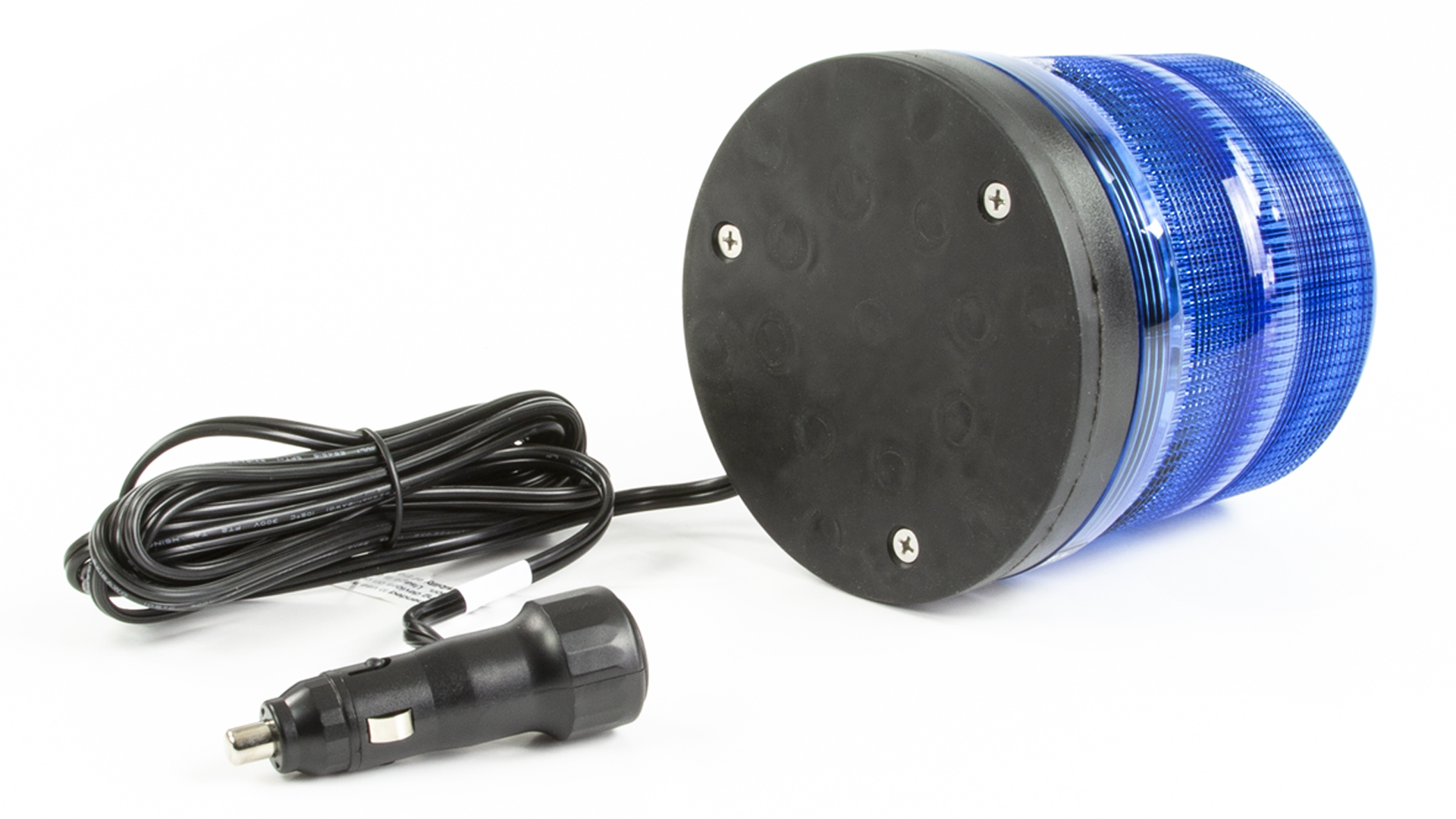

Product code 05180097 Product Name B18 Beacon - BB (Magnetic/Power/External - Straight) Categories Warning Lamps, Beacons, B18 Beacons Product Type Products Dimensions Height 115.8mm (4.56") Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 1.86A@12VDC / 0.93A@24VDC Operating Temperature -30°C~+65°C Maximum Power 22.3W Connection Type Cigar Plug (Latching Switch) Diameter ⌀118mm (4.65") LED Colour Blue LEDs Fuse Rating 3A Lens Colour Blue Lens Compliance ECE-R10, ECE-R65 (TB1), SAE J845 Class 1 Input Voltage 12VDC~24VDC Mounting Option Magnetic Mount Cable Type Cable (Straight) LED Quantity 15x LEDs IP Rating IPX6 Flash Patterns 11 Flash Patterns Wire Length 3000mm Gross Weight 1kg Conductor Cross-Section 0.75mm² (18AWG) Warranty 3 Year Warranty -
