Specifications
EMC safety compliance.
Newly designed optic with powerful and even light output.
Non-volatile memory recalls last flash pattern used at power up.
Weatherproof and vibration resistant design for external or internal use.
Long life LEDs rated to 100,000 hours of operation.
Reverse polarity protection.Product Specifications

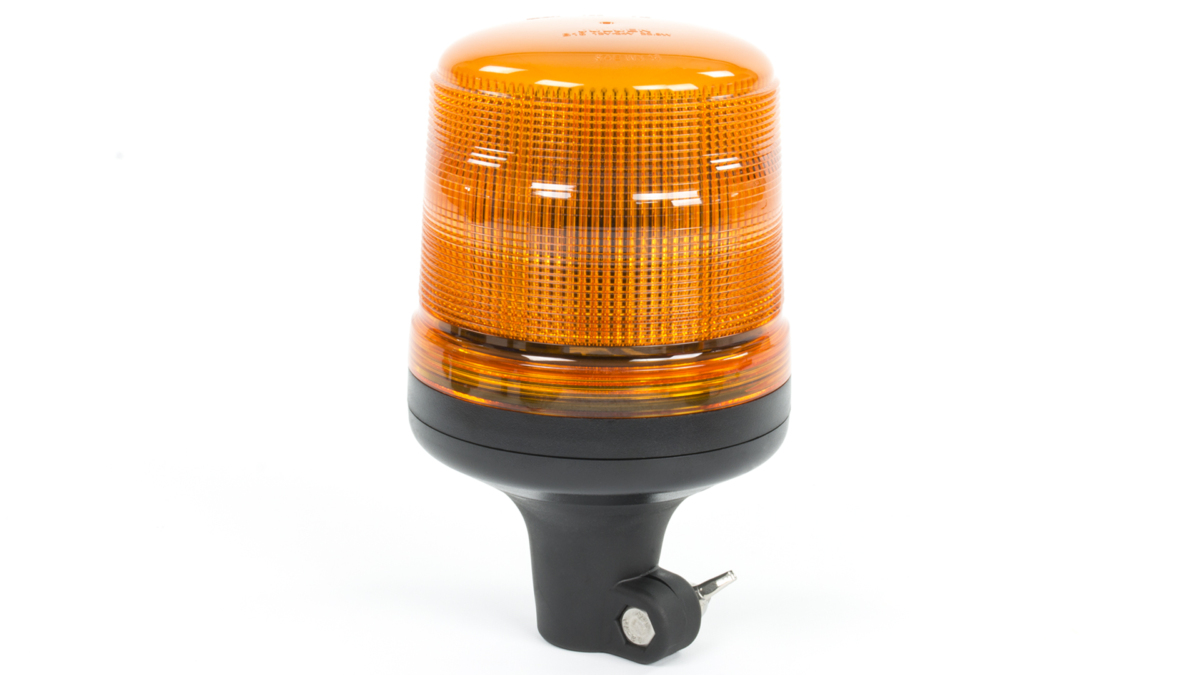

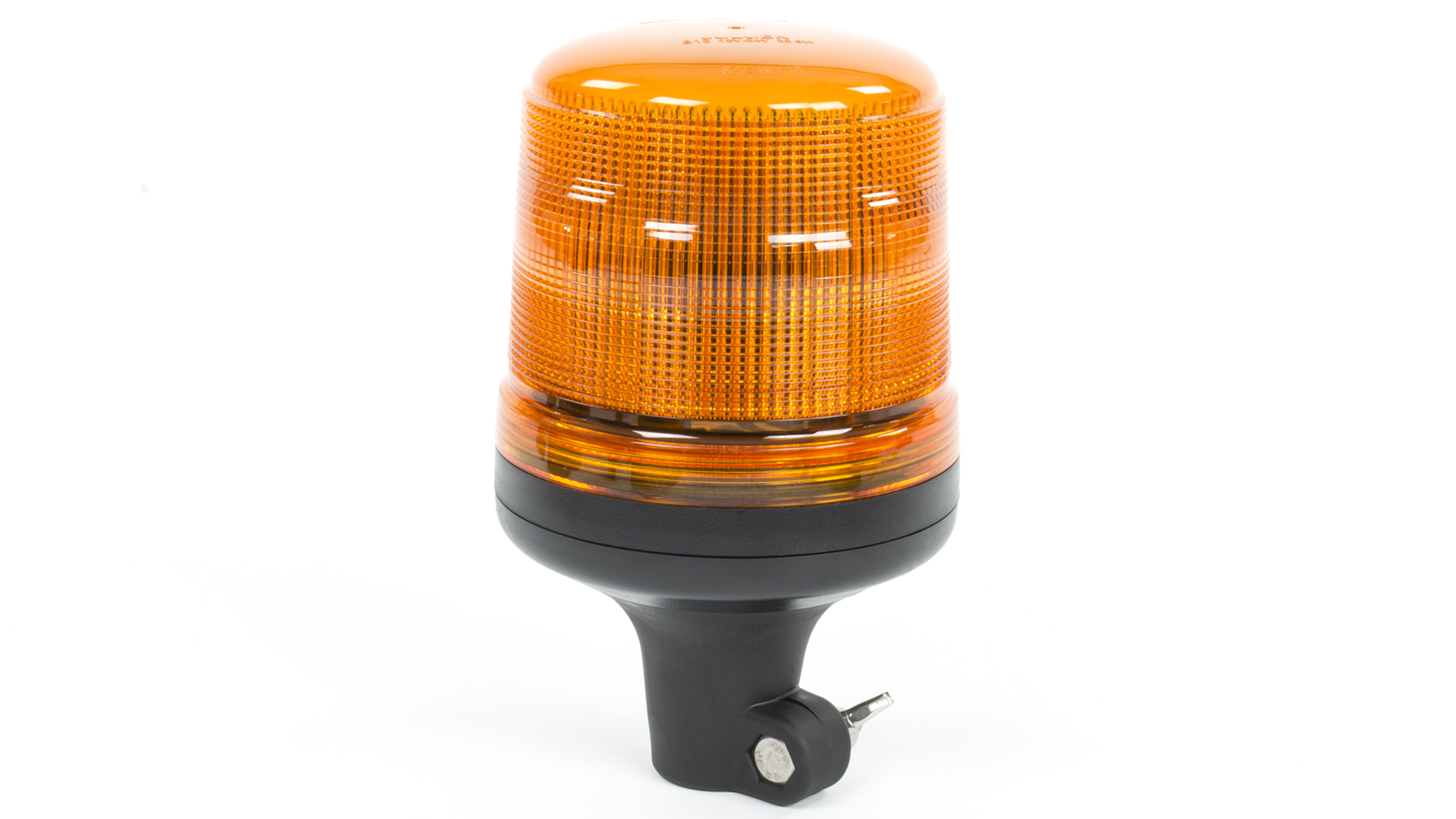

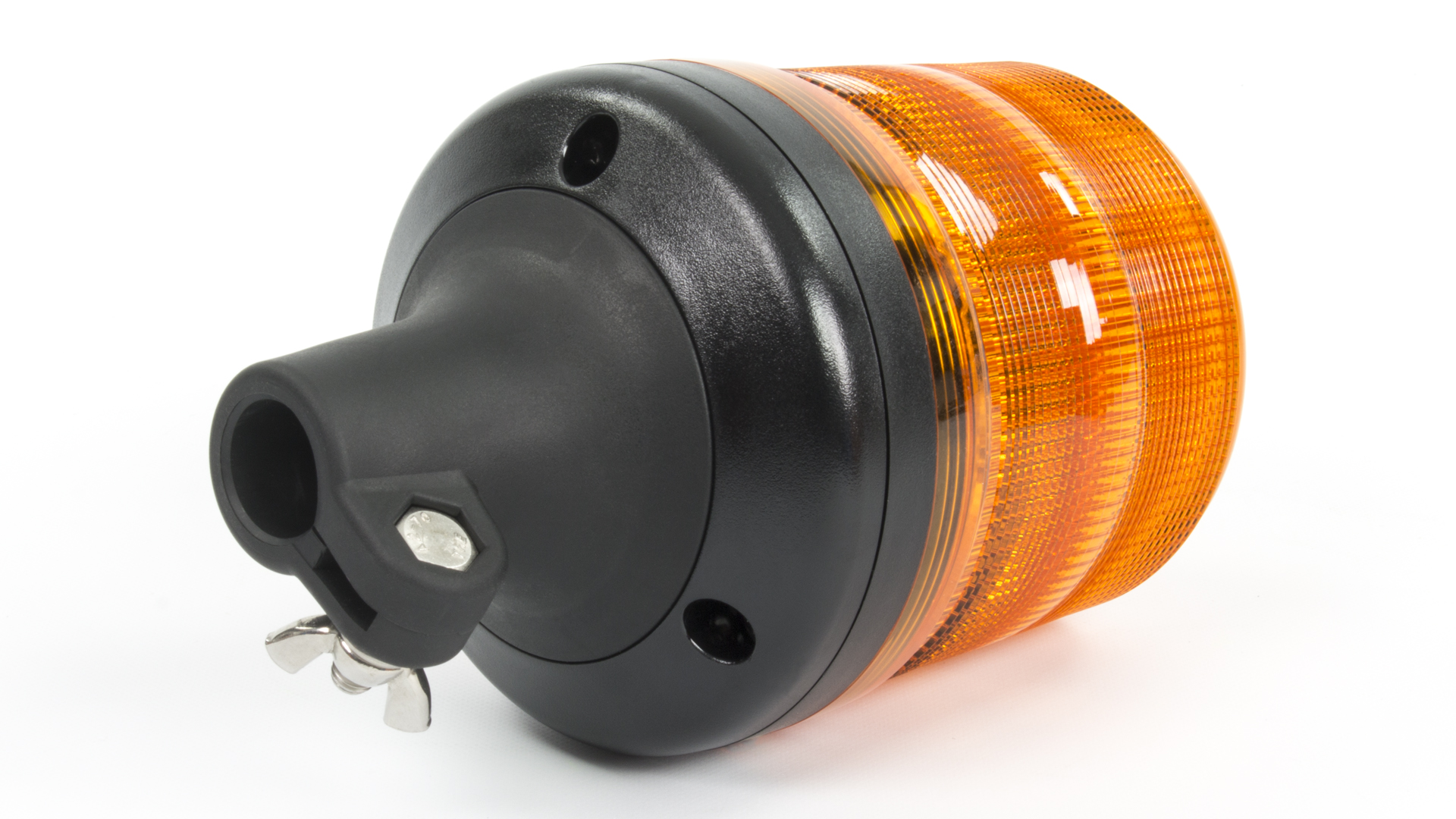

Product code 05180066 Product Name B18 Beacon - AA (DIN Pole Mount) Categories Warning Lamps, Beacons, B18 Beacons Product Type Products Dimensions Height 194mm Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 1.86A@12VDC / 0.93A@24VDC Operating Temperature -30°C~+65°C Maximum Power 22.3W Diameter ⌀118mm LED Colour Amber LEDs Fuse Rating 3A Lens Colour Amber Lens Compliance ECE-R10, ECE-R65 (TA1), SAE J845 Class 1 Input Voltage 12VDC~24VDC Mounting Option DIN Pole Mount LED Quantity 15x LEDs IP Rating IPX6 Flash Patterns 11 Flash Patterns Warranty 3 Year Warranty -
