Specifications
Dual Colour design for various application and field.
Each warning colour may select its destine flash pattern.
Newly designed optic with powerful and even light output.
Non-volatile memory recalls last flash pattern used at power up.
Weatherproof and vibration resistant design.
Reverse polarity protection.Product Specifications

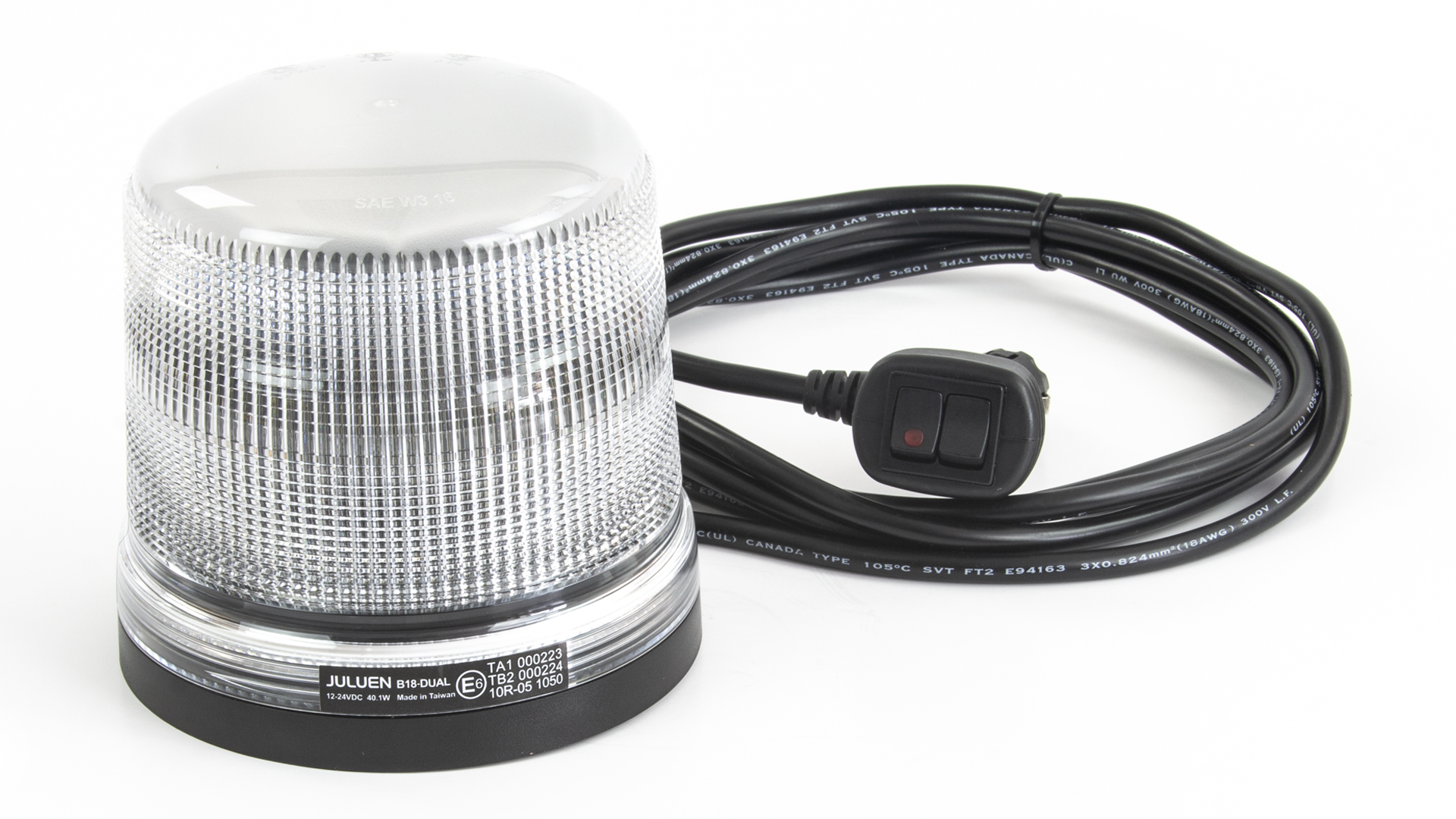

Product code 05180202 Product Name B18 Beacon DC - AB (Magnetic/Standard/Internal - Straight) Categories Warning Lamps, Beacons, B18 Beacons Product Type Products Dimensions Height 115.8mm (4.56") Colour Type Dual Colour Storage Temperature -40°C - +75°C Maximum Current 3.34A@12VDC / 1.67A@24VDC Operating Temperature -30°C~+65°C Maximum Power 40.1W Connection Type Cigar Plug (Latching & Momentary Switch) Diameter ⌀118mm (4.65") LED Colour Amber LEDs, Blue LEDs Fuse Rating 5A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TA1), ECE-R65 (TB2), SAE J845 Class 1 Input Voltage 12VDC~24VDC Mounting Option Magnetic Mount Cable Type Cable (Straight) LED Quantity 30x LEDs IP Rating IPX5 Flash Patterns 16 Flash Patterns Wire Length 3000mm Gross Weight 0.7kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 3 Year Warranty -
