Specifications
Non-volatile flash pattern memory.
ECE R10 EMC electromagnetic compatibility.
Newly design LED optic certified ECE R65 rotating beacon.
Weatherproof and shockproof capability for all environment.
Reverse polarity protection.
100,000 hours rated LED.Product Specifications

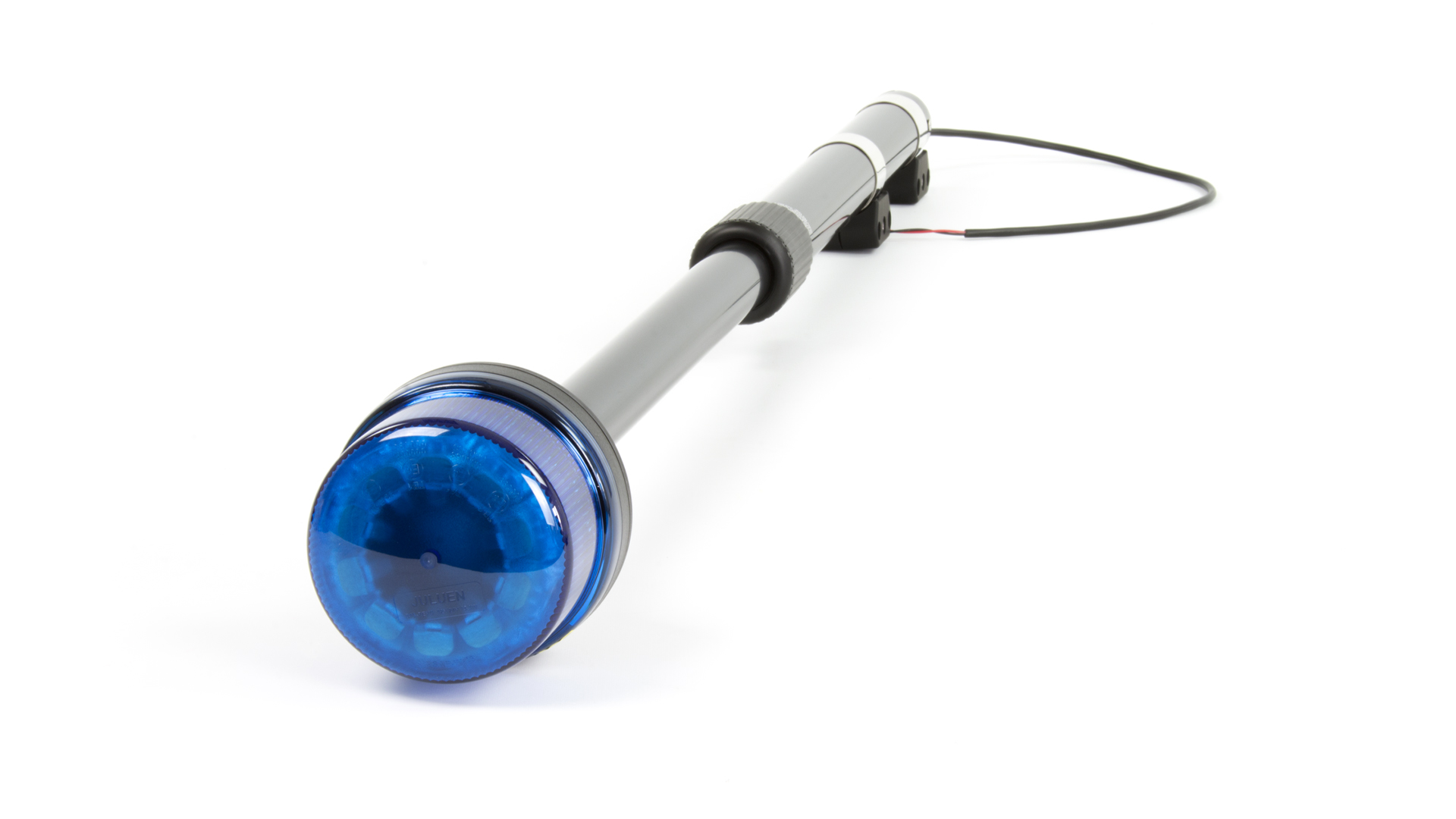

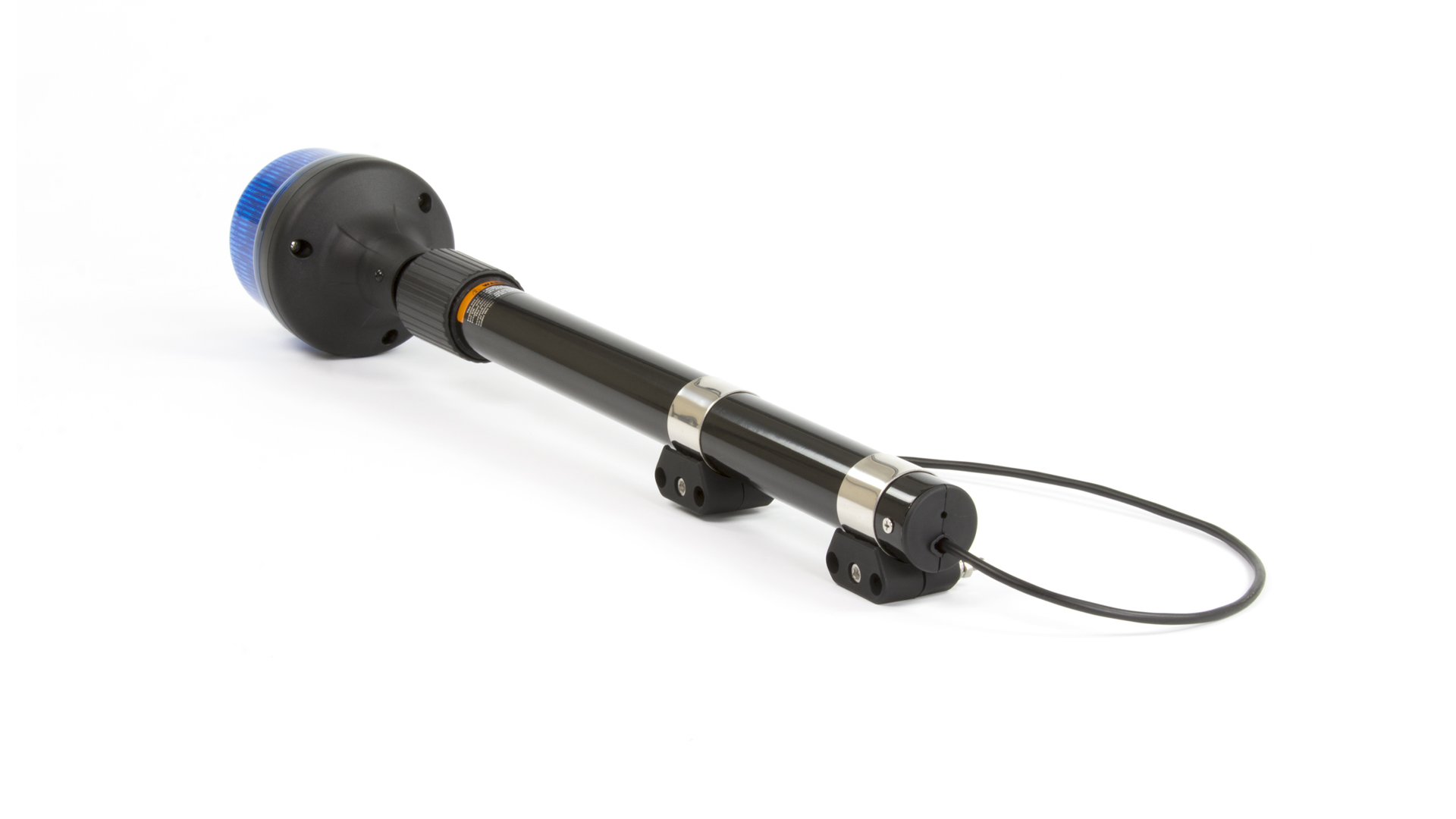

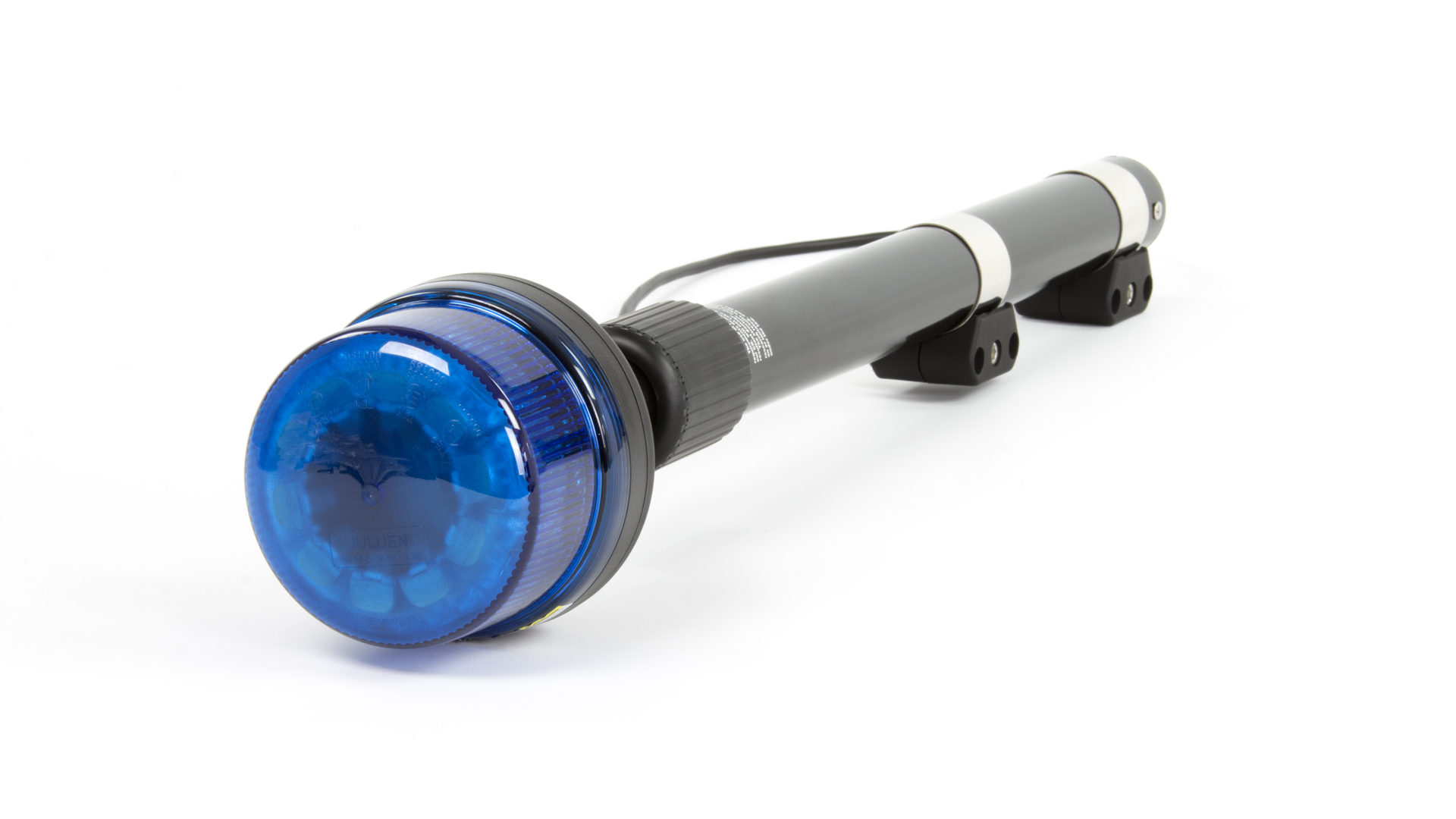

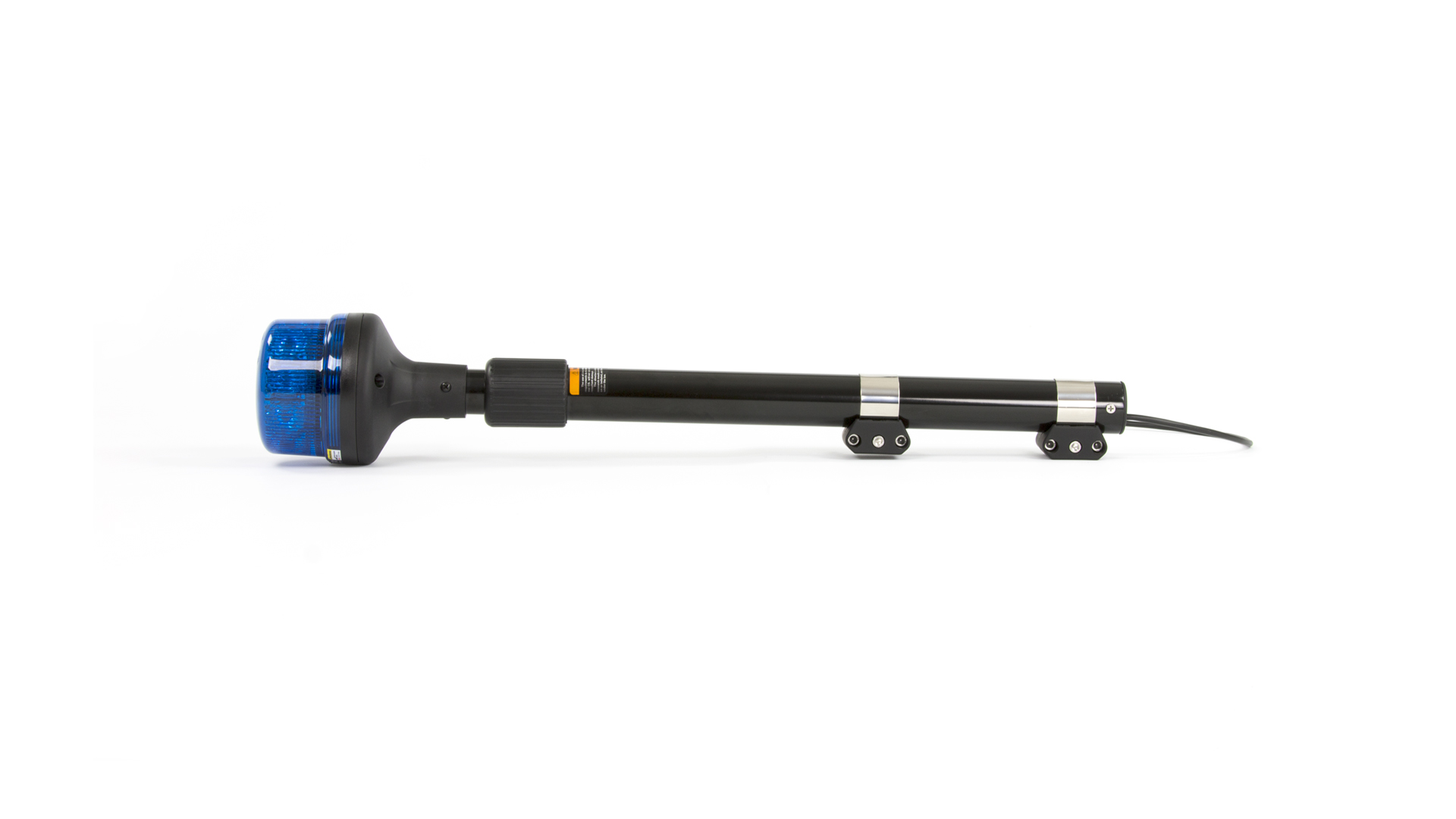

Product code 05200535 Product Name B16 Revo Beacon - BB (Telescopic Pole Mount) Categories Warning Lamps, Beacons, B16 Revo, B16 Beacons Product Type Products Dimensions Height 676.8mm (26.64") ~ 1070mm (42.12") Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 1.28A@12VDC / 0.64A@24VDC Operating Temperature -30°C~+65°C Maximum Power 15.3W Diameter ⌀118mm (4.65") LED Colour Blue LEDs Fuse Rating 3A Lens Colour Blue Lens Compliance ECE-R10, ECE-R65 (TB1) Input Voltage 12VDC~24VDC Mounting Option Telescopic Pole Mount LED Quantity 10x LEDs IP Rating IPX6 Flash Patterns 1 Flash Pattern Gross Weight 2.5kg Warranty 5 Year Warranty -
