Specifications
Non-volatile flash pattern memory.
ECE R10 EMC electromagnetic compatibility.
Newly design LED optic certified ECE R65 rotating beacon.
Weatherproof and shockproof capability for all environment.
Reverse polarity protection.
100,000 hour rated LED.Product Specifications

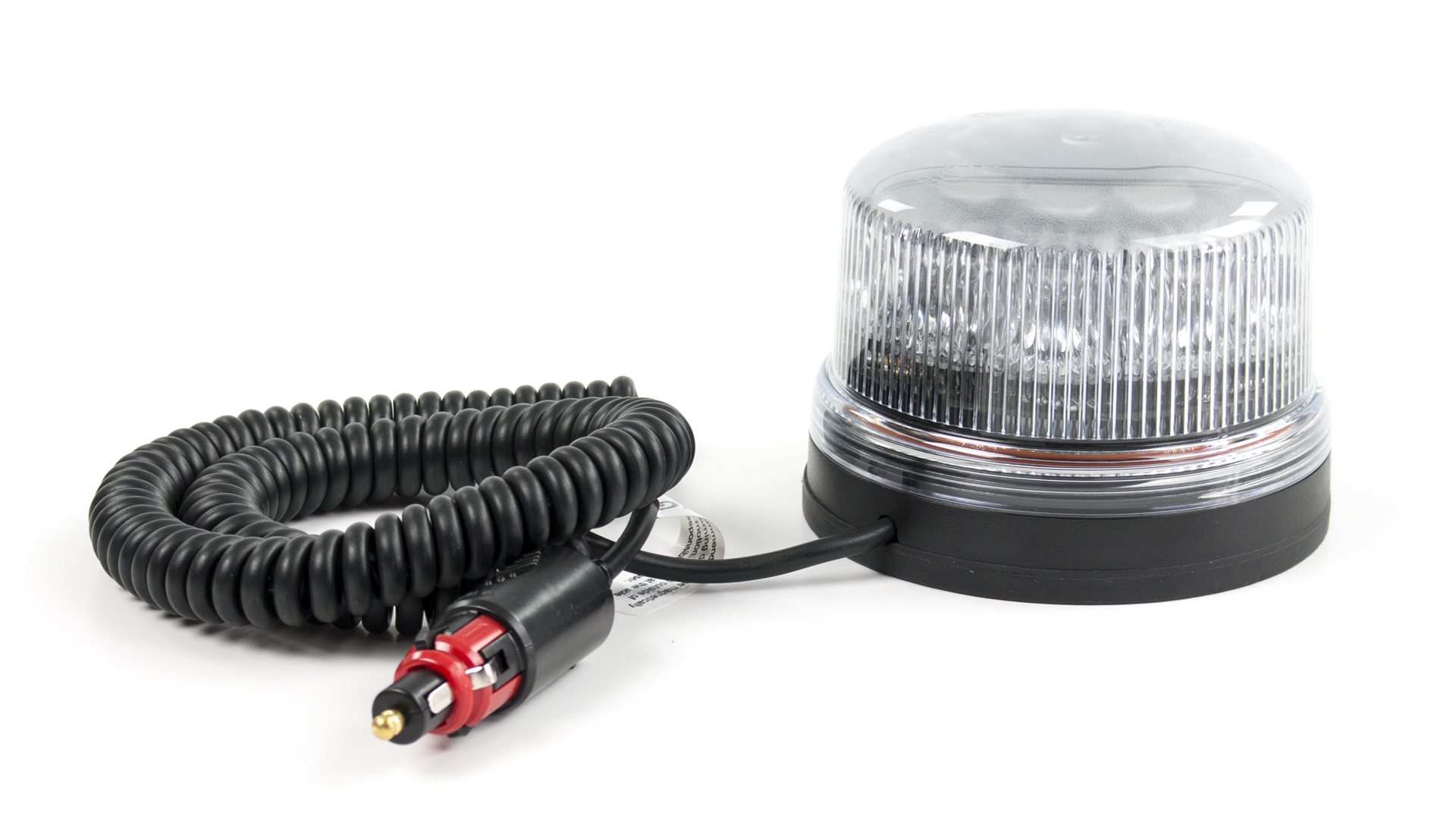

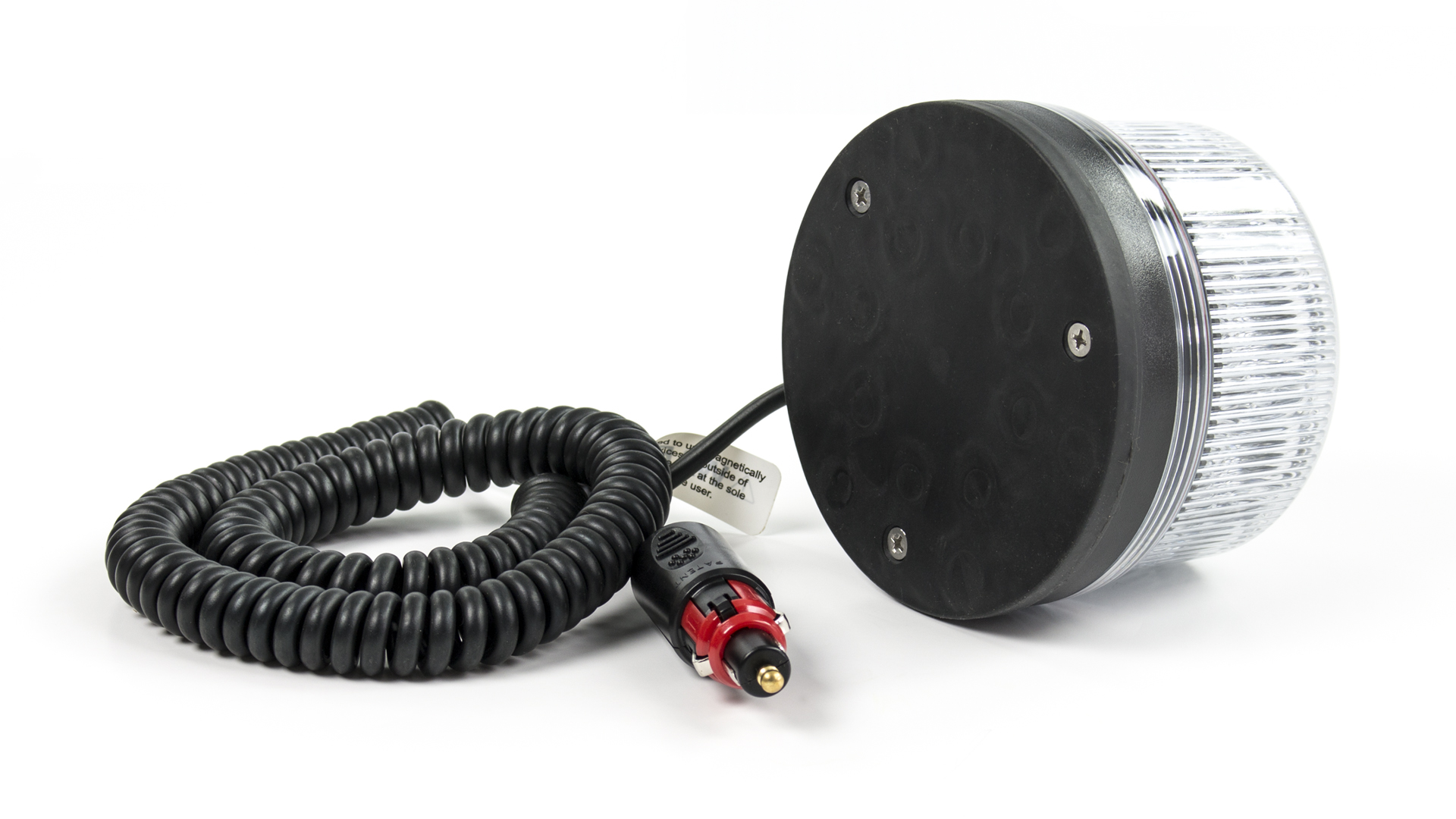

Product code 05200498 Product Name B16 Revo Beacon - AC (Magnetic/Power/External - Coil) Categories Lighting, Beacons, B16 Revo, B16 Beacons Product Type Products Dimensions Height 88mm Colour Type Single Colour Maximum Current 1.28A@12VDC / 0.64A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 15.3W Connection Type Cigar Plug Diameter ⌀118mm LED Colour Amber LEDs Fuse Rating 3A Lens Colour Clear Lens Compliance ECE R10 Nominal Voltage 12-24VDC Mounting Option Magnetic Mount Cable Type Cable (Coiled) LED Quantity 10x LEDs IP Rating IP6K6, IP6K6K Flash Patterns 1 Flash Pattern Warranty 5 Year Warranty -
