Specifications
Non-volatile flash pattern memory.
ECE R10 EMC electromagnetic compatibility.
Newly design LED optic certified ECE R65 rotating beacon.
Weatherproof and shockproof capability for all environment.
Reverse polarity protection.
100,000 hour rated LEDProduct Specifications

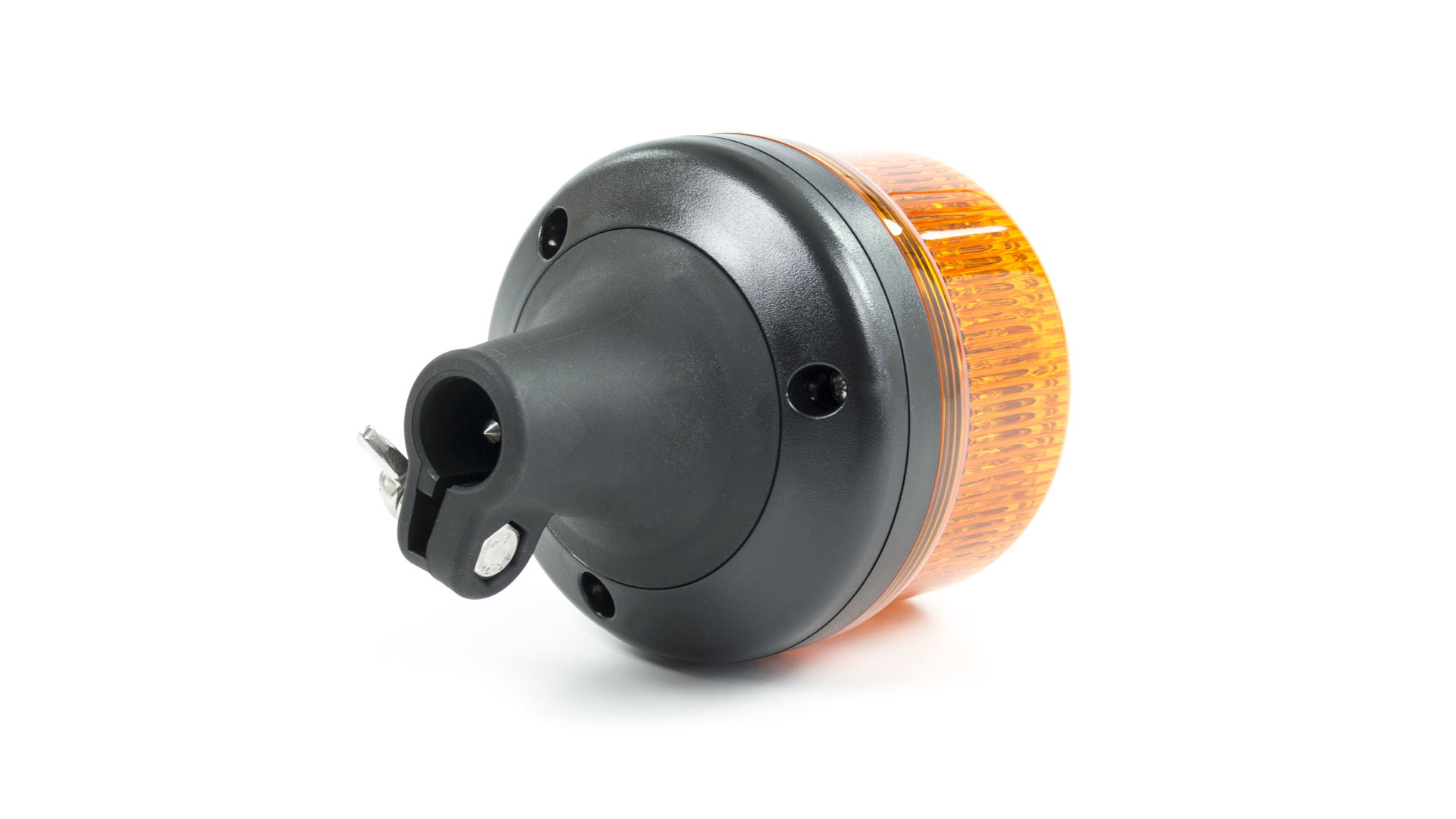

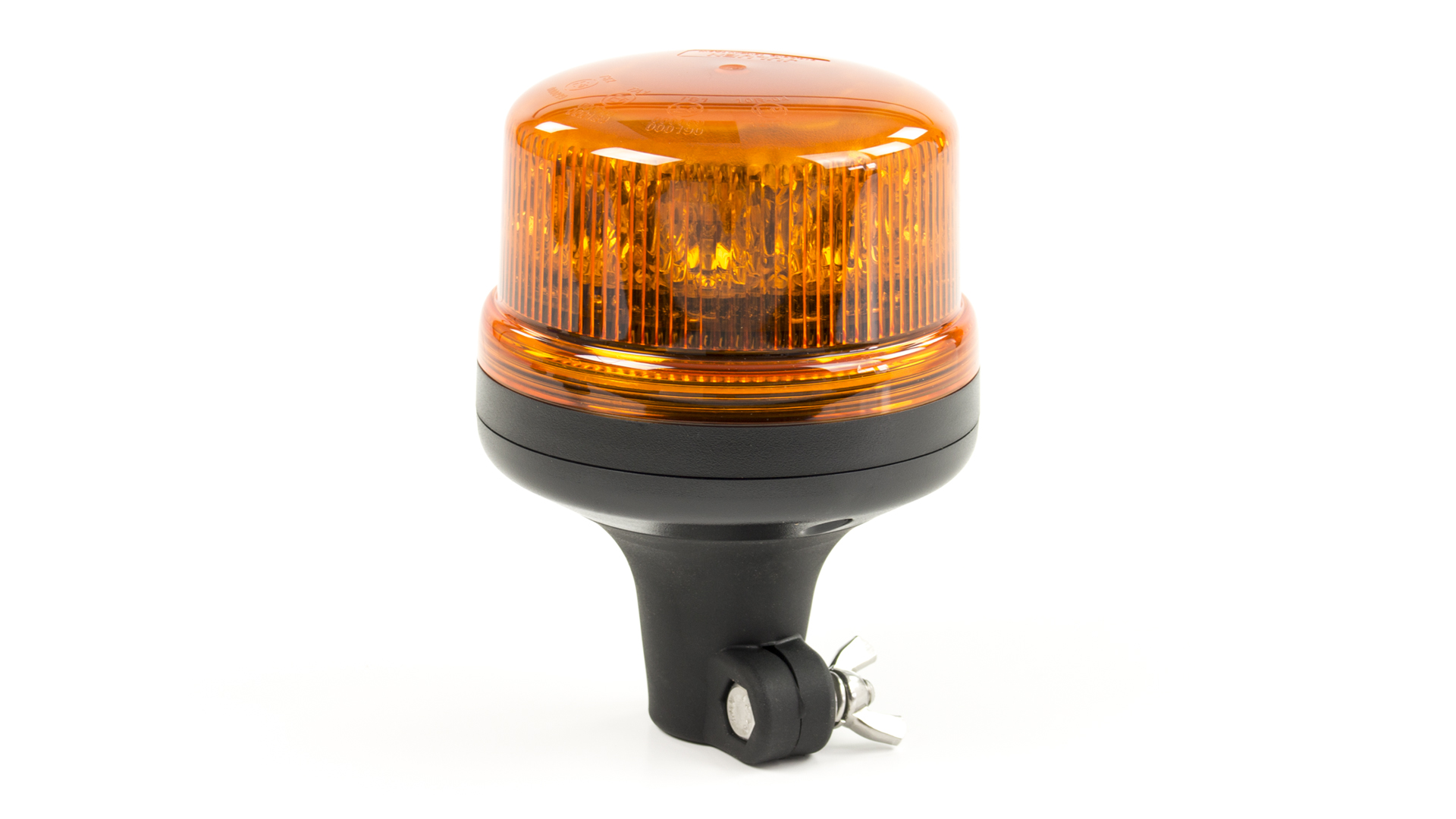

Product code 05200313 Product Name B16 Revo Beacon - AA (DIN Pole Mount) Categories Warning Lamps, Beacons, B16 Revo, B16 Beacons Product Type Products Dimensions Height 158mm Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 1.28A@12VDC / 0.64A@24VDC Operating Temperature -30°C~+65°C Maximum Power 15.3W Diameter ⌀118mm LED Colour Amber LEDs Fuse Rating 3A Lens Colour Amber Lens Compliance ECE-R10, ECE-R65 (TA1) Input Voltage 12VDC~24VDC Mounting Option DIN Pole Mount LED Quantity 10x LEDs IP Rating IP6K6, IP6K6K Flash Patterns 1 Flash Pattern Warranty 5 Year Warranty -
