Specifications
100,000 hour rated long-life LED.
11~110VDC Multi-voltage operation.
Weatherproof and shockproof capability for any environment.
Non-volatile flash pattern memory.
Reverse polarity protection.Product Specifications

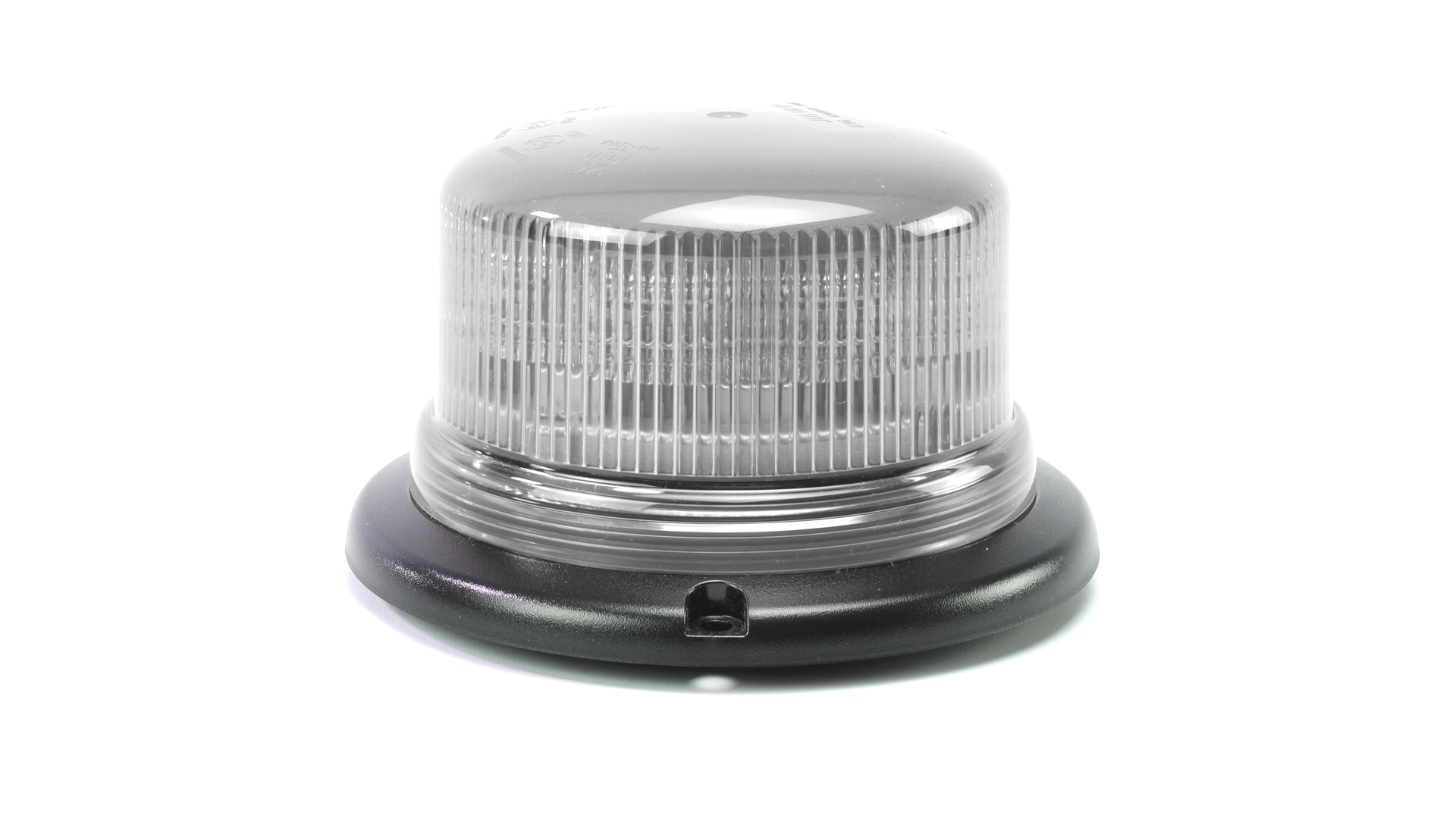

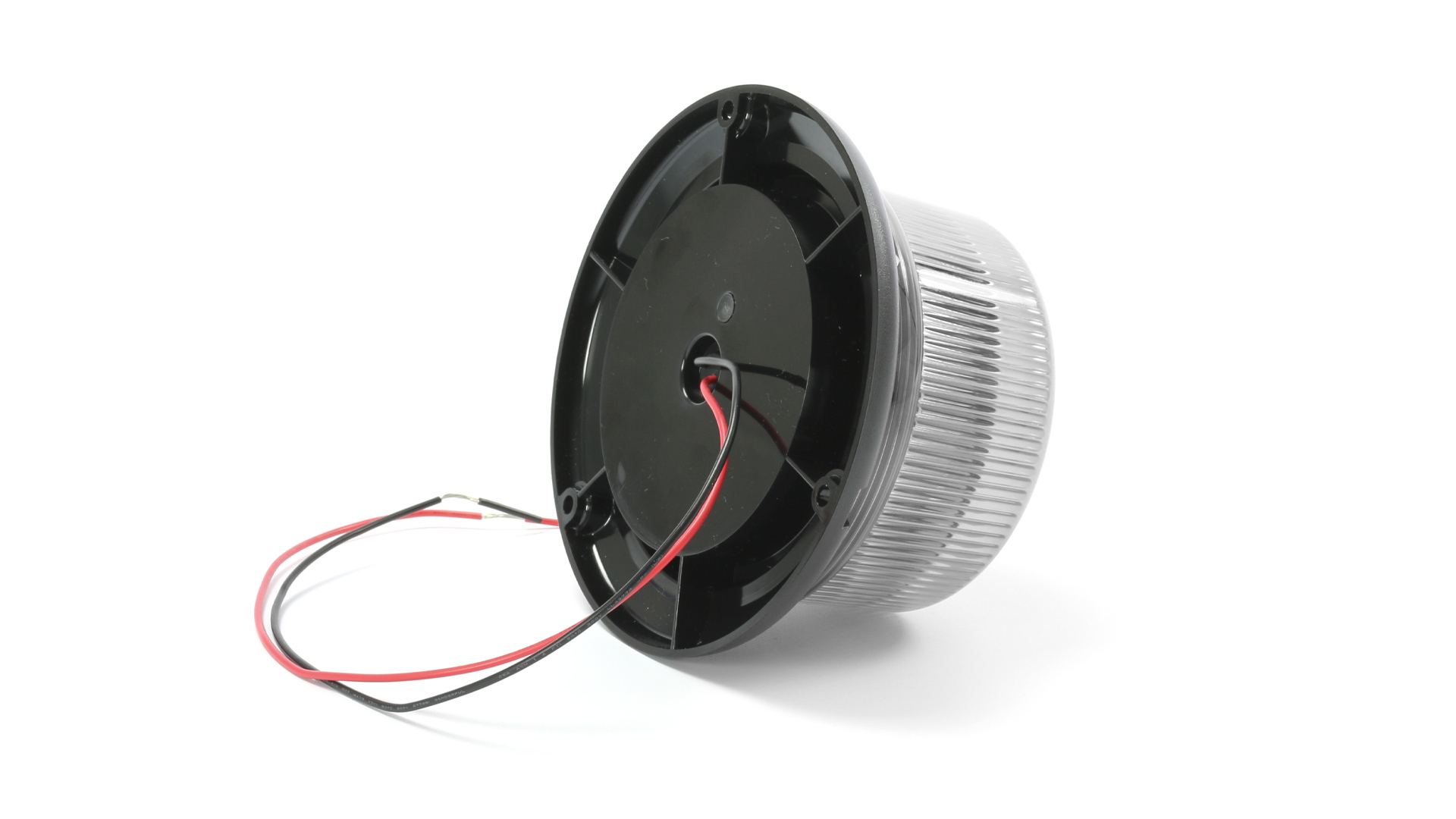

Product code 05200511 Product Name B16 LITE Beacon - RC (3-Bolt Mount) Categories Warning Lamps, Beacons, B16 Lite, B16 Beacons Product Type Products Dimensions Height 80mm (3.15") Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 0.47A Operating Temperature -30°C~+65°C Diameter ⌀142mm (5.59") LED Colour Red LEDs Fuse Rating 1A Lens Colour Clear Lens Compliance ECE-R10, SAE J845 Class 2 Input Voltage 11VDC~110VDC Mounting Option 3-Bolt Mount Cable Type Cable (Pigtail) LED Quantity 3x LEDs IP Rating IP6K6, IP6K6K Flash Patterns 5 Flash Patterns Wire Length 400mm Gross Weight 0.6kg Conductor Cross-Section 0.75mm² (18AWG) Warranty 3 Year Warranty -
Spare Parts
-
-
Mounting
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- Circular 2 Hole Mounting Flange
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- 2 Hole Horizontal Mounting Plate
-
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- Clamping Flange
-
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- 2 Hole Vertical Mounting Plate
-
-
-
-
-
-
