Specifications
100,000 hours rated long-life LED.
Low profile design with only 80mm in height.
Certified powerful ECE R65 performance in all colour.
Weatherproof and shockproof capability for all environment.
Multi-units synchronisation in simultaneous or alternating flash.
Non-volatile flash pattern memory.
Reverse polarity protection.Product Specifications

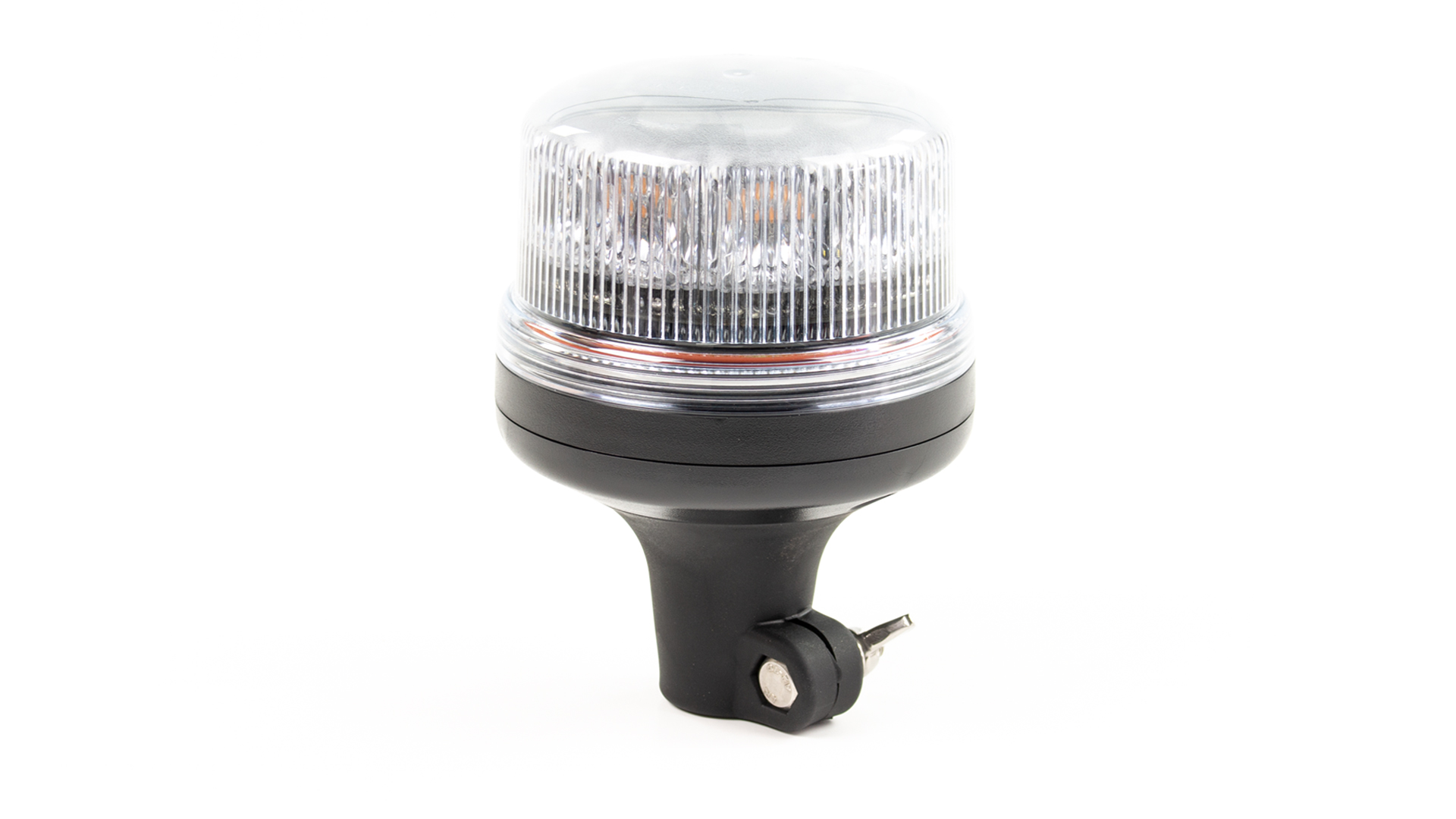

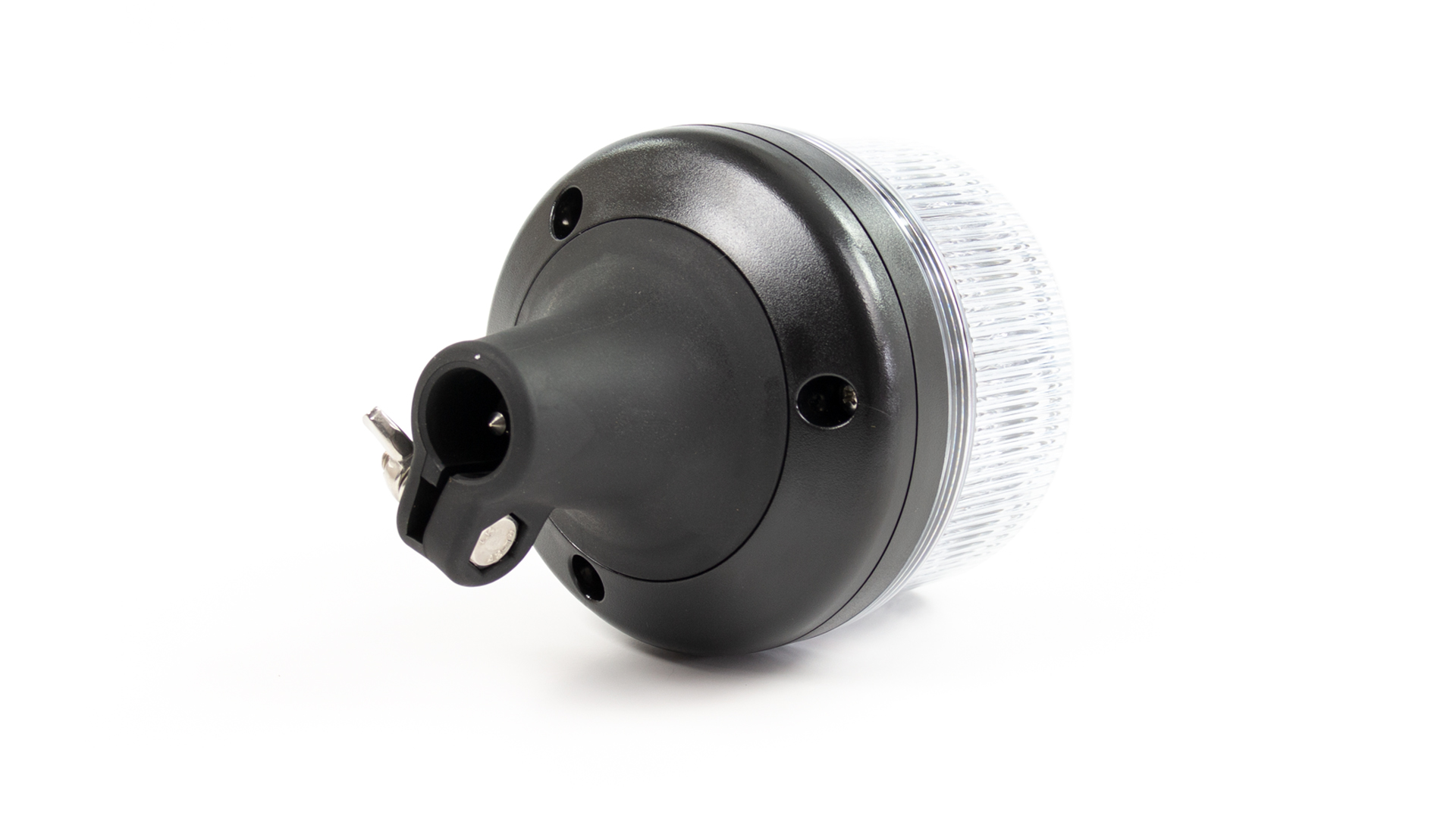

Product code 05200580 Product Name B16 Beacon - AC DIN Pole Mount) Categories Lighting, B16 Standard, Beacons, B16 Beacons Product Type Products Dimensions Height 158mm Colour Type Single Colour Maximum Current 2.4A@12VDC / 1.3A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 30W Synchronisation 15 Unit Sync Diameter ⌀118mm LED Colour Amber LEDs Fuse Rating 5A Lens Colour Clear Lens Compliance ECE R10, SAE J845 Class 1, California Title 13 Input Voltage 12VDC~24VDC Mounting Option DIN Pole Mount LED Quantity 8x LEDs IP Rating IP6K6, IP6K6K Flash Patterns 11 Flash Patterns Warranty 5 Year Warranty -
Spare Parts
-
-
Mounting
-
- Downloads
