Specifications
100,000 hours rated long-life LED.
Low profile design with only 80mm in height.
Certified powerful ECE R65 performance in all colour.
Weatherproof and shockproof capability for all environment.
Multi-units synchronisation in simultaneous or alternating flash.
Non-volatile flash pattern memory.
Reverse polarity protection.Product Specifications

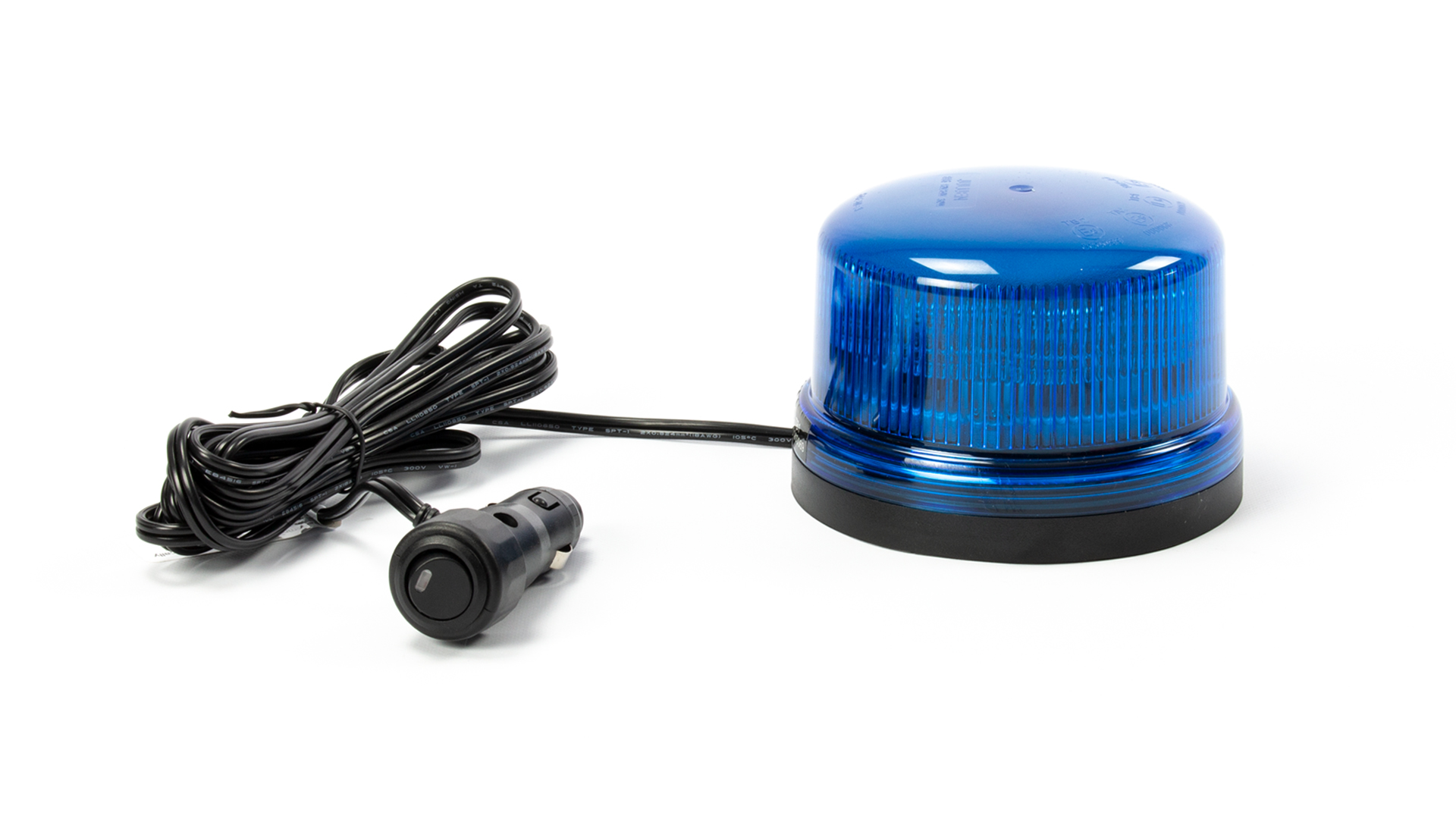

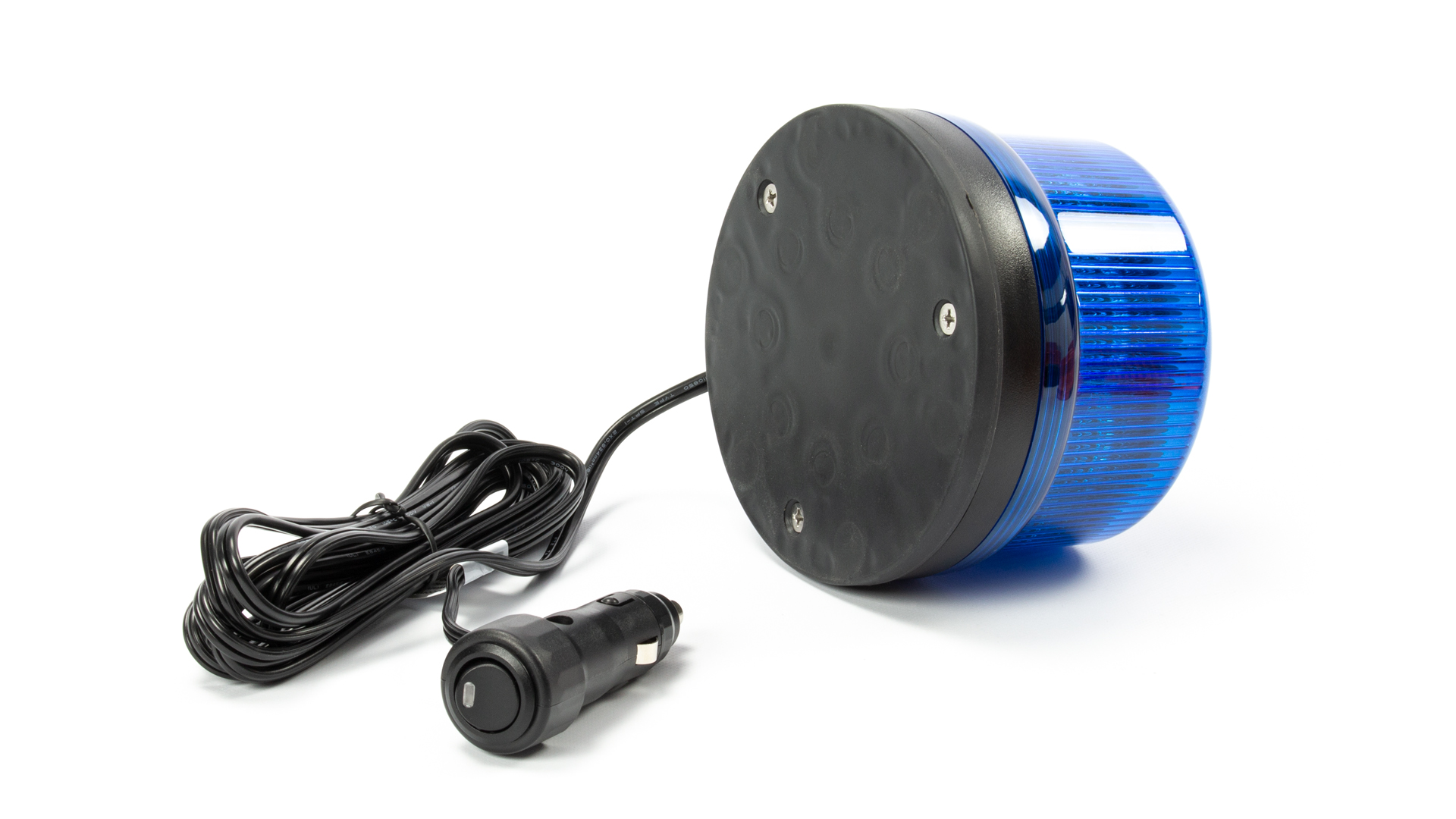

Product code 05200252 Product Name B16 Beacon - BB (Magnetic/Power/External - Straight) Categories Warning Lamps, B16 Standard, Beacons, B16 Beacons Product Type Products Dimensions Height 88mm (3.46") Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 2.4A@12VDC / 1.3A@24VDC Operating Temperature -30°C~+65°C Maximum Power 30W Synchronisation 15 Unit Sync Connection Type Cigar Plug (Latching Switch) Diameter ⌀118mm (4.65") LED Colour Blue LEDs Fuse Rating 5A Lens Colour Blue Lens Compliance ECE-R10, ECE-R65 (TB1), SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Mounting Option Magnetic Mount Cable Type Cable (Straight) LED Quantity 8x LEDs IP Rating IP6K6, IP6K6K Flash Patterns 11 Flash Patterns Wire Length 3000mm Gross Weight 1.16kg Warranty 5 Year Warranty -
