Specifications
Multi-voltage input 12-24VDC.
LEDs rated to 100,000 hours of operation.
Non-volatile memory recalls last flash pattern used at power up.
Multiple units are synchronizable and can flash simultaneously or alternately.
Weatherproof and vibration resistant for external or internal use.
Reverse polarity protection.Product Specifications

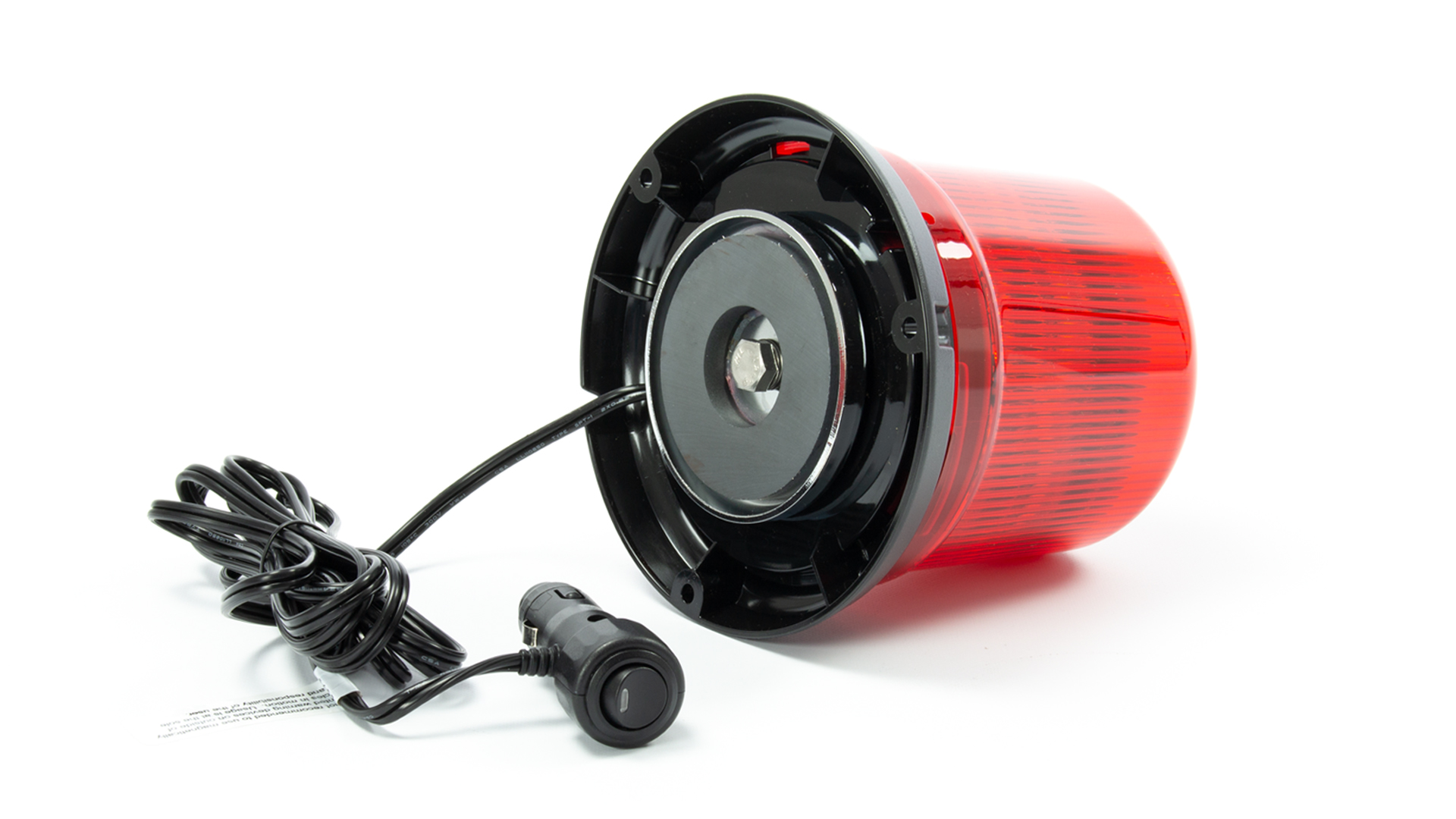

Product code 05190225 Product Name B14 Beacon - RR (Magnetic/Standard/Internal - Straight) Categories Warning Lamps, Beacons, B14 Beacons Product Type Products Dimensions Height 128mm (5.04") Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 3.3A@12VDC / 1.75A@24VDC Operating Temperature -30°C~+65°C Maximum Power 42W Synchronisation 4 Unit Sync Connection Type Cigar Plug (Latching Switch) Diameter ⌀142mm (5.59") LED Colour Red LEDs Fuse Rating 5A Lens Colour Red Lens Compliance ECE-R10, ECE-R65 (TR1), SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Mounting Option Magnetic Mount Cable Type Cable (Straight) LED Quantity 10x LEDs IP Rating IPX5 Flash Patterns 14 Flash Patterns Wire Length 3000mm Gross Weight 1.25kg Warranty 5 Year Warranty -
