Specifications
Multi-voltage input 12-24VDC.
LEDs rated to 100,000 hours of operation.
Non-volatile memory recalls last flash pattern used at power up.
Multiple units are synchronizable and can flash simultaneously or alternately.
Weatherproof and vibration resistant for external or internal use.
Reverse polarity protection.Product Specifications

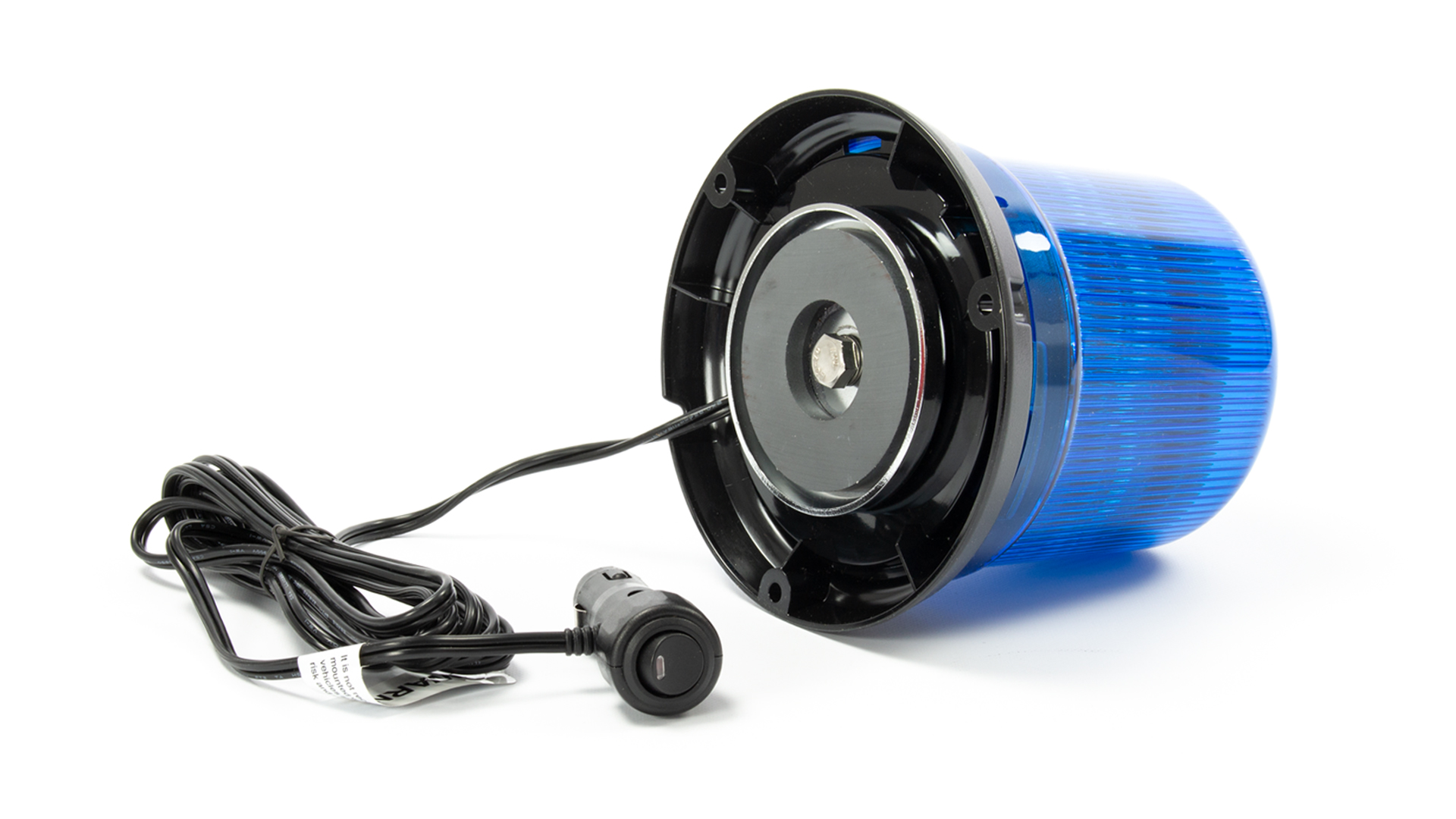

Product code 05190140 Product Name B14 Beacon - BB (Magnetic/Standard/Internal - Straight) Categories Warning Lamps, Beacons, B14 Beacons Product Type Products Dimensions Height 128mm (5.04") Colour Type Single Colour Maximum Current 3.3A@12VDC / 1.75A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 42W Synchronisation 4 Unit Sync Connection Type Cigar Plug (Latching Switch) Diameter ⌀142mm (5.59") LED Colour Blue LEDs Fuse Rating 5A Lens Colour Blue Lens (Dark) Compliance ECE-R10, ECE-R65 (TB1), SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Mounting Option Magnetic Mount Cable Type Cable (Straight) LED Quantity 10x LEDs Flash Patterns 14 Flash Patterns IP Rating IPX5 Wire Length 3000mm Gross Weight 1.25kg Warranty 5 Year Warranty -
Spare Parts
-
-
Mounting
-
- Acrylonitrile Styrene Acrylate (ASA)
- ⌀142mm (5.59")
- 3-Bolt Mount
- Black
-
- Rubber, Steel
- DIN Pole Mount
- Circular 2 Hole Mounting Flange
-
- Rubber, Steel
- DIN Pole Mount
- 2 Hole Horizontal Mounting Plate
-
-
-
-
- Rubber, Steel
- DIN Pole Mount
- 2 Hole Vertical Mounting Plate
-
-
-
-
-
- Downloads
